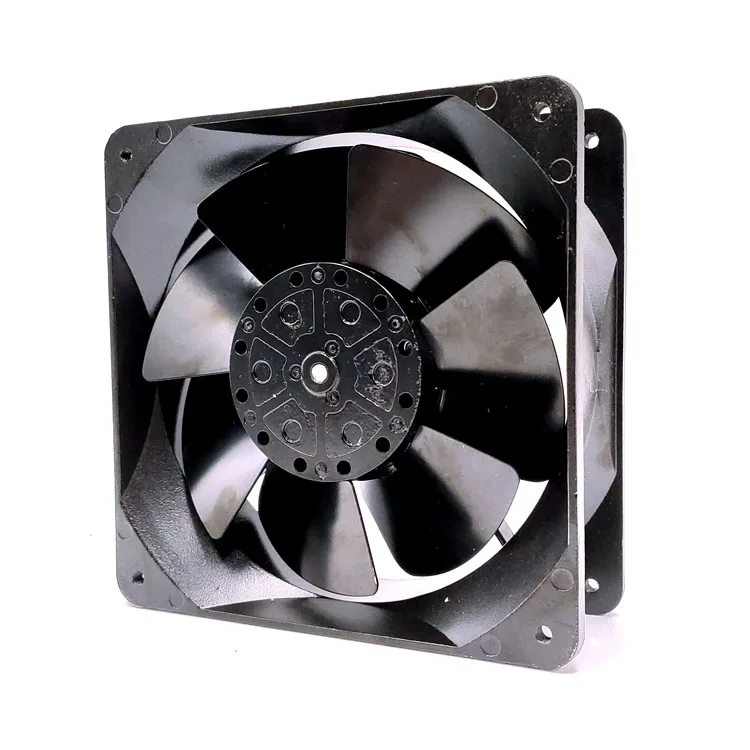

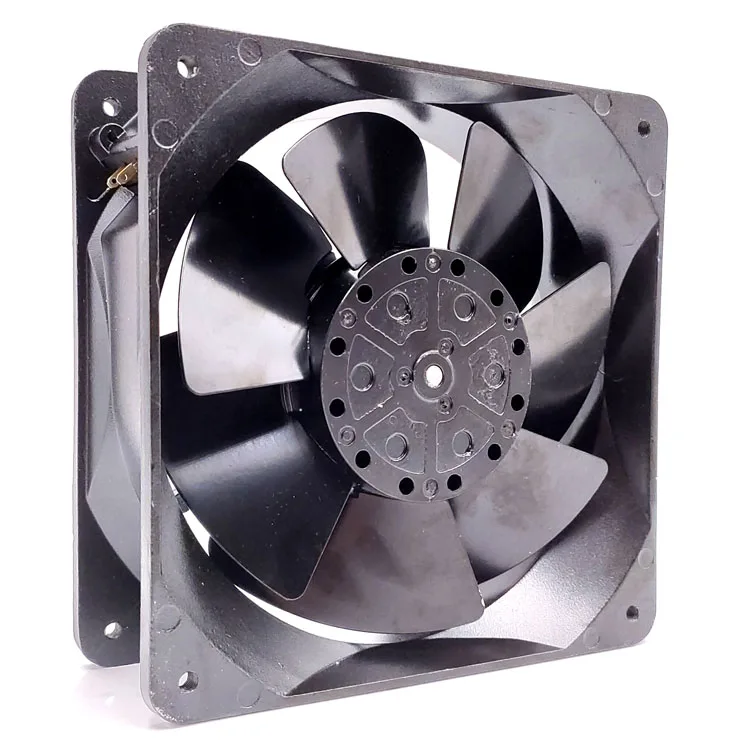

16 cm square metal frame fan with black finish, 55 mm deep

SXDOOL

SXDOOL u6500g1-tp 16cm AC 220-230V 40W case fan

SKU CH-3MH5-HSJ6Z MPN u6500g1-tp

16 cm AC 220-230 V case fan with double ball bearings, metal frame and 40 W power for industrial cabinet cooling

  • TypeCase Fan
  • 16 cm frame fits standard chassis
  • AC 220-230 V supply runs from mains
  • Double ball bearing extends service life
  • 40 W motor delivers strong airflow
  • 50 dB-A rating keeps noise moderate

Product Identity

The SXDOOL u6500g1-tp is a 16cm AC case fan designed for industrial cabinets and enclosures. It operates directly from 220 to 230V mains supply at 50 or 60Hz and draws 40W of power. The frame uses a plastic-sprayed aluminium shell with plastic-sprayed iron blades and copper-pin terminals.

Suitability

This fan suits installers who need a mains-voltage cooling unit with a double ball bearing for continuous high-temperature operation. It is not for builders who require a low-voltage DC fan, a standard motherboard header connector, or a lower noise level than the rated 50 dB-A.

Deciding Specification

The critical specification is the AC 220 to 230V input voltage. The fan cannot be powered from a PC power supply or motherboard header and must be wired into a suitable mains circuit with appropriate safety protection.

Highlights

  • 16 cm frame fits standard chassis
  • AC 220-230 V supply runs from mains
  • Double ball bearing extends service life
  • 40 W motor delivers strong airflow
  • 50 dB-A rating keeps noise moderate

Specifications

TypeCase Fan

Questions about this item

How can I confirm the u6500g1-tp fan is running correctly after installation?

Listen for steady airflow and verify the 50 dB-A noise level matches the spec; the double ball bearing should run smoothly without rattling.

What comes with the u6500g1-tp and what must I source separately?

The fan unit with its copper-pin socket is included; a compatible AC 220-230 V power lead and mounting screws for the 160 mm frame are not supplied.

Which voltage version of the u6500g1-tp should I choose for a UK mains supply?

Select the AC 220-230 V model rated at 40 W; the 100 V variant is intended for a different mains standard.
