Synology Inc.
Synology Inc. DS1823XS+ 8-Bay Desktop NAS
Eight-bay desktop NAS with AMD Ryzen V1780, 8 GB DDR4 ECC memory, one PCIe 3.0 x4 slot, and 144 TB raw capacity
- TypeDesktop NAS
- PCIe1 x 8 width slot, Gen 3.0 x4 lanes Supports network interfac
- HDD Interface8 x SATA (8 x Bay)
- Form Factor8-Bay
- ProcessorAMD Ryzen V1780
- Installed Memory8 GB DDR4 ECC SODIMM (expandable up to 32 GB)
Form Factor 8-Bay
- 6-Bay
- 8-Bay
- 12-Bay
Struck-through versions exist but are not stocked here.
Option DS1823XS+
- DS2422+
- DS1621+
- DS1823XS+
- DS3622xs+
Struck-through versions exist but are not stocked here.
- Powerful AMD Ryzen V1780 processor delivers over 3,100 MB/s sequential read throughput
- 8 GB DDR4 ECC memory expandable to 32 GB protects data integrity under heavy workloads
- Eight SATA drive bays scale to 144 TB raw capacity before adding expansion units

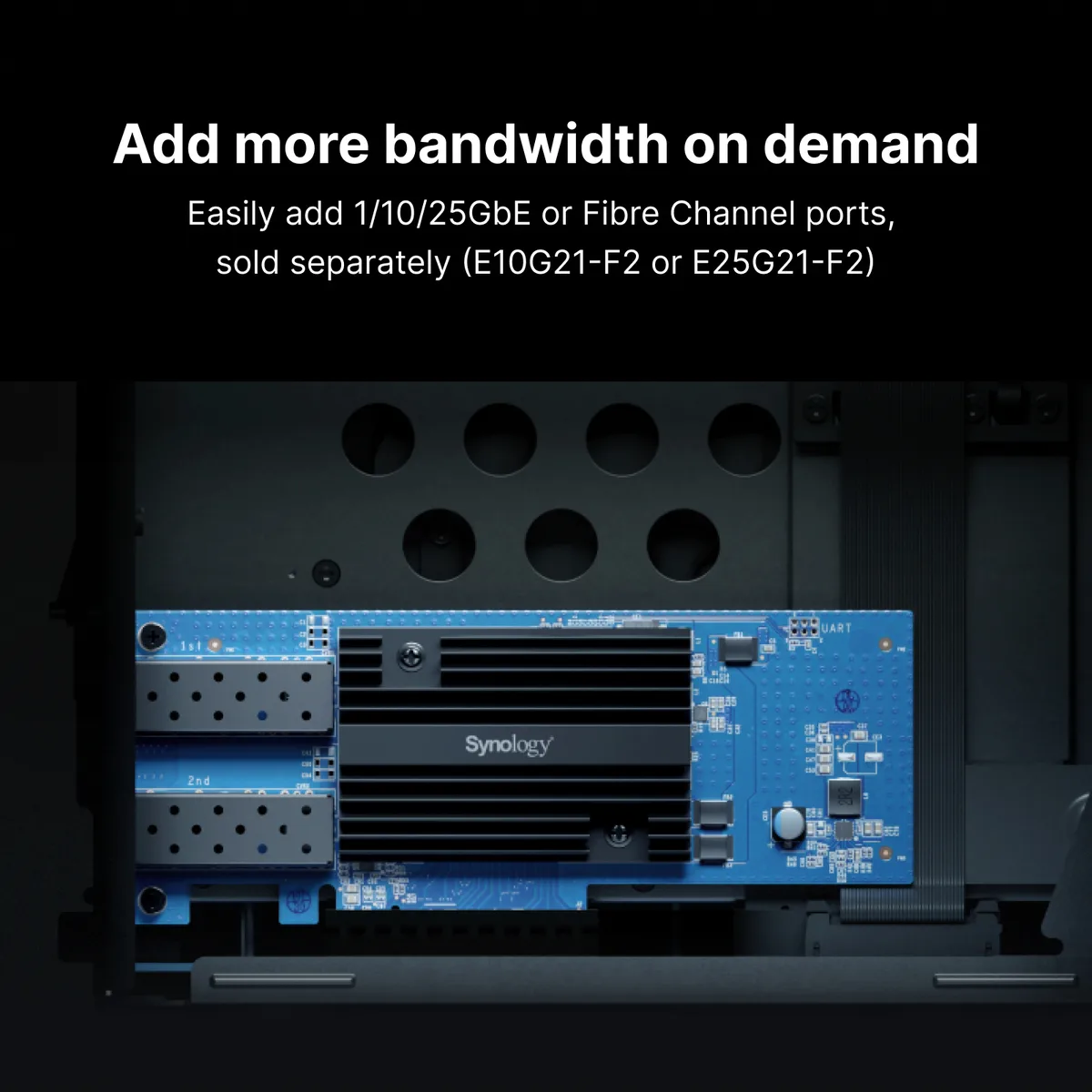

- One PCIe 3.0 x4 slot enables 25 GbE or Fibre Channel connectivity when needed
- Btrfs file system with metadata mirroring and snapshots prevents silent data corruption
Eight-bay desktop NAS for business workloads

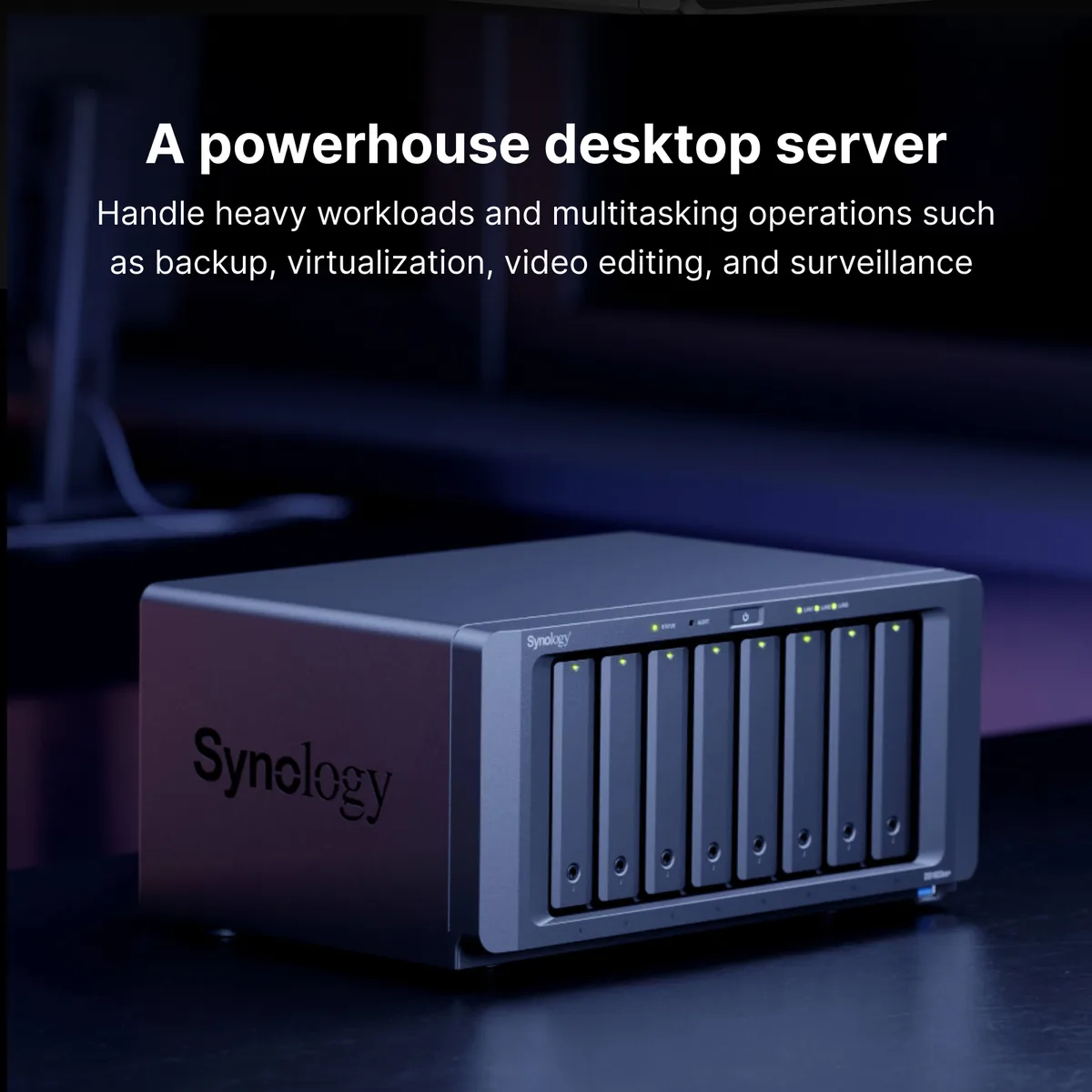

The Synology DS1823XS+ is an eight-bay desktop NAS built around an AMD Ryzen V1780 processor with 8 GB of DDR4 ECC SODIMM memory expandable to 32 GB. It targets small and medium businesses that need a private data centre on a desk for file sharing, backup, virtual machine storage and surveillance management. The unit ships diskless and supports up to 144 TB of raw capacity before expansion.
Verify drive and expansion compatibility first

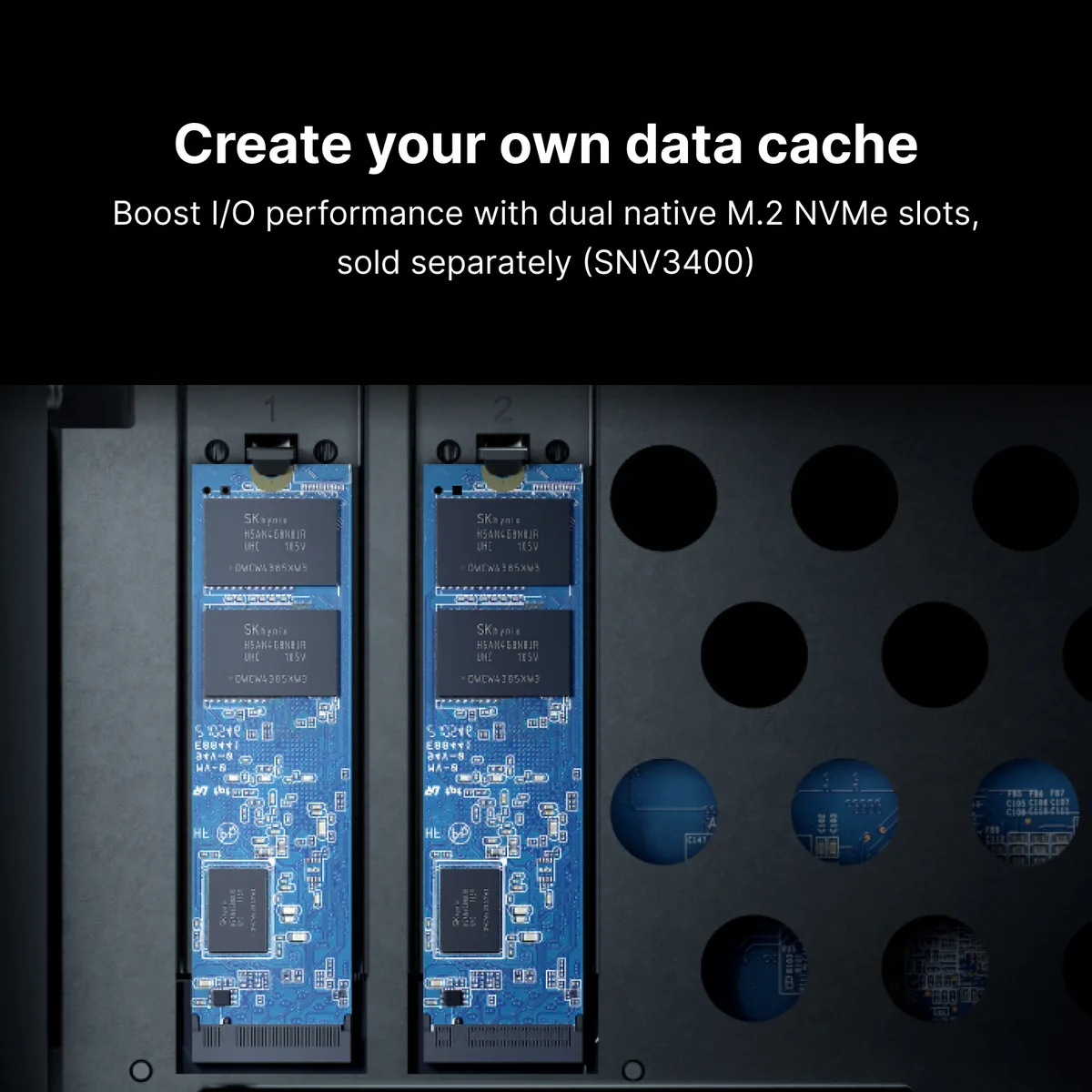

Before ordering, confirm you will populate the bays with Synology 3.5" SATA HDDs or 2.5" SATA SSDs, plus up to two Synology M.2 2280 NVMe SSDs for cache. The single PCIe Gen 3.0 x4 slot accepts compatible network cards, and up to two DX517 expansion units can be attached later to reach 18 bays and 324 TB total. The system requires 100 V to 240 V AC power and an operating environment between 0°C and 40°C with 8% to 80% relative humidity.
Sustained throughput and IOPS under load
In extended operation the DS1823XS+ delivers over 3,100 MB/s sequential read and 2,600 MB/s sequential write with more than 173,100 random read IOPS and 80,800 random write IOPS. Power draw settles at 87.93 W during access and drops to 28.37 W when drives hibernate, so thermal output remains stable during long backup windows or continuous VM workloads. ECC memory and the Btrfs file system provide ongoing data integrity protection throughout heavy use.
Highlights
- Powerful AMD Ryzen V1780 processor delivers over 3,100 MB/s sequential read throughput
- 8 GB DDR4 ECC memory expandable to 32 GB protects data integrity under heavy workloads
- Eight SATA drive bays scale to 144 TB raw capacity before adding expansion units
- One PCIe 3.0 x4 slot enables 25 GbE or Fibre Channel connectivity when needed
- Btrfs file system with metadata mirroring and snapshots prevents silent data corruption
Specifications
| Brand | Synology |
|---|---|
| Model | DS1823XS+ |
| Type | Desktop NAS |
| PCIe | 1 x 8 width slot, Gen 3.0 x4 lanes Supports network interface cards6 |
| HDD Interface | 8 x SATA (8 x Bay) |
| Form Factor | 8-Bay |
| Processor | AMD Ryzen V1780 |
| Installed Memory | 8 GB DDR4 ECC SODIMM (expandable up to 32 GB) |
| Max Memory Capacity | 32GB |
| Memory Slot | 2 x DDR4 SODIMM |
| Included HDD Capacity | Diskless System |
| Max Capacity | 144TB |
| RAID | Synology RAID F1, Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10 |
| Drive Compatibility | • 8 x 3.5" Synology SATA HDD or 2.5" Synology SATA SSD (drives not included) • 2 x Synology M.2 2280 NVMe SSD (drives not included) • Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability10 |
| Supported Protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN™, L2TP) |
| Power | 100 V to 240 V AC |
| Power Consumption | 87.93 W (Access) 28.37 W (HDD Hibernation) |
| Temperature | Operating environment : Temperature: 0°C to 40°C (32°F to 104°F) Storage environment : Temperature: -20°C to 60°C (-5°F to 140°F) |
| Humidity | Operating environment : Relative humidity: 8% to 80% RH Storage environment : Relative humidity: 5% to 95% RH |
| Features | Safe, dependable, and scalable Built-in data integrity protection, remote management options, and easy hardware expansion make the DS1823xs+ dependable, easy to maintain, and cost efficient. Data integrity protection The Btrfs file system helps prevent data corruption and loss through metadata mirroring, file self-healing, and efficient point-in-time snapshots. ECC memory provides additional integrity safeguards. Efficient remote management Monitor, manage, and replace drives and storage online in Synology DiskStation Manager (DSM). Remotely reboot, reset, or view logs while the syst |
| Usage | Backup & stream media through personal cloud |
| Dimensions | 17.32" x 13.39" x 11.06" |
| Weight | 16.53 lbs |
| Package Contents | • 1 x DS1823xs+ main unit • 1 x Quick Installation Guide • 1 x Accessory pack • 1 x AC power cord • 2 x RJ-45 LAN cable |
| Shipping weight | 8.10 kg |
| Package size | 452 × 358 × 305 mm |
Questions about this item
What does the DS1823XS+ ship with and what must I purchase separately?
The unit arrives diskless with 8 GB of DDR4 ECC SODIMM installed and a 100 V to 240 V AC power supply. You must buy up to eight 3.5" Synology SATA HDDs or 2.5" Synology SATA SSDs for the drive bays, and optionally two Synology M.2 2280 NVMe SSDs for cache slots.
Which memory configuration should I choose for this model?
The NAS includes 8 GB of DDR4 ECC SODIMM across two slots and supports a maximum of 32 GB. Add one or two matching DDR4 ECC SODIMM modules if your workloads — such as virtual machines or heavy database use — need more than the factory amount.
What do the quoted 3,100 and 2,600 MB/s sequential speeds mean in daily use?
Those figures represent peak sequential read and write throughput measured under ideal conditions. Real-world transfer rates will be lower and depend on the RAID type chosen, the specific Synology drives installed, network congestion, and whether SSD cache is configured.
