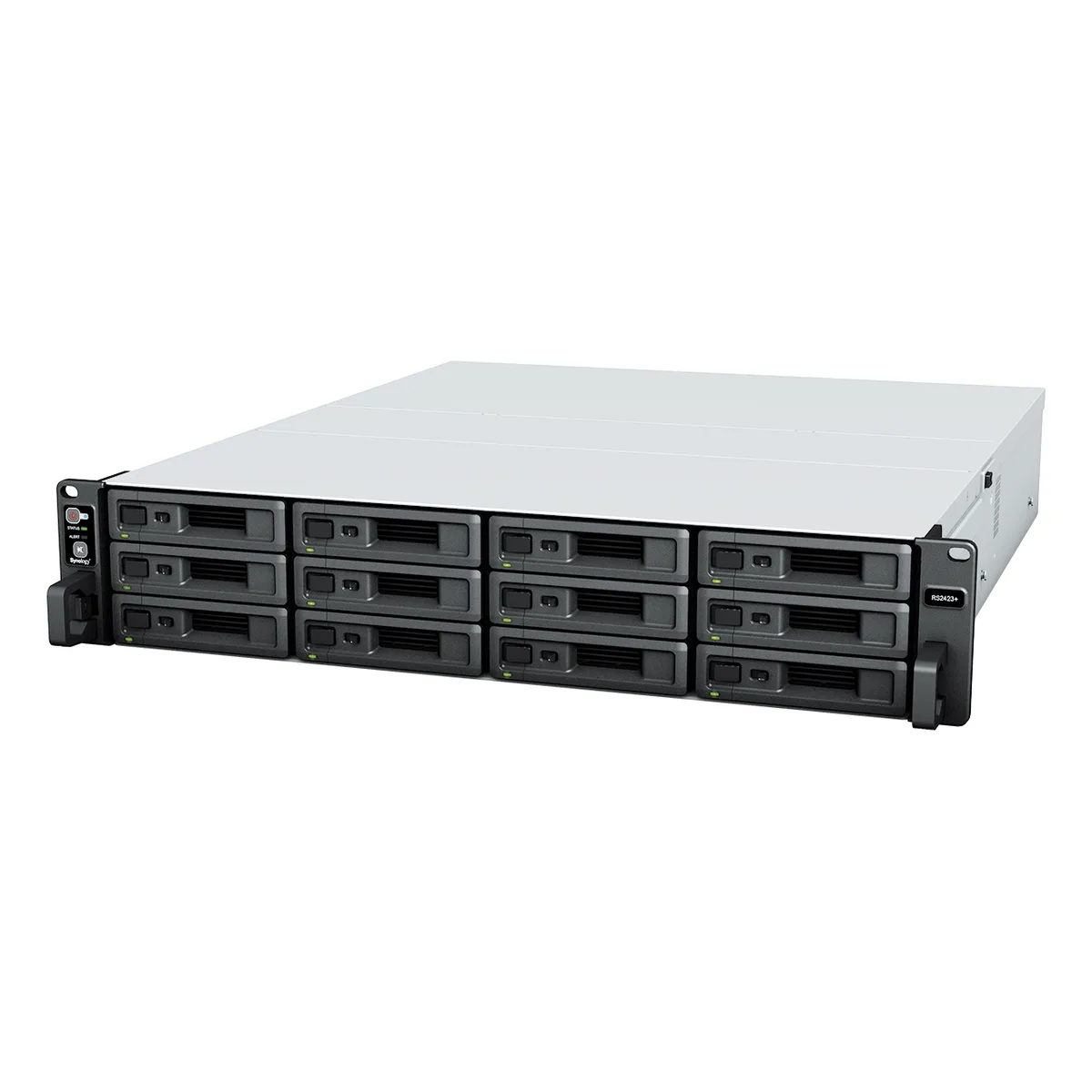

Silver 2U rackmount chassis with twelve front drive bays and LED indicators

Synology Inc.

Synology Inc. RS2423+ 12-Bay Rackmount NAS 8 GB DDR4

SKU CH-AHTR-P8DC3 MPN RS2423+

Diskless 12-bay rackmount NAS with AMD Ryzen processor, 8 GB DDR4 ECC memory, built-in 10GbE and expandable to 24 drives

  • Port RJ-451 x 10GbE + 2 x 1GbE
  • Port USB• 2 x USB 3.2 Gen 1 ports • 1 x Expansion port (Mini-SAS HD)
  • HDD Interface12 x SATA (12 x Bay)
  • PCIe• 1 x 8 width slot, Gen 3.0 x4 lanes • Supports network inte
  • Form Factor12-Bay
  • ProcessorAMD Ryzen V1780B

Form Factor 12-Bays

Option RS2423+

  • 12-bay density fits 192 TB raw capacity
  • AMD Ryzen V1780B with 8 GB DDR4 ECC expandable to 32 GB
  • Built-in 10GbE plus dual 1GbE with link aggregation
  • PCIe 3.0 x4 slot adds 10/25GbE or NVMe cache
  • Synology Hybrid RAID plus RAID 0/1/5/6/10 and High Availability cluster support

12-Bay Rackmount NAS for SMBs

The Synology RS2423+ is a 2U diskless enclosure built for small to medium businesses and branch offices that need centralised file management. It delivers high read and write performance with RAID and supports up to 24 drives through expansion. The AMD Ryzen V1780B processor and 8 GB DDR4 ECC memory handle demanding workloads.

12 x SATA drive bays with Synology drive requirement

Twelve 3.5-inch or 2.5-inch SATA bays provide raw capacity up to 192 TB. Synology only guarantees full functionality, reliability and performance with drives listed on its compatibility list. Using non-validated drives may limit features or stability. The single PCIe 3.0 x4 slot accepts network or M.2 SSD adapter cards for cache.

Sustained throughput with ECC memory and 10GbE

Sequential throughput reaches over 3,500 MB/s read and 1,700 MB/s write, while random IOPS exceed 155K read and 79K write. ECC UDIMM memory protects data integrity during long operations. Dual RJ-45 1GbE ports and one 10GbE port support Link Aggregation for failover and load balancing under continuous load. Power draw is 119.95 W in access and 46.21 W in hibernation.

Highlights

  • 12-bay density fits 192 TB raw capacity
  • AMD Ryzen V1780B with 8 GB DDR4 ECC expandable to 32 GB
  • Built-in 10GbE plus dual 1GbE with link aggregation
  • PCIe 3.0 x4 slot adds 10/25GbE or NVMe cache
  • Synology Hybrid RAID plus RAID 0/1/5/6/10 and High Availability cluster support

Specifications

BrandSynology
Port RJ-451 x 10GbE + 2 x 1GbE
Port USB• 2 x USB 3.2 Gen 1 ports
• 1 x Expansion port (Mini-SAS HD)
HDD Interface12 x SATA (12 x Bay)
PCIe• 1 x 8 width slot, Gen 3.0 x4 lanes
• Supports network interface cards, M.2 SSD adapter cards, and combo cards5
Form Factor12-Bay
ProcessorAMD Ryzen V1780B
Installed Memory8 GB DDR4 ECC UDIMM (expandable up to 32 GB)
Max Memory Capacity32GB
Memory Slot2 x DDR4 SODIMM
Included HDD CapacityDiskless System
Max Capacity192TB
Drive Compatibility•12 x 3.5" Synology SATA HDD or 2.5" Synology SATA SSD (drives not included)
• Synology only guarantees full functionality, reliability, and performance for Synology
drives listed on the compatibility list. The use of non-validated components may limit
certain functionality and result in data loss and system instability10
RAIDSynology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, and RAID 10
Supported ProtocolsSMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP,
OpenVPN™, L2TP)
Power100 V to 240 V AC
Power Consumption119.95 W (Access) 46.21 W (HDD Hibernation)
UsageHigh read/write performance with RAID
Temperature• Temperature: 0°C to 35°C (32°F to 95°F)
• Temperature: -20°C to 60°C (-5°F to 140°F)
Humidity• Relative humidity: 8% to 80% RH
• Relative humidity: 5% to 95% RH
Dimensions27.56" x 21.85" x 7.99"
Weight31.28lbs
Package Contents• 1 x RS2423+ main unit
• 1 x Quick Installation Guide
• 1 x Accessory pack
• 1 x AC power cord (RS2423+)
Shipping weight14.87 kg
Package size726 × 578 × 249 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What real-world sequential throughput does the 3500 MB/s figure deliver inside the RS2423+?

The system reaches over 3500 MB/s sequential read and 1700 MB/s sequential write with a suitable drive configuration.

How does the PCIe 3.0 x4 slot constrain a 10 GbE or 25 GbE add-in card?

The Gen 3.0 x4 lane slot provides up to 32 Gb/s of raw bandwidth so a 25 GbE NIC can run at line rate without bottleneck.

What drive sizes and rack depth does the 12-bay 2U chassis require?

It accepts twelve 3.5-inch or 2.5-inch SATA drives in a standard 2U rackmount form factor.
