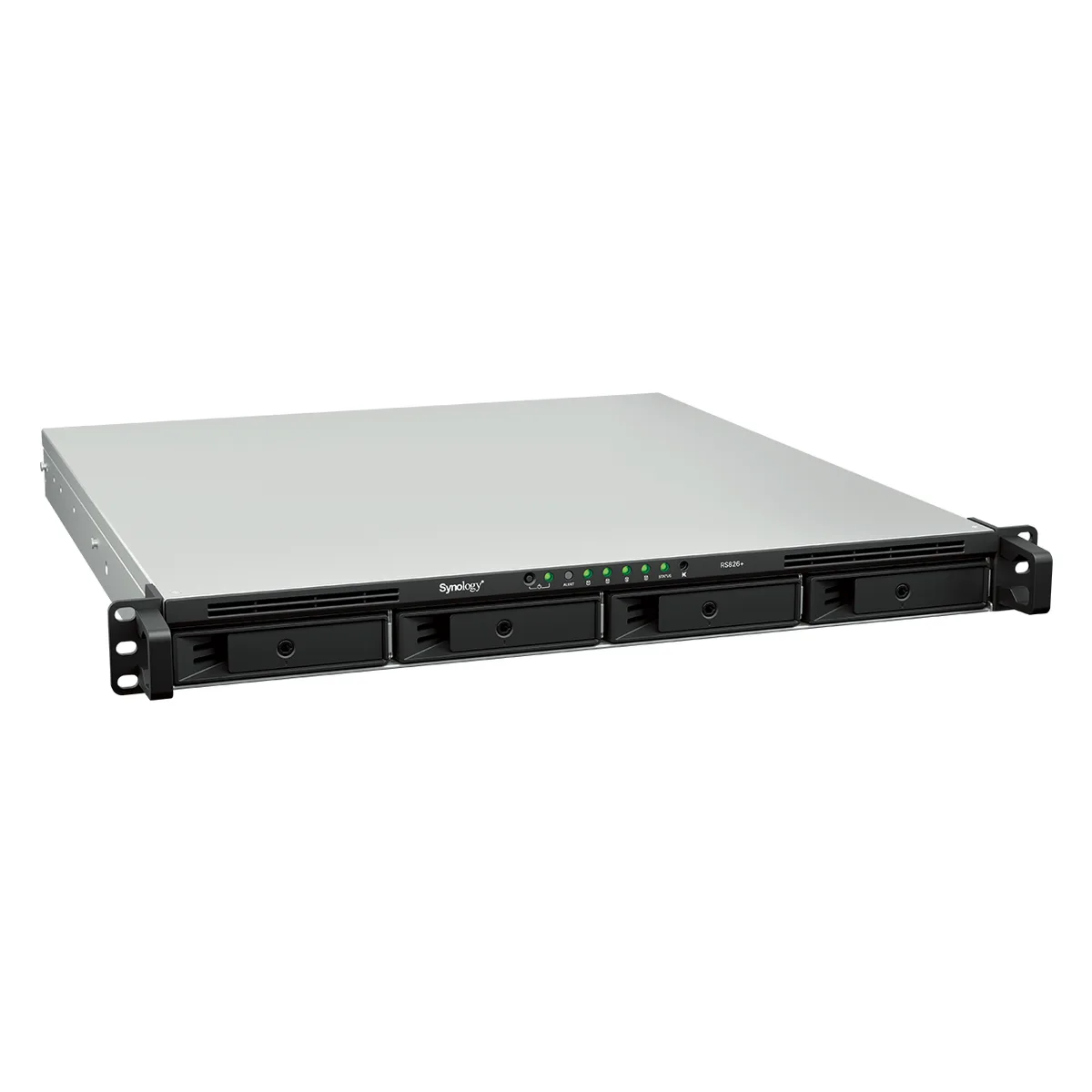

Silver 1U rackmount NAS chassis with four drive bays and front status LEDs

Synology Inc.

Synology Inc. RS826+ rackmount NAS 4GB DDR4

SKU CH-2BTJ-6BY6A MPN RS826+

1U rackmount NAS with four drive bays, AMD Ryzen V1500B processor, 4GB DDR4, four gigabit ports and PCIe expansion

  • Port RJ-454 x 10/100/1000M
  • Port USB2 x USB 3.2 Gen 1
  • HDD Interface4 x SATA (4 x Bay)
  • PCIe1 x Gen3 x8 slot (x4 link)
  • Form Factor1U
  • ProcessorAMD Ryzen V1500B
  • 1U rackmount form factor fits standard cabinets
  • AMD Ryzen V1500B processor drives high RAID read/write performance
  • Four 10/100/1000M RJ-45 ports provide aggregated network throughput
  • 4 GB DDR4 installed, expandable to 32 GB via two SODIMM slots
  • Two USB 3.2 Gen 1 ports enable fast external backup

1U rackmount NAS for RAID workloads

The Synology RackStation RS826+ is a 1U rackmount NAS designed for high read and write performance with RAID. It ships as a diskless system so you can populate the four drive bays with 3.5 inch SATA HDDs or 2.5 inch SATA SSDs. An AMD Ryzen V1500B processor and 4GB DDR4 memory handle multi-user file access and backup tasks.

Check bays network and expansion slots

Verify your rack has a free 1U space and that you have the required rail kit, which is sold separately. The unit provides four RJ-45 ports for 10/100/1000M connections and two USB 3.2 Gen 1 ports for external devices. A single PCIe Gen3 x8 slot with x4 link is available for adding a cache or network card. Memory can be expanded to 32 GB using two DDR4 SODIMM modules.

Bundled items let you start configuration

The package includes the main unit, an accessory pack and an AC power cord for 100-240 VAC supply. No drives or rail kit are included, so you must supply compatible SATA drives and mounting hardware. With the installed 4GB DDR4 you can begin setup immediately and add memory later if workloads demand more capacity.

Highlights

  • 1U rackmount form factor fits standard cabinets
  • AMD Ryzen V1500B processor drives high RAID read/write performance
  • Four 10/100/1000M RJ-45 ports provide aggregated network throughput
  • 4 GB DDR4 installed, expandable to 32 GB via two SODIMM slots
  • Two USB 3.2 Gen 1 ports enable fast external backup

Specifications

BrandSynology
ModelRackStation RS826+
Port RJ-454 x 10/100/1000M
Port USB2 x USB 3.2 Gen 1
HDD Interface4 x SATA (4 x Bay)
PCIe1 x Gen3 x8 slot (x4 link)
Form Factor1U
ProcessorAMD Ryzen V1500B
Installed Memory4GB DDR4
Max Memory Capacity32 GB (16 GB x 2)
Memory Slot2 x DDR4 SODIMM
Included HDD CapacityDiskless System
Drive Compatibility4 x 3.5" SATA HDD or 2.5" SATA SSD
Power100-240 VAC 50/60Hz
Power Consumption37.73 watts (Access)
15.57 watts (HDD Hibernation)
FeaturesThe rail kit is sold separately
UsageHigh read/write performance with RAID
TemperatureOperating Temperature: 0°C to 35°C (32°F to 95°F)
Storage Temperature: -20°C to 60°C (-5°F to 140°F)
HumidityOperating Humidity: 8% to 80% RH
Storage Humidity: 5% to 95% RH
Dimensions44 x 480 x 492.6 mm
Weight6.4 kg
Package ContentsMain Unit
Accessory Pack
AC Power Cord
Shipping weight9.77 kg
Package size613 × 580 × 210 mm

Questions about this item

Does the RS826+ ship with drives or rails, and what must I add?

The unit arrives diskless with no drives installed and the rail kit is sold separately; you must supply four 3.5" SATA HDDs or 2.5" SATA SSDs and purchase rails if rack-mounting.

Should I choose the 4 GB DDR4 model or plan a memory upgrade to the 32 GB maximum?

The system includes 4 GB DDR4 in two SODIMM slots and supports up to 32 GB using two 16 GB DDR4 modules, so you can start small and expand later if workloads demand more RAM.

What does the 37.73-watt access power figure mean for daily operation in a 1U rack?

Under typical access loads the RS826+ draws 37.73 watts, dropping to 15.57 watts when drives hibernate, giving a clear baseline for power-budget planning in a 1U enclosure.
