Synology Inc.

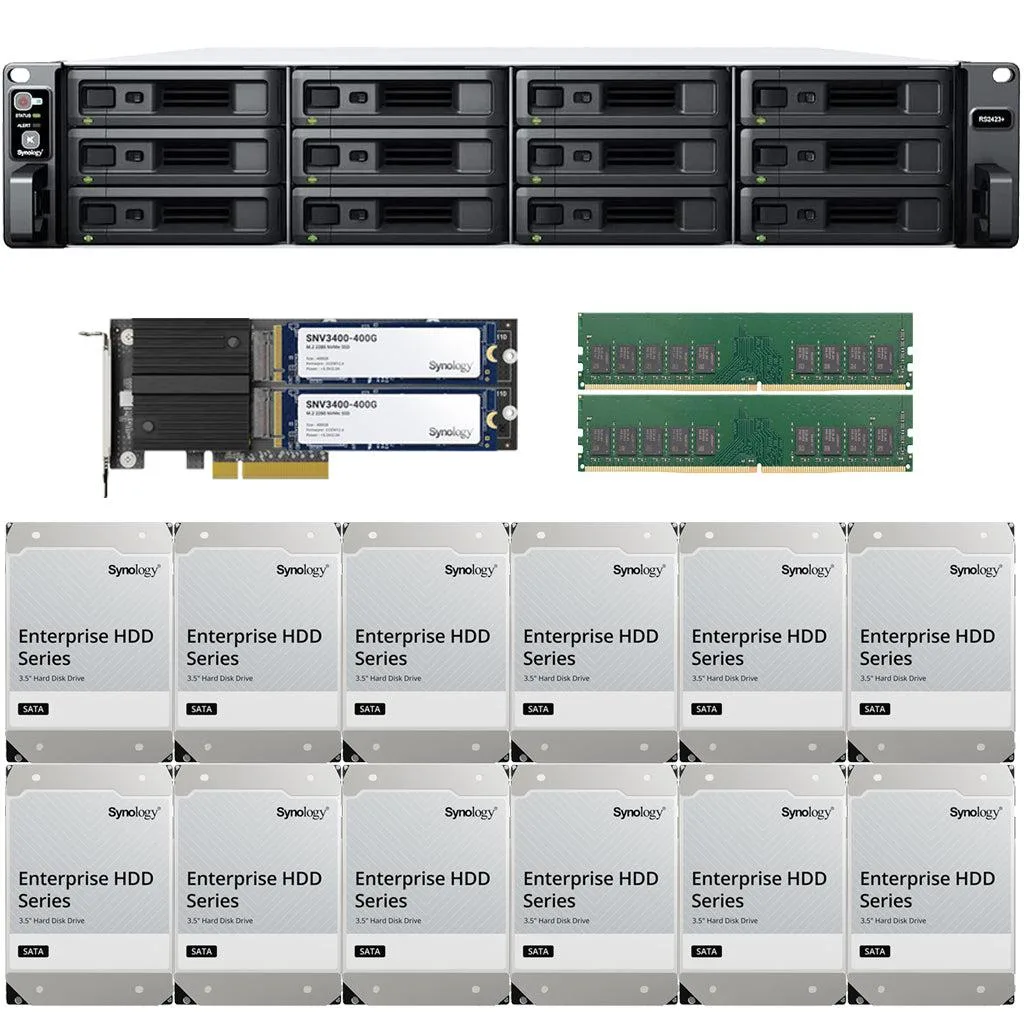

Synology RS2423+ 12-Bay Rackmount NAS 16GB 192TB 800GB Cache
Twelve-bay rackmount NAS with 192 TB storage, 800 GB cache and 16 GB memory for high-throughput file sharing
- Port RJ-452 x RJ-45 1GbE (with Link Aggregation / Failover support) 1
- Port USB2 x USB 3.2 Gen 1 Port
- Form FactorRackmount
- ProcessorAMD Ryzen
- Installed Memory16GB
- Included HDD Capacity192TB (12 x 16TB)
- 12-bay rackmount design fits standard 19-inch racks
- 192 TB raw capacity from twelve 16 TB enterprise drives
- 16 GB installed memory handles demanding workloads
- 800 GB Synology cache accelerates frequent data access
- 10 GbE and dual 1 GbE ports with link aggregation support
Ready-to-deploy 12-bay rackmount NAS
The Synology RS2423+ arrives fully assembled with twelve 16 TB Synology Enterprise drives providing 192 TB of raw storage. Sixteen gigabytes of Synology memory and an M2D20 adapter holding two 400 GB cache drives accelerate frequent workloads. Small and medium businesses gain a pre-tested file management platform that requires no drive installation or initial configuration.
Thermal range and power input
The chassis operates between 0 °C and 35 °C with humidity tolerance from 5 % to 95 % non-condensing. A single 100-240 VAC 50/60 Hz supply powers the system, which weighs 11.5 kg without drives. Two 1 GbE ports support link aggregation and failover, while one 10 GbE port handles higher-throughput traffic.
Included accessories and cache impact
The package supplies the main unit, an accessory pack, an AC power cord and a quick installation guide. The M2D20 adapter and its 800 GB of Synology cache sit in dedicated slots, leaving all twelve drive bays available for capacity expansion. Two USB 3.2 Gen 1 ports allow direct attachment of external backup targets or UPS signalling.
Highlights
- 12-bay rackmount design fits standard 19-inch racks
- 192 TB raw capacity from twelve 16 TB enterprise drives
- 16 GB installed memory handles demanding workloads
- 800 GB Synology cache accelerates frequent data access
- 10 GbE and dual 1 GbE ports with link aggregation support
Specifications
| Brand | Synology |
|---|---|
| Model | RS2423+ |
| Part Number | RS2423+ |
| Port RJ-45 | 2 x RJ-45 1GbE (with Link Aggregation / Failover support) 1 x RJ-45 10GbE |
| Port USB | 2 x USB 3.2 Gen 1 Port |
| Form Factor | Rackmount |
| Processor | AMD Ryzen |
| Installed Memory | 16GB |
| Included HDD Capacity | 192TB (12 x 16TB) |
| Management | Web-Based, DHCP Client |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 0°C - 35 °C |
| Humidity | 5-95% R.H |
| Dimensions | 88 mm x 482 mm x 552 mm |
| Weight | 11.5 kg (DISKLESS) |
| Package Contents | Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 Quick Installation Guide X 1 |
Questions about this item
How do I install the Synology RS2423+ into a standard rack and which step is often missed?
Mount the 88 mm high chassis using the included accessory pack rails, connect the AC power cord to the 100-240 VAC supply, link the 1GbE or 10GbE RJ-45 ports, then run the web-based setup; the step most people skip is enabling Link Aggregation or Failover on the two 1GbE ports for redundancy.
What maintenance or replacement will the RS2423+ need after extended use?
The twelve 16TB Synology Enterprise drives and the two 400GB cache modules on the M2D20 adapter are the only field-replaceable storage components; plan to swap any drive that SMART reports as degraded and refresh cache modules if write endurance is exhausted.
Which limit appears first when the RS2423+ runs sustained heavy workloads?
The operating temperature ceiling of 35 °C is the first hard limit; if ambient heat pushes the unit beyond this, the AMD Ryzen processor will throttle to protect itself, capping the 3,500 MB/s sequential read and 155K random read IOPS figures.
