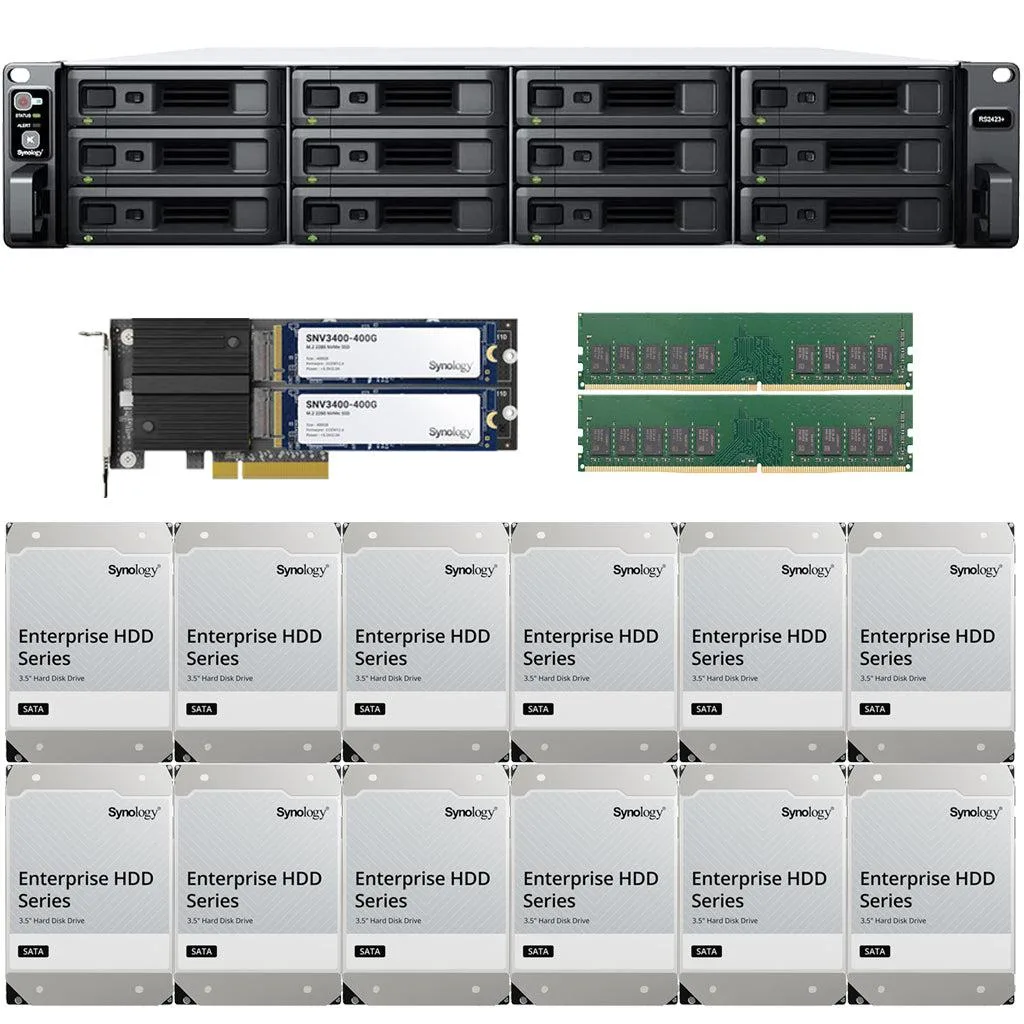

Black rackmount server chassis with twelve drive bays visible at the front

Synology Inc.

Synology RS2423+ 12-Bay Rackmount NAS 16GB 48TB 800GB Cache

SKU CH-RY6K-AP9YZ

Twelve-bay rackmount NAS with 48 TB of enterprise storage, 800 GB cache and 16 GB RAM for business file management and backup

  • Port RJ-452 x RJ-45 1GbE (with Link Aggregation / Failover support) 1
  • Port USB2 x USB 3.2 Gen 1 Port
  • Form FactorRackmount
  • ProcessorAMD Ryzen
  • Installed Memory16GB
  • Included HDD Capacity48TB (12 x 4TB)
  • 12-bay design scales to 48 TB with included enterprise drives
  • 800 GB Synology cache accelerates frequent data access
  • AMD Ryzen processor delivers 155 K random read IOPS
  • Dual 1 GbE plus 10 GbE ports enable link aggregation
  • 16 GB installed memory supports demanding workloads

Ready-to-Run 12-Bay Rackmount NAS

The Synology RS2423+ arrives fully assembled with 12 enterprise-class 4TB drives delivering 48TB of raw capacity and 16GB of installed memory. It is built for small and medium businesses that need immediate file management, sharing and backup without the delay of drive installation or initial configuration.

Enterprise Drives Plus Dedicated Cache

Twelve Synology Enterprise drives provide the storage foundation while the included M2D20 adapter adds 800GB of Synology cache across two 400GB modules. This combination accelerates random read and write IOPS to 155K and 79K respectively and sustains sequential throughput up to 3500 MB/s read and 1700 MB/s write for demanding workloads.

Verify Rack Space and Network Uplink

Confirm your rack can accommodate a unit measuring 88 mm high by 482 mm wide by 552 mm deep and that the 11.5 kg diskless weight is within your shelf rating. Ensure you have a 10GbE switch port for the single 10GbE RJ-45 uplink and that the two 1GbE ports can be aggregated or used for failover as required.

Highlights

  • 12-bay design scales to 48 TB with included enterprise drives
  • 800 GB Synology cache accelerates frequent data access
  • AMD Ryzen processor delivers 155 K random read IOPS
  • Dual 1 GbE plus 10 GbE ports enable link aggregation
  • 16 GB installed memory supports demanding workloads

Specifications

BrandSynology
ModelRS2423+
Part NumberRS2423+
Port RJ-452 x RJ-45 1GbE (with Link Aggregation / Failover support)
1 x RJ-45 10GbE
Port USB2 x USB 3.2 Gen 1 Port
Form FactorRackmount
ProcessorAMD Ryzen
Installed Memory16GB
Included HDD Capacity48TB (12 x 4TB)
ManagementWeb-Based, DHCP Client
Power100-240 VAC 50/60Hz
Temperature0°C - 35 °C
Humidity5-95% R.H
Dimensions88 mm x 482 mm x 552 mm
Weight11.5 kg (DISKLESS)
Package ContentsMain Unit X 1
Accessory Pack X 1
AC Power Cord X 1
Quick Installation Guide X 1

Questions about this item

How often will the 400 GB Synology cache modules need replacement?

The 800 GB cache uses two 400 GB Synology modules installed in the M2D20 adapter; they are solid-state with no moving parts and typically last the life of the NAS under normal workloads.

What throughput ceiling appears first during sustained transfers?

Sequential throughput reaches up to 3,500 MB/s read and 1,700 MB/s write, so the 10 GbE port is the first bottleneck for continuous large-file traffic.

How loud and hot does the RS2423+ get when running 24/7?

Operating temperature range is 0 °C to 35 °C; the 12 drive bays and dual power supplies generate noticeable airflow noise, so rack mounting in a cooled room is recommended.
