Synology Inc.
Synology RS2423+ 12-Bay Rackmount NAS 32GB 192TB 1.6TB Cache
12-bay rackmount NAS with 32GB memory, 192TB enterprise storage and 1.6TB cache, pre-assembled and tested
- Port RJ-452 x RJ-45 1GbE (with Link Aggregation / Failover support) 1
- Port USB2 x USB 3.2 Gen 1 Port
- Form FactorRackmount
- ProcessorAMD Ryzen
- Installed Memory32GB
- Included HDD Capacity192TB (12 x 16TB)
- 12-bay rackmount design scales to 192 TB raw storage
- AMD Ryzen CPU with 32 GB RAM drives 155 K random read IOPS
- Dual 800 GB cache accelerates hot data to 3 500 MB/s sequential reads
- Two 1 GbE plus one 10 GbE ports enable link aggregation and failover
- Fully assembled and tested with twelve 16 TB enterprise drives installed
12-Bay Rackmount NAS for SMB file management

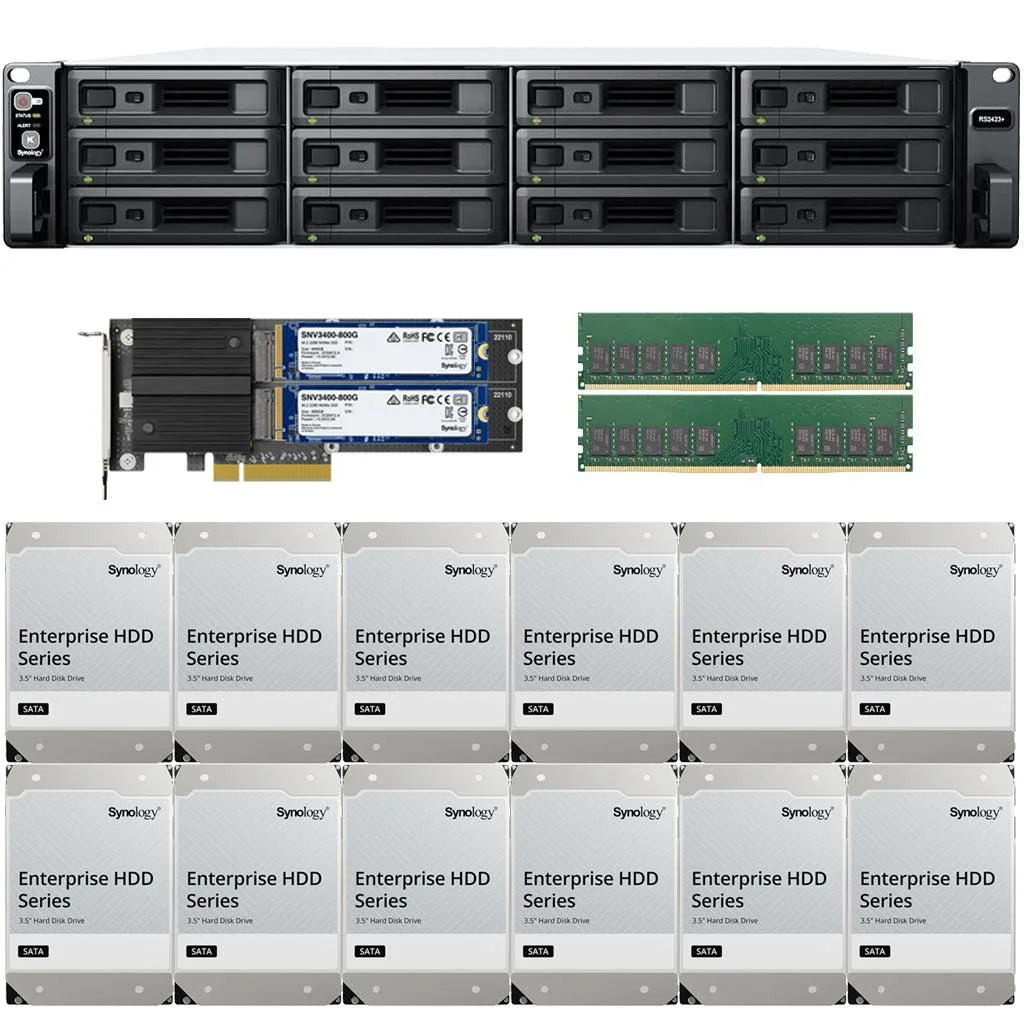

The Synology RS2423+ is a 12-bay rackmount network-attached storage system designed for small and medium businesses needing centralised file management and sharing. It arrives fully assembled and tested with twelve 16TB Synology Enterprise drives installed, providing 192TB of raw capacity. The unit includes 32GB of Synology RAM and a 1.6TB Synology cache via an M2D20 adapter with two 800GB drives. An AMD Ryzen processor powers the platform.
Sustained throughput of 3,500 MB/s read
Under sustained load the system delivers up to 3,500 MB/s sequential read and 1,700 MB/s sequential write throughput. Random performance reaches over 155K read IOPS and 79K write IOPS. The 1.6TB cache layer accelerates frequent access patterns while dual 1GbE ports with Link Aggregation and Failover plus a single 10GbE port maintain bandwidth during prolonged transfers. The operating temperature range is 0°C to 35°C.
Verify rack space, power and network infrastructure
Before ordering confirm that your rack can accommodate a 2U form factor measuring 88mm high, 482mm wide and 552mm deep. The unit weighs 11.5kg without drives so allow for the additional mass of twelve 16TB drives. Ensure the site provides 100-240 VAC at 50/60Hz and that your network switches support the desired 1GbE or 10GbE connections. Two USB 3.2 Gen 1 ports are available for external backup targets.
Highlights
- 12-bay rackmount design scales to 192 TB raw storage
- AMD Ryzen CPU with 32 GB RAM drives 155 K random read IOPS
- Dual 800 GB cache accelerates hot data to 3 500 MB/s sequential reads
- Two 1 GbE plus one 10 GbE ports enable link aggregation and failover
- Fully assembled and tested with twelve 16 TB enterprise drives installed
Specifications
| Brand | Synology |
|---|---|
| Model | RS2423+ |
| Part Number | RS2423+ |
| Port RJ-45 | 2 x RJ-45 1GbE (with Link Aggregation / Failover support) 1 x RJ-45 10GbE |
| Port USB | 2 x USB 3.2 Gen 1 Port |
| Form Factor | Rackmount |
| Processor | AMD Ryzen |
| Installed Memory | 32GB |
| Included HDD Capacity | 192TB (12 x 16TB) |
| Management | Web-Based, DHCP Client |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 0°C - 35 °C |
| Humidity | 5-95% R.H |
| Dimensions | 88 mm x 482 mm x 552 mm |
| Weight | 11.5 kg (DISKLESS) |
| Package Contents | Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 Quick Installation Guide X 1 |
Questions about this item
How loud and warm does the RS2423+ get when running 24/7 with twelve 16 TB drives installed?
The chassis is rated for continuous operation up to 35 °C ambient temperature and 95 % relative humidity.
Which drives or memory must I already own before this unit will boot?
None — the system ships fully assembled with 32 GB RAM, twelve 16 TB enterprise drives and two 800 GB cache modules pre-installed.
Will the single 10 GbE port and two 1 GbE ports work with my older 1 GbE switches and Cat 5e cabling?
Yes, the 10 GbE port auto-negotiates down to 1 GbE and the dual 1 GbE ports support link aggregation and failover on legacy infrastructure.
