Silver rackmount NAS with twelve drive bays front panel

Synology Inc.

Synology RS2423+ 12-Bay Rackmount NAS 32GB 72TB 1.6TB Cache

SKU CH-KVXB-0FW9P

12-bay rackmount NAS with 32 GB memory, 72 TB of storage and 1.6 TB cache, dual 1 GbE and single 10 GbE ports, AMD Ryzen processor, ready for SMB file sharing and backup

  • Port RJ-452 x RJ-45 1GbE (with Link Aggregation / Failover support) 1
  • Port USB2 x USB 3.2 Gen 1 Port
  • Form FactorRackmount
  • ProcessorAMD Ryzen
  • Installed Memory32GB
  • Included HDD Capacity72TB (12 x 6TB)

Installed Memory 32GB

Included HDD Capacity 72TB (12 x 6TB)

  • 12 bays with 72TB of Synology Plus drives provide massive storage capacity
  • 32GB memory handles demanding workloads and virtualisation tasks
  • AMD Ryzen processor delivers 155K random read IOPS for responsive file access
  • 6TB cache accelerates frequent data access for faster performance
  • 2 x 1GbE and 1 x 10GbE ports enable flexible network connectivity

12-Bay Rackmount NAS for SMBs

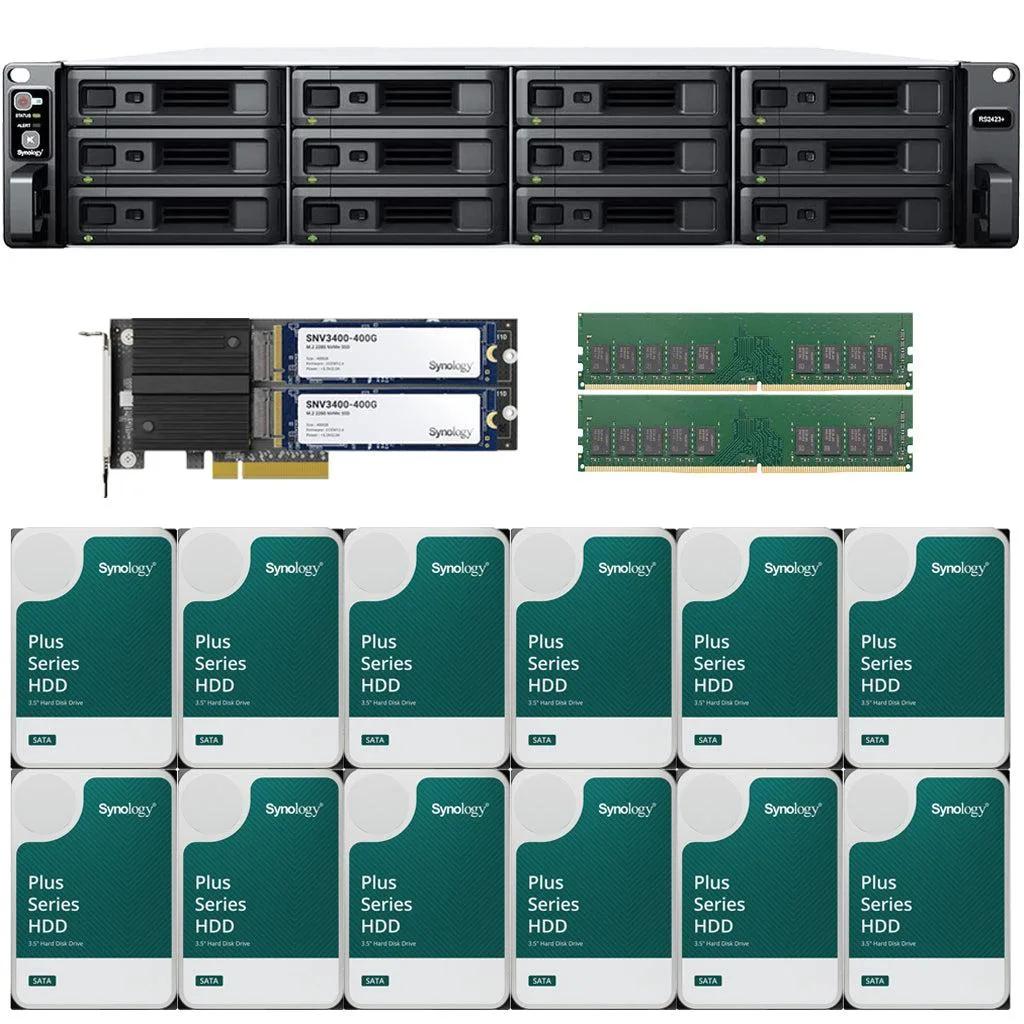

The Synology RS2423+ is a 12-bay rackmount network-attached storage server designed for small and medium businesses. It arrives fully assembled with twelve 6TB Synology Plus Series drives providing 72TB of raw capacity. The system includes 32GB of installed Synology RAM and an M2D20 adapter populated with two 800GB cache drives totalling 1.6TB. An AMD Ryzen processor drives the platform.

Sustained throughput and IOPS

Under continuous workloads the unit delivers up to 3500 MB/s sequential read and 1700 MB/s sequential write throughput. Random access performance reaches over 155K read IOPS and 79K write IOPS. Dual 1GbE ports support link aggregation and failover while a single 10GbE port handles high-bandwidth traffic. The operating temperature range spans 0°C to 35°C.

Rack installation and drive population

The 2U chassis measures 88 mm x 482 mm x 552 mm and weighs 11.5 kg without drives, requiring standard rack rails or shelves not included in the accessory pack. All twelve drive bays and both M.2 slots are already populated, leaving no internal expansion room for additional storage. Two USB 3.2 Gen 1 ports provide only external attachment options.

Highlights

  • 12 bays with 72TB of Synology Plus drives provide massive storage capacity
  • 32GB memory handles demanding workloads and virtualisation tasks
  • AMD Ryzen processor delivers 155K random read IOPS for responsive file access
  • 6TB cache accelerates frequent data access for faster performance
  • 2 x 1GbE and 1 x 10GbE ports enable flexible network connectivity

Specifications

BrandSynology
ModelRS2423+
Part NumberRS2423+
Port RJ-452 x RJ-45 1GbE (with Link Aggregation / Failover support)
1 x RJ-45 10GbE
Port USB2 x USB 3.2 Gen 1 Port
Form FactorRackmount
ProcessorAMD Ryzen
Installed Memory32GB
Included HDD Capacity72TB (12 x 6TB)
ManagementWeb-Based, DHCP Client
Power100-240 VAC 50/60Hz
Temperature0°C - 35 °C
Humidity5-95% R.H
Dimensions88 mm x 482 mm x 552 mm
Weight11.5 kg (DISKLESS)
Package ContentsMain Unit X 1
Accessory Pack X 1
AC Power Cord X 1
Quick Installation Guide X 1

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much power does the RS2423+ draw when the 12-bay chassis runs 24/7?

The unit operates on 100-240 VAC 50/60Hz power and is rated for an ambient temperature range of 0°C to 35°C during continuous operation.

What network infrastructure must already exist for the 10GbE port on the RS2423+ to function at full speed?

A 10GbE-capable switch or router with an RJ-45 port and compatible cabling is required to utilise the single 10GbE connection.

Can the RS2423+ share files with an older server that only has 1GbE ports?

Yes, the two onboard 1GbE RJ-45 ports support link aggregation and failover, allowing direct compatibility with legacy 1GbE network equipment.
