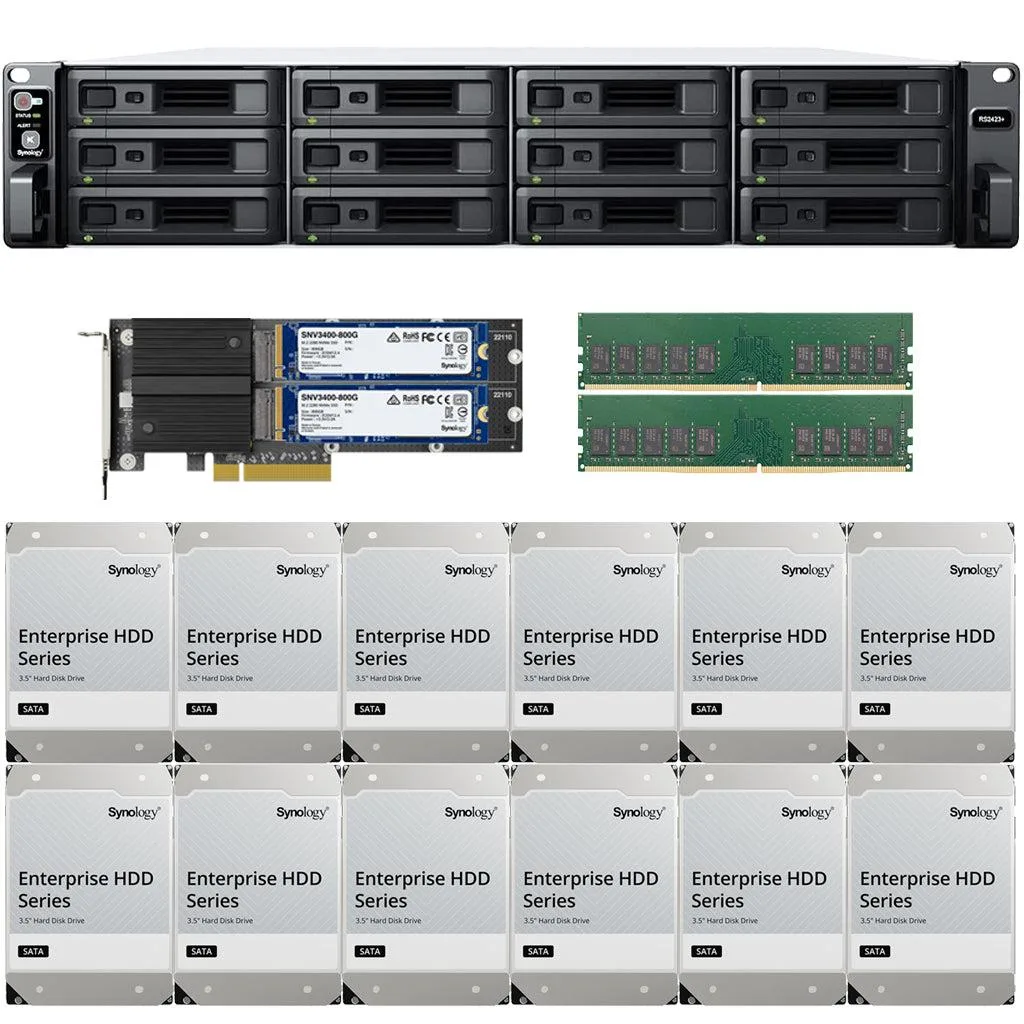

Silver 2U rackmount NAS with twelve drive bays visible from front

Synology Inc.

Synology RS2423+ 12-Bay Rackmount NAS 32GB RAM 144TB 1.6TB Cache

SKU CH-W3FH-H8T9X

Twelve-bay rackmount NAS with 144 TB of enterprise drives, 1.6 TB cache and 32 GB RAM, fully assembled and tested

  • Port RJ-452 x RJ-45 1GbE (with Link Aggregation / Failover support) 1
  • Port USB2 x USB 3.2 Gen 1 Port
  • Form FactorRackmount
  • ProcessorAMD Ryzen
  • Installed Memory32GB
  • Included HDD Capacity144TB (12 x 12TB)
  • 32 GB memory keeps services responsive under load
  • 144 TB raw storage from twelve 12 TB enterprise drives
  • 6 TB Synology cache accelerates frequent data access
  • AMD Ryzen processor delivers 155 K random read IOPS
  • Two 1 GbE plus one 10 GbE port with link aggregation support

Ready-to-deploy 12-bay NAS with 32 GB memory

This Synology RS2423+ arrives fully assembled and tested with twelve 12 TB enterprise drives installed, providing 144 TB of raw storage. An M2D20 adapter adds two 800 GB cache modules for a total of 1.6 TB of read-write acceleration. The AMD Ryzen processor and 32 GB of RAM drive up to 155 K random read IOPS and 3 500 MB/s sequential throughput.

Suited to small-business file sharing and backup

Organisations that need a pre-configured, rack-mount appliance for centralised file services, snapshots and replication will benefit from the integrated drives and cache. Buyers who require redundant power supplies, additional 10 GbE ports or a different drive count should evaluate other models.

Single 10 GbE port defines high-speed network

The chassis includes one RJ-45 10 GbE connection alongside two 1 GbE ports with link aggregation support. Environments that depend on multiple 10 GbE links or fibre uplinks will need a separate network card or a different platform.

Highlights

  • 32 GB memory keeps services responsive under load
  • 144 TB raw storage from twelve 12 TB enterprise drives
  • 6 TB Synology cache accelerates frequent data access
  • AMD Ryzen processor delivers 155 K random read IOPS
  • Two 1 GbE plus one 10 GbE port with link aggregation support

Specifications

BrandSynology
ModelRS2423+
Part NumberRS2423+
Port RJ-452 x RJ-45 1GbE (with Link Aggregation / Failover support)
1 x RJ-45 10GbE
Port USB2 x USB 3.2 Gen 1 Port
Form FactorRackmount
ProcessorAMD Ryzen
Installed Memory32GB
Included HDD Capacity144TB (12 x 12TB)
ManagementWeb-Based, DHCP Client
Power100-240 VAC 50/60Hz
Temperature0°C - 35 °C
Humidity5-95% R.H
Dimensions88 mm x 482 mm x 552 mm
Weight11.5 kg (DISKLESS)
Package ContentsMain Unit X 1
Accessory Pack X 1
AC Power Cord X 1
Quick Installation Guide X 1

Questions about this item

What drive maintenance will the 12 x 12 TB enterprise HDDs and 2 x 800 GB cache modules need later?

The twelve 12 TB enterprise drives and two 800 GB cache modules are pre-installed; any failed unit can be hot-swapped without tools using the front drive trays.

Which limit appears first during sustained workloads on the AMD Ryzen platform with 32 GB RAM?

Sustained workloads hit the 10 GbE network ceiling at 3,500 MB/s sequential read or 1,700 MB/s sequential write before CPU or memory saturate.

How much heat and fan noise does the 12-bay rackmount produce when running 24/7?

Operating temperature is rated 0 °C to 35 °C; the 11.5 kg chassis uses controlled airflow to keep drives within spec during continuous operation.
