Synology Inc.
Synology RS2423+ 12-Bay Rackmount NAS 8GB 192TB 1.6TB Cache
Twelve-bay rackmount NAS with 192 TB of enterprise drives, 1.6 TB cache, 8 GB RAM and AMD Ryzen processor, fully assembled and tested
- Port RJ-452 x RJ-45 1GbE (with Link Aggregation / Failover support) 1
- Port USB2 x USB 3.2 Gen 1 Port
- Form FactorRackmount
- ProcessorAMD Ryzen
- Installed Memory8GB
- Included HDD Capacity192TB (12 x 16TB)
- 12-bay capacity scales storage to 192TB with included enterprise drives
- 6TB Synology cache accelerates frequent data access for faster response
- AMD Ryzen processor delivers 155K random read IOPS and 3500MB/s sequential throughput
- Dual 1GbE and single 10GbE ports enable link aggregation and high-speed networking
- 8GB RAM supports multitasking and virtualization workloads out of the box
Ready-to-Deploy Storage Platform

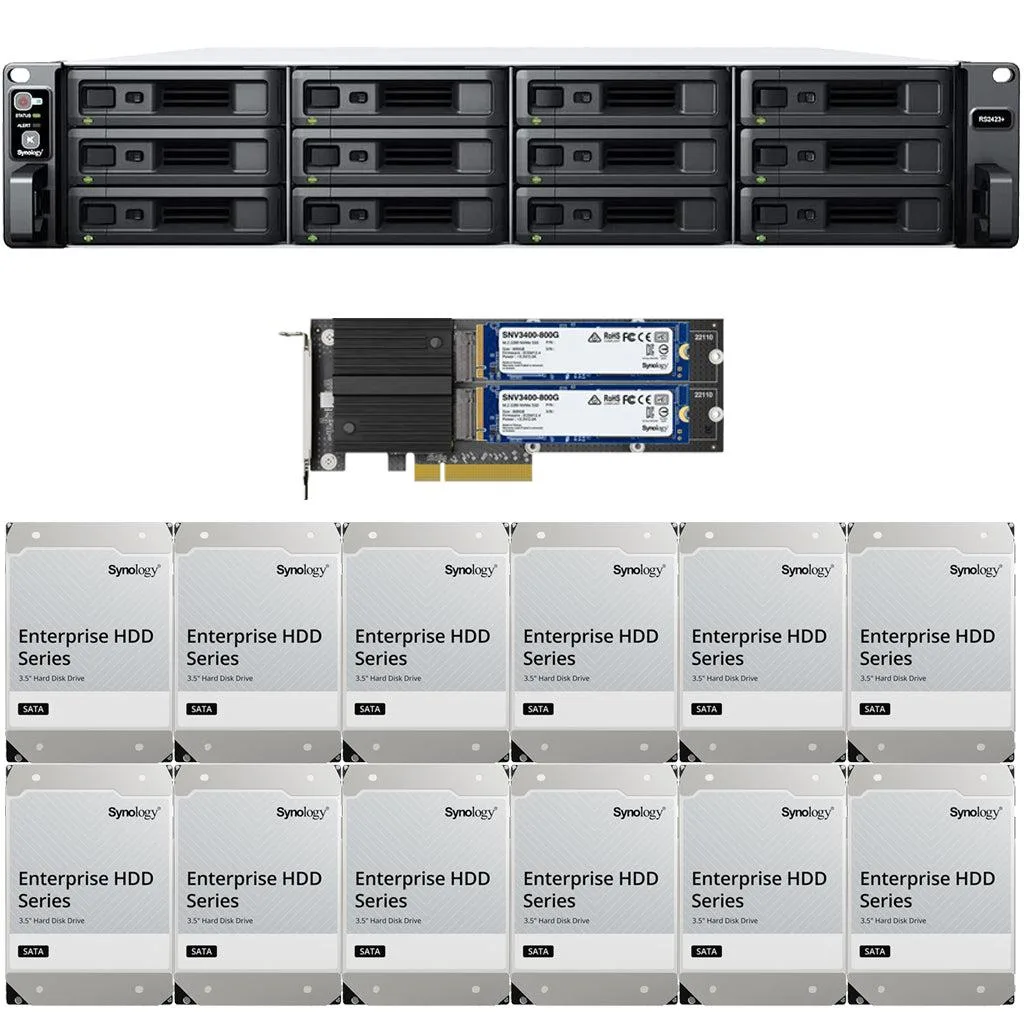

The Synology RS2423+ arrives fully assembled with twelve 16 TB enterprise drives delivering 192 TB of raw capacity and two 800 GB cache modules adding 1.6 TB of accelerated read/write space. Eight gigabytes of installed memory and an AMD Ryzen processor handle file serving, backup and virtualization workloads for small and medium businesses. Two 1 GbE ports support link aggregation and failover while a single 10 GbE port provides high-speed uplink connectivity.
Rack Integration and Expansion
A 2U rackmount chassis measuring 88 mm high, 482 mm wide and 552 mm deep fits standard cabinets and weighs 11.5 kg without drives. Two USB 3.2 Gen 1 ports allow direct attachment of external backup targets or license dongles. The M2D20 cache adapter occupies an internal M.2 slot, freeing all twelve front drive bays for capacity drives. Web-based management and DHCP client support simplify initial deployment without a dedicated console.
Thermal Envelope and Power Draw
The system operates between 0 °C and 35 °C at 5 to 95 % relative humidity. A 100-240 VAC 50/60 Hz power supply accepts global mains voltages without manual switching. Sequential throughput reaches 3,500 MB/s read and 1,700 MB/s write while random performance hits 155K read and 79K write IOPS under typical workloads.
Highlights
- 12-bay capacity scales storage to 192TB with included enterprise drives
- 6TB Synology cache accelerates frequent data access for faster response
- AMD Ryzen processor delivers 155K random read IOPS and 3500MB/s sequential throughput
- Dual 1GbE and single 10GbE ports enable link aggregation and high-speed networking
- 8GB RAM supports multitasking and virtualization workloads out of the box
Specifications
| Brand | Synology |
|---|---|
| Model | RS2423+ |
| Part Number | RS2423+ |
| Port RJ-45 | 2 x RJ-45 1GbE (with Link Aggregation / Failover support) 1 x RJ-45 10GbE |
| Port USB | 2 x USB 3.2 Gen 1 Port |
| Form Factor | Rackmount |
| Processor | AMD Ryzen |
| Installed Memory | 8GB |
| Included HDD Capacity | 192TB (12 x 16TB) |
| Management | Web-Based, DHCP Client |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 0°C - 35 °C |
| Humidity | 5-95% R.H |
| Dimensions | 88 mm x 482 mm x 552 mm |
| Weight | 11.5 kg (DISKLESS) |
| Package Contents | Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 Quick Installation Guide X 1 |
Questions about this item
How many drive bays does the RS2423+ provide for storage expansion?
The unit includes twelve bays, all populated with 16 TB Synology Enterprise drives for 192 TB total capacity.
What is the operating temperature range for continuous 24/7 operation?
The system is rated for 0 °C to 35 °C ambient temperature with 5 % to 95 % relative humidity.
Which network ports are built in for immediate connectivity?
Two 1 GbE RJ-45 ports with link aggregation and failover plus one 10 GbE RJ-45 port are standard.
