Seagate
Seagate Barracuda ST2000DM001 2 TB 3.5" 7200 rpm 64 MB SATA internal hard drive
$58.99
0.00075049BTC
In stock
Synology Inc.
Synology RS3626xs Intel Xeon D-1726 12-Bay Rackmount NAS 32GB RAM 1.6TB Cache 144TB Drives
Twelve-bay 2U rackmount NAS with Intel Xeon D-1726 processor, 32GB DDR4 RAM, 1.6TB cache and 144TB of pre-installed enterprise drives
- Port RJ-452 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port
- Port USB2 x USB 3.2 Gen 1 Ports
- Form Factor12-Bay
- ProcessorIntel Xeon
- Installed Memory32GB
- Included HDD Capacity144TB (12 x 12TB)
- 12-bay design scales storage to 144 TB with twelve 12 TB drives
- Xeon D-1726 six-core CPU powers virtualization and heavy workloads
- 32 GB DDR4 ECC memory handles multi-user access smoothly
- 6 TB enterprise SSD cache accelerates frequent data reads
- Dual 10 GbE RJ-45 ports deliver high-throughput network connectivity
Enterprise 12-Bay Rackmount NAS

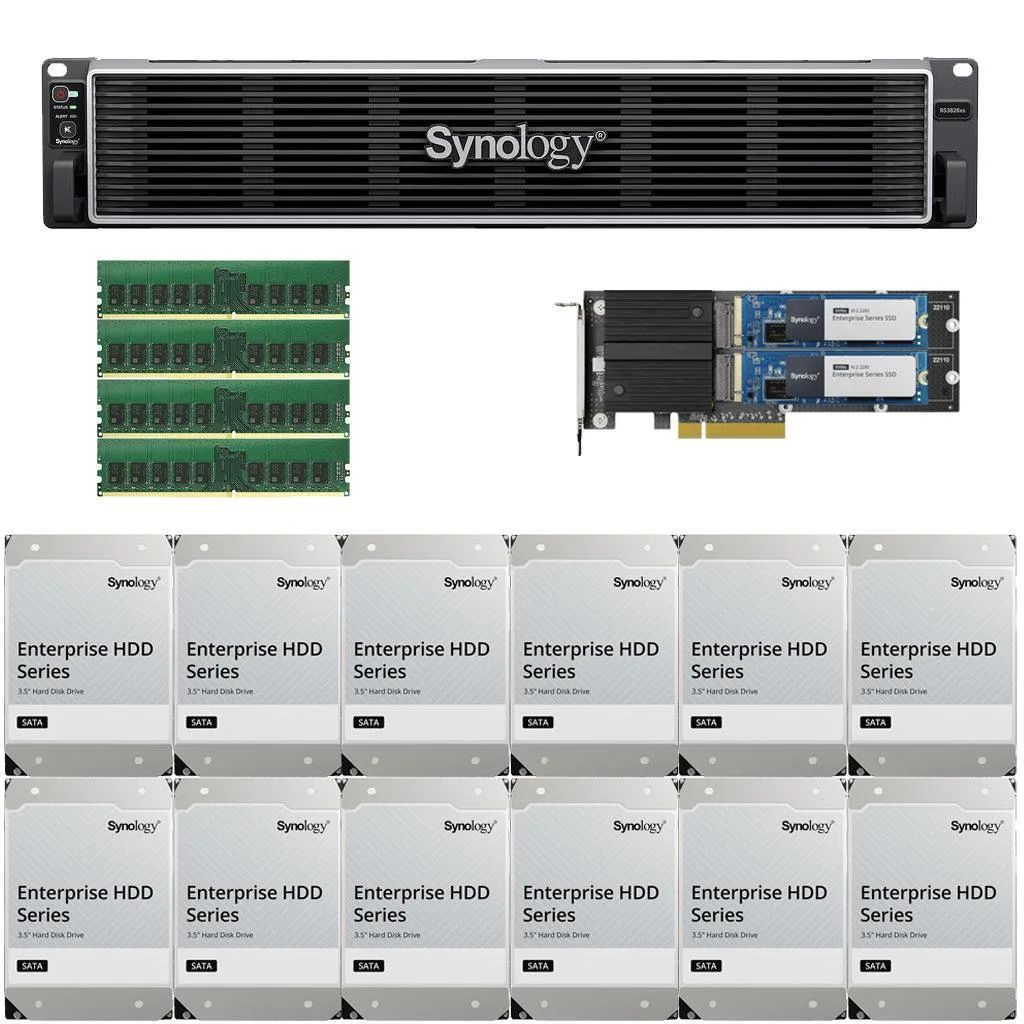

The Synology RS3626xs is a 2U rackmount NAS with twelve drive bays, built for organisations that need centralised file storage, virtualization support and multi-site collaboration. It ships fully assembled with a 6-core Intel Xeon D-1726 processor, 32GB of DDR4 ECC memory, 1.6TB of enterprise SSD cache and 144TB of Synology enterprise hard drives pre-installed.
Thermals and power
The unit operates between 0°C and 35°C with redundant power supplies that accept 100-240 VAC at 50/60Hz, protecting service availability if one supply fails. Dual 10GbE RJ-45 ports and an out-of-band management port handle network traffic while the chassis dimensions of 88 mm × 482 mm × 724 mm fit standard racks.
Bundled drives and cache
Twelve 12TB enterprise NAS drives and two 800GB enterprise SSDs are installed and tested, delivering the full 144TB raw capacity and 1.6TB read-write cache immediately. Two PCIe Gen 4 x8 slots remain free for future 10GbE, 25GbE or Fibre Channel adapters, and two USB 3.2 Gen 1 ports provide direct peripheral connectivity.
Highlights
- 12-bay design scales storage to 144 TB with twelve 12 TB drives
- Xeon D-1726 six-core CPU powers virtualization and heavy workloads
- 32 GB DDR4 ECC memory handles multi-user access smoothly
- 6 TB enterprise SSD cache accelerates frequent data reads
- Dual 10 GbE RJ-45 ports deliver high-throughput network connectivity
Specifications
| Brand | Synology |
|---|---|
| Model | RS3626xs |
| Port RJ-45 | 2 x RJ-45 10GbE LAN Port 1 x Out-of-Band Management LAN Port |
| Port USB | 2 x USB 3.2 Gen 1 Ports |
| Form Factor | 12-Bay |
| Processor | Intel Xeon |
| Installed Memory | 32GB |
| Included HDD Capacity | 144TB (12 x 12TB) |
| Management | Web-Based, DHCP Client |
| LEDs | Power, HDD (Hard Disk Drive), LAN (10/100) |
| Power | 100-240 VAC 50/60Hz |
| Temperature | 0°C to 35°C (32°F to 95°F) |
| Humidity | 8% to 80% RH |
| Dimensions | 88 mm × 482 mm × 724 mm |
| Weight | 14.5 kg |
| Package Contents | Main Unit × 1 Accessory Pack × 1 C13 to C14 power cord × 2 Front Cover × 1 All Configuration Items |
Questions about this item
How do I install the 12 x 12TB Synology Enterprise drives into the RS3626xs, and what step is often missed?
Slide each 3.5-inch drive into a front bay until the latch clicks; the step often missed is confirming the storage pool is created in DSM before writing data.
What maintenance or replacement will the 1.6TB Synology Enterprise cache need later?
The 2 x 800GB cache modules are installed in PCIe Gen 4 x8 slots; monitor SSD health in DSM and replace a module when its endurance indicator reaches the warning threshold.
What thermal limit appears first when the Xeon D-1726 runs sustained workloads in a 35°C rack?
The operating ceiling is 35°C; sustained loads can push internal temperatures past this limit before the CPU throttles, so maintain front-to-rear airflow and clean filters regularly.
