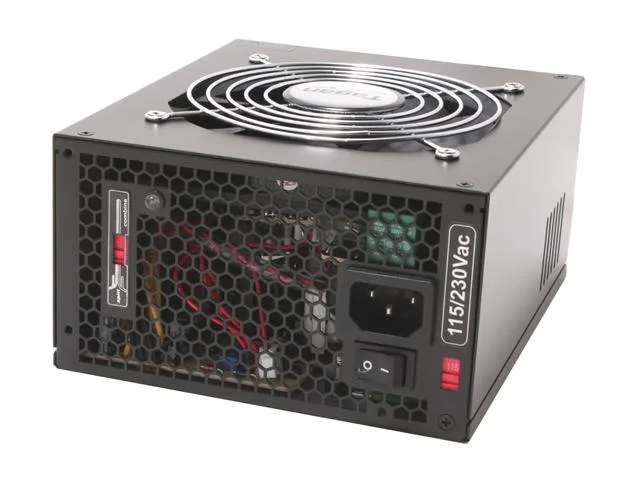

Black metal modular ATX power supply with 120mm fan and modular cable sockets

TAGAN

TAGAN TG-530-U15 530W Modular ATX Power Supply

SKU CH-12DH-G2H5F MPN TG-530-U15

A 530W modular ATX power supply with dual 12V rails, SLI certification and a 120mm fan rated at 22dBA under 60% load

  • TypeATX12V Version 2.01
  • Maximum Power530Watts
  • Fans1 x 120mm Fan
  • PFCNo
  • Main Connector20+4Pin
  • +12V Rails2
  • Modular design lets you connect only the cables your build needs
  • Dual 12V rails deliver stable power to CPU and graphics cards
  • 120mm fan with Silent Control runs at 22dBA under 60% load
  • SLI Certified and CrossFire Ready for multi-GPU configurations
  • Safety approvals include CB, CE, CSA, FCC, TUV and UL

530W Modular ATX Power Supply

The TAGAN TG-530-U15 delivers 530 watts through a modular ATX12V 2.01 design. Two +12V rails supply 20 amps each while +3.3V and +5V rails provide 26 and 30 amps. A 120 mm fan runs under Tagan Silent Control Technology at 22 dBA under 60 percent load. The black metal chassis includes an EMI core and a special grounding wire.

Upgrade from non-modular or lower-wattage units

Builders replacing a fixed-cable supply gain cable management flexibility and SLI or CrossFire readiness. The 12V combine and split switch lets you match rail configuration to the graphics setup. The jump is worth it when a system needs dual PCI-E power and cleaner routing without exceeding the 530 watt ceiling.

Dual-GPU headroom and peripheral capacity

Two PCI-E connectors and four SATA ports handle twin graphics cards and multiple drives. Six peripheral and two floppy connectors cover legacy devices. The 530 watt limit means the unit runs out with power-hungry cards or heavy overclocks. Buyers who want more storage connectors or higher 12V current must look elsewhere.

Highlights

  • Modular design lets you connect only the cables your build needs
  • Dual 12V rails deliver stable power to CPU and graphics cards
  • 120mm fan with Silent Control runs at 22dBA under 60% load
  • SLI Certified and CrossFire Ready for multi-GPU configurations
  • Safety approvals include CB, CE, CSA, FCC, TUV and UL

Specifications

BrandTagan
ModelTG-530-U15
TypeATX12V Version 2.01
Maximum Power530Watts
Fans1 x 120mm Fan
PFCNo
Main Connector20+4Pin
+12V Rails2
SLISLI Certified
CrossFireCrossFire Ready
ModularModular
Over Voltage ProtectionYes
Input Voltage115 / 230 V
Input Frequency Range50/60 Hz
Input Current10A @ 115V, 6A @ 230V
Output+3.3@26A,+5V@30A,+12V1@20A,+12V2@20A,-12V@1A, [email protected] , [email protected] ,
ApprovalsCB, CE, CSA, FCC, TUV, UL

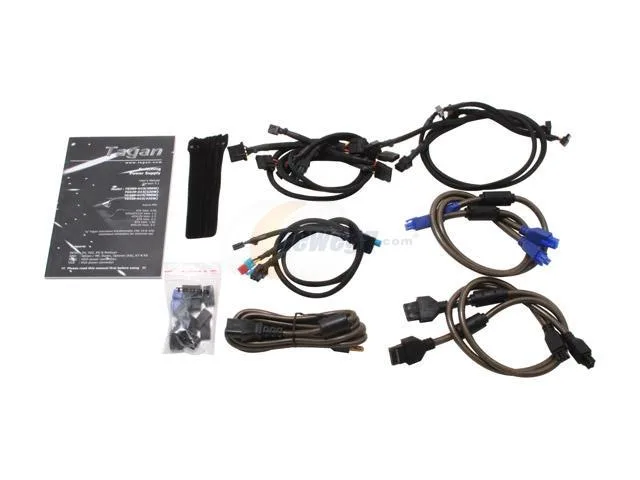

Connectors1 x Main connector (20+4 pin)
1 x 12V (P4)
1 x 12V (8 pin)
6 x peripheral
4x SATA
2 x Floppy
2 x PCI-E
FeaturesBlack Metal Chassis
12V combine & split switch
Tagan Silent Control Technology (TSCT) 22dBA at 60%% load
EMI core for reducing the radiation & ripple noise for new “high-end” graphic cards
Special Grounding Wire
Shipping weight3.63 kg
Package size152 × 152 × 102 mm

Questions about this item

What case clearance does the 120mm fan and black metal chassis need?

The unit follows the standard ATX form factor so it fits any case designed for ATX12V 2.01 supplies; allow a few centimetres behind the rear panel for the modular cable plugs and the 12V combine and split switch.

Which cables must stay attached during installation and which can be left in the box?

The 20+4 pin main connector, one 12V P4 and one 12V 8 pin are fixed; all six peripheral, four SATA, two floppy and two PCI-E leads are modular and only need connecting if your build uses them.

When should the 120mm fan be cleaned or the unit replaced?

Clean the fan intake with compressed air once a year to keep the TSCT noise level near 22dBA at 60 percent load; replace the supply if voltages drift outside ATX tolerance or the over voltage protection trips repeatedly.
