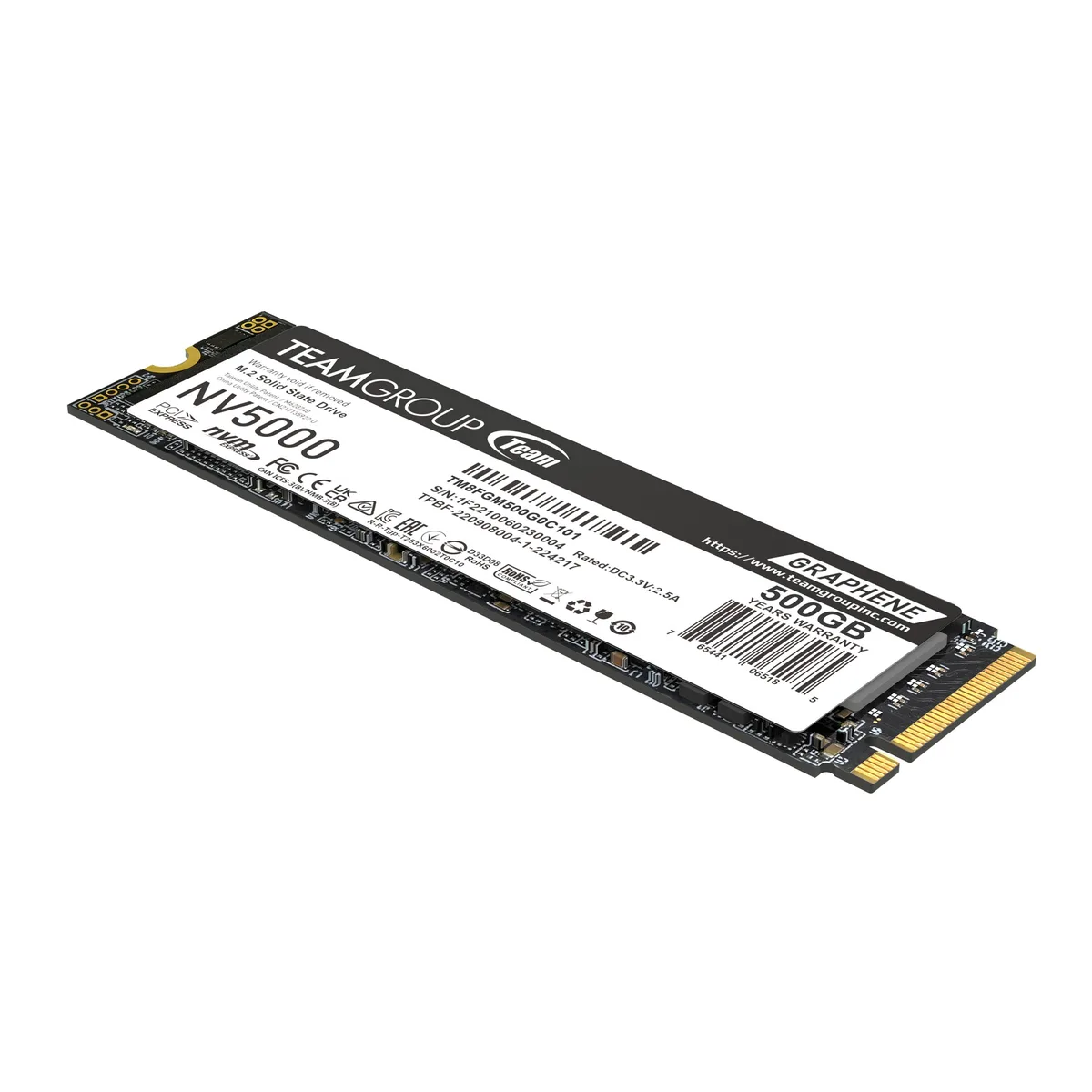

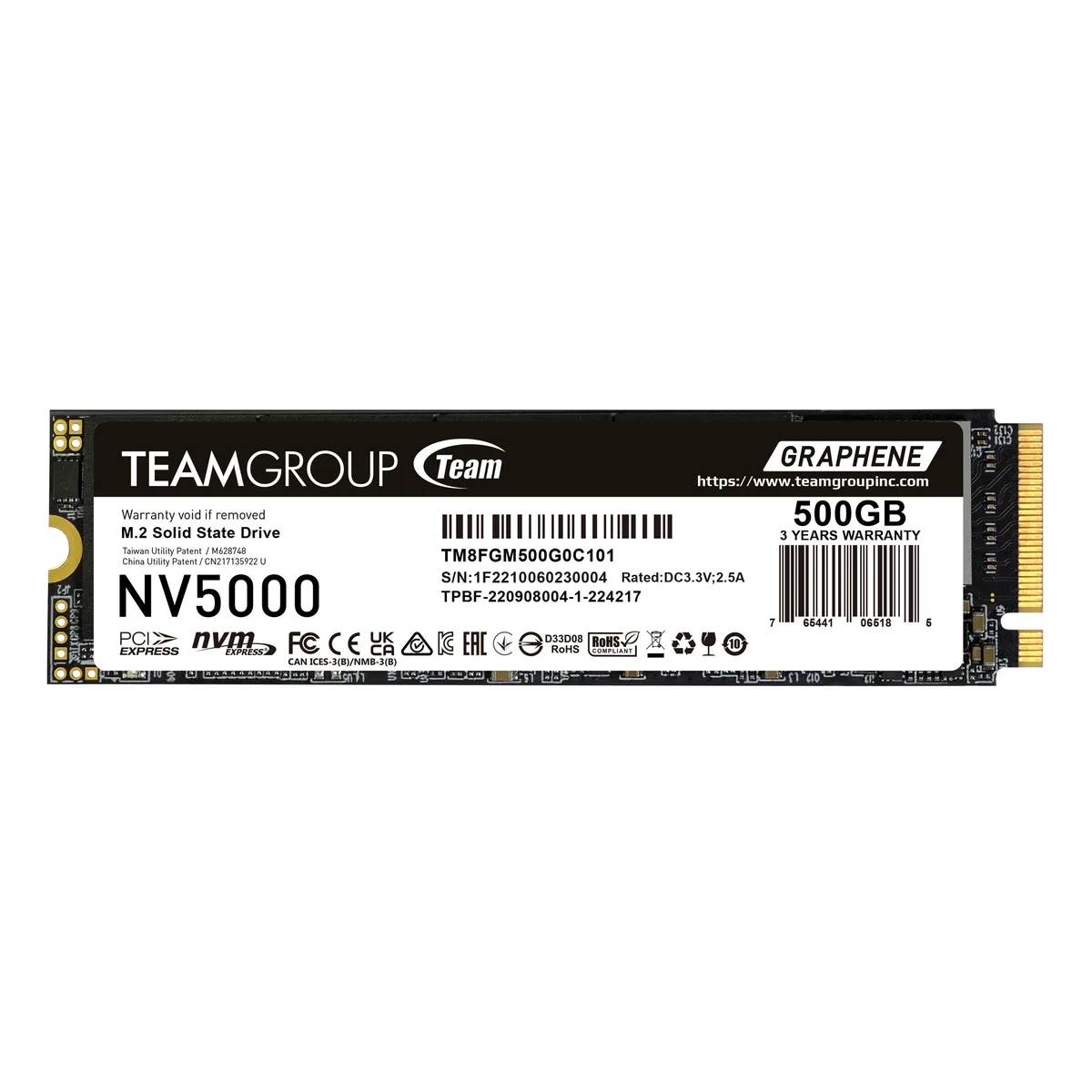

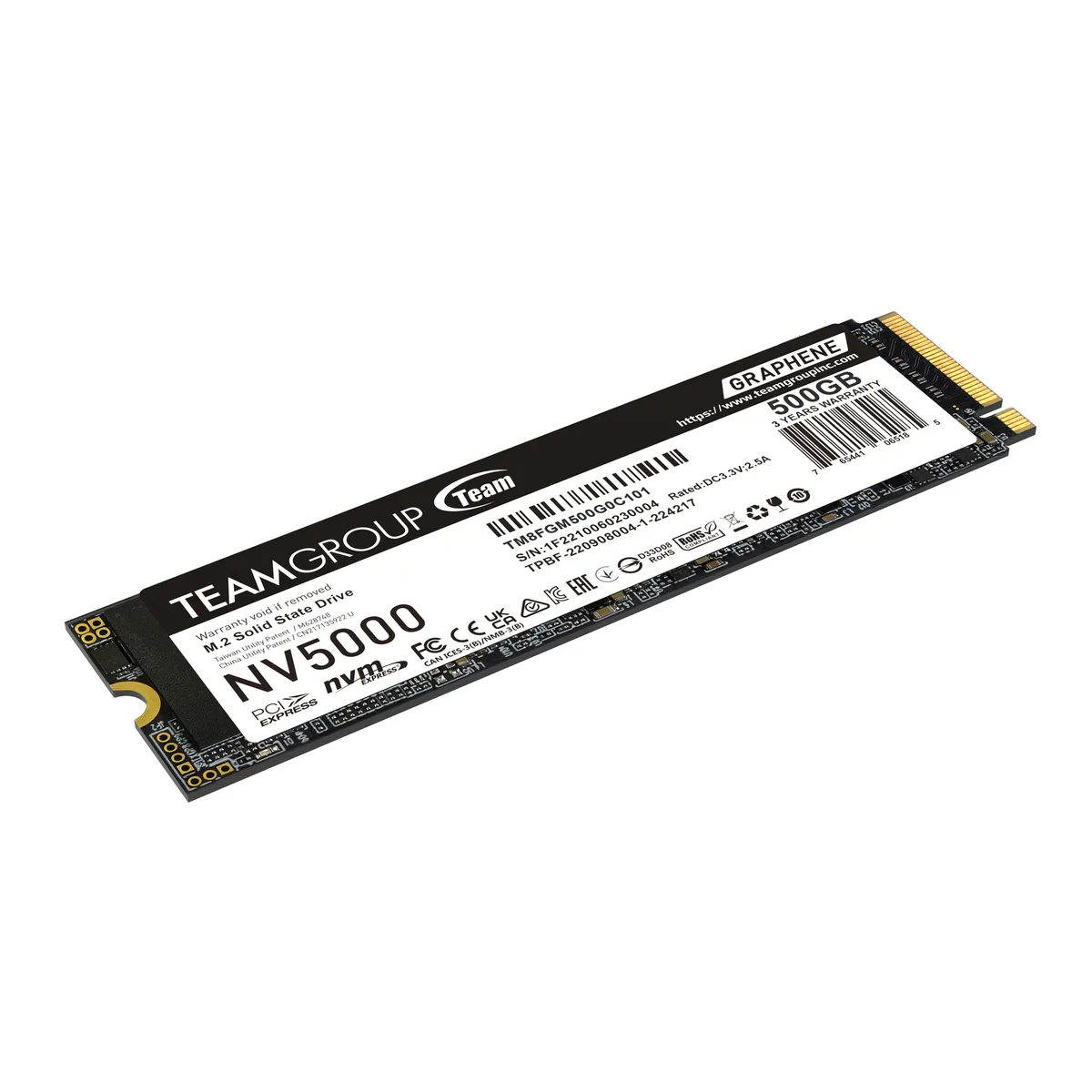

M.2 2280 SSD with integrated heatsink, black finish

Team Group

Team Group NV5000 TM8FGM500G0C101 500GB PCIe 4.0 NVMe internal SSD

SKU CH-S5XT-3093B MPN TM8FGM500G0C101

M.2 2280 500 GB PCIe 4.0 NVMe drive with integrated heatsink, sequential read up to 4500 MBps and 320 TBW endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity500GB
  • InterfacePCIe 4.0 x4 with NVMe
  • ProtocolNVMe
  • Fast boot and load times with up to 4500 MBps sequential read
  • Sustained write performance up to 1800 MBps for large file transfers
  • 320 TBW endurance rating supports heavy daily workloads
  • Integrated heatsink maintains stable temperatures under load
  • 2,000,000 hour MTBF indicates long-term reliability

500GB PCIe 4.0 NVMe drive with heatsink

The Team Group NV5000 is a 500GB M.2 2280 solid-state drive built for consumer PCs and laptops. It connects through a PCIe 4.0 x4 lane using the NVMe protocol. A factory-fitted heatsink covers the controller and NAND to help manage thermals under load. The drive uses host memory buffer technology instead of onboard DRAM.

Heatsink and HMB change thermal behaviour and cost

The included heatsink adds 3.70mm of height, so the module fits tighter bays without extra parts. Host memory buffer uses a portion of system RAM for mapping tables, which lowers component cost while keeping sequential reads up to 4500 MBps and writes up to 1800 MBps. Endurance is rated at 320TBW with a 2,000,000 hour MTBF.

Suits compact builds needing PCIe 4.0 speeds

This drive suits small-form-factor desktops and thin laptops that have an M.2 slot keyed for PCIe 4.0 and enough clearance for the heatsink. Users who need sustained heavy write workloads or hardware encryption should consider drives with dedicated DRAM cache and higher TBW ratings.

Highlights

  • Fast boot and load times with up to 4500 MBps sequential read
  • Sustained write performance up to 1800 MBps for large file transfers
  • 320 TBW endurance rating supports heavy daily workloads
  • Integrated heatsink maintains stable temperatures under load
  • 2,000,000 hour MTBF indicates long-term reliability

Specifications

BrandTeam Group
SeriesNV5000
ModelTM8FGM500G0C101
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity500GB
InterfacePCIe 4.0 x4 with NVMe
ProtocolNVMe
CacheNo DRAM (HMB)
Max Sequential ReadUp to 4500 MBps
Max Sequential WriteUp to 1800 MBps
Terabytes Written (TBW)320TBW
MTBF2,000,000 hours
HeatSinkwith HeatSink
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1,500G/0.5ms
Max Vibration Resistance80Hz~2,000Hz/20G
Height3.70mm
Width22mm
Depth80mm
Weight7g
Shipping weight0.23 kg
Package size122 × 97 × 15 mm

Questions about this item

How many terabytes can be written to the NV5000 before the 320TBW endurance rating is reached?

The drive is rated for 320TBW total bytes written, so that is the limit before the warranty endurance figure is reached.

Which specification caps performance first during long sequential writes on this PCIe 4.0 x4 drive?

The max sequential write speed is up to 1800 MBps, so sustained writes will hit that ceiling before the interface limit.

Does the included heatsink keep the NV5000 within its 0°C to 70°C operating range during all-day workloads?

The heatsink is designed to maintain temperatures inside the 0°C to 70°C operating window under continuous use.
