M.2 2280 SSD with aluminium and graphene heatsink, 4TB

Team Group

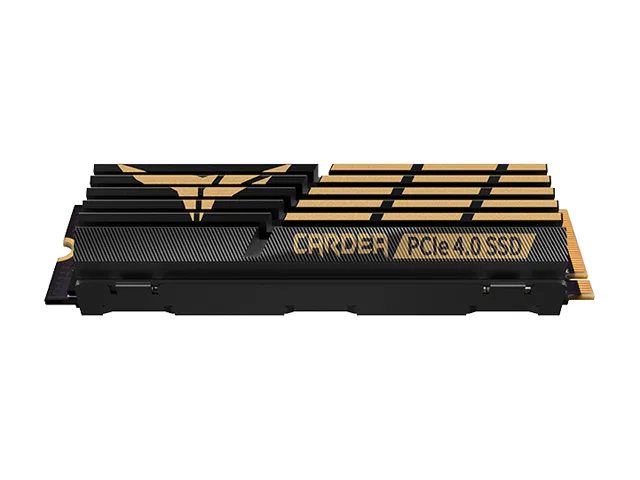

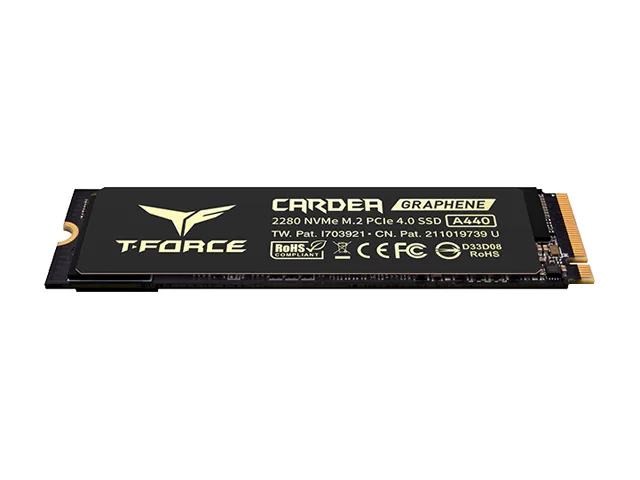

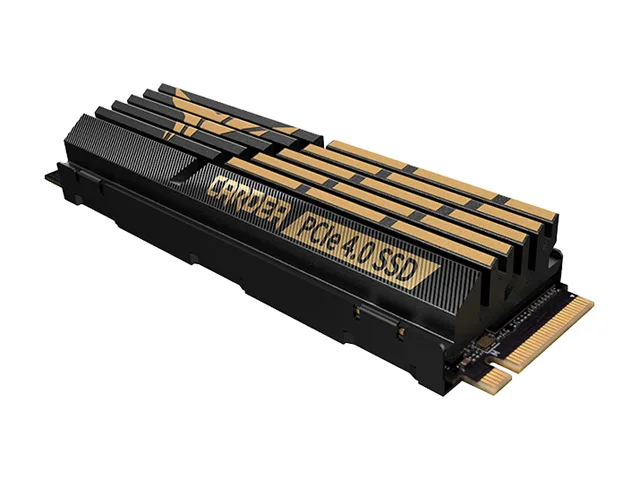

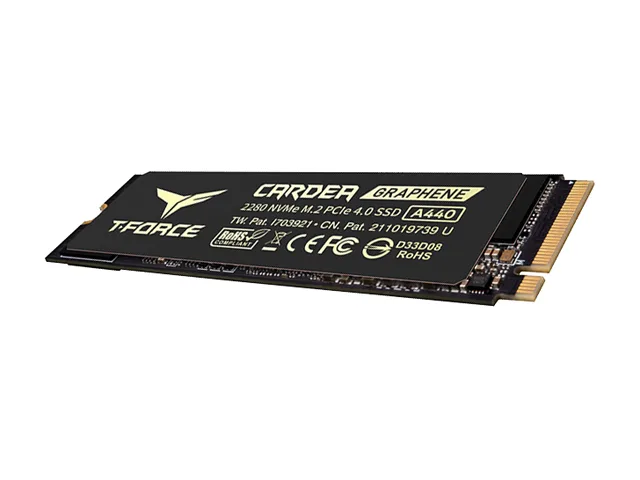

Team Group T-FORCE CARDEA A440 4TB M.2 2280 internal SSD TM8FPZ004T0C327

SKU CH-60W2-N1B8Z MPN TM8FPZ004T0C327

4 TB PCIe Gen 4.0 x4 NVMe 1.4 internal SSD with 4 GB DRAM cache, up to 7000 MB/s read and 6900 MB/s write, plus aluminum and graphene heat sinks

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity4TB
  • InterfacePCIe Gen 4.0 x4 NVMe 1.4
  • ProtocolNVMe 1.4

Options 4TB

  • 4TB capacity stores large libraries
  • Up to 7000 MBps sequential read speeds
  • Up to 6900 MBps sequential write speeds
  • 4GB DRAM cache sustains heavy workloads
  • Aluminium and graphene heatsinks keep temperatures low

4TB NVMe SSD for consumer builds

The Team Group T-FORCE CARDEA A440 is a 4TB internal SSD built on the PCIe Gen 4.0 x4 interface with NVMe 1.4 protocol. It targets consumer workloads that need high sequential and random throughput in a single M.2 2280 module. A 4GB DRAM cache supports sustained performance across large file transfers and heavy multitasking.

Fits M.2 2280 slots with two heat-sink options

The drive ships with an aluminum and graphene heat sink that measures 12.90mm tall, plus a thinner graphene option at 3.70mm for tighter clearances. Widths are 22.00mm and 23.40mm respectively, while depth stays at 80.0mm. This flexibility lets builders choose the profile that matches their motherboard layout and airflow without extra brackets.

3000TBW endurance with 7000/6900 MBps peaks

Rated at 3000TB written and 3,000,000 hours MTBF, the SSD delivers up to 7000 MBps sequential read and 6900 MBps sequential write, plus 1,000,000 IOPS for both 4KB random read and write. It operates from 0°C to 70°C and survives storage extremes of -40°C to 85°C, with shock resistance of 1500G and vibration tolerance to 2000Hz/20G.

Highlights

  • 4TB capacity stores large libraries
  • Up to 7000 MBps sequential read speeds
  • Up to 6900 MBps sequential write speeds
  • 4GB DRAM cache sustains heavy workloads
  • Aluminium and graphene heatsinks keep temperatures low

Specifications

BrandTeam Group
SeriesT-FORCE CARDEA A440
ModelTM8FPZ004T0C327
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity4TB
InterfacePCIe Gen 4.0 x4 NVMe 1.4
ProtocolNVMe 1.4
Cache4GB DRAM
Max Sequential ReadUp to 7000 MBps
Max Sequential WriteUp to 6900 MBps
4KB Random ReadUp to 1,000,000 IOPS
4KB Random WriteUp to 1,000,000 IOPS
Terabytes Written (TBW)3000TB
MTBF3,000,000 hours
HeatSinkAluminum and graphene heat sink
FeaturesEnjoy the lightning speed of the PCIe Gen4 x4
Featuring two patented heat sinks
Effective cooling - flexible installation
Supports the latest NVMe 1.4 standard
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Operating HumidityRH 90% under 40°C
Max Shock Resistance1,500G/0.5ms
Max Vibration Resistance80Hz~2,000Hz/20G
Height12.90mm (with Aluminum heat sink)
3.70mm (with Graphene heat sink)
Width22.00mm (with Aluminum heat sink)
23.40mm (with Graphene heat sink)
Depth80.00mm
Weight13.00g (with Graphene heat sink)
46.00g (with Aluminum heat sink)
Shipping weight0.07 kg
Package size127 × 94 × 18 mm
