Green circuit board with black chips and thin silver label, no heatsink

Team Group

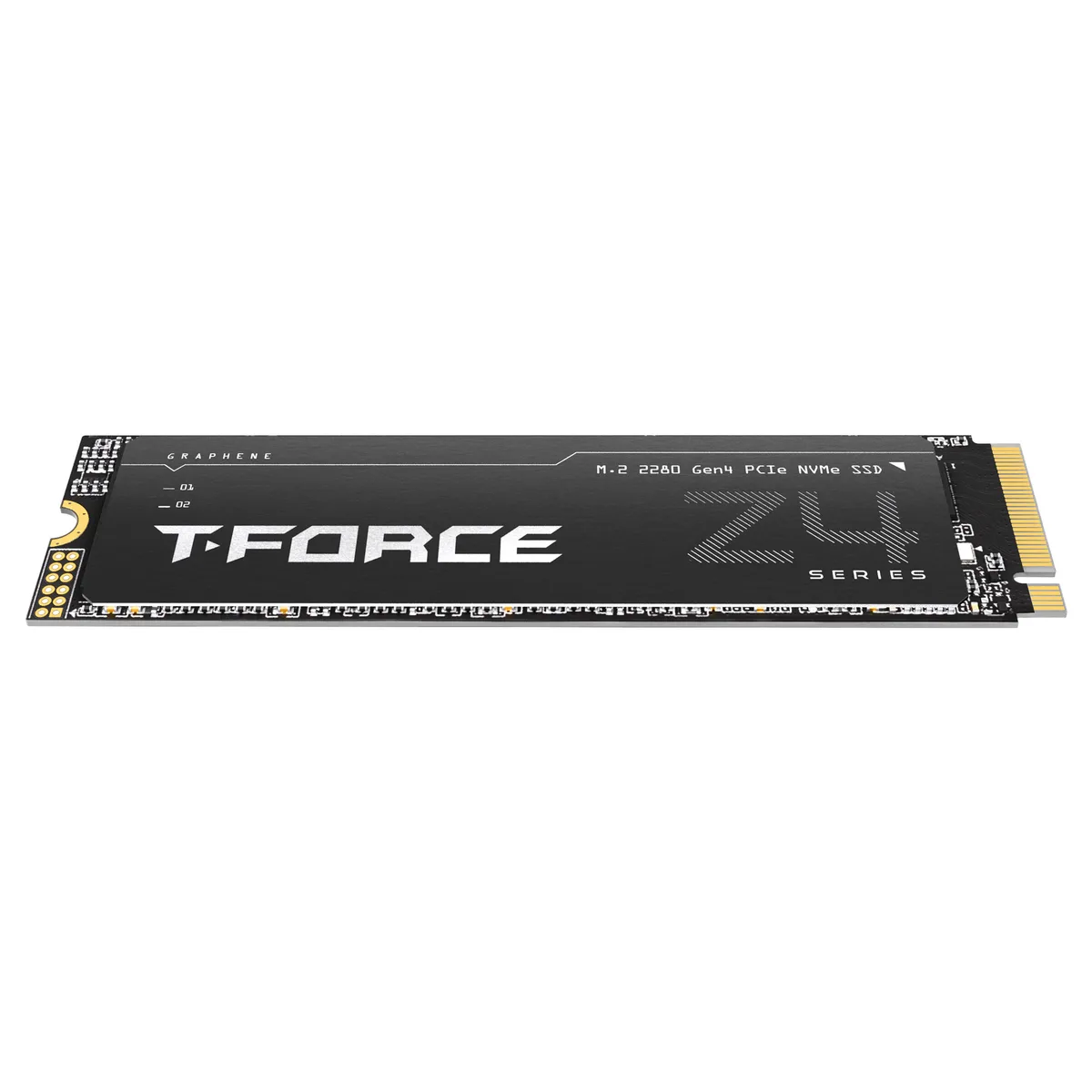

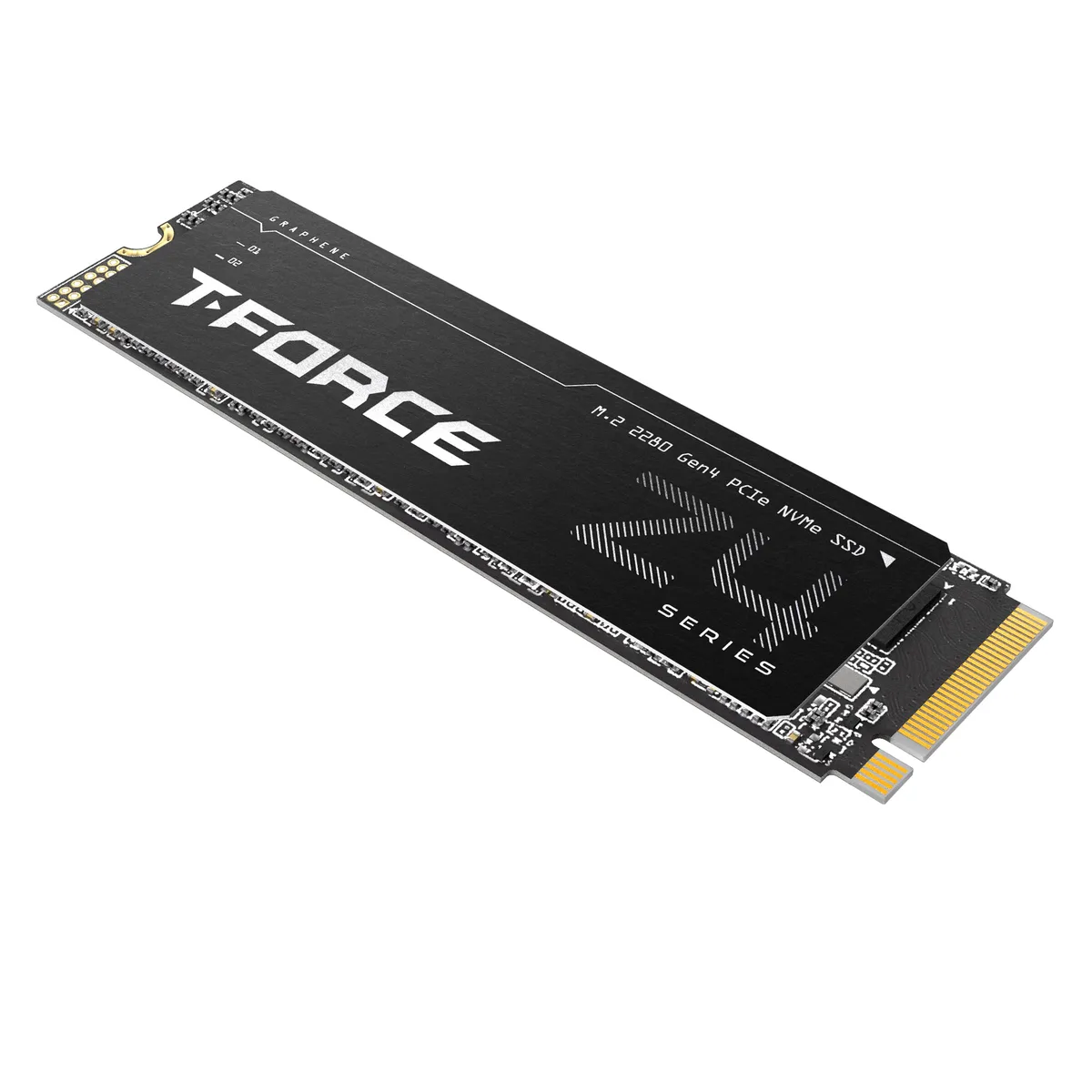

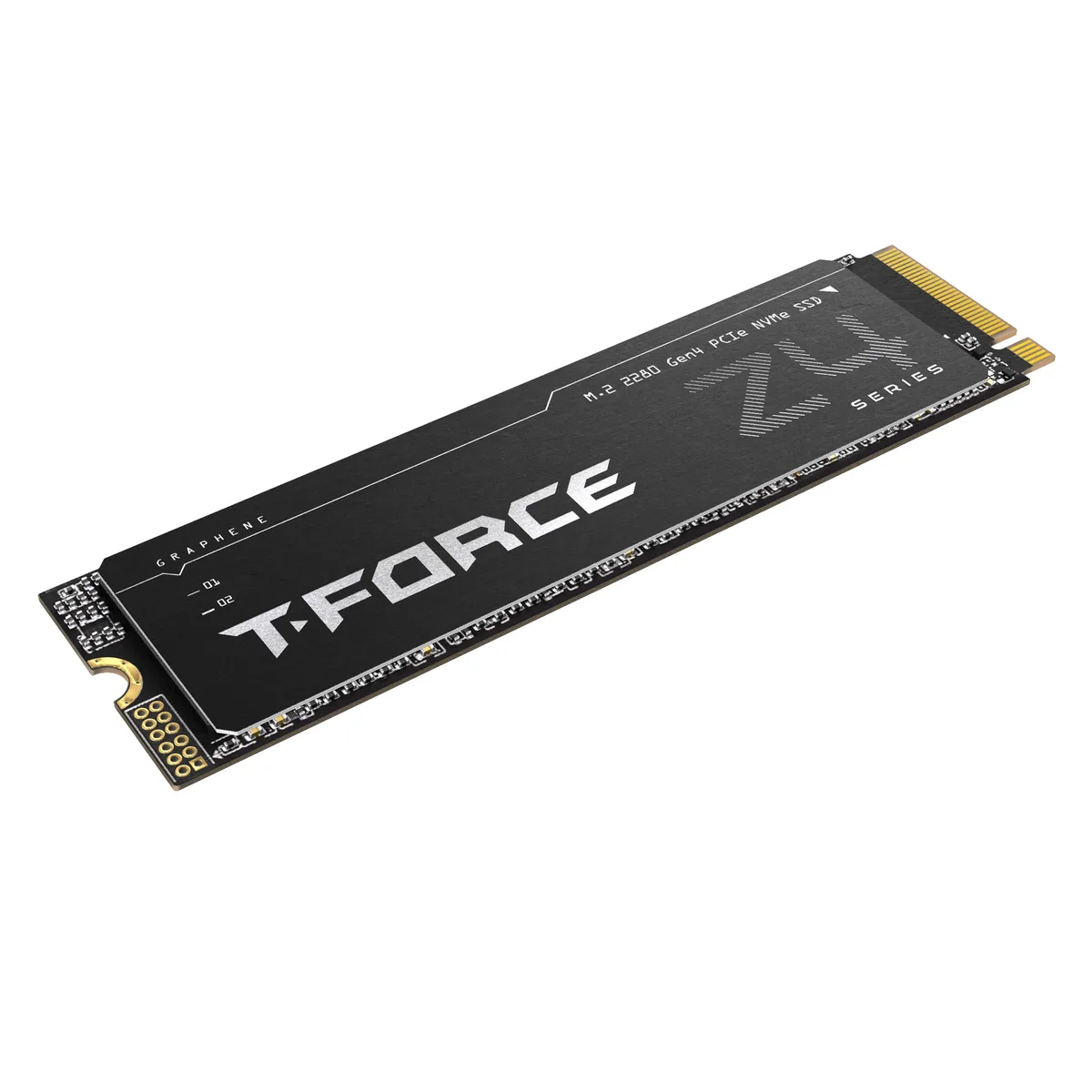

Team Group TM8FFW002T0C134 2TB M.2 2280 PCIe 4.0 x4 NVMe internal SSD

SKU CH-RB0A-6P0KW MPN TM8FFW002T0C134

A 2TB M.2 2280 NVMe drive with PCIe 4.0 x4 speeds up to 7000 MB/s read and 6100 MB/s write, using 3D NAND and a graphene heatsink

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory Components3D NAND
  • InterfacePCI-Express 4.0 x4
  • Up to 7000 MBps sequential read for fast data access
  • Up to 6100 MBps sequential write for quick file saves
  • 1000 TBW endurance rating for long-lasting reliability
  • 1,500,000 hours MTBF for dependable operation
  • Patented graphene heatsink improves heat dissipation and system stability

Capacity and interface

The Team Group TM8FFW002T0C134 is a 2TB M.2 2280 NVMe drive that connects over PCIe 4.0 x4. It is built with 3D QLC NAND and uses host memory buffer caching instead of onboard DRAM. Sequential reads reach 7000 MBps and writes reach 6100 MBps, making it suited for notebook or desktop storage upgrades.

Compatibility check

Verify that your motherboard or laptop provides an M.2 2280 slot wired for PCIe 4.0 x4 and NVMe signalling. The module is sold without a heatsink and measures under 1mm thick, so confirm the available clearance in your chassis. Operating temperature range is 0°C to 70°C and storage range is -40°C to 85°C.

Bundled accessories and software

A graphene thermal pad is included in the tray box to help dissipate heat from the controller and NAND. Firmware features include garbage collection, TRIM support, LDPC error correction and end-to-end data protection. A patented health monitoring system reports drive status to compatible software tools.

Highlights

  • Up to 7000 MBps sequential read for fast data access
  • Up to 6100 MBps sequential write for quick file saves
  • 1000 TBW endurance rating for long-lasting reliability
  • 1,500,000 hours MTBF for dependable operation
  • Patented graphene heatsink improves heat dissipation and system stability

Specifications

BrandTeam Group
SeriesT-FORCE Z44A7Q
ModelTM8FFW002T0C134
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory Components3D NAND
InterfacePCI-Express 4.0 x4
ProtocolNVMe
CacheNo DRAM (HMB)
Max Sequential ReadUp to 7000 MBps
Max Sequential WriteUp to 6100 MBps
Terabytes Written (TBW)1000TB
MTBF1,500,000 hours
HeatSinkwithout HeatSink
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1,500G/0.5ms
Max Vibration Resistance80Hz~2,000Hz/20G
Height3.7mm
Width80.0mm
Depth22.0mm
Weight7g
Shipping weight0.20 kg
Package size124 × 94 × 12 mm

Questions about this item

Will this 2TB M.2 2280 drive fit in my laptop's single-sided slot?

Yes, the board is under 1 mm thick with no heatsink, so it clears tight single-sided M.2 slots in thin notebooks.

My motherboard only has PCIe 3.0 x4 — will I lose much speed?

The drive runs at PCIe 4.0 x4 for up to 7000 MB/s read and 6100 MB/s write; on a 3.0 slot it will operate at the slot's lower ceiling.

Is any extra cooling needed for sustained writes?

A patented graphene heatsink is pre-applied, and the drive is rated for 0 °C to 70 °C operation without additional cooling.
