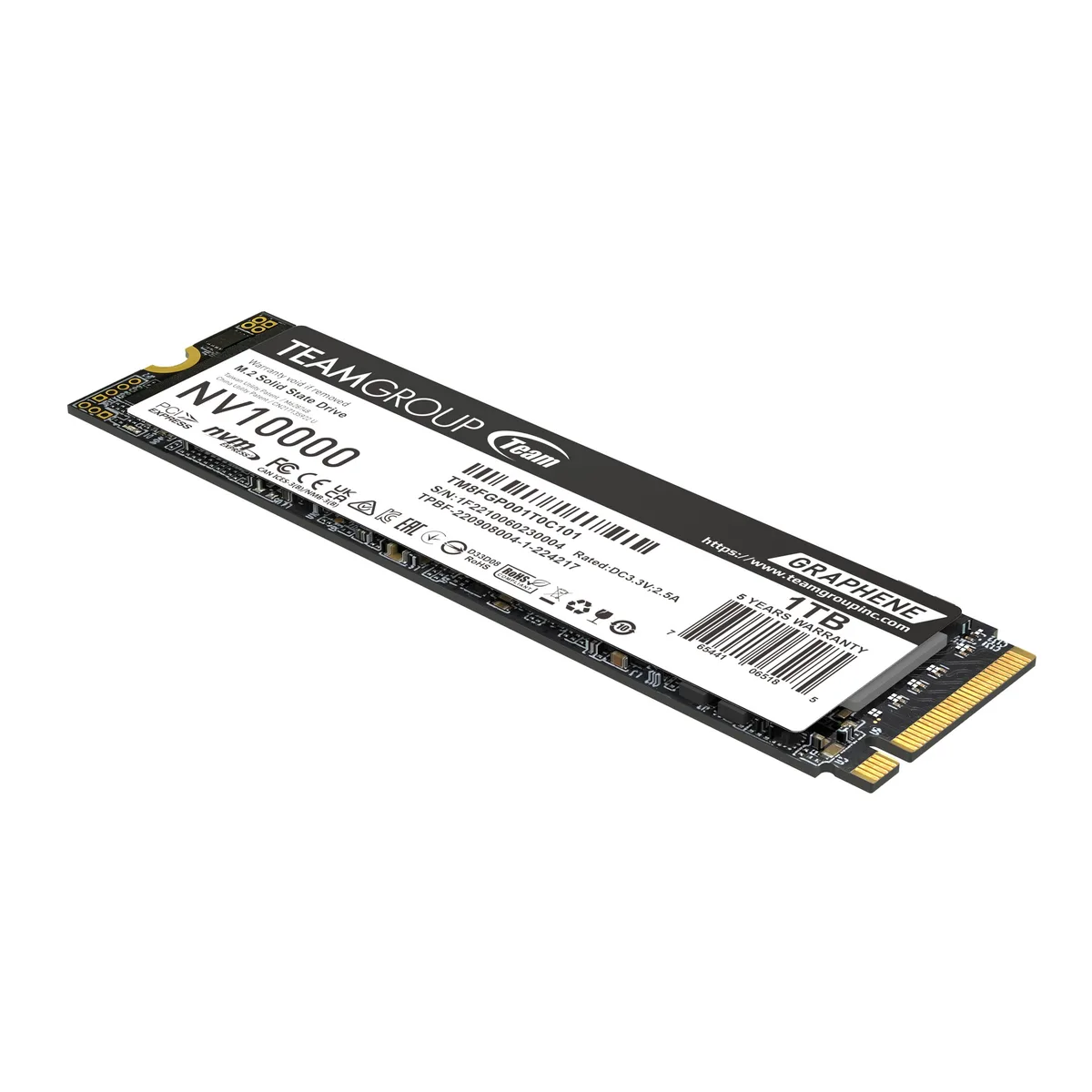

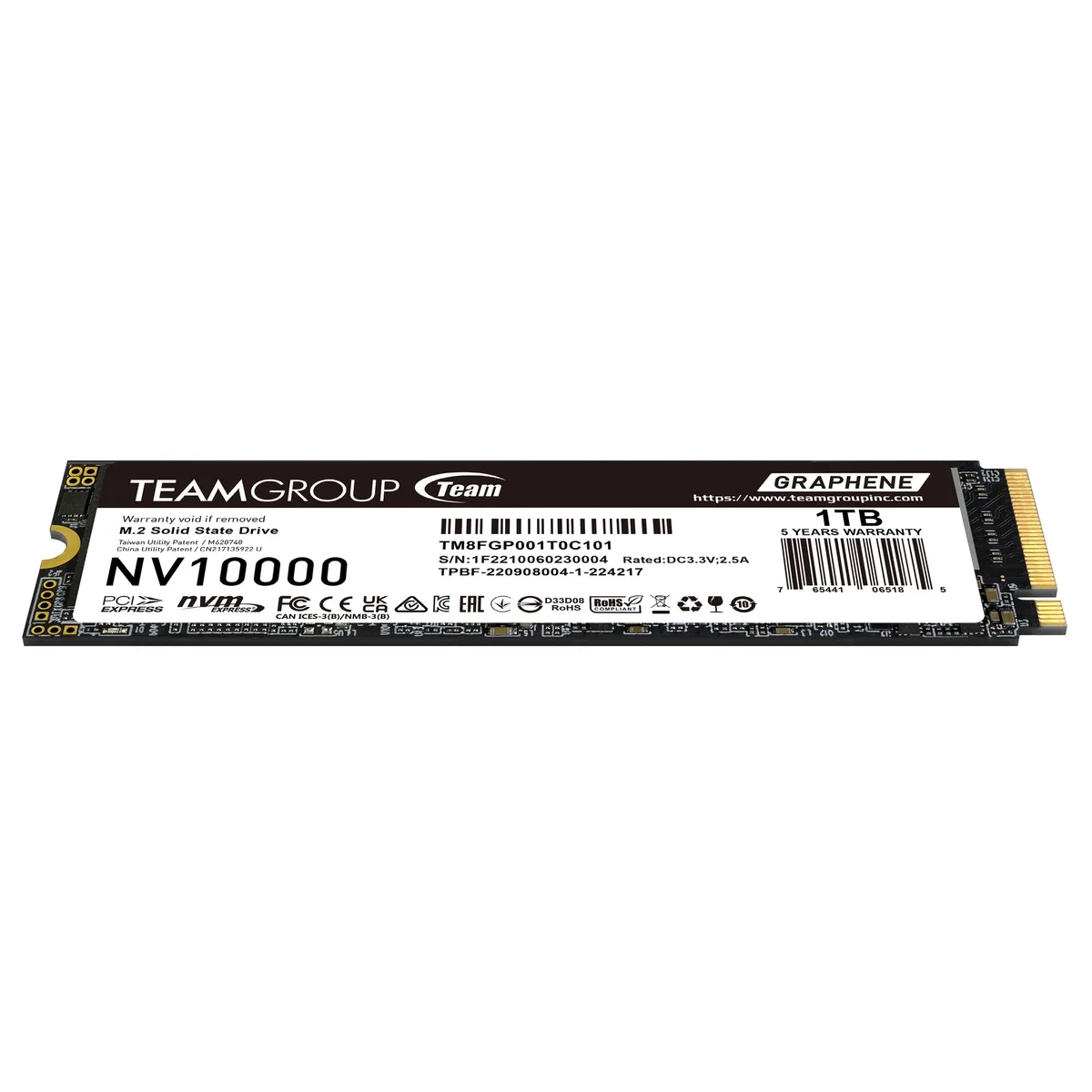

Green M.2 2280 NVMe SSD with graphene heat spreader and 1TB label

Team Group

Team Group TM8FGP001T0C101 1TB PCIe 5.0 NVMe internal SSD

SKU CH-ZY38-8G3G6 MPN TM8FGP001T0C101

1TB M.2 2280 NVMe SSD with PCIe 5.0 x4 interface delivering up to 10000 MB/s read and 8200 MB/s write speeds

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory Components3D NAND
  • InterfacePCI-Express 5.0 x4

Capacity 1TB

  • Up to 10000 MB/s sequential read via PCIe 5.0 x4
  • Up to 8200 MB/s sequential write via PCIe 5.0 x4
  • 600 TBW endurance backed by 3D NAND
  • 1,500,000 hours MTBF for long-term reliability
  • 1GB DRAM cache improves sustained performance

1TB PCIe 5.0 NVMe drive

The Team Group NV10000 is a 1TB M.2 2280 internal SSD built for consumers who need fast storage in desktops or laptops. It uses 3D NAND flash and a PCIe 5.0 x4 interface with NVMe protocol to reach sequential reads up to 10000 MBps and writes up to 8200 MBps. A 1GB DRAM cache helps sustain performance during heavy workloads.

Fits M.2 2280 slots with PCIe 5.0 support

The drive measures 3.70mm in height and operates from 0°C to 70°C without a heatsink, so it relies on motherboard or laptop cooling. It requires a platform with a PCIe 5.0 x4 M.2 slot to deliver rated speeds, though it will negotiate down on older slots. The compact form factor leaves room for other components in tight builds.

Replaces PCIe 4.0 NVMe drives when speed matters

With 600TB TBW and a 1500000-hour MTBF, it offers endurance for long-term use. The jump from a PCIe 4.0 drive is worth it for workflows that move large files or run sustained transfers, where the Gen5 interface cuts wait times. On PCIe 4.0 or 3.0 slots the drive works but cannot reach its peak rates.

Highlights

  • Up to 10000 MB/s sequential read via PCIe 5.0 x4
  • Up to 8200 MB/s sequential write via PCIe 5.0 x4
  • 600 TBW endurance backed by 3D NAND
  • 1,500,000 hours MTBF for long-term reliability
  • 1GB DRAM cache improves sustained performance

Specifications

BrandTeam Group
ModelNV10000 M.2 PCIe 5.0 SSD
Part NumberTM8FGP001T0C101
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory Components3D NAND
InterfacePCI-Express 5.0 x4
ProtocolNVMe
Cache1GB DRAM
Max Sequential ReadUp to 10000 MBps
Max Sequential WriteUp to 8200 MBps
Terabytes Written (TBW)600TB
MTBF1,500,000 hours
HeatSinkwithout HeatSink
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1,500G/0.5ms
Height3.70mm
Width22mm
Depth80mm
Weight7g
Shipping weight0.01 kg
Package size123 × 95 × 13 mm

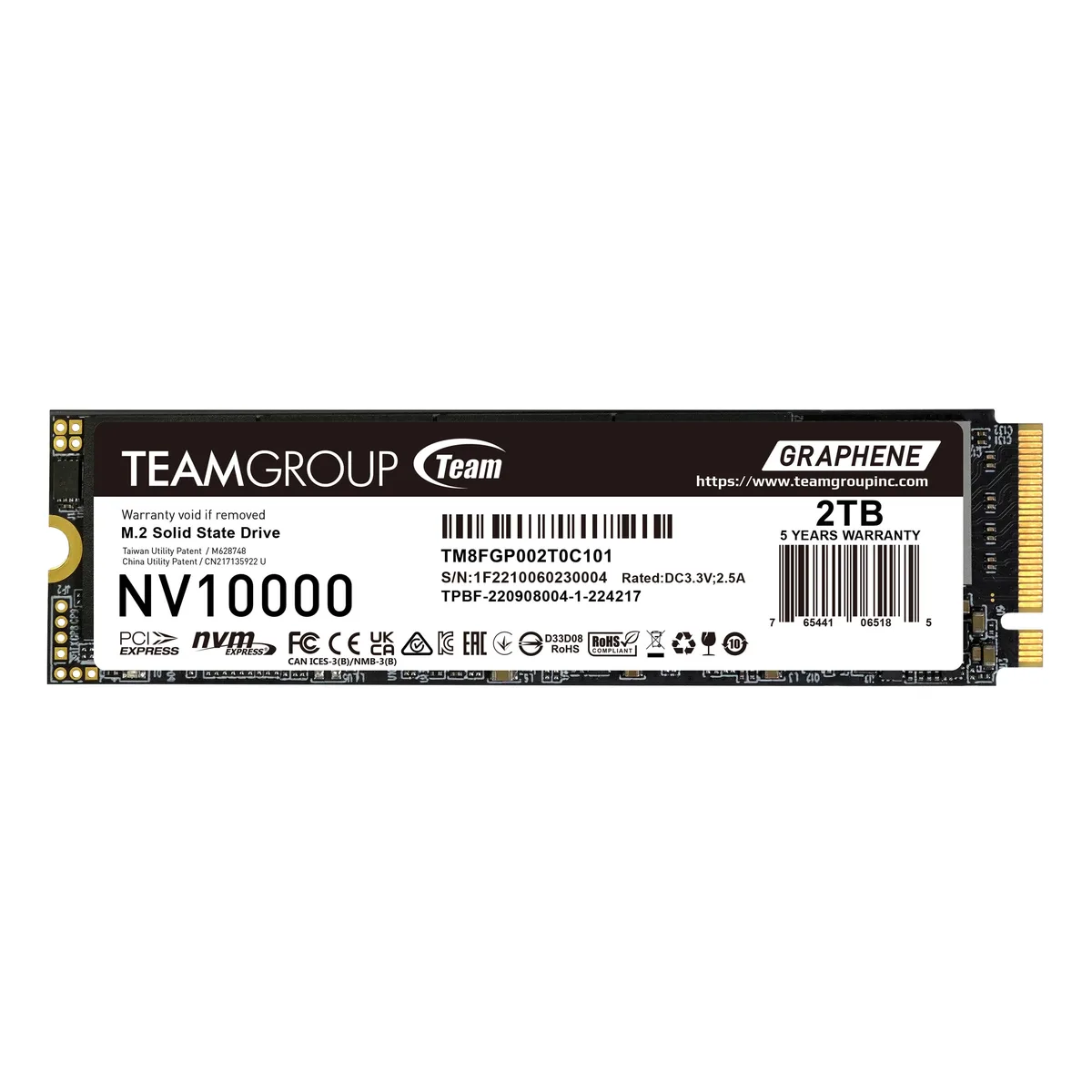

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

At what operating temperature does the TM8FGP001T0C101 begin to throttle?

The drive is rated for 0°C to +70°C; sustained heavy workloads that push the controller toward the upper end of this range will trigger thermal throttling first.

How loud or hot does the NV10000 get during all-day operation without an extra heatsink?

The drive ships with a graphene heat spreader and no active cooling; under continuous load it runs silently but can approach the 70°C limit, so case airflow or a motherboard heatsink is advisable.

What motherboard slot and firmware support must I already have for this 1TB PCIe 5.0 drive to work?

You need an M.2 2280 slot wired for PCIe 5.0 x4 and a BIOS/UEFI that supports NVMe boot; older PCIe 4.0-only slots will work but at reduced speed.
