Black 240mm AIO with square LCD pump block and two 120mm ARGB fans

Thermalright

Thermalright Peerless Vision 240 ARGB Black liquid cooler

SKU CH-AZTH-1Y4PH

A 240 mm all-in-one liquid cooler with a 3.95 inch 480x480 LCD pump display, 3000 RPM pump, and two 120 mm PWM ARGB fans rated at 2000 RPM and 68.9 CFM for Intel LGA 115X through 1851

  • TypeCPU Block
  • Block Compatibility - AMDAM4/AM5
  • Block Compatibility - IntelLGA 1851/ 1700/ 115X/ 1200/ 2011/ 2066
  • Block Dim.81MM* 79MM* 67.6MM
  • Block MaterialCopper
  • DisplayYes

model PEERLESS VISION 240 ARGB BLACK

  • 95" 480x480 LCD pump display adds a clean visual centrepiece
  • 240mm radiator with 277x120x27mm footprint fits compact cases
  • Two 120mm S-FDB fans deliver 68.9 CFM at 28.2dBA max
  • Copper cold plate covers Intel LGA115X/1200/1700/1851/2011/2066 and AMD AM4/AM5

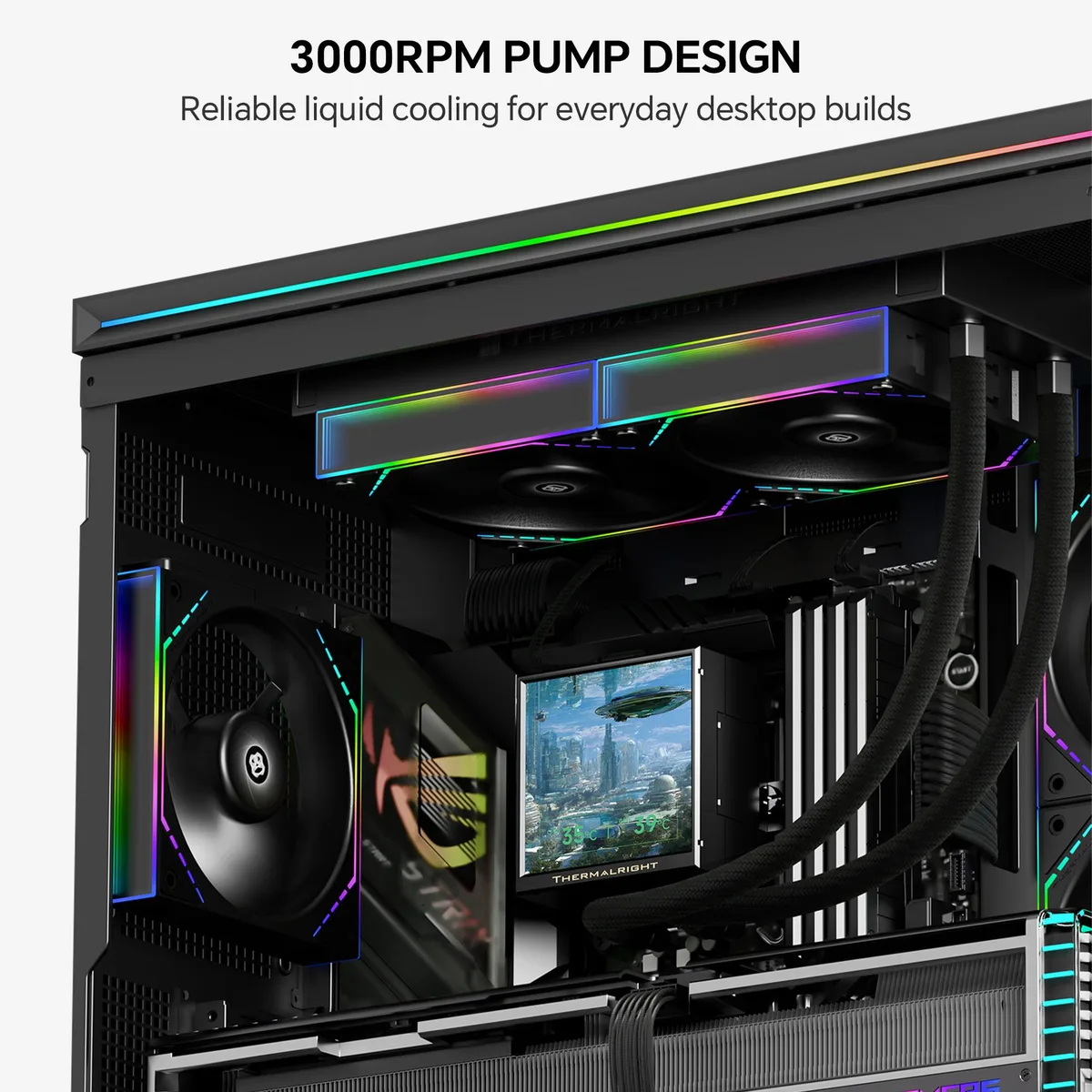

  • 3000RPM pump and 2000RPM PWM fans provide adjustable liquid cooling performance

Compact LCD AIO for mainstream builds

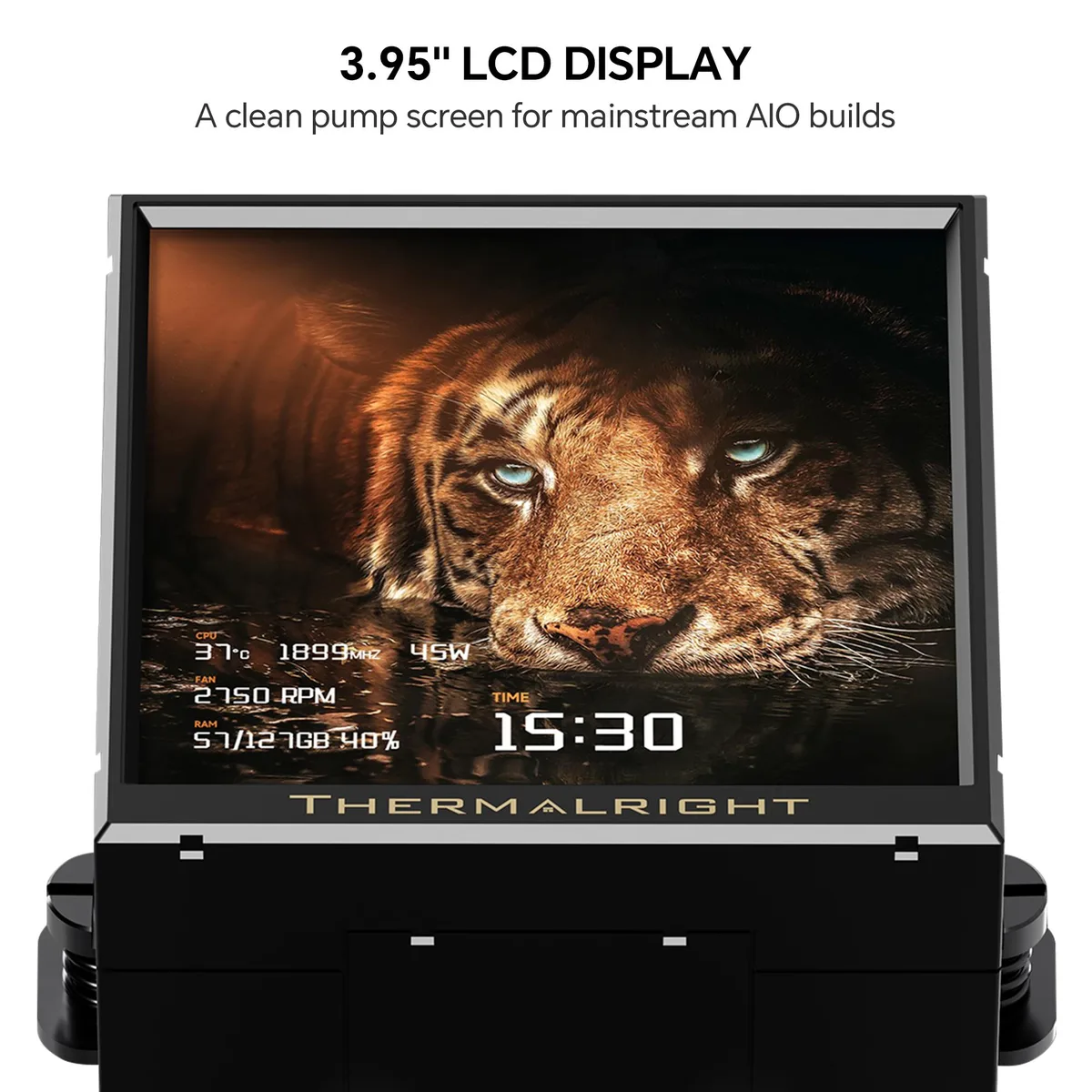

The Thermalright Peerless Vision 240 ARGB Black is a 240 mm all-in-one liquid cooler with a 3.95 inch 480 x 480 LCD pump block. It fits Intel LGA 115X, 1200, 1700, 1851, 2011 and 2066 sockets plus AMD AM4 and AM5 platforms. The copper cold plate and aluminum radiator target builders who want a visible display without a 360 mm footprint.

Step up from air cooling when space allows 240 mm

This cooler replaces a tower air cooler when the case can mount a 277 x 120 x 27 mm radiator and two 120 mm fans. The jump is worth it if the builder wants lower pump noise at 3000 RPM max and a screen for system stats or images. It is not for cases limited to 120 mm radiators or builds that need a 360 mm surface area for heavy overclocks.

Standard AIO install with LCD cable routing

Installation follows the usual bracket, paste, radiator, fan and cable routine for the listed sockets. The 4-pin PWM fans and 5 V 3-pin ARGB connectors plug into standard motherboard headers. What usually goes wrong is forgetting the USB cable for the LCD, routing the display cable under the radiator, or mounting fans with incorrect airflow direction.

Highlights

  • 95" 480x480 LCD pump display adds a clean visual centrepiece
  • 240mm radiator with 277x120x27mm footprint fits compact cases
  • Two 120mm S-FDB fans deliver 68.9 CFM at 28.2dBA max
  • Copper cold plate covers Intel LGA115X/1200/1700/1851/2011/2066 and AMD AM4/AM5
  • 3000RPM pump and 2000RPM PWM fans provide adjustable liquid cooling performance

Specifications

BrandThermalright
SeriesPEERLESS VISION
ModelPEERLESS VISION 240 ARGB BLACK
Part NumberPEERLESS VISION 240 ARGB BLACK
TypeCPU Block
Block Compatibility - AMDAM4/AM5
Block Compatibility - IntelLGA 1851/ 1700/ 115X/ 1200/ 2011/ 2066
Block Dim.81MM* 79MM* 67.6MM
Block MaterialCopper
DisplayYes
Pump Speed3000 RPM±10% (MAX)
Radiator Size277MM* 120MM* 27MM
Radiator MaterialAluminum
Fan Size2 Fan Slots (120 mm)
Fan Dim.124MM* 120MM* 25MM
Bearing TypeS-FDB BEARING
Fan RPM2000 RPM±10% (MAX)
Fan Air Flow68.9 CFM (MAX)
Fan Noise28.2dBA (MAX)
Fan Connector4 Pin
ColorBlack
LED ColorARGB
Pressure2.21mm H2O (MAX)
Tube Dim.400mm
Screen Size3.95''
Resolution480 x 480

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What case clearance does the 277 mm radiator with 27 mm thickness and 120 mm fan slots need?

The radiator measures 277 mm long, 120 mm wide and 27 mm thick, so the case must provide at least that much space for a 240 mm dual-fan mount.

Which pump-header and ARGB-header connections are required during installation?

Connect the pump to a 4-pin CPU fan header for 3000 RPM control and the fans to a 5 V 3-pin ARGB header for lighting sync; skipping either header leaves the pump or RGB non-functional.

What long-term maintenance does the copper cold plate and S-FDB bearing fans require?

The sealed loop needs no refill; periodically dust the aluminum radiator fins and the 120 mm S-FDB fans to maintain the 68.9 CFM airflow and 28.2 dBA noise level.
