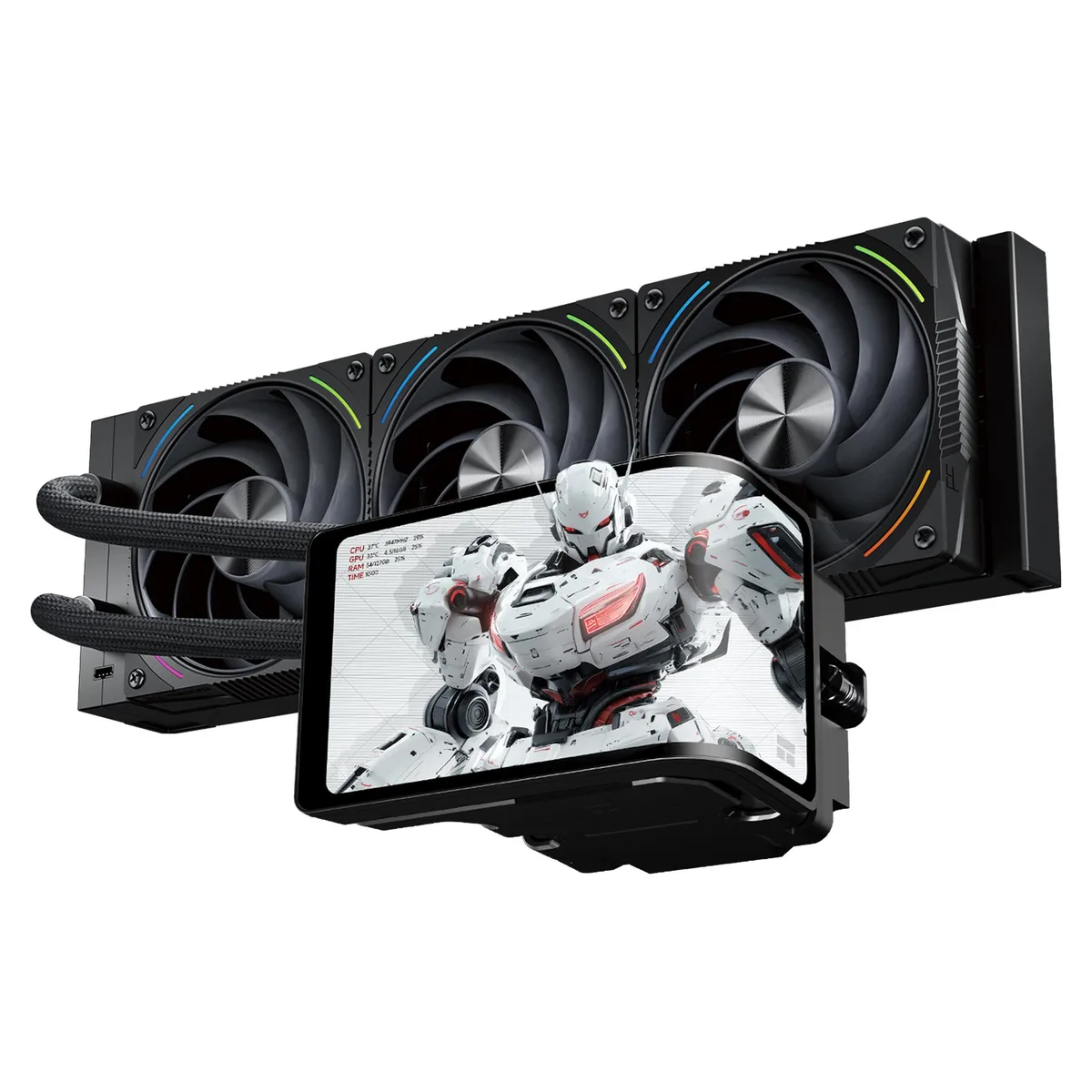

Black 360mm AIO cooler with 6.67 inch curved LCD block and three ARGB fans

Thermalright

Thermalright Wonder Vision 360 Turbo ARGB Black 360mm liquid cooler

SKU CH-QBCR-1DK4Q

A 360 mm AIO CPU liquid cooler with a 6.67 inch 2400x1080 LCD, a 6400 RPM pump and 3000 RPM Turbo PWM ARGB fans for Intel and AMD sockets

  • TypeCPU Block
  • Block Compatibility - AMDAM4/AM5
  • Block Compatibility - IntelLGA 1851/ 1700/ 115X/ 1200/ 2011/ 2066
  • Block Dim.120.1MM* 80MM* 107MM
  • Block MaterialCopper
  • DisplayYes

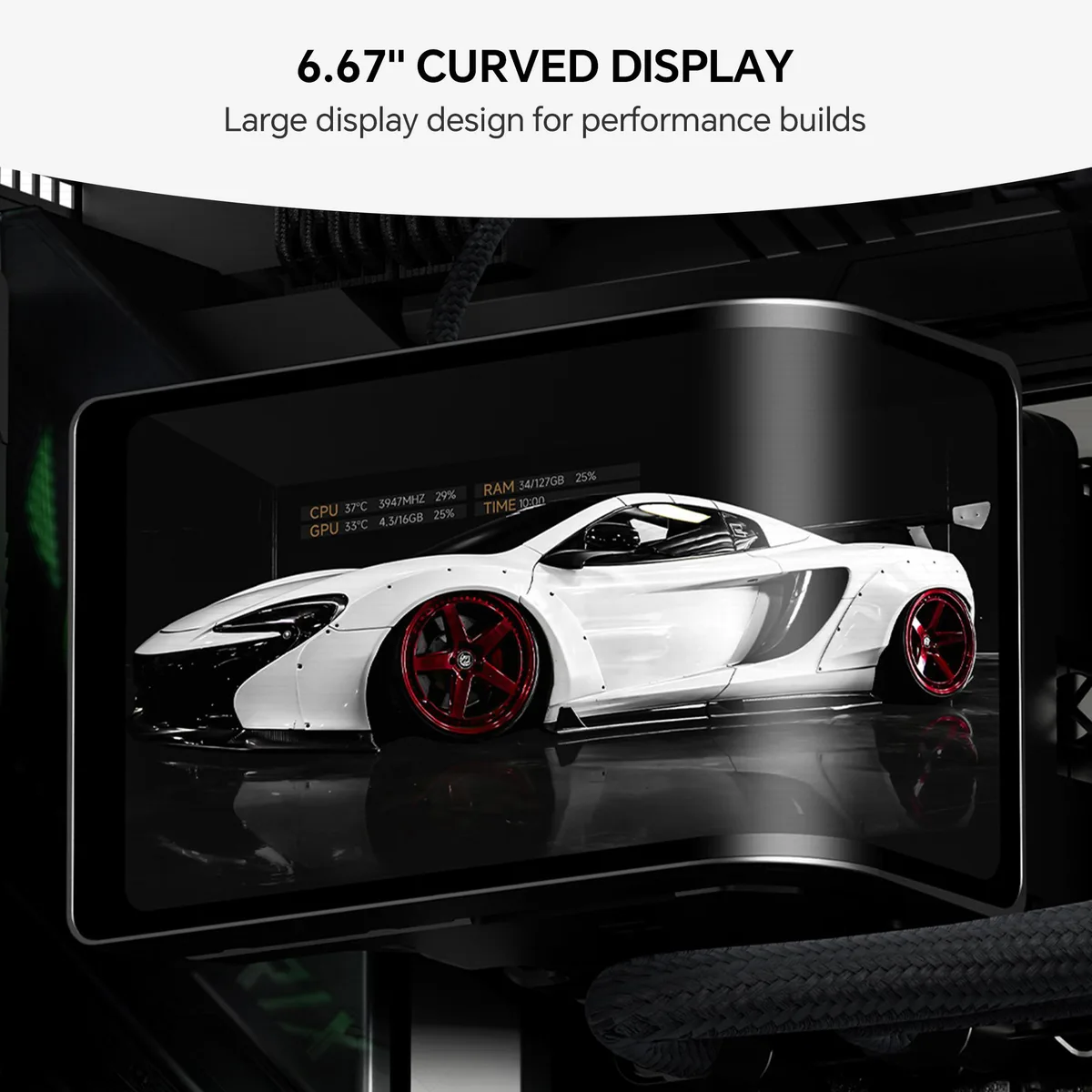

  • Large 6.67" 2400x1080 LCD shows clear system stats

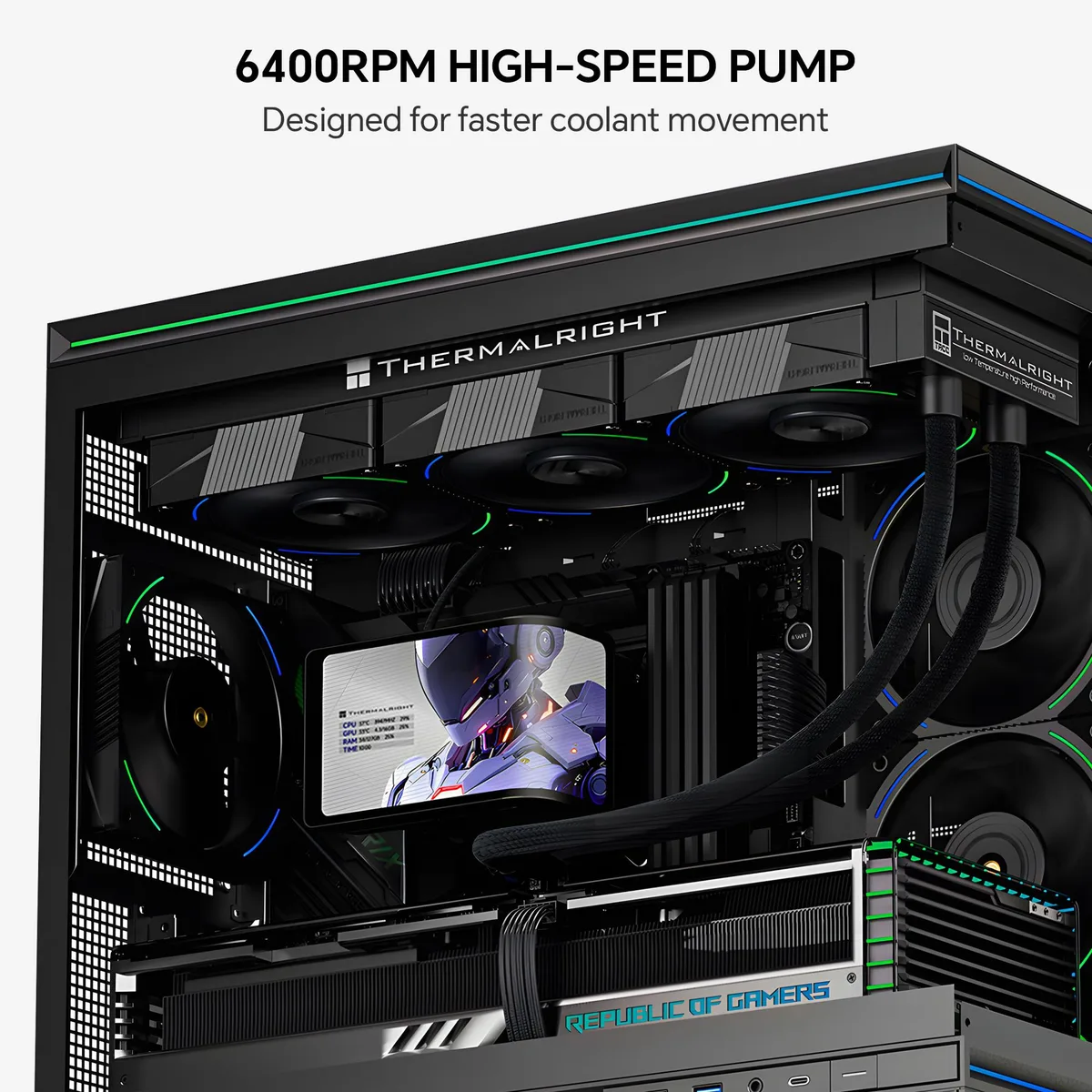

  • 6400 RPM pump moves coolant fast under heavy CPU load
  • Three 3000 RPM Turbo PWM ARGB fans deliver 110.5 CFM airflow
  • 360mm aluminum radiator fits mid-tower and full-tower cases with 360mm support
  • Copper block mounts on Intel LGA 1851, 1700, 115X, 1200, 2011, 2066 and AMD AM4, AM5

360mm AIO with 6.67" LCD for performance builds

The Thermalright Wonder Vision 360 Turbo ARGB is a 360mm all-in-one CPU liquid cooler designed for desktop users who want a large integrated display alongside high cooling capacity. It combines a 6.67-inch curved LCD with 2400x1080 resolution, a 6400RPM pump, and three Turbo PWM ARGB fans rated up to 3000RPM. The aluminium radiator measures 403mm by 120mm by 27mm and fits compatible mid-tower or full-tower cases.

Mounting kit covers current Intel and AMD sockets

Installation uses the included mounting hardware for Intel LGA 1851, 1700, 1200, 115X, 2011 and 2066 plus AMD AM4 and AM5 platforms. The copper cold plate measures 120.1mm by 80mm by 107mm and connects to the radiator with pre-filled tubing. Fans attach via standard 4-pin PWM headers and ARGB lighting links to a 5V 3-pin header or controller. Ensure the case provides 360mm top or front clearance for the 403mm radiator length and 27mm thickness.

Verify case clearance

Check that your chassis supports a 360mm radiator with 403mm length, 120mm width and 27mm depth plus 28mm fan thickness. Confirm the motherboard has a 4-pin CPU fan header for the pump and three 4-pin headers or a splitter for the fans. A 5V 3-pin ARGB header or external controller is required for lighting control. The block height of 107mm may affect RAM slot access on some boards.

Highlights

  • Large 6.67" 2400x1080 LCD shows clear system stats
  • 6400 RPM pump moves coolant fast under heavy CPU load
  • Three 3000 RPM Turbo PWM ARGB fans deliver 110.5 CFM airflow
  • 360mm aluminum radiator fits mid-tower and full-tower cases with 360mm support
  • Copper block mounts on Intel LGA 1851, 1700, 115X, 1200, 2011, 2066 and AMD AM4, AM5

Specifications

BrandThermalright
SeriesWONDER VISION 360 TURBO ARGB BLACK
ModelWONDER VISION 360 TURBO ARGB BLACK
Part NumberWONDER VISION 360 TURBO ARGB BLACK
TypeCPU Block
Block Compatibility - AMDAM4/AM5
Block Compatibility - IntelLGA 1851/ 1700/ 115X/ 1200/ 2011/ 2066
Block Dim.120.1MM* 80MM* 107MM
Block MaterialCopper
DisplayYes
Pump Speed6400 RPM±10% (MAX)
Radiator Size403MM* 120MM* 27MM
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120mm×120mm×28
mm
Bearing TypeDUAL BALL BEARING
Fan RPM3000 RPM±10% (MAX)
Fan Air Flow110.5 CFM(MAX)
Fan Noise38dBA (MAX)
Fan Connector4 Pin
ColorBlack
LED ColorARGB
Pressure3.55 MM H2O(MAX)
Tube Dim.400mm
Screen Size6.67''
Resolution2400*1080

Questions about this item

How do I confirm the 6400RPM pump and 3000RPM fans are running correctly after installation?

Connect the pump to a CPU_FAN header and the three 4-pin fans to SYS_FAN headers, then monitor pump speed near 6400RPM and fan speed up to 3000RPM in BIOS or monitoring software while the CPU is under load.

What comes in the box and what must I purchase separately for a complete install?

The package includes the 360mm radiator with three pre-mounted 120mm dual-ball-bearing fans, the CPU block with 6.67-inch 2400x1080 LCD, mounting hardware for Intel LGA 1851/1700/1200/115X/2011/2066 and AMD AM4/AM5, and ARGB cables for a 5V 3-pin header; thermal paste is not included.

Which version should I choose if my case only fits a 360mm radiator and I need Intel LGA1700 and AMD AM5 support?

This single SKU provides a 403x120x27mm radiator, 6.67-inch LCD block, and mounting brackets for both LGA1700 and AM5, so no alternative capacity or socket version exists.
