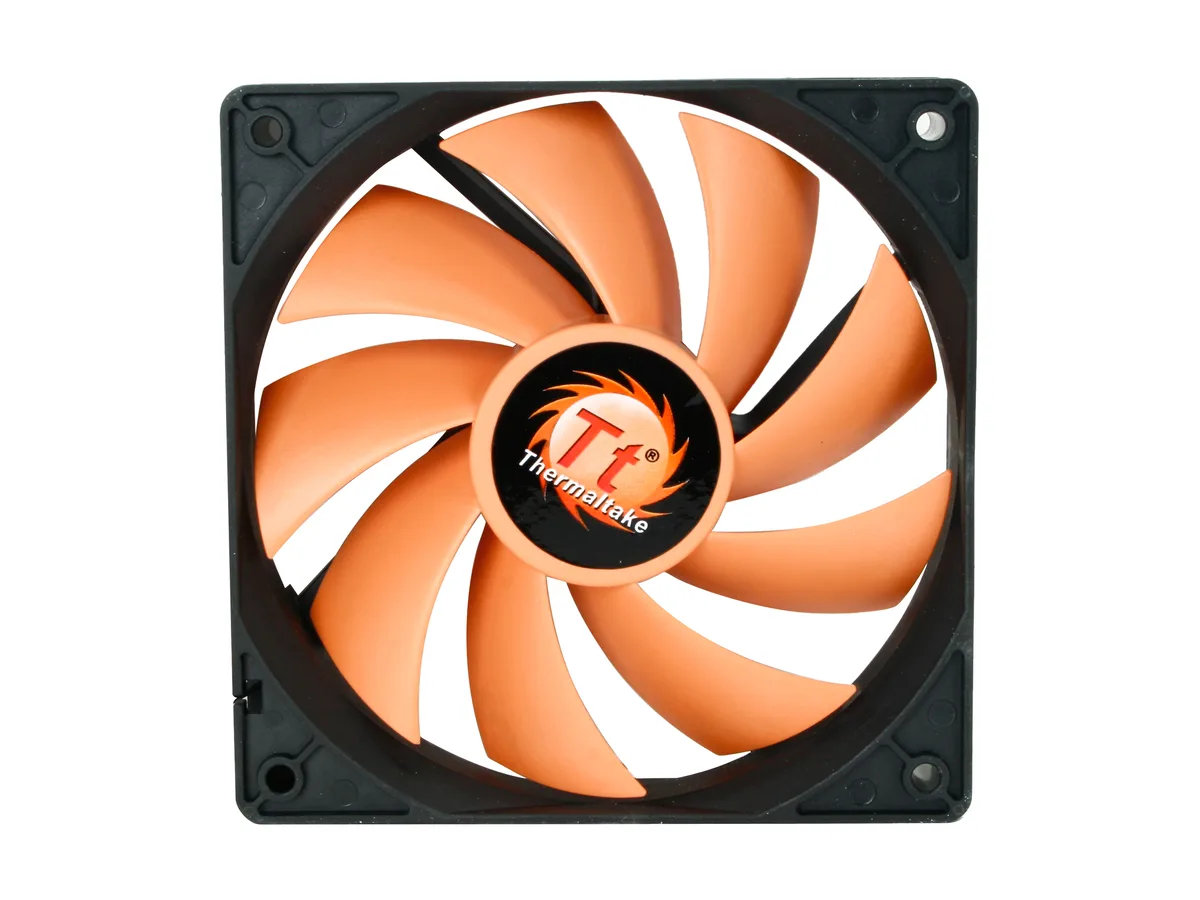

Orange 120 mm square case fan with 25 mm thick frame and black blades

Thermaltake

Thermaltake AF0022 120mm case fan 25mm 800-1800 RPM 77.85 CFM 37 dBA orange

SKU CH-7YCS-WZE04 MPN AF0022

A 120 mm orange case fan delivering 77.85 CFM at 37 dBA with manual 800–1800 RPM speed control

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Thickness25mm
  • Bearing Type1 Ball, 1 Sleeve
  • Manual speed control via VR knob for tailored cooling or silence
  • 800–1,800 RPM range delivers up to 77.85 CFM airflow
  • Low 37 dBA noise level keeps the system quiet
  • Hybrid 1 ball + 1 sleeve bearing for durable operation
  • 120 mm × 25 mm orange frame fits standard case mounts

120 mm orange case fan for desktop builds

The Thermaltake AF0022 is a single 120 mm case fan finished in orange. It targets builders who need a straightforward airflow upgrade for standard desktop chassis. The 4-pin connector provides PWM control so the motherboard can regulate speed automatically. Buyers who need multiple fans in a kit or integrated RGB lighting will not find those features here.

Tool-free mounting with manual speed knob

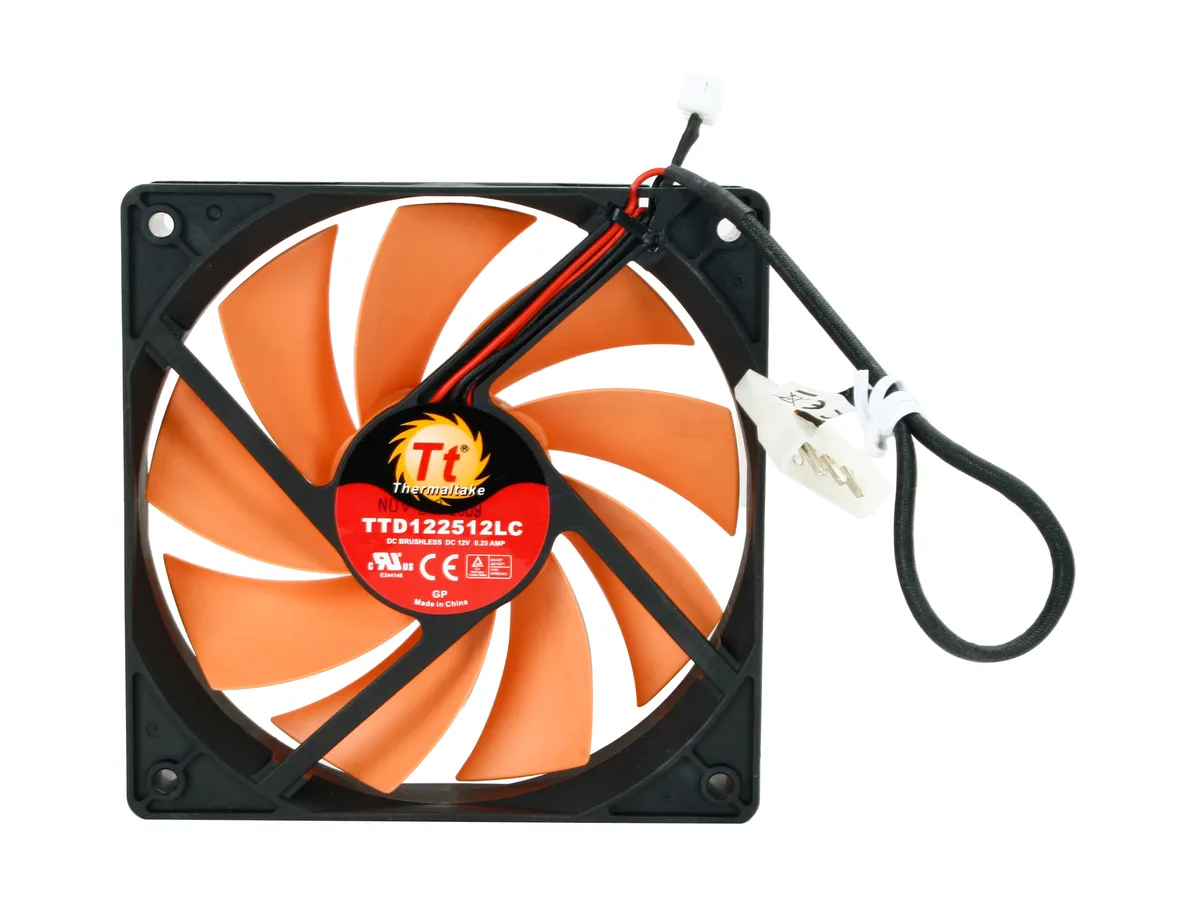

The fan uses standard 120 mm screw holes and a 25 mm thick frame that fits most case mounts. A variable resistor knob on the cable lets you adjust speed between 800 and 1800 RPM by hand. Over-tightening the mounting screws can distort the frame and increase vibration. The hybrid 1 ball and 1 sleeve bearing requires no extra lubrication during installation.

77.85 CFM airflow at 37 dBA noise

Maximum airflow reaches 77.85 CFM while the noise level stays at 37 dBA at full speed. This single figure determines whether the fan can move enough air for your thermal load without exceeding your acoustic tolerance. Builders chasing higher static pressure for dense radiators or lower noise floors for silent PCs should look at alternative specifications.

Highlights

  • Manual speed control via VR knob for tailored cooling or silence
  • 800–1,800 RPM range delivers up to 77.85 CFM airflow
  • Low 37 dBA noise level keeps the system quiet
  • Hybrid 1 ball + 1 sleeve bearing for durable operation
  • 120 mm × 25 mm orange frame fits standard case mounts

Specifications

BrandThermaltake
ModelAF0022
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Thickness25mm
Bearing Type1 Ball, 1 Sleeve
RPM800 ~ 1,800 RPM
Air Flow77.85 CFM
Noise Level37 dBA
Power Connector4 Pin
ColorOrange
FeaturesSilent variable resistor fan : Adjust fan speed manually
Dimensions120 x 120 x 25 mm
Shipping weight0.20 kg
Package size178 × 127 × 29 mm

Questions about this item

How do I verify the AF0022 is running correctly after installation?

Listen for the 37 dBA noise level at full speed and confirm the orange blades spin smoothly; the VR knob lets you adjust between 800 and 1800 RPM to match the stated airflow of 77.85 CFM.

What comes in the box with the AF0022 and what must I supply?

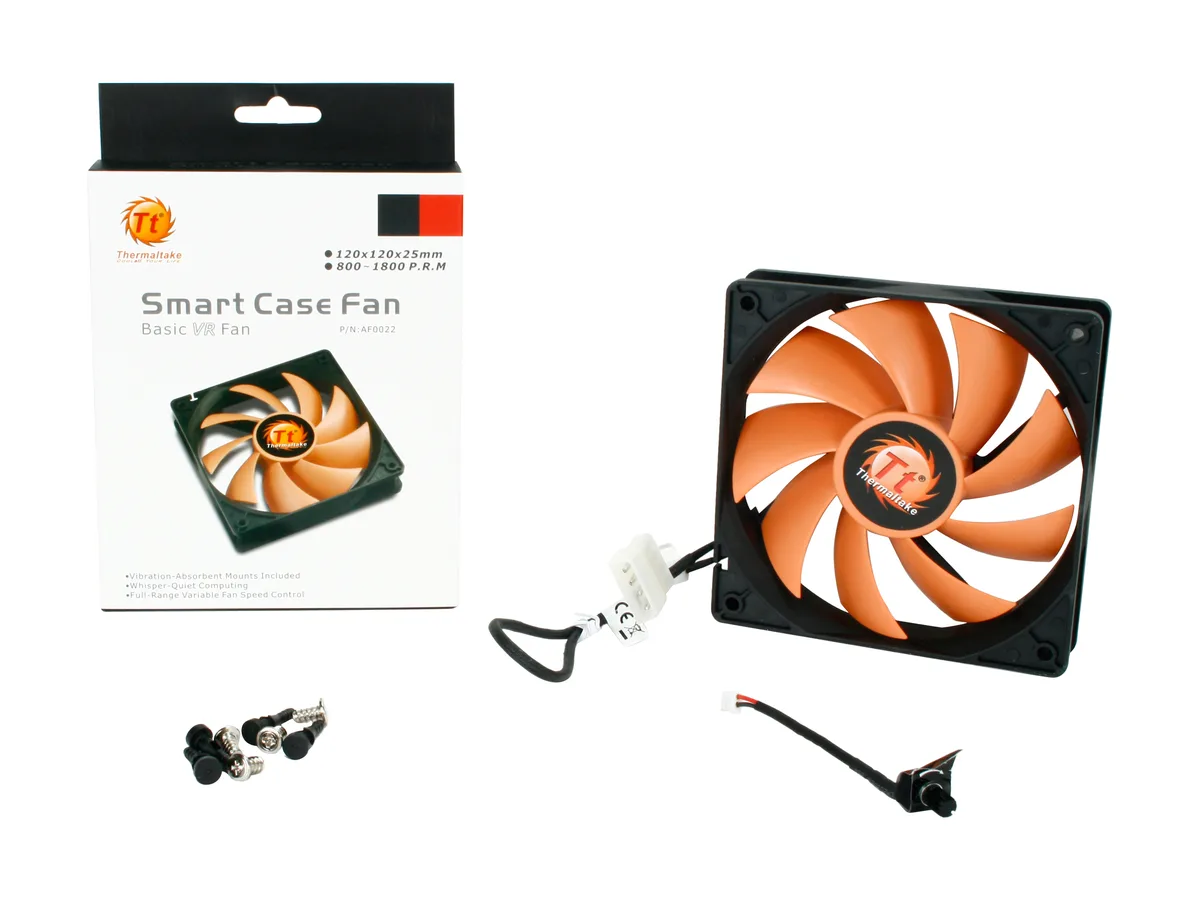

The package includes one 120 x 120 x 25 mm orange fan with a 4-pin power connector and the attached VR speed knob; you only need a spare 4-pin header on your motherboard or fan controller.

Which AF0022 version should I pick for my build?

Only this single 120 mm orange model with hybrid 1 ball and 1 sleeve bearing exists under MPN AF0022, so choose it when you need manual VR speed control between 800 and 1800 RPM.
