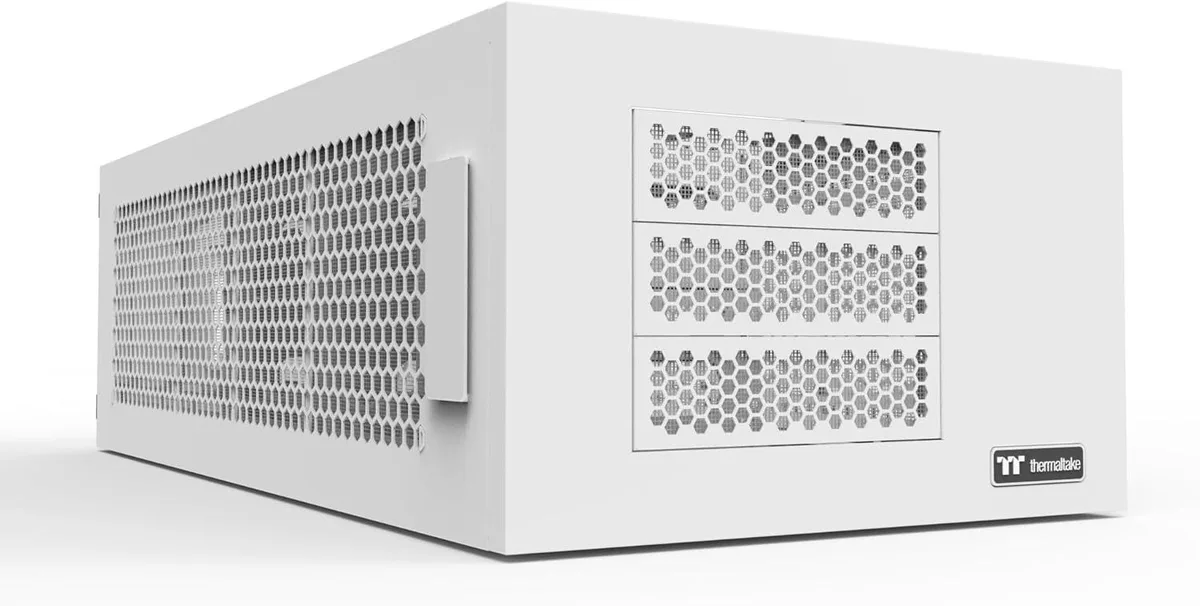

White rectangular pedestal case with mesh side panel, 26.8 by 12.6 by 8 inches

Thermaltake

Thermaltake AX100 Snow Pedestal CA-11C-00D6NN-00 PC case

SKU CH-EH4G-90V88 MPN CA-11C-00D6NN-00

Add-on pedestal for the AX700 chassis adding dual 560 mm radiator mounts, eight 120 or 140 mm fan slots and up to eight 3.5 or 2.5 inch drives

  • TypeTower Computer Cases
  • Side PanelMesh Panel
  • Pre-installed FansNo Fan Installed
  • Dimensions26.8"x 12.6"x 8"
  • Designed to expand the AX700 chassis with extra power and cooling
  • Supports dual 560 mm radiators and up to eight 120 mm or 140 mm fans
  • Holds up to eight 2.5" or 3.5" drives in configurable cages
  • Optional PS2 PSU up to 220 mm fits with bottom fans
  • Tool-free push clips and latches simplify panel removal and installation

Pedestal for AX700 Chassis

The Thermaltake AX100 Snow Pedestal is an add-on chamber designed exclusively for the AX700 Super Tower Chassis. It expands the system with additional cooling, storage, and power supply capacity. Enthusiasts building dual-loop liquid cooling or high-capacity storage arrays will benefit from the extra volume. This product is not a standalone case and cannot be used without the AX700 chassis.

Installation and Common Issues

Panels attach with push clips and latches for tool-free removal, simplifying hardware swaps. The pedestal can be stacked on the top, bottom, or both ends of the AX700 depending on the planned configuration. Builders must align the mounting points carefully; misalignment can prevent the latches from engaging fully. No fans are pre-installed, so fan and radiator mounting must be planned before final assembly.

Compatibility Checklist

Verify you own an AX700 or AX700 TG Super Tower Chassis before ordering. Confirm the chosen power supply fits the 220mm length limit for the optional PS2 location. Ensure the 2.5 or 3.5 inch drive count does not exceed the eight-drive maximum across the two configurable cages. Check that planned radiators do not exceed the 560mm limit per side and that fan sizes match the 120mm or 140mm mounts.

Highlights

  • Designed to expand the AX700 chassis with extra power and cooling
  • Supports dual 560 mm radiators and up to eight 120 mm or 140 mm fans
  • Holds up to eight 2.5" or 3.5" drives in configurable cages
  • Optional PS2 PSU up to 220 mm fits with bottom fans
  • Tool-free push clips and latches simplify panel removal and installation

Specifications

BrandThermaltake
TypeTower Computer Cases
Side PanelMesh Panel
Pre-installed FansNo Fan Installed
Dimensions26.8"x 12.6"x 8"
Shipping weight10.25 kg
Package size737 × 381 × 279 mm

Questions about this item

How do I confirm the AX100 Snow pedestal is correctly mounted to my AX700 chassis?

The push-clip and latch system locks panels in place without tools; once engaged, the pedestal sits flush with the AX700 and all side dust filters align with the chassis openings.

What components come with the AX100 Snow and which must I purchase separately?

The package includes the pedestal frame, two configurable drive cages, front/left/right dust filters and mounting hardware. Fans, radiators, a PS2 power supply up to 220mm long and storage drives are not included.

Should I choose the single-pedestal or dual-pedestal configuration for my AX700 build?

One pedestal adds eight 120mm or 140mm fan mounts, dual 560mm radiator support and eight 3.5" or 2.5" drive bays; adding a second pedestal on the opposite end doubles that capacity.
