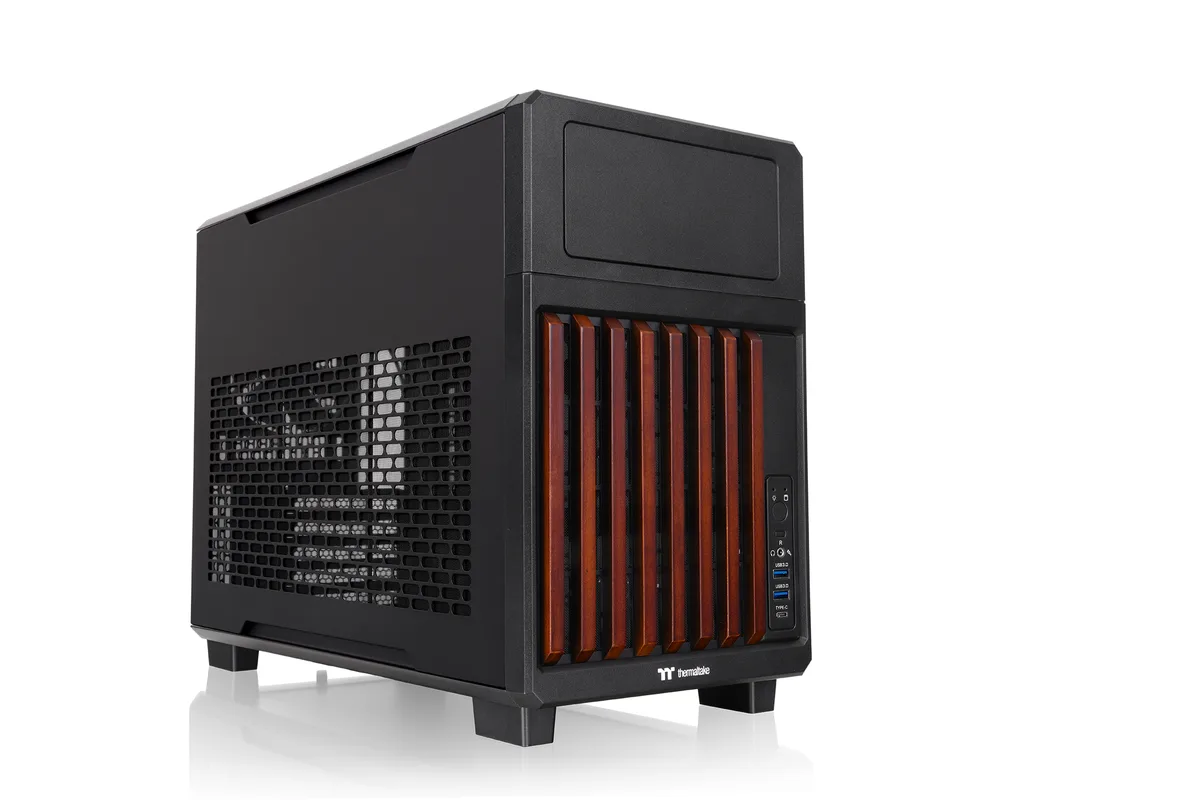

Compact black steel Micro ATX case with stained wood front trim and mesh side panel

Thermaltake

Thermaltake CA-11L-00S1NN-WS TR200 WS Micro ATX PC case

SKU CH-40X3-G19AC MPN CA-11L-00S1NN-WS

Compact Micro ATX chassis with stained wood front trim supports 360 mm top radiator, 365 mm GPU, 175 mm air cooler and 258 mm PSU

  • TypeMicro ATX Cases
  • ColorBlack
  • Case MaterialSPCC / Steel
  • With Power SupplyNo
  • Power Supply MountedRear
  • Motherboard Compatibility6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX)
  • Compact mATX and Mini-ITX builds fit in a 14.33" x 8.66" x 19.45" chassis

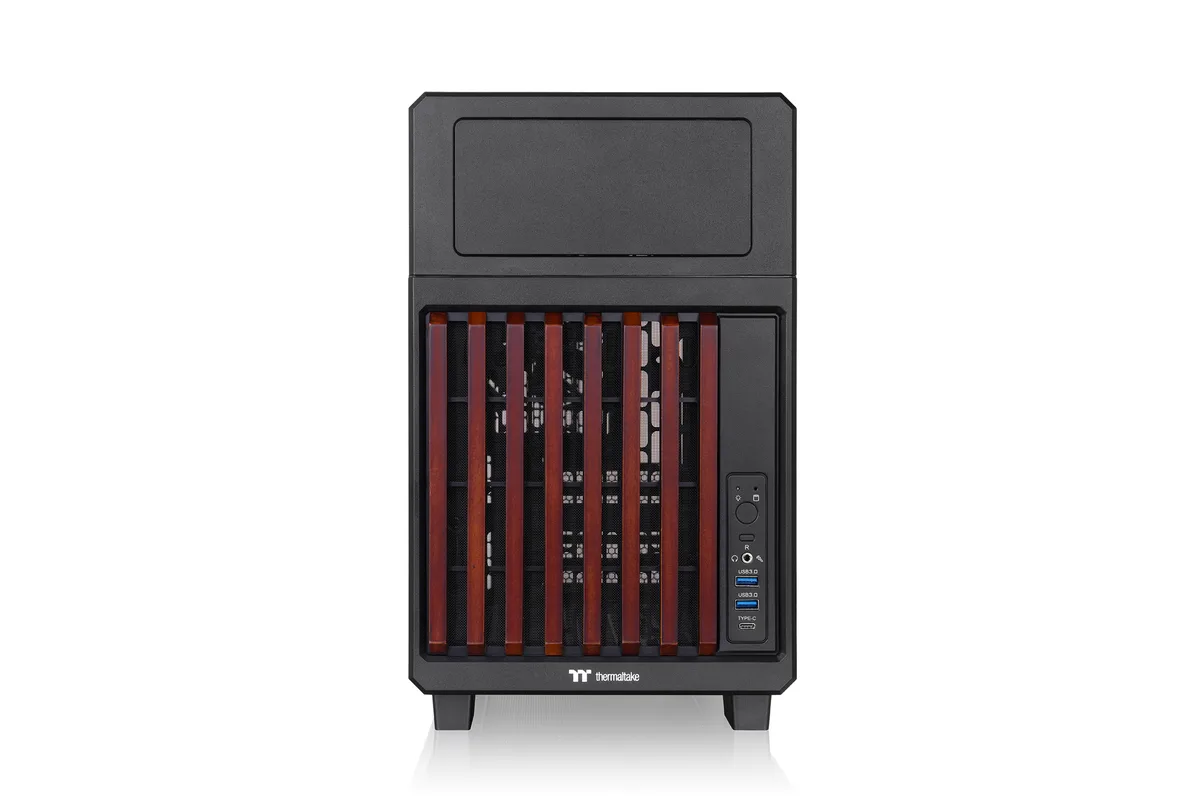

  • Front stained wood trim adds a distinctive look for home or travel setups
  • Top mounts accept up to a 360 mm radiator or three 120 mm fans for strong cooling
  • Supports graphics cards up to 365 mm long and CPU coolers up to 175 mm tall
  • Front panel includes USB 3.2 Gen 2 Type-C, two USB 3.0 ports and HD Audio

Micro ATX chassis with wood trim

The Thermaltake TR200 WS is a micro ATX case finished in black with a stained wood front accent. It supports Mini ITX boards measuring 6.7 by 6.7 inches and micro ATX boards measuring 9.6 by 9.6 inches. Five expansion slots and a mesh side panel complete the compact frame designed for portable builds or a desktop centrepiece.

Verify board size GPU length and PSU depth

Confirm your motherboard matches the 6.7 inch or 9.6 inch form factors listed. The graphics card clearance is 365 mm and the power supply bay accepts units up to 258 mm long. A top mounted 360 mm radiator is possible but drops to 240 mm if the optional 5.25 inch bay is installed. The CPU cooler height limit is 175 mm.

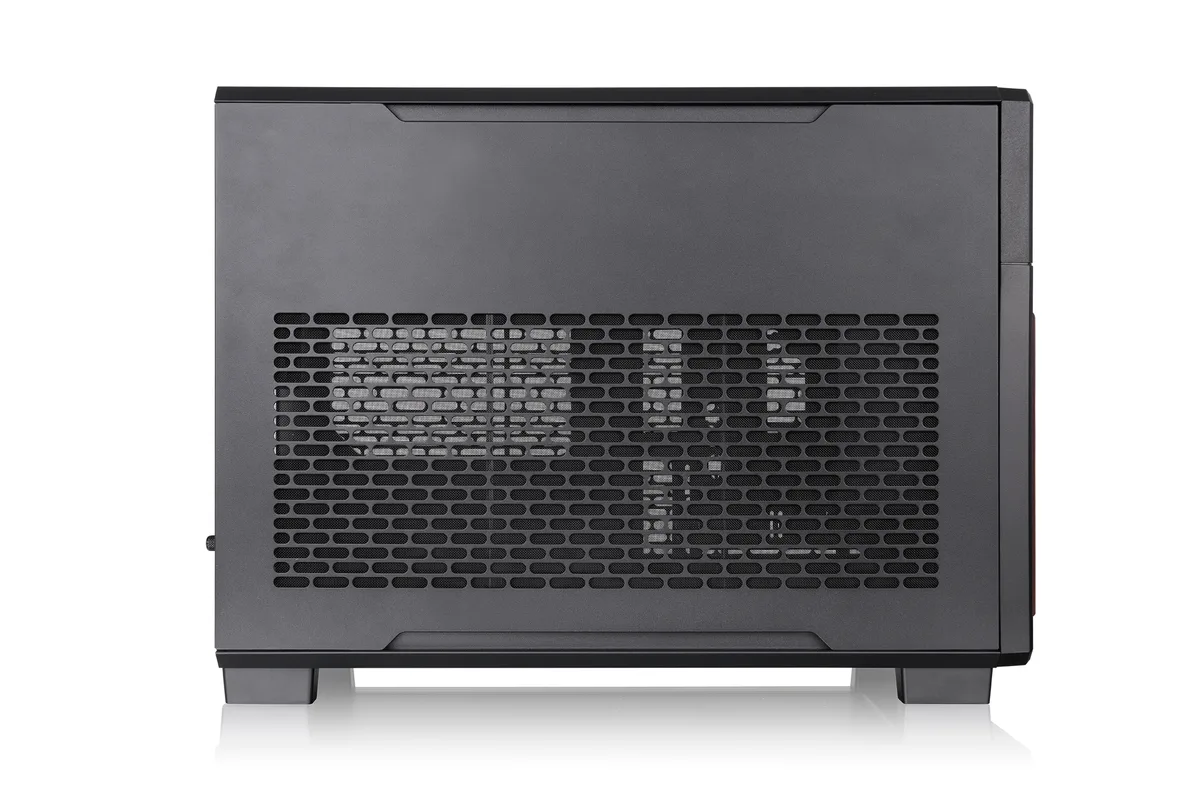

Mesh panel and pre-installed rear fan move air

A single 120 mm rear exhaust fan runs at 1400 rpm and 23.2 dBA from the factory. The top panel accepts three 120 mm fans or radiators up to 360 mm, while the bottom can hold three more 120 mm units. This layout sustains airflow through the mesh side panel during extended loads without relying on a single burst of speed.

Highlights

  • Compact mATX and Mini-ITX builds fit in a 14.33" x 8.66" x 19.45" chassis
  • Front stained wood trim adds a distinctive look for home or travel setups
  • Top mounts accept up to a 360 mm radiator or three 120 mm fans for strong cooling
  • Supports graphics cards up to 365 mm long and CPU coolers up to 175 mm tall
  • Front panel includes USB 3.2 Gen 2 Type-C, two USB 3.0 ports and HD Audio

Specifications

BrandThermaltake
SeriesTR Series
ModelTR200 WS
Part NumberCA-11L-00S1NN-WS
TypeMicro ATX Cases
ColorBlack
Case MaterialSPCC / Steel
With Power SupplyNo
Power Supply MountedRear
Motherboard Compatibility6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX)
Side PanelMesh Panel
Expansion Slots5
Front Ports1 x USB 3.2 (Gen 2) Type-C, 2 x USB 3.0, 1 x HD Audio
Fan OptionsTop:
3 x 120mm
Pre-installed FansRear(exhaust): 1x 120 x 120 x 25 mm Standard fan (1400rpm, 23.2 dBA)
Radiator OptionsTop(AIO) :
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Rear(AIO) :
1 x 120mm
Max GPU Length365 mm
Max CPU Cooler Height175 mm
Max PSU Length258 mm
Dimensions14.33" x 8.66" x 19.45"
Shipping weight7.67 kg
Package size559 × 445 × 295 mm

Questions about this item

Does the TR200 WS include a power supply or do I need to buy one separately?

The case ships without a power supply; you must purchase an ATX unit up to 258 mm long. The box contains the chassis, a pre-installed 120 mm rear exhaust fan running at 1400 rpm, an extra top plate for a 5.25" bay, mounting hardware and the mesh side panel.

My build uses a Micro ATX board — will the TR200 WS fit it and a 360 mm radiator together?

Yes. The case accepts 9.6" x 9.6" Micro ATX and 6.7" x 6.7" Mini ITX boards. With a Micro ATX board installed you can still mount a 360 mm radiator in the top; the 5.25" bay plate reduces top radiator support to 240 mm if used.

What does the 365 mm GPU clearance mean when I install a triple-slot card?

It is the maximum card length from the rear bracket to the front panel. A 365 mm card will fit with the front wood trim in place; longer cards would hit the trim or the front fan mounts.
