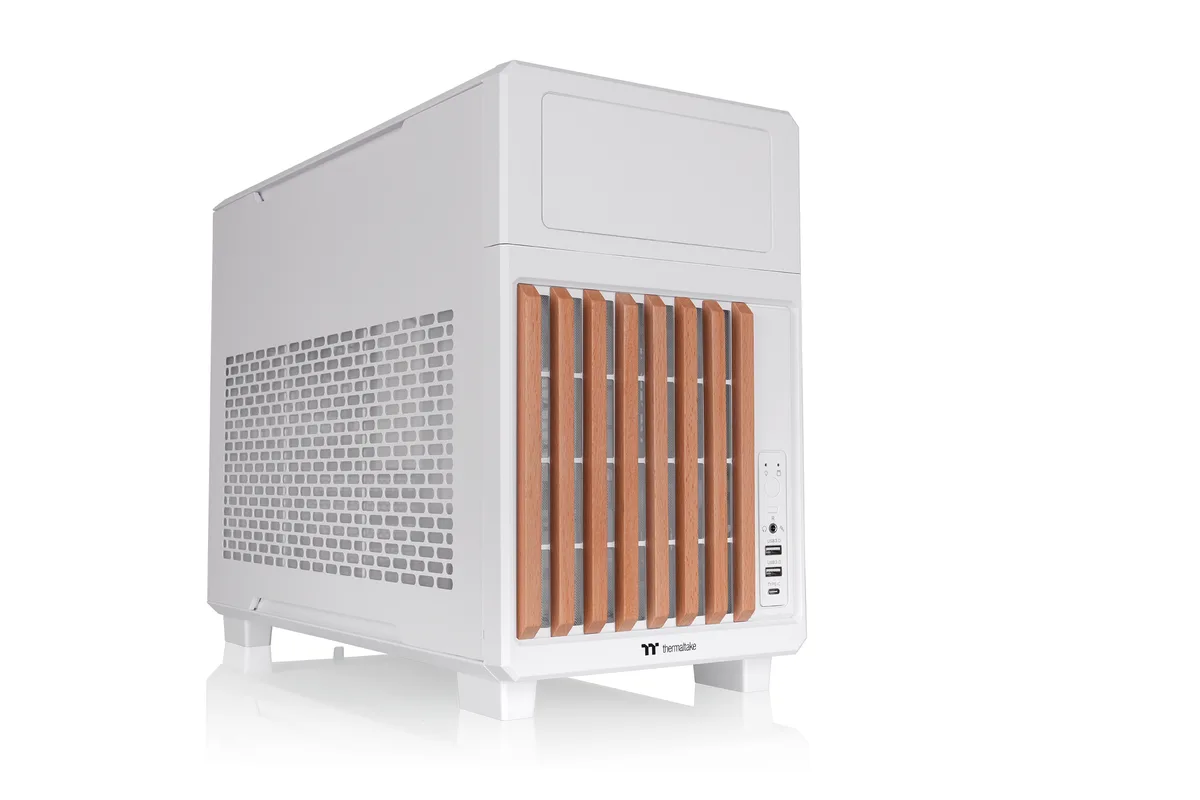

White micro-ATX tower with wood front trim and mesh side panel

Thermaltake

Thermaltake CA-11L-00S6NN-WS TR200 WS Snow Micro ATX PC case

SKU CH-T6GQ-SQQEN MPN CA-11L-00S6NN-WS

A micro-ATX chassis with wood front trim, mesh side panel and room for a 365 mm graphics card, 360 mm top radiator and 175 mm CPU cooler

  • TypeMicro ATX Cases
  • ColorSnow
  • Case MaterialSPCC / Steel
  • With Power SupplyNo
  • Power Supply MountedRear
  • Motherboard Compatibility6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX)
  • Wood-trim front panel adds desk-friendly style
  • Mesh side panel shows off internal components
  • Top mount fits a 360 mm radiator for liquid cooling
  • Clearance for graphics cards up to 365 mm length
  • Rear 120 mm fan pre-installed at 1400 rpm 23.2 dBA

Micro ATX chassis with wood front trim

The Thermaltake TR200 WS is a Micro ATX case finished in Snow with a wood front accent. It accepts Mini ITX boards at 6.7 by 6.7 inches and Micro ATX boards at 9.6 by 9.6 inches. Five expansion slots and a mesh side panel complete the layout. Front I/O includes one USB 3.2 Gen 2 Type-C port, two USB 3.0 ports and HD audio.

Thermals and acoustics at idle

A single 120 mm rear exhaust fan ships pre-installed and runs at 1400 rpm with a rated 23.2 dBA. The top panel supports up to three 120 mm fans and radiators from 120 mm up to 360 mm, plus 280 mm and 140 mm sizes. The rear also fits a 120 mm radiator. No power supply is included and the unit mounts at the rear.

Behaviour under sustained load

The interior clears graphics cards up to 365 mm long and CPU air coolers up to 175 mm tall. Power supplies up to 258 mm deep install at the rear. An optional top plate adds a 5.25 inch bay while reducing the top radiator limit to 240 mm. Overall dimensions are 14.33 by 8.66 by 19.45 inches.

Highlights

  • Wood-trim front panel adds desk-friendly style
  • Mesh side panel shows off internal components
  • Top mount fits a 360 mm radiator for liquid cooling
  • Clearance for graphics cards up to 365 mm length
  • Rear 120 mm fan pre-installed at 1400 rpm 23.2 dBA

Specifications

BrandThermaltake
SeriesTR Series
ModelTR200 WS
Part NumberCA-11L-00S6NN-WS
TypeMicro ATX Cases
ColorSnow
Case MaterialSPCC / Steel
With Power SupplyNo
Power Supply MountedRear
Motherboard Compatibility6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX)
Side PanelMesh Panel
Expansion Slots5
Front Ports1 x USB 3.2 (Gen 2) Type-C, 2 x USB 3.0, 1 x HD Audio
Fan OptionsTop:
3 x 120mm
Pre-installed FansRear(exhaust): 1x 120 x 120 x 25 mm Standard fan (1400rpm, 23.2 dBA)
Radiator OptionsTop(AIO) :
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Rear(AIO) :
1 x 120mm
Max GPU Length365 mm
Max CPU Cooler Height175 mm
Max PSU Length258 mm
Dimensions14.33" x 8.66" x 19.45"
Shipping weight7.44 kg
Package size559 × 439 × 292 mm

Questions about this item

How do I install the 5.25" bay and which step is commonly missed?

Mount the included extra top plate first, then secure the 5.25" device; the step often missed is reducing the top radiator limit to 240 mm when the bay is fitted.

What maintenance will the pre-installed rear 120 mm fan need later?

The 1400 rpm, 23.2 dBA exhaust fan will eventually require dust cleaning or bearing replacement after prolonged use.

What is the first limit reached when running a 360 mm top radiator under sustained load?

Installing a 360 mm radiator on top prevents use of the 5.25" bay, so the bay becomes the first constraint.
