Thermaltake
Thermaltake CA-1L9-00S1WN-01 Navigator L5 Micro ATX Mini-ITX PC case
Micro-ATX and Mini-ITX tower with tempered-glass side panel, top and bottom dust filters, pre-fitted 120 mm fan, room for 335 mm GPU and 240 mm radiator
- TypeMicro ATX / Mini-ITX
- ColorBlack
- Case MaterialSPCC / Tempered Glass
- With Power SupplyNo
- Motherboard CompatibilityMini ITX/Micro ATX
- Side Panelwith Side Window
- Supports Mini-ITX and Micro-ATX motherboards for compact builds
- Pre-installed 120 mm rear fan provides immediate airflow
- Tempered-glass side panel shows internal components clearly

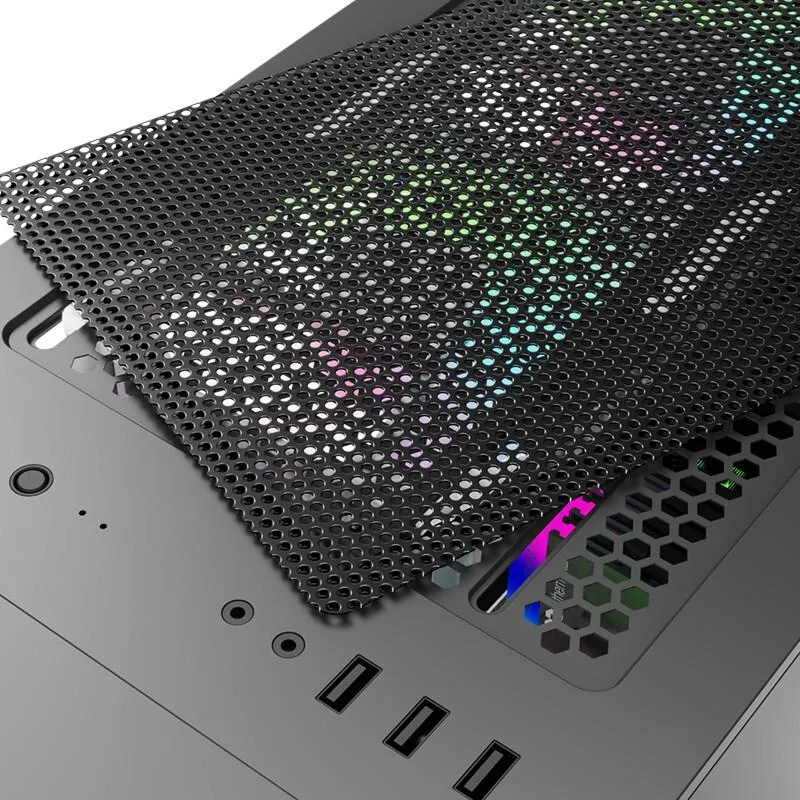

- Top and bottom dust filters reduce internal dust buildup
- Fits graphics cards up to 335 mm long without front cooling
Compact Micro-ATX and Mini-ITX chassis

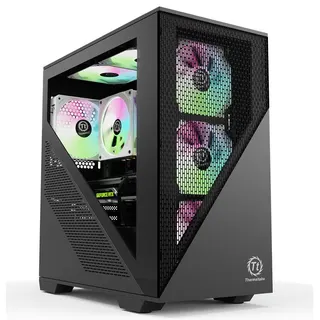

The Thermaltake Navigator L5 is a black mid-tower case built from SPCC steel and tempered glass. It accepts Mini-ITX and Micro-ATX motherboards and ships with a single 120 mm rear fan. The triangular translucent hollow side panel adds visual interest while showing internal components.
Straightforward assembly with length limits

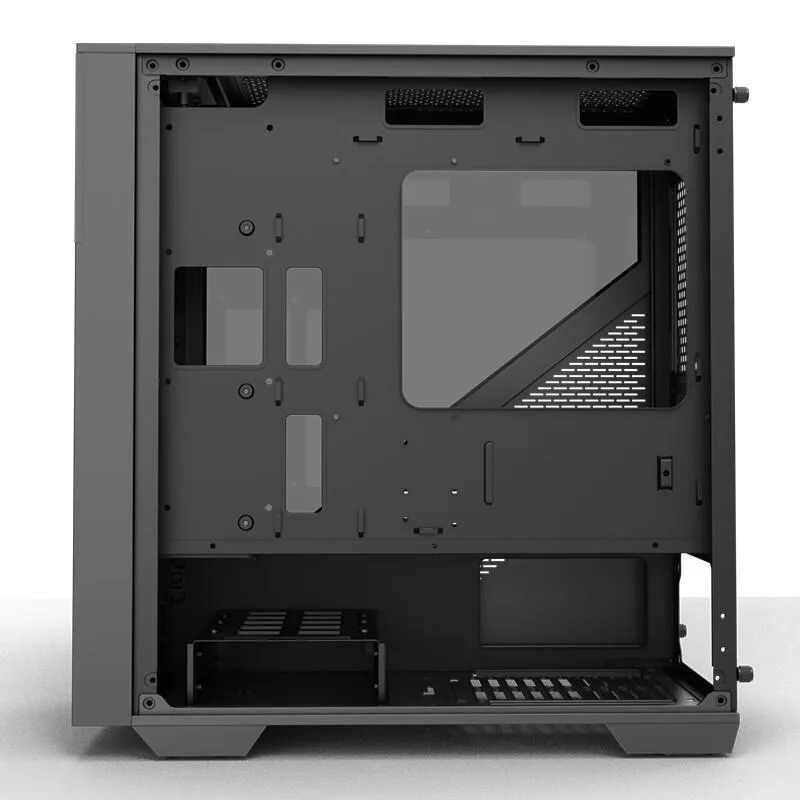

Installation follows a conventional layout, but GPU clearance changes with front cooling: 335 mm without front devices, 275 mm with a 240 mm radiator, and 305 mm with front fans. CPU coolers up to 165 mm fit, and the power supply must not exceed 200 mm including its modular plug. Dust filters on top and bottom simplify maintenance.
Steady thermals under sustained load
Top and front mounts each support a 240 mm radiator, while the front can hold three 120 mm or two 140 mm fans and the top mirrors that capacity. This airflow headroom lets the case dissipate heat during long rendering or gaming sessions rather than only short bursts. Front USB 2.0, USB 3.0 and audio ports stay accessible throughout.
Highlights
- Supports Mini-ITX and Micro-ATX motherboards for compact builds
- Pre-installed 120 mm rear fan provides immediate airflow
- Tempered-glass side panel shows internal components clearly
- Top and bottom dust filters reduce internal dust buildup
- Fits graphics cards up to 335 mm long without front cooling
Specifications
| Brand | Thermaltake |
|---|---|
| Part Number | CA-1L9-00S1WN-01 |
| Type | Micro ATX / Mini-ITX |
| Color | Black |
| Case Material | SPCC / Tempered Glass |
| With Power Supply | No |
| Motherboard Compatibility | Mini ITX/Micro ATX |
| Side Panel | with Side Window |
| Dust Filters | top and bottom |
| Internal 3.5" Drive Bays | 2 |
| Internal 2.5" Drive Bays | 3 |
| Front Ports | USB 2.0 / USB 3.0 / Audio |
| Fan Options | Front: 3X120mm, 2X140mm Top: 2X120mm, 2X140mm Rear: 1X120mm |
| Radiator Options | Top: 1X240mm Front: 1X240mm |
| Max GPU Length | Front without any heat dissipation: 335mm(Without front water cooling and fan),The length limit for installing front water cooling is 275mm,The length of the fan before installation is limited to 305mm |
| Max CPU Cooler Height | 165 mm |
| Max PSU Length | 200mm (including the module plug) |
| Dimensions | 428 × 395 × 210 mm |
| Weight | 5.5 kg |
Questions about this item
What is the maximum graphics-card length if I install a front 240 mm radiator?
With a 240 mm radiator mounted at the front the graphics card must not exceed 275 mm.
How many 3.5-inch and 2.5-inch drives can I fit at the same time?
You can install two 3.5-inch drives and three 2.5-inch drives, or one 3.5-inch drive with two 2.5-inch drives in the dedicated HDD cage.
What size power supply will fit in this case?
The power supply can be up to 200 mm long including the modular plug.
