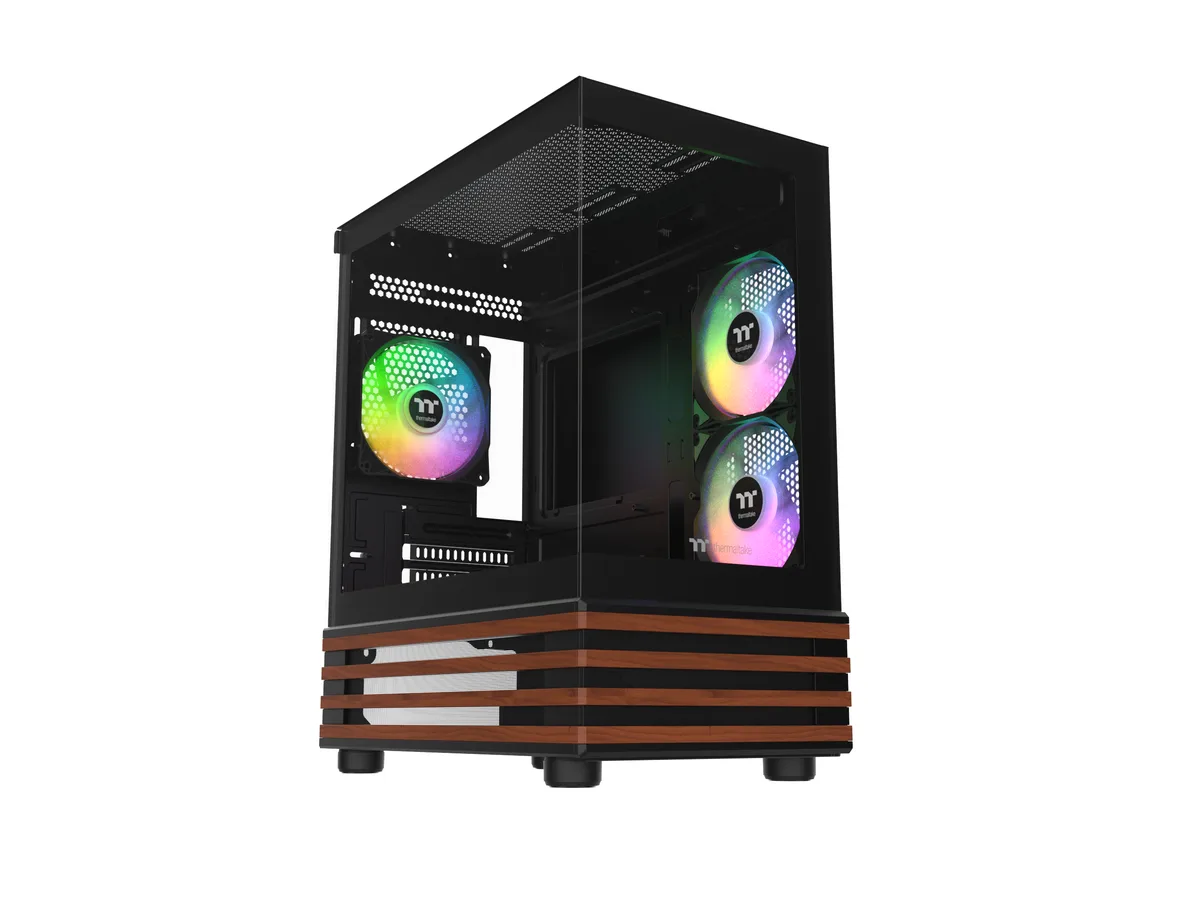

Black micro tower case with wood bottom trim, tempered glass front and side panels, three 120mm ARGB fans visible inside

Thermaltake

Thermaltake CA-1Z4-00M1WN-WS View 170 WS ARGB Micro Tower PC case

SKU CH-HBMP-P49Z7 MPN CA-1Z4-00M1WN-WS

A micro-tower case for mATX or mITX builds with tempered glass side panels, wood bottom trim and three pre-installed 120 mm ARGB fans

  • TypeMicro Tower
  • ColorBlack
  • Case MaterialSporting a combination of mesh and tempered glass
  • Motherboard CompatibilitymATX/mITX
  • Side Panel2 x Sides Tempered Glass Panel
  • Fan Options3x120mm ARGB Lite Fans
  • Stained wood trim accents the chassis base for a distinctive look
  • Dual tempered glass panels on front and left reveal the interior build
  • Three pre-installed 120mm ARGB Lite fans deliver balanced intake and exhaust airflow
  • Supports radiators up to 360mm and seven 120mm fan mounts for high cooling capacity
  • Fits graphics cards up to 340mm and CPU coolers up to 160mm in a compact mATX footprint

Micro tower for mATX and mini-ITX builds

The Thermaltake View 170 WS ARGB is a micro tower chassis designed for micro-ATX and mini-ITX motherboards. It combines mesh and tempered glass panels with a stained wood trim along the bottom edge. Three 120 mm ARGB Lite fans are included, mounted on the side and rear for intake and exhaust. The case suits builders who want a compact footprint with open viewing angles.

Straightforward assembly with side-mounted fans

Two tempered glass side panels provide wide access to the interior. The pre-installed side fans are reverse-blade units that pull air toward the motherboard, so cable routing behind the tray must leave clearance for their frames. Radiator mounting on the top supports 240 mm and 280 mm units; a 360 mm radiator is listed as an option but may conflict with motherboard heatsinks. ARGB lighting connects to a standard 5 V addressable header controlled by motherboard software.

Check motherboard size

Verify that your board is micro-ATX or mini-ITX; full-size ATX boards will not fit. Graphics cards up to 340 mm long are supported, while CPU coolers must not exceed 160 mm in height. Power supplies are limited to 180 mm in length. The case dimensions are 17.3 by 14.9 by 8.4 inches and it weighs 10.3 lbs, so confirm your workspace and transport plans accommodate that volume.

Highlights

  • Stained wood trim accents the chassis base for a distinctive look
  • Dual tempered glass panels on front and left reveal the interior build
  • Three pre-installed 120mm ARGB Lite fans deliver balanced intake and exhaust airflow
  • Supports radiators up to 360mm and seven 120mm fan mounts for high cooling capacity
  • Fits graphics cards up to 340mm and CPU coolers up to 160mm in a compact mATX footprint

Specifications

BrandThermaltake
ModelCA-1Z4-00M1WN-WS
Part NumberCA-1Z4-00M1WN-WS
TypeMicro Tower
ColorBlack
Case MaterialSporting a combination of mesh and tempered glass
Motherboard CompatibilitymATX/mITX
Side Panel2 x Sides Tempered Glass Panel
Fan Options3x120mm ARGB Lite Fans
Pre-installed FansRear - 1 x 120mm / Side - 2 x 120mm
Radiator Options280mm Radiator Support; radiators up to 360mm
120mm Fans7
Max GPU Length340 mm
Max CPU Cooler Height160 mm
Max PSU Length180 mm
Dimensions17.3 x 14.9 x 8.4 inch
Weight10.3lbs
Shipping weight5.67 kg
Package size483 × 445 × 277 mm

Questions about this item

How do I confirm the three pre-installed 120 mm ARGB Lite fans are spinning and lit after I power on the View 170 WS?

Connect each fan’s ARGB header to a compatible motherboard and use ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light or ASRock Polychrome to verify lighting and RPM readings for the two side intake fans and the single rear exhaust fan.

Which items ship inside the box and which cooling parts must I purchase separately for the View 170 WS?

The chassis includes two tempered glass side panels, a stained wood bottom trim and three pre-mounted 120 mm ARGB Lite fans. Additional 120 mm fans up to seven total, radiators up to 360 mm and any CPU cooler or power supply are sold separately.

Should I choose the 280 mm or 360 mm radiator option for the top mount in the View 170 WS?

The top panel supports radiators up to 360 mm, but the manufacturer highlights 280 mm and 240 mm as the primary supported sizes; select 280 mm for a balanced fit or 360 mm only if your specific radiator and fan thickness leave enough clearance for the motherboard and memory.
