Black single-tower CPU cooler with four copper heat pipes and dual 120mm fans

Thermaltake

Thermaltake CL-P075-AL12BL-A TOUGHAIR 510 180W CPU cooler

SKU CH-R9YV-HKNSF MPN CL-P075-AL12BL-A

Dual 120 mm high static pressure fans and four direct-touch copper heat pipes cool CPUs up to 180 W with a 159.5 mm tower height

  • ColorBlack
  • TypeFan & Heatsinks
  • Fan Size120mm
  • CPU Socket CompatibilityIntel LGA 1851/1700/1200/1156/1155/1151/1150 AMD AM4/AM3+/AM
  • RPM500 - 2000 RPM (PWM)
  • Air Flow58.35 CFM

Options 180W

Color Black

Model TOUGHAIR 510

  • Cools CPUs up to 180W with four direct-touch copper heat pipes
  • Dual 120mm PWM fans push 58.35 CFM at 2000 RPM for strong airflow
  • Asymmetric fin structure reduces turbulence and improves heat dispersal
  • Runs as quiet as 23.6 dBA at low speed

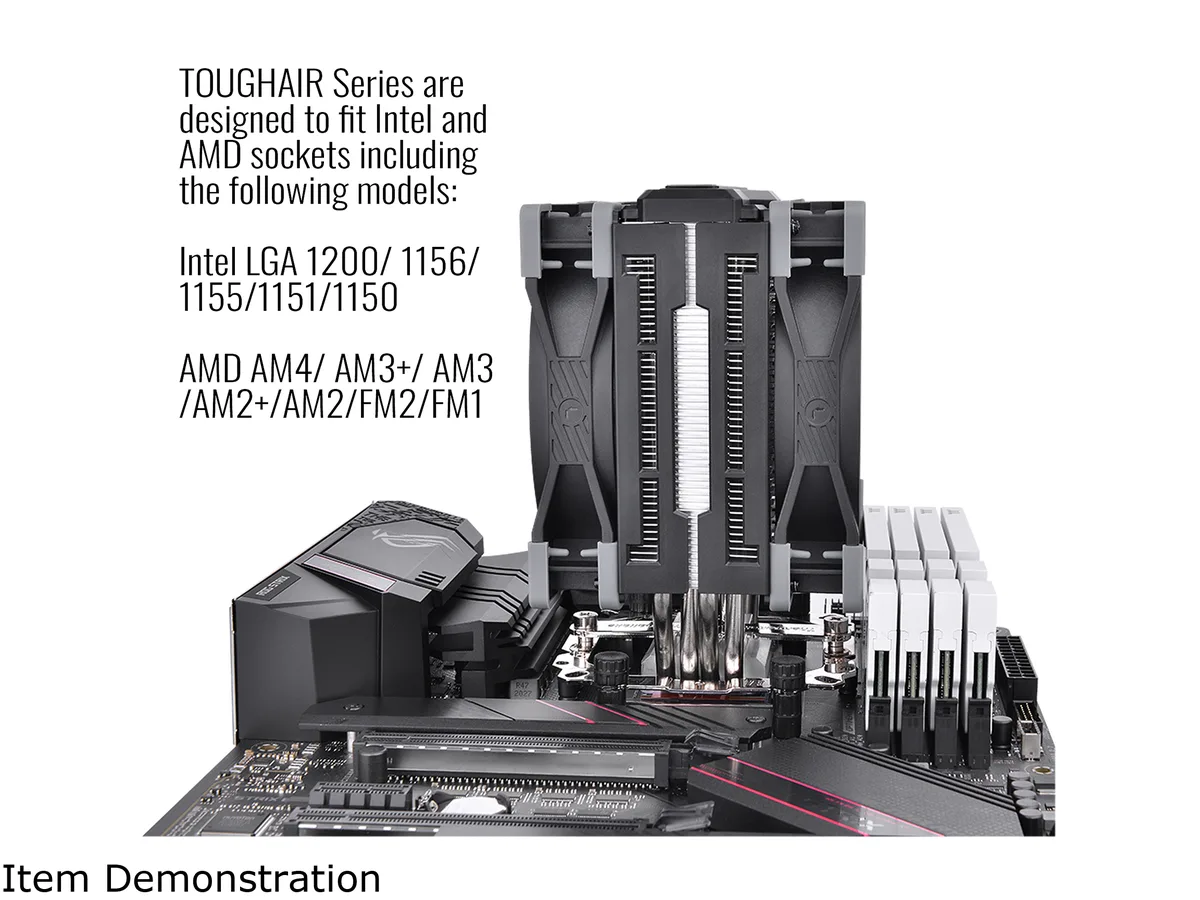

  • Fits Intel LGA 1851/1700/1200/115x and AMD AM4/AM3+/AM3/AM2+/AM2/FM2/FM1 sockets

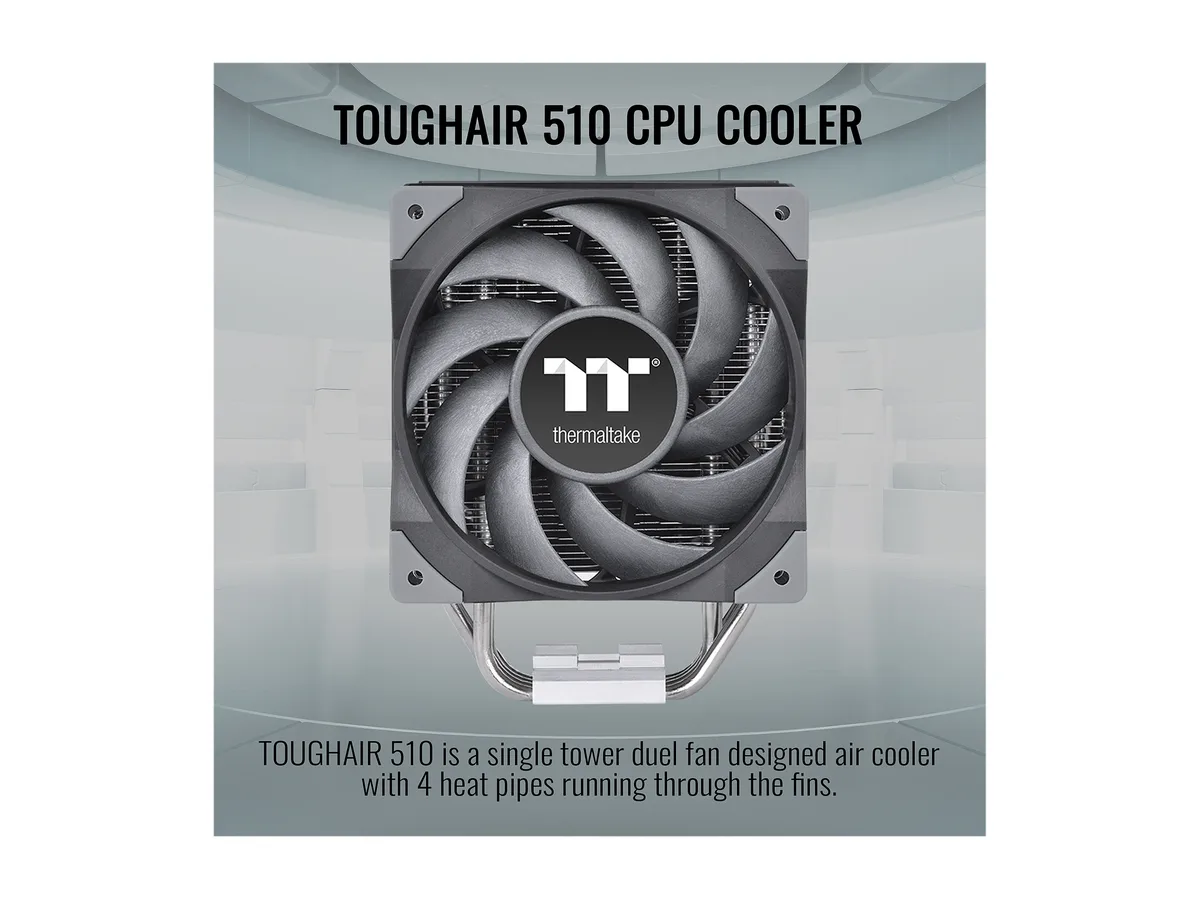

Dual-fan single-tower cooler

The Thermaltake TOUGHAIR 510 is a single-tower dual-fan air cooler rated for 180W TDP. It fits Intel LGA 1851, 1700, 1200, 1150, 1151, 1155, 1156 and AMD AM4, AM3+, AM3, AM2+, AM2, FM2, FM1 sockets. Builders needing quiet, non-LED cooling for mainstream processors will find it suitable.

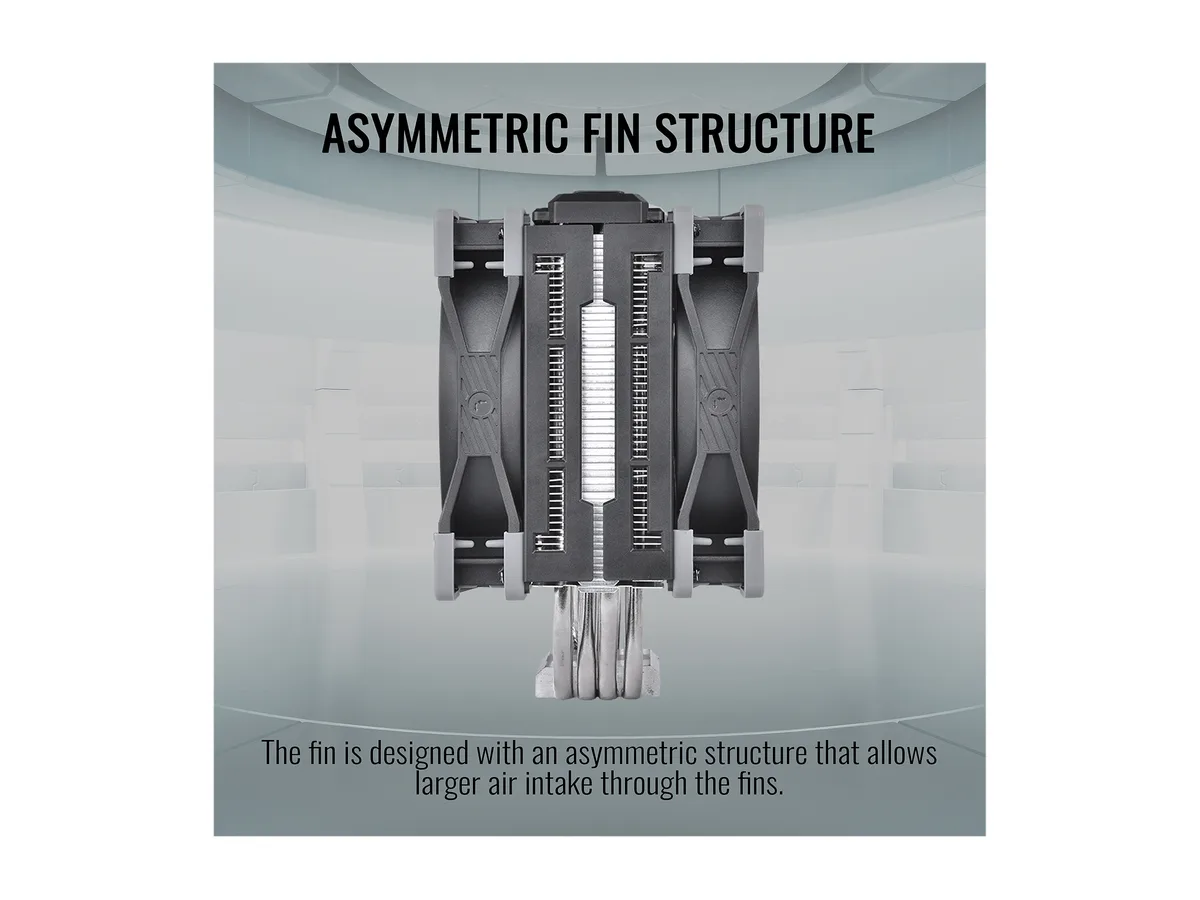

180W headroom with asymmetric fins

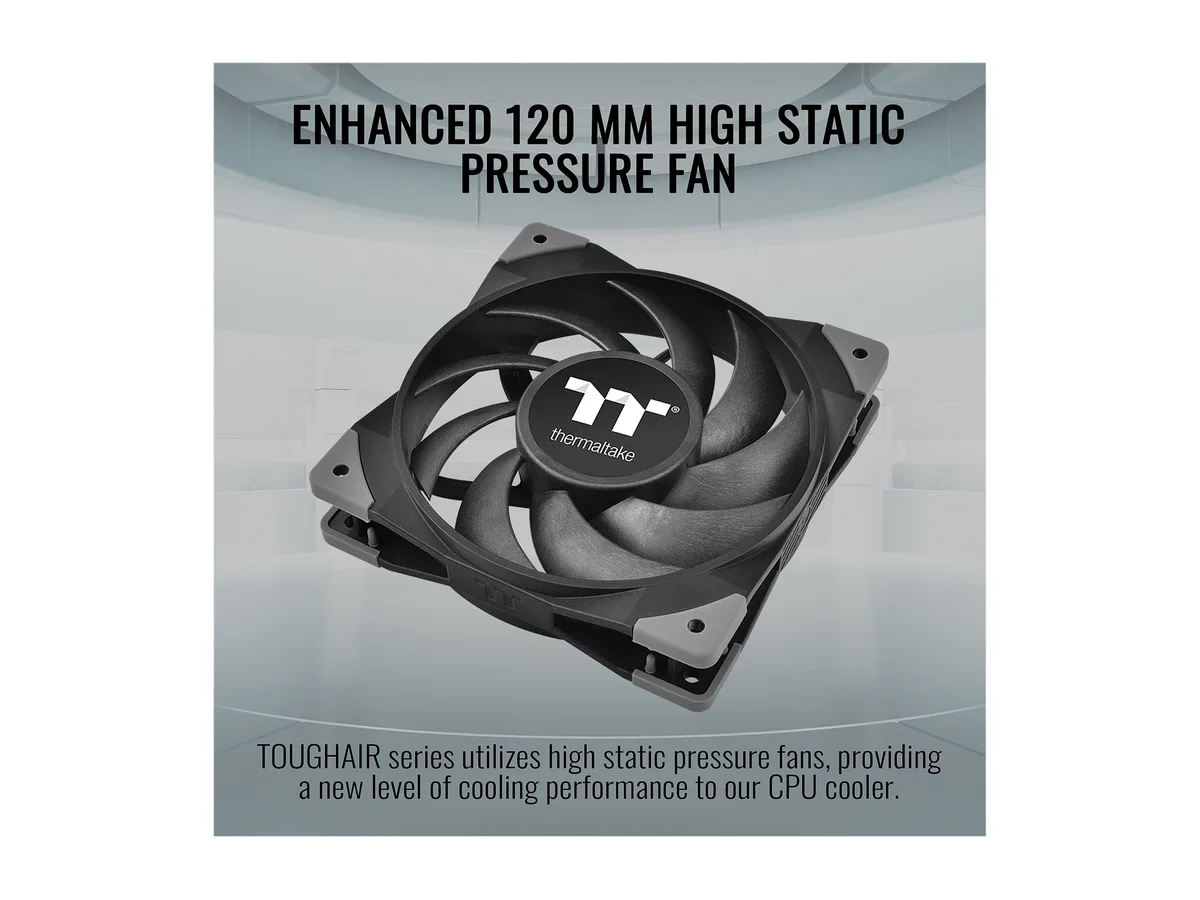

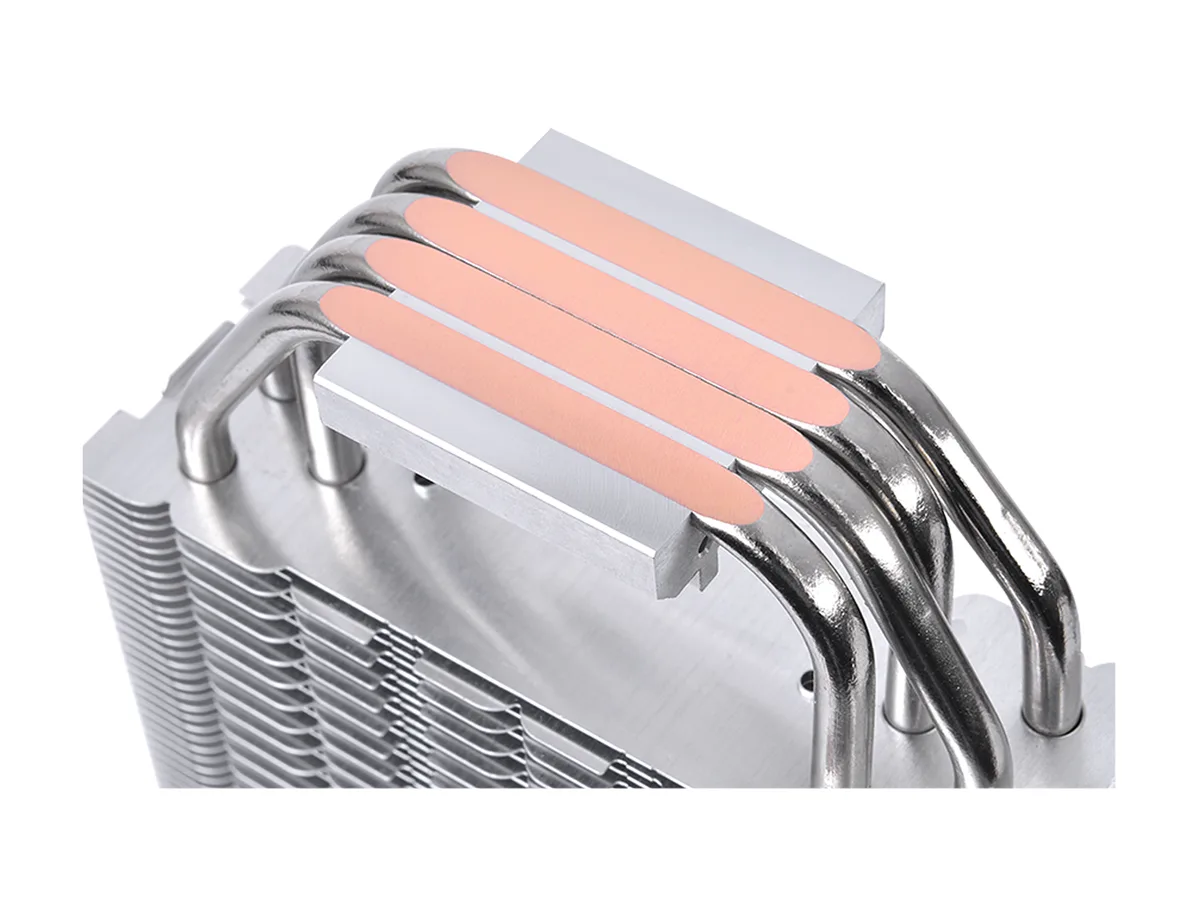

Four 6mm U-shape heat pipes make direct contact with the CPU and transfer heat into an asymmetric aluminium fin stack. Dual 120mm PWM fans spin between 500 and 2000 RPM, delivering 58.35 CFM at 23.6 dBA. The design handles typical gaming loads comfortably; sustained workloads above the rated wattage will exceed its capacity.

159.5mm height fits standard towers

The cooler stands 159.5mm tall, 123.6mm wide and 98.8mm deep, weighing 1147.59g. Two 120mm fans in push-pull occupy 120mm x 120mm x 25mm each and connect via a single 4-pin header. Verify case clearance and motherboard VRM heatsink spacing before installation; the asymmetric layout helps avoid memory-slot interference.

Highlights

  • Cools CPUs up to 180W with four direct-touch copper heat pipes
  • Dual 120mm PWM fans push 58.35 CFM at 2000 RPM for strong airflow
  • Asymmetric fin structure reduces turbulence and improves heat dispersal
  • Runs as quiet as 23.6 dBA at low speed
  • Fits Intel LGA 1851/1700/1200/115x and AMD AM4/AM3+/AM3/AM2+/AM2/FM2/FM1 sockets

Specifications

BrandThermaltake
ModelCL-P075-AL12BL-A
ColorBlack
TypeFan & Heatsinks
Fan Size120mm
CPU Socket CompatibilityIntel LGA 1851/1700/1200/1156/1155/1151/1150
AMD AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
RPM500 - 2000 RPM (PWM)
Air Flow58.35 CFM
Noise Level23.6 dBA
Power Connector4 Pin
LEDNon-LED
Heatsink MaterialAluminum & Copper
Max CPU Cooler Height159.5 mm
Fan Dimensions120.00 x 120.00 x 25.00 mm
Heatsink Dimensions159.50 x 123.60 x 98.80 mm
Weight1147.59g
FeaturesTOUGHAIR 510 is a single tower duel fan designed air cooler with 4 heat pipes running through the fins, the U-shape heat pipes increase heat circulation creating better heat dissipation in your system and supports up 180W.TOUGHAIR series utilizes high static pressure fans, which leverages the TOUGHFAN 12 design and boosts the fan speed to 2000 RPM, providing a new level of cooling performance to our CPU cooler.4 x Ø6 mm heat pipes directly touch the CPU and thermal paste, providing direct and outstanding heat dissipation to the CPU.TOUGHAIR Series is designed to fit Intel and AMD soc
Shipping weight1.18 kg
Package size183 × 152 × 127 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 159.5 mm tall TOUGHAIR 510 fit alongside the tall memory modules I already own?

The cooler stands 159.5 mm high; its asymmetric fin structure is shaped to give extra clearance above the motherboard, so most standard-height DIMMs will fit, but very tall kits may need to be measured against the 159.5 mm limit.

How can I verify the dual 120 mm fans are running at the correct 500-2000 RPM range after installation?

Connect the 4-pin PWM headers to the motherboard, then monitor fan speed in the BIOS or a hardware utility; the fans should report between 500 and 2000 RPM and peak at 23.6 dBA under load.

Does the box include mounting hardware for both Intel LGA 1700 and AMD AM4 sockets, or must I buy a separate bracket kit?

The package supplies a universal mounting kit that covers Intel LGA 1851/1700/1200/115x and AMD AM4/AM3+/AM3/AM2+/AM2/FM2/FM1, so no extra bracket is required for those sockets.
