Low-profile aluminium heatsink with 92mm 7-blade fan, two-tone finish, horizontal mount

Thermaltake

Thermaltake CL-P094-AL09WT-A CPU cooler 95W Intel LGA 1700 92mm 1800 RPM

SKU CH-2AY8-60PKQ MPN CL-P094-AL09WT-A

Low-profile 92mm air cooler with aluminium heatsink handles 95W TDP for Intel LGA 1700 at 1800 RPM and 21.3 dBA

  • Color2-Tone
  • TypeFan & Heatsinks
  • Fan Size92mm
  • CPU Socket CompatibilityIntel LGA 1700
  • RPM1800 RPM
  • Air Flow31.34 CFM

Model Intel

Options 95W

Option 4 pin

Struck-through versions exist but are not stocked here.

  • Low-profile 66 mm height fits tight builds
  • 92 mm fan spins at 1800 RPM for 31.34 CFM airflow
  • Quiet 21.3 dBA operation keeps systems silent
  • Aluminium extrusion heatsink handles 95 W TDP
  • 4-pin PWM connector gives precise speed control

Compact Low-Profile Cooler for LGA 1700

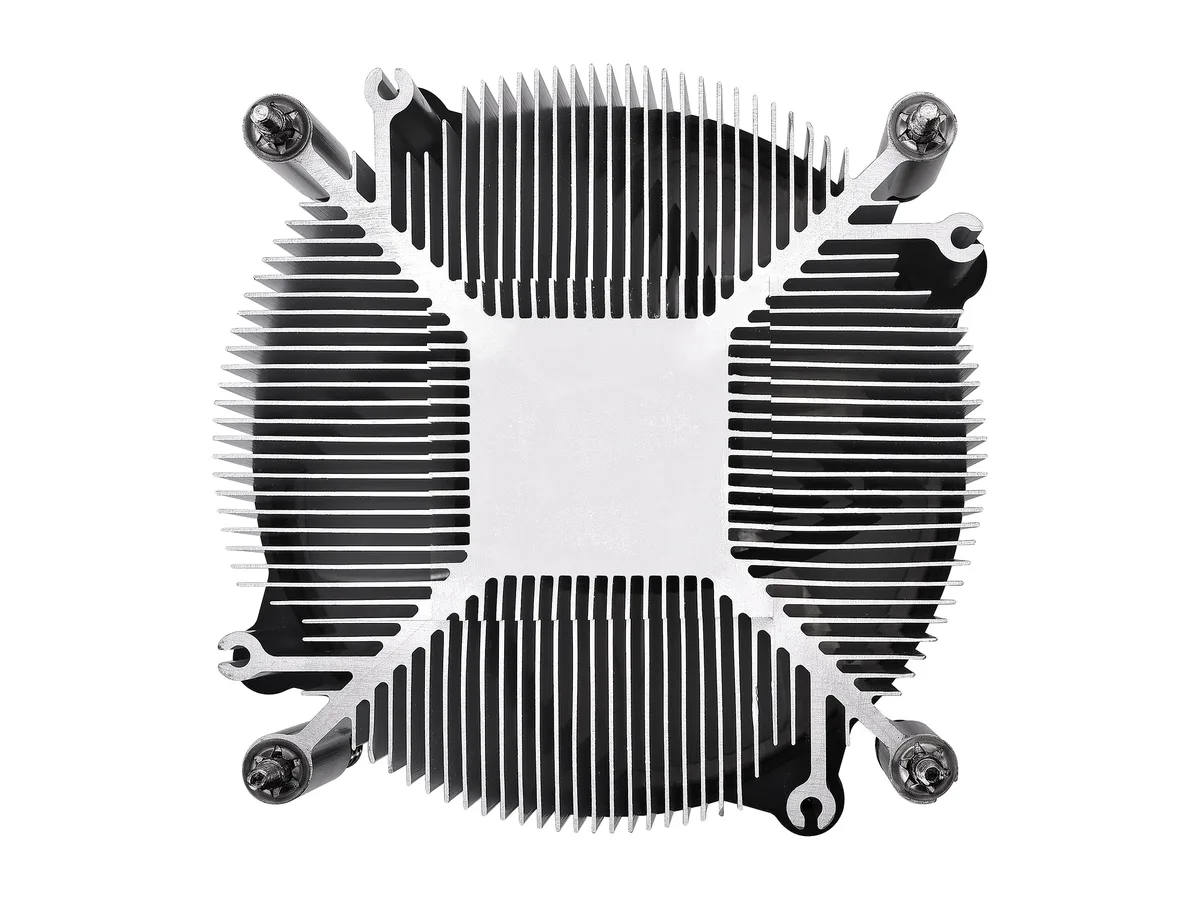

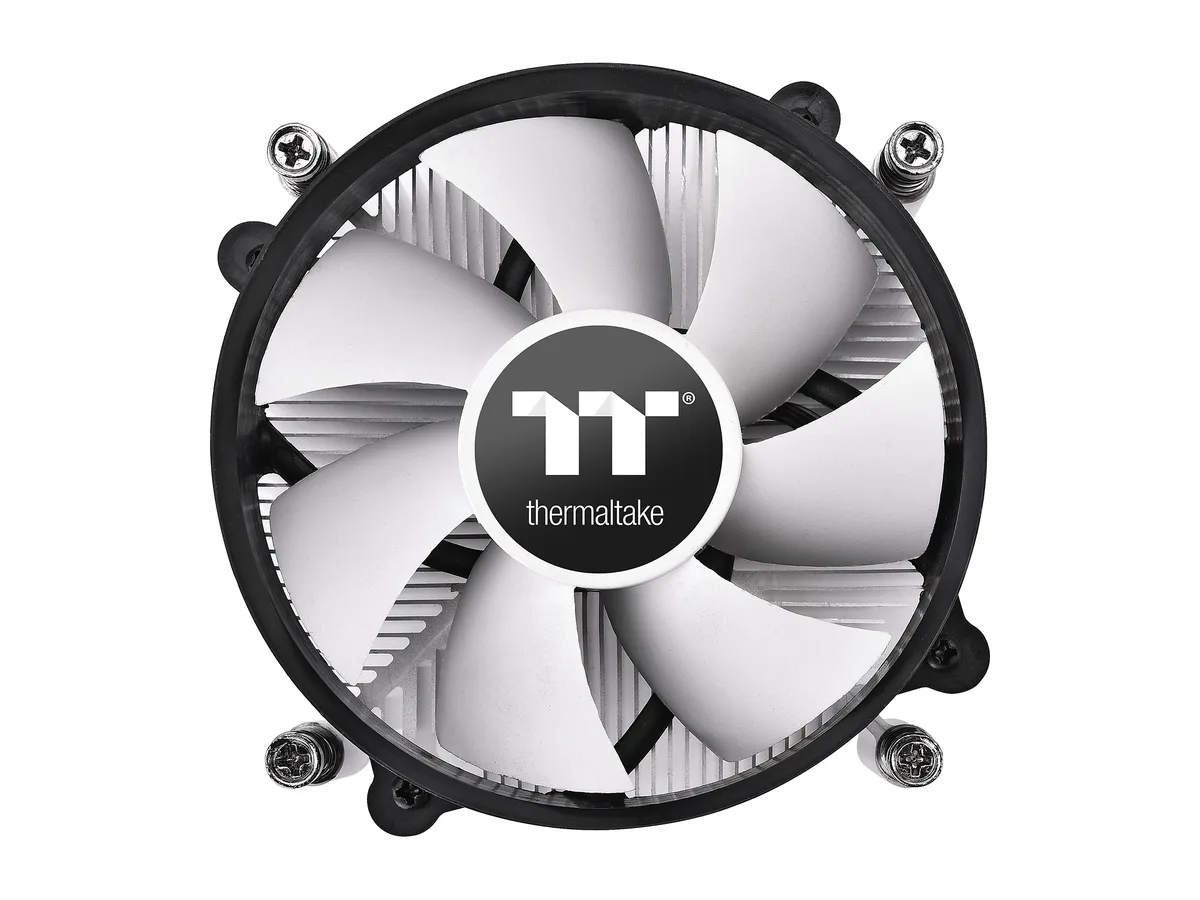

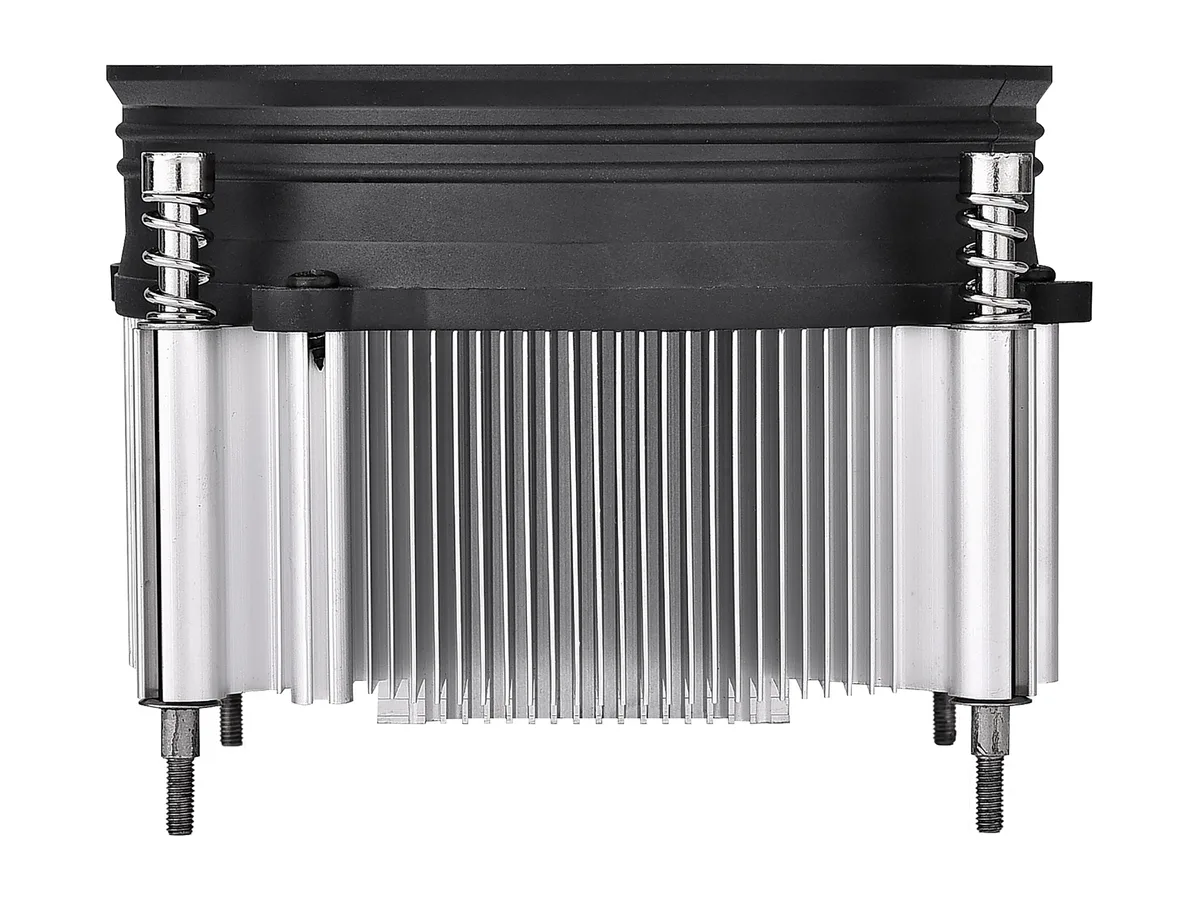

The Thermaltake Gravity i3 is a low-profile air cooler built for Intel LGA 1700 sockets. It targets builders who need a compact solution for low-power processors rated up to 95W. The aluminium extrusion heatsink measures 66 mm tall, fitting tight chassis where taller towers cannot. A 92 mm fan with a 7-blade design mounts horizontally on the heatsink.

Sustained Load Behaviour

Rated to dissipate up to 95W, the cooler handles continuous thermal output from compatible CPUs without throttling. The 92 mm fan spins at 1800 RPM to deliver 31.34 CFM across the aluminium fins. Horizontal airflow moves heat away from the socket area steadily during prolonged workloads. The 4-pin connector allows the motherboard to adjust fan speed based on real-time temperature.

Thermals, Noise and Power

At full speed the fan produces 21.3 dBA, keeping acoustic output low for office or home use. The aluminium heatsink and compact fan draw minimal power through the standard 4-pin header. Heatsink dimensions of 65.40 x 96.60 x 96.60 mm and fan dimensions of 92.00 x 25.00 mm leave room for surrounding components. Builders needing higher TDP headroom or multi-fan configurations should consider larger coolers.

Highlights

  • Low-profile 66 mm height fits tight builds
  • 92 mm fan spins at 1800 RPM for 31.34 CFM airflow
  • Quiet 21.3 dBA operation keeps systems silent
  • Aluminium extrusion heatsink handles 95 W TDP
  • 4-pin PWM connector gives precise speed control

Specifications

BrandThermaltake
ModelCL-P094-AL09WT-A
Color2-Tone
TypeFan & Heatsinks
Fan Size92mm
CPU Socket CompatibilityIntel LGA 1700
RPM1800 RPM
Air Flow31.34 CFM
Noise Level21.3 dBA
Power Connector4 Pin
Heatsink MaterialAluminum
Fan Mounting Types to HeatsinkHorizontal
Max CPU Cooler Height66 mm
Fan Dimensions92.00 x 25.00 mm
Heatsink Dimensions65.40 x 96.60 x 96.60 mm
Shipping weight0.50 kg
Package size112 × 109 × 91 mm

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud is the 92 mm fan at 1800 RPM during sustained load?

The cooler produces 21.3 dBA at full speed, which is a quiet library level even when running all day.

Does the 4-pin PWM connector need a dedicated CPU_FAN header on the motherboard?

Yes, it requires a standard 4-pin CPU fan header for power and speed control.

Will the 66 mm height and 96.6 mm width clear RAM slots and VRM heatsinks on an LGA 1700 board?

The low-profile 66 mm height and compact 96.6 mm footprint are designed to avoid interference with tall memory modules and VRM coolers.
