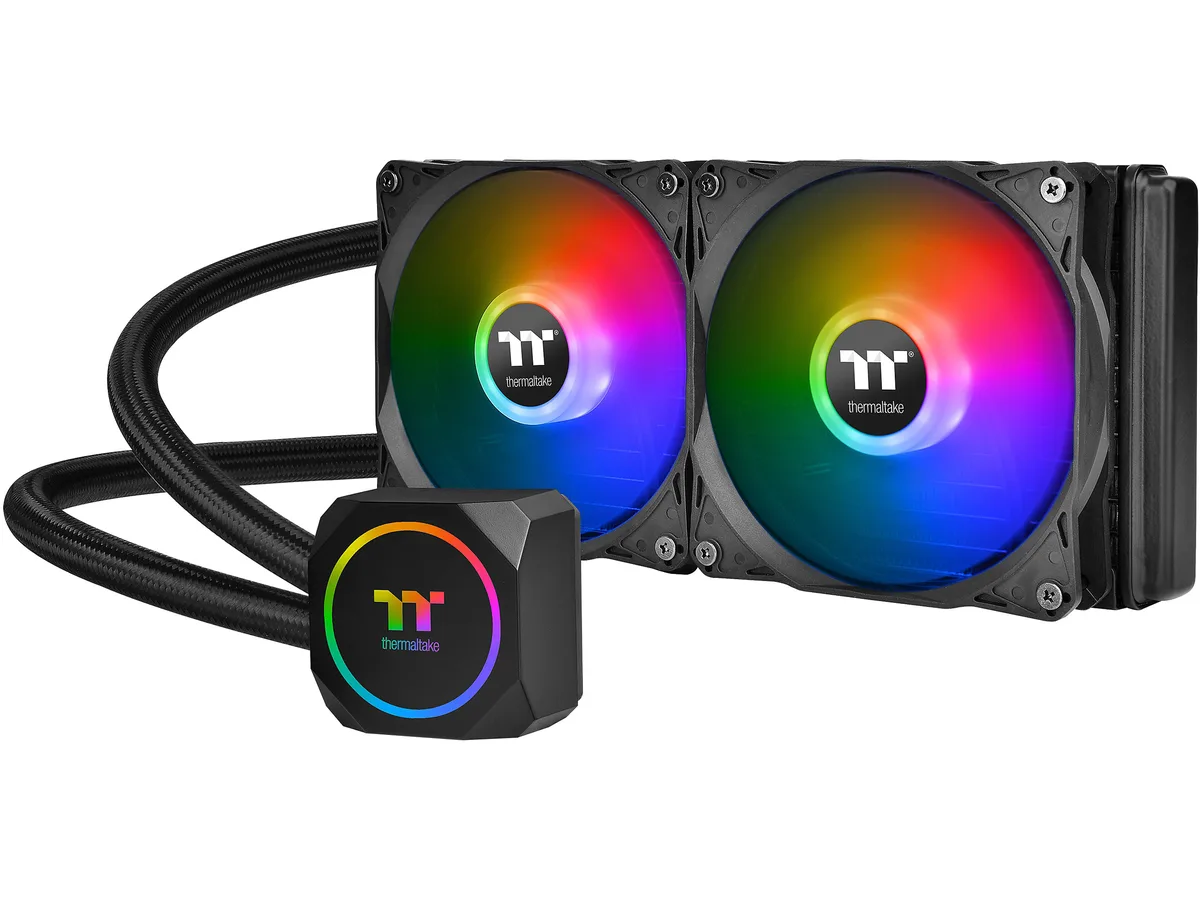

Black 240 mm radiator with two 120 mm ARGB fans and copper water block

Thermaltake

Thermaltake CL-W286-PL12SW-A 240 mm liquid cooler

SKU CH-Q6H9-JJY7A MPN CL-W286-PL12SW-A

All-in-one liquid CPU cooler with a 240 mm aluminium radiator, copper base plate and two 120 mm ARGB fans for Intel and AMD sockets

  • TypeLiquid Cooling System
  • Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 1156 /
  • Block MaterialCopper

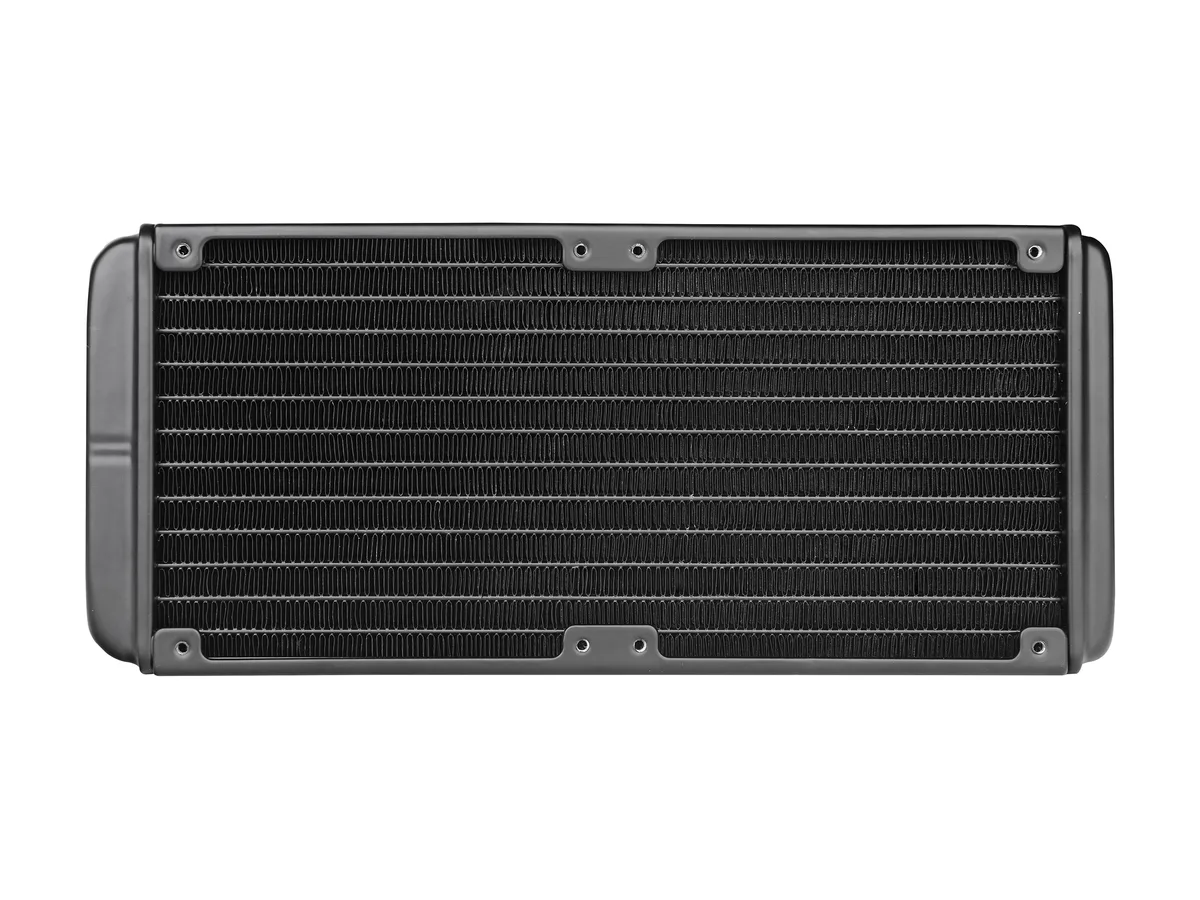

  • Radiator Size273.00 x 120.00 x 27.00 mm
  • Radiator MaterialAluminum
  • Fan Size2 Fan Slots (120 mm)
  • Synchronised lighting across major motherboards via 5V ARGB header

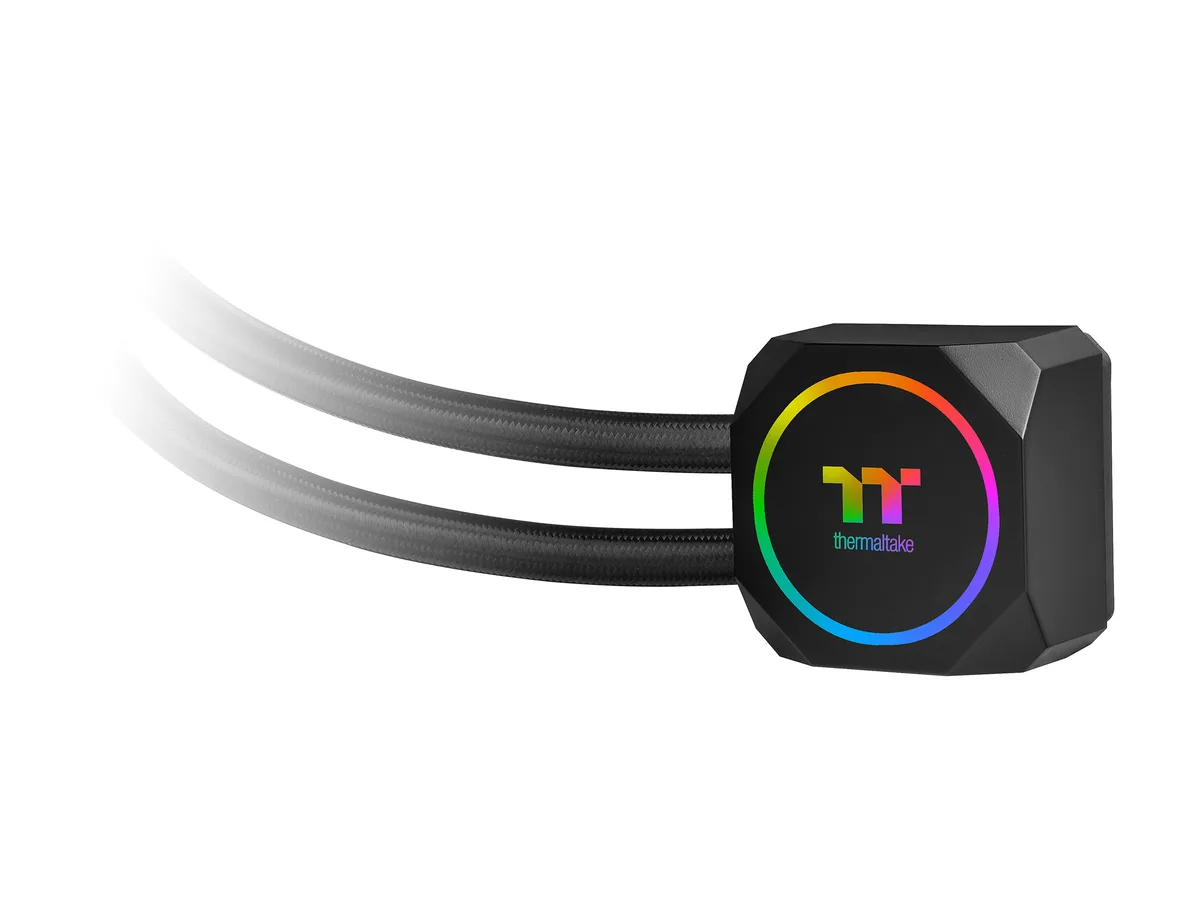

  • Copper base plate conducts heat quickly from the CPU
  • Two 120 mm fans deliver 59.28 CFM at 28.2 dB-A
  • Pre-filled loop needs no refill and fits LGA 1700, AM4 and more
  • 240 mm aluminium radiator with 27 mm thickness for compact cases

240 mm AIO liquid cooler

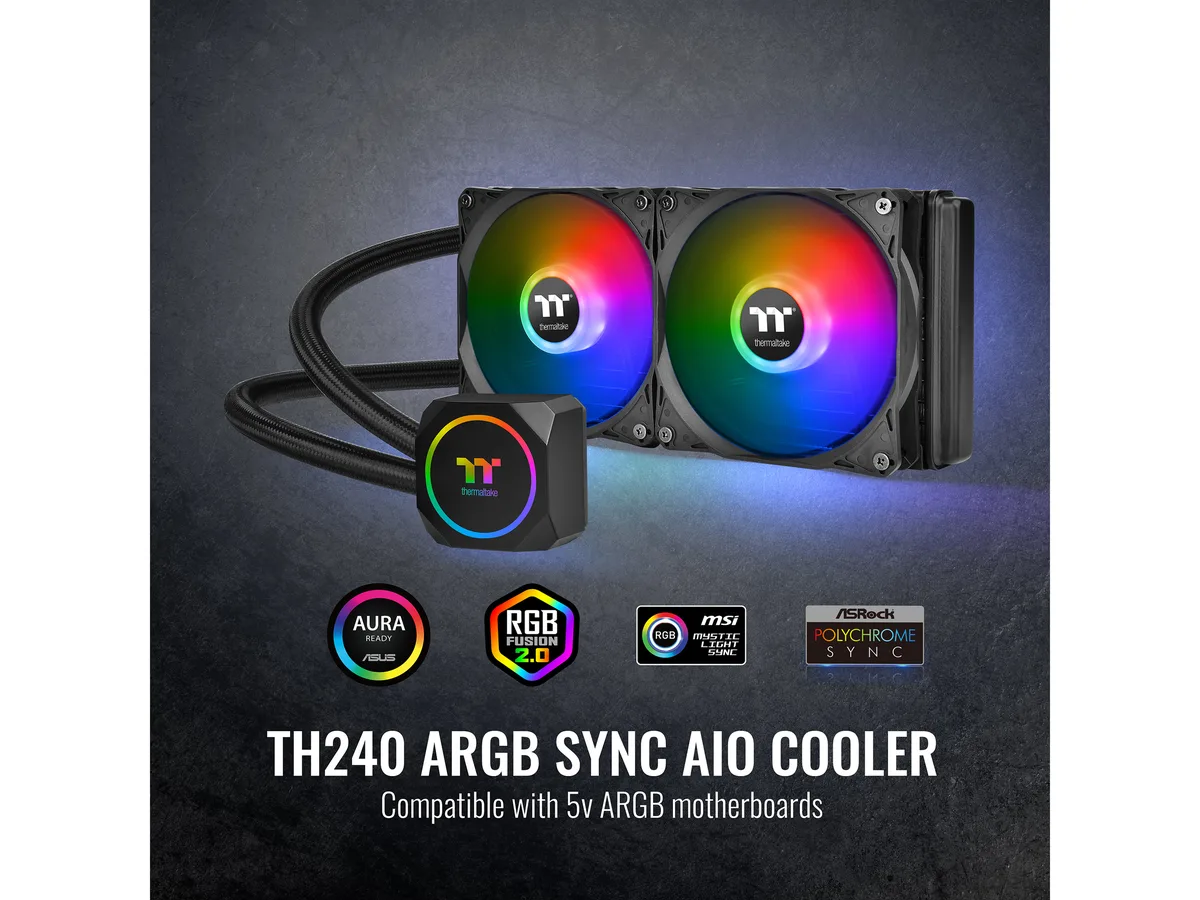

The Thermaltake TH240 ARGB Sync is an all-in-one liquid cooler with a 240 mm aluminium radiator and two 120 mm fans. It targets builders who want CPU cooling with addressable RGB lighting that can be synchronised through a 5 V motherboard header. The unit ships factory-filled and is ready to install without filling or maintenance.

Socket compatibility list

The copper cold plate mounts on Intel sockets LGA 1700, 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3 and 2066 as well as AMD sockets AM4, AM3+, AM3, AM2+, AM2, FM2 and FM1. Extra LGA 1700 brackets are not included and must be obtained separately from the manufacturer if your board requires them.

Installation notes and common issues

The package includes an analog ARGB controller, two 5 V ARGB signal cables and both coarse and fine mounting screws for the radiator and fans. Tubing length is 400 mm, which limits radiator placement in larger cases. Missing LGA 1700 brackets are the most frequent reason the cooler cannot be fitted on newer Intel platforms.

Highlights

  • Synchronised lighting across major motherboards via 5V ARGB header
  • Copper base plate conducts heat quickly from the CPU
  • Two 120 mm fans deliver 59.28 CFM at 28.2 dB-A
  • Pre-filled loop needs no refill and fits LGA 1700, AM4 and more
  • 240 mm aluminium radiator with 27 mm thickness for compact cases

Specifications

BrandThermaltake
SeriesTH240 ARGB Sync
ModelCL-W286-PL12SW-A
TypeLiquid Cooling System
Block CompatibilityIntel LGA 2066 / 2011-3 / 2011 / 1700 / 1366 / 1200 / 1156 / 1155 / 1151 / 1150
AMD AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1
Block MaterialCopper
Radiator Size273.00 x 120.00 x 27.00 mm
Radiator MaterialAluminum
Fan Size2 Fan Slots (120 mm)
Fan Dim.120 x 120 x 25 mm
Fan RPM1500 RPM
Fan Air Flow59.28 CFM
Fan Noise28.2 dB-A
Fan Connector2510-4 Pin , 5V ARGB header-3 Pin
ColorBlack
LED ColorARGB
Tube Dim.400mm (Length)
Tube MaterialRubber
Features5V ARGB Motherboard Sync Support (ASUS, Gigabyte, MSI, ASRock)
High performance copper base plate design accelerates heat conductivity
Supports up to (2) 120mm fans for Push/Pull configurations.
High quality pump enables maximum water circulation and worry free maintenance
Includes universal mounting kit Intel and AMD CPU socket configurations
Factory filled coolant requires no refill
Easy installation with maintenance-free operation
Package ContentsThermaltake TH240 ARGB Sync All-in-One CPU Cooler
(x2) 120mm RGB Fan

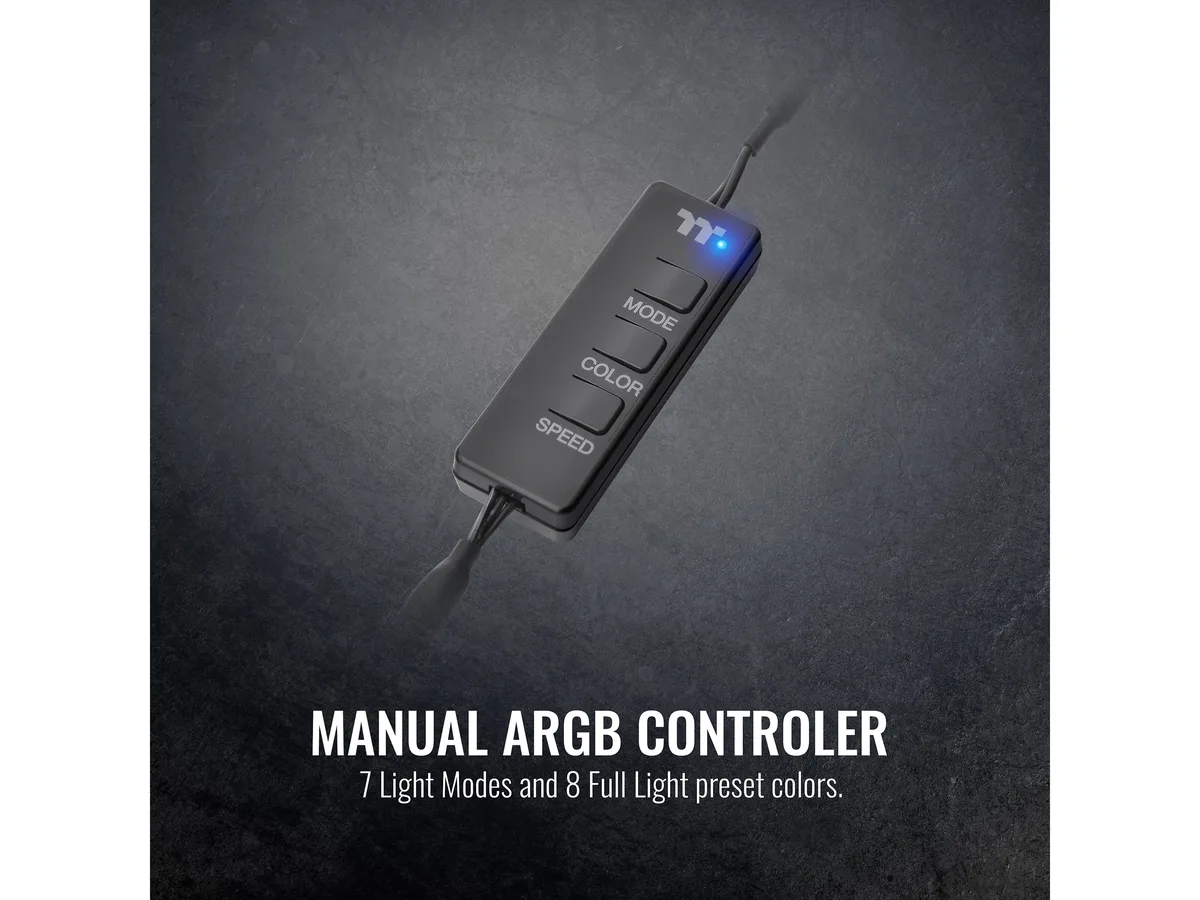

(x1) Analog ARGB Controller
(x2) 5V ARGB Motherboard Signal Cable
Intel & AMD Mounting Kit
Radiator and Fan Mounting Screws (Corse/Fine Screws both included)
Quick Start Guide
Shipping weight1.42 kg
Package size267 × 215 × 137 mm

Questions about this item

How does the 240 mm radiator perform inside a typical case?

The 273.00 x 120.00 x 27.00 mm aluminum radiator fits standard 240 mm mounts and dissipates heat through two 120 mm fans pushing 59.28 CFM each at 1500 RPM.

What does the 5V ARGB header actually control on this cooler?

The 5V ARGB header-3 Pin connects to ASUS, Gigabyte, MSI or ASRock motherboard software to synchronize lighting effects across the pump block and both included fans.

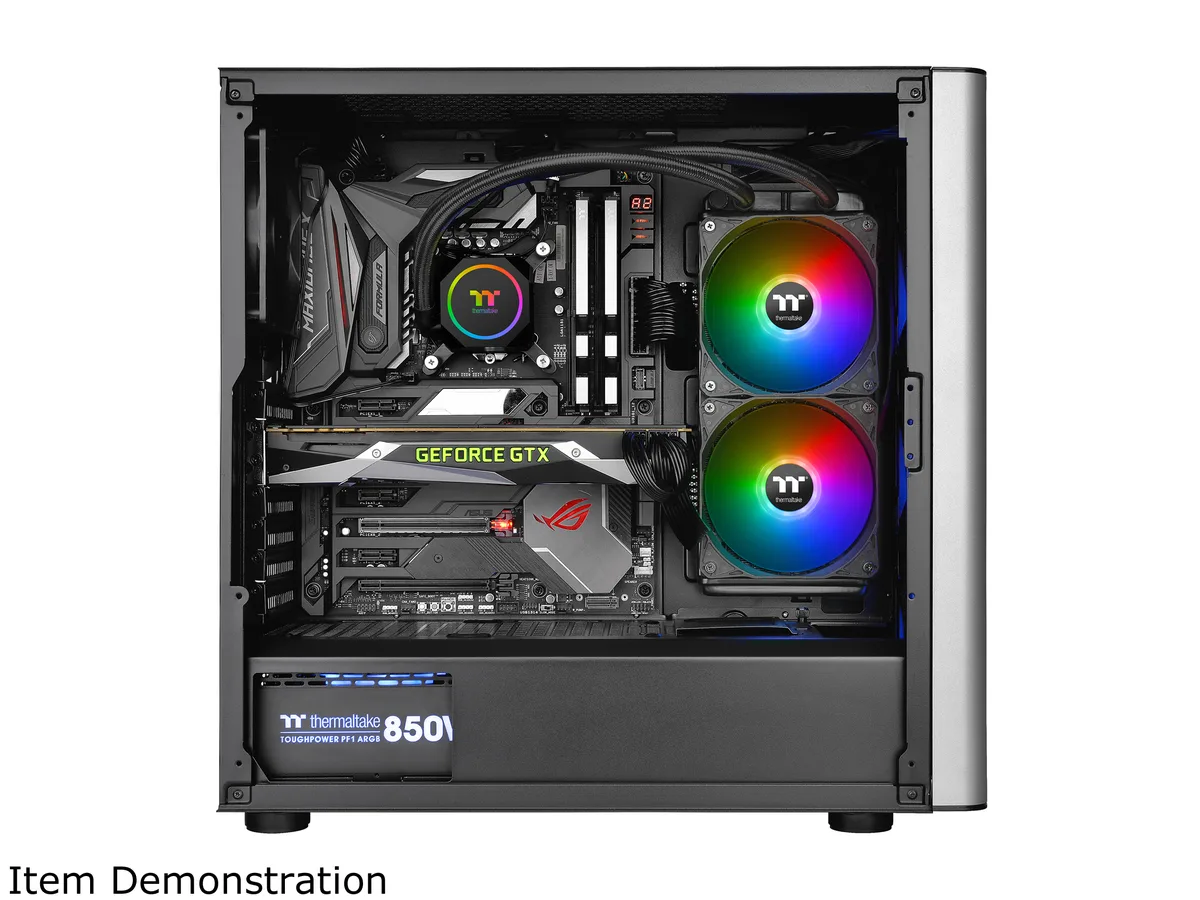

Will the 400 mm tubes reach a top-mounted radiator in a mid-tower?

The 400 mm rubber tubes span from a CPU socket to a top or front 240 mm mounting area in most mid-tower cases, and the universal Intel/AMD bracket kit secures the copper block.
