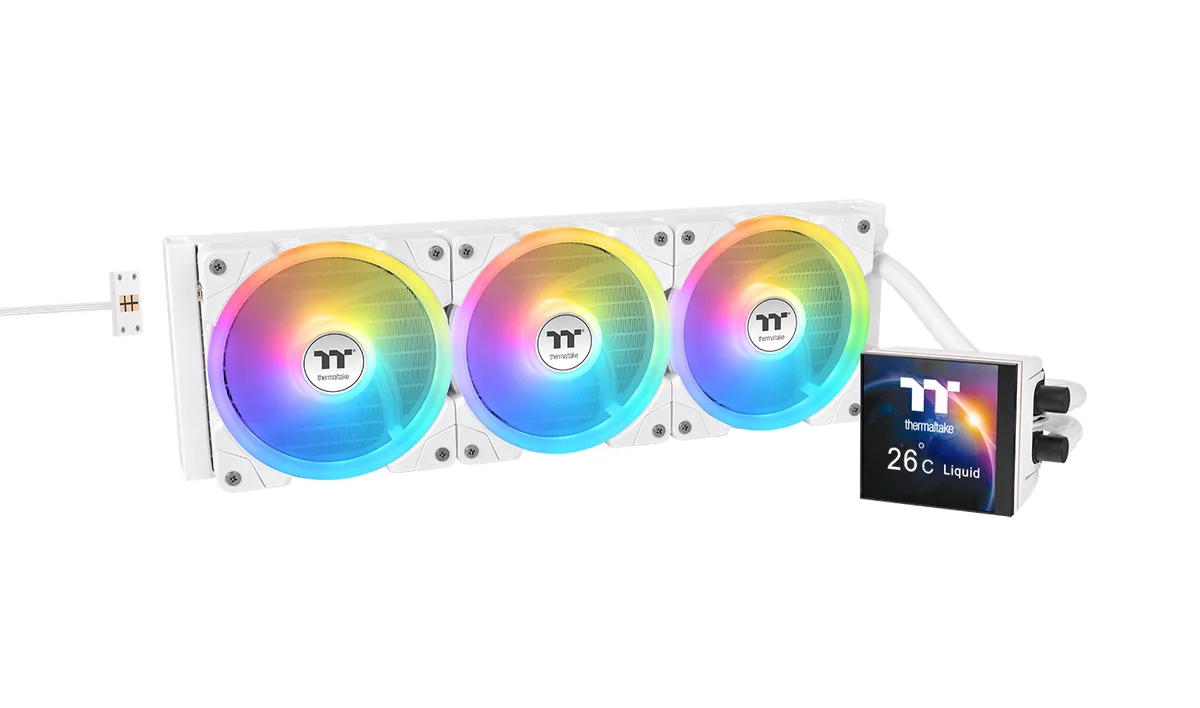

White AIO liquid cooler with 420mm radiator, three 140mm fans and square LCD pump block

Thermaltake

Thermaltake CL-W452-PL14SW-A 420mm liquid cooler

SKU CH-TRXW-Y6XCV MPN CL-W452-PL14SW-A

A 420 mm AIO with three 140 mm magnetic fans, a copper cold-plate, and a 3.95" square LCD on the pump block

  • TypeAIO
  • Block CompatibilityCPU Socket : Intel LGA 2066/2011-3/2011/1851/1700 1200/1156/
  • Block MaterialCopper
  • Radiator SizeDimension : 456 x 139 x 27 mm
  • Radiator MaterialAluminum
  • Fan Size3 Fan Slots (140 mm)
  • 95" square LCD shows system stats and custom media
  • Magnetic MagForce 2.0 links fans without cables for tidy builds
  • Swappable blades give 81.6 CFM standard or 79.3 CFM reverse airflow
  • 420mm aluminium radiator with copper block fits Intel LGA 1851/1700/1200 and AMD AM5/AM4
  • Three 140mm PWM fans run 500-2000 RPM at 34.5 dB-A standard noise

What this AIO cools

The Thermaltake MAGFloe 420 Ultra is an all-in-one liquid cooler built for modern desktop CPUs. It supports Intel sockets from LGA 1150 through LGA 1851 and AMD sockets from AM2 through AM5. The copper cold plate transfers heat into a 456 x 139 x 27 mm aluminium radiator. Three 140 mm fans mount on the radiator for push or pull airflow.

Capacity and headroom

Each fan runs between 500 and 2000 RPM under PWM control. Standard blades move 81.6 CFM at 34.5 dB-A while generating 3.17 mm of static pressure. Reverse blades move 79.3 CFM at 38.8 dB-A with 2.73 mm of static pressure. The 460 mm rubber tubes set the maximum distance between the pump block and radiator mounting points. Radiator thickness of 27 mm fits most mid-tower cases.

Build quality and daily use

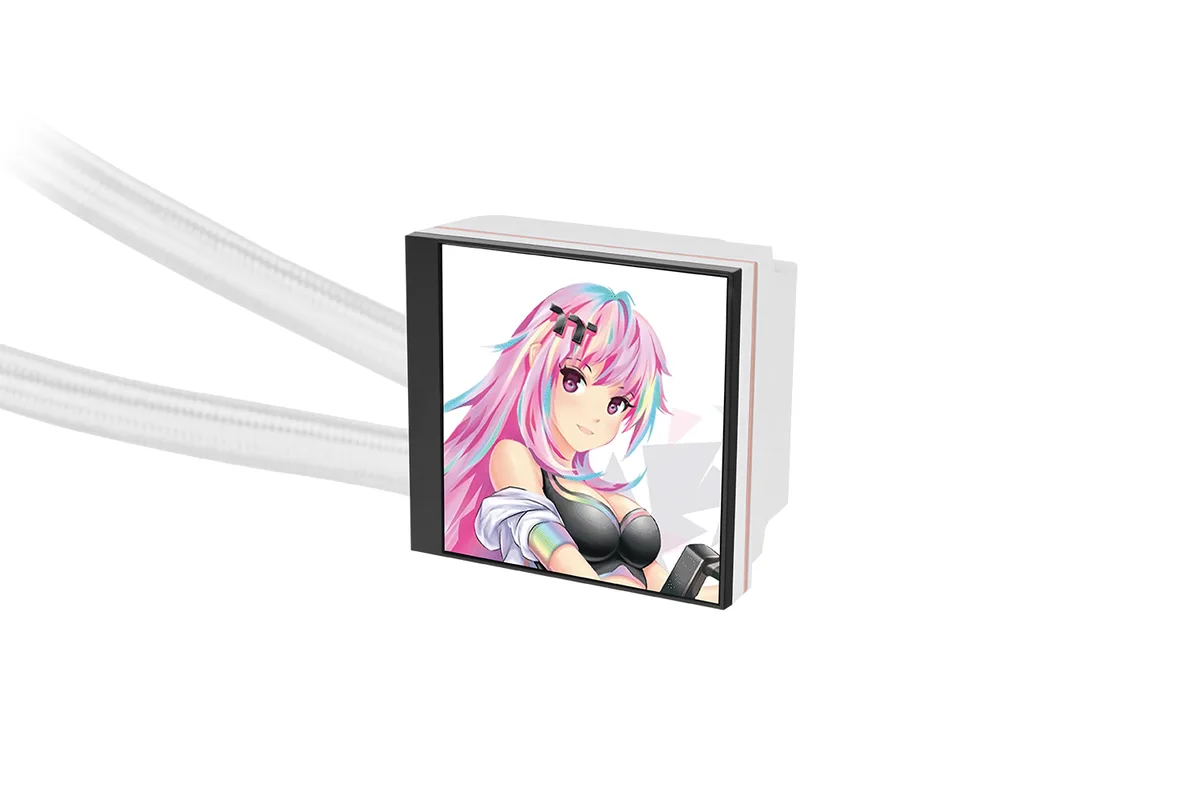

A 3.95 inch square LCD on the pump block displays custom images, video or system data. MagForce 2.0 magnetic fan-to-fan links and daisy-chain cables simplify wiring and prevent signal drop-out from misalignment. Fan blades are swappable between standard and reverse orientation. ARGB lighting is integrated. The white finish matches light-themed builds.

Highlights

  • 95" square LCD shows system stats and custom media
  • Magnetic MagForce 2.0 links fans without cables for tidy builds

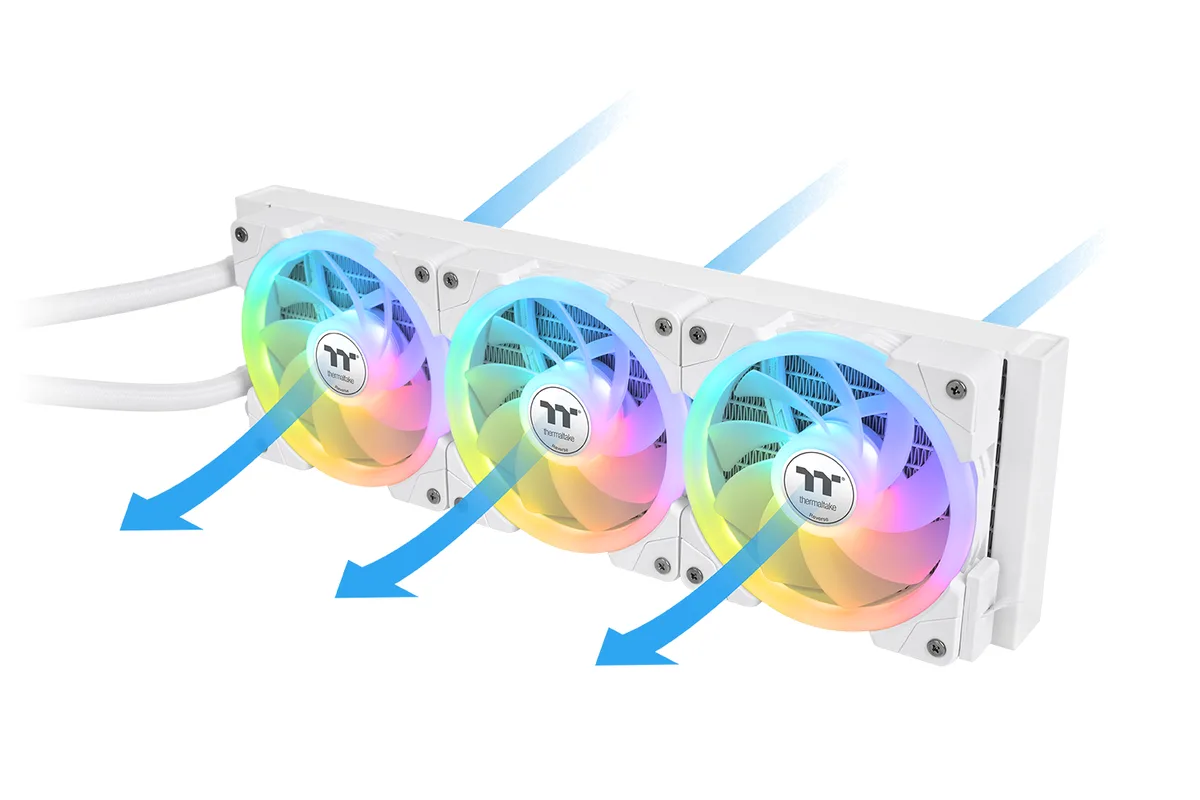

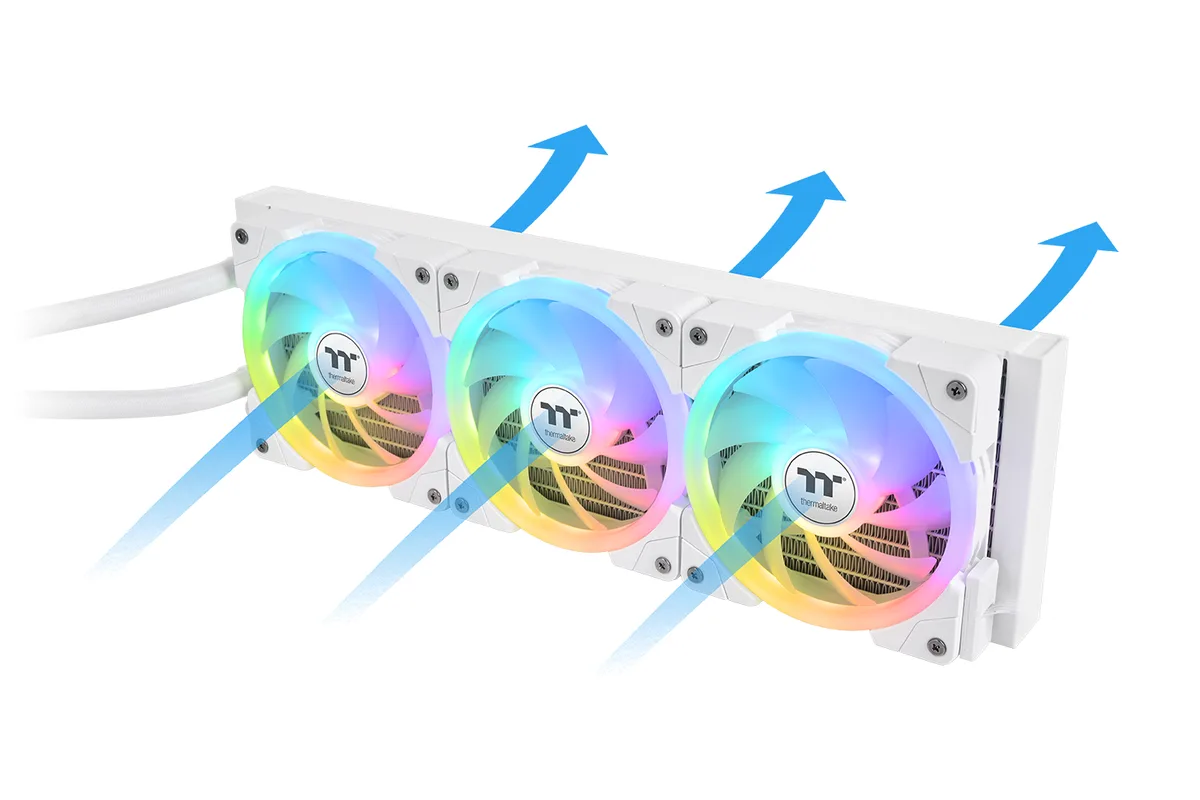

  • Swappable blades give 81.6 CFM standard or 79.3 CFM reverse airflow
  • 420mm aluminium radiator with copper block fits Intel LGA 1851/1700/1200 and AMD AM5/AM4
  • Three 140mm PWM fans run 500-2000 RPM at 34.5 dB-A standard noise

Specifications

BrandThermaltake
ModelCL-W452-PL14SW-A
TypeAIO
Block CompatibilityCPU Socket :
Intel LGA 2066/2011-3/2011/1851/1700
1200/1156/1155/1151/1150
AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
Block MaterialCopper
Radiator SizeDimension : 456 x 139 x 27 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (140 mm)
Fan Dim.140 x 140 x 25 mm
Fan RPMPWM 500~2000 R.P.M
Fan Air FlowStandard Fan Blade : 81.6 CFM (one fan)
Reverse Fan Blade : 79.3 CFM (one fan)
Fan NoiseStandard Fan Blade : 34.5 dB-A (one fan)
Reverse Fan Blade : 38.8 dB-A (one fan)
ColorWhite
LED ColorARGB
Tube Dim.Length : 460mm
Tube MaterialRubber
Shipping weight3.22 kg
Package size521 × 203 × 152 mm

Questions about this item

Will the 420 mm radiator and 460 mm tubes reach my existing LGA 1700 motherboard in a standard ATX case?

The radiator measures 456 x 139 x 27 mm and tubes are 460 mm long; it supports LGA 1700 plus LGA 1851, 1200, 1150, 1151, 1155, 1156, 2011, 2011-3, 2066 and AMD AM5, AM4, AM3+, AM3, AM2+, AM2, FM2, FM1 sockets.

How can I confirm the 3.95" LCD and three 140 mm fans are running correctly after installation?

The LCD should display images, video or live system data, and each fan should spin between 500 and 2000 RPM; standard blades move 81.6 CFM at 34.5 dB-A, reverse blades 79.3 CFM at 38.8 dB-A.

What comes in the box and what must I buy separately for the magnetic daisy-chain and swappable blades?

The box includes the 420 mm aluminium radiator, copper cold plate, pump block with 3.95" LCD, three 140 mm SWAFAN EX fans with standard and reverse blades, magnetic daisy-chain cables and mounting hardware for all listed sockets; no extra parts are required.
