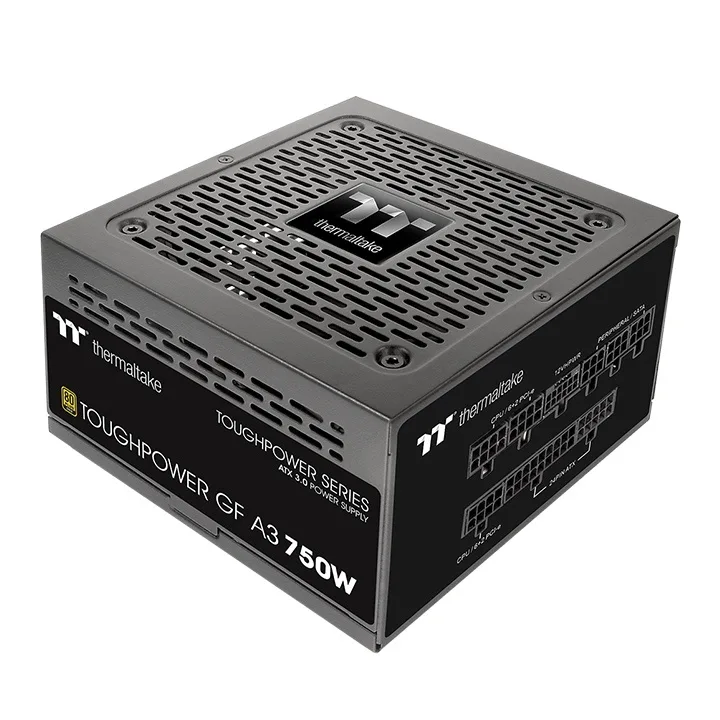

Black rectangular ATX power supply with 120 mm fan and modular cable sockets

Thermaltake

Thermaltake PS-TPD-0750FNFAGU-L 750 W power supply

SKU CH-57J0-N7CF3 MPN PS-TPD-0750FNFAGU-L

ATX 3.0 compatible 750 W fully modular unit with a 120 mm fluid dynamic bearing fan, 80 PLUS Gold efficiency, a native 12VHPWR connector rated for 300 W, four 6+2-pin PCIe plugs.

  • ColorBlack
  • TypeATX / ATX 3.0 Compatible
  • Maximum Power750 W
  • Fans1 x 120 mm Fluid Dynamic Bearing Fan
  • PFCActive
  • Main Connector24Pin

Options 750W

  • ATX 3.0 compatible for stable high-power GPU delivery
  • 750 W continuous output rated at 45°C operating temperature
  • 80 PLUS Gold certified efficiency reduces waste heat
  • Fully modular flat cables simplify routing and airflow
  • Smart zero-fan mode stops the 120 mm fan under light load

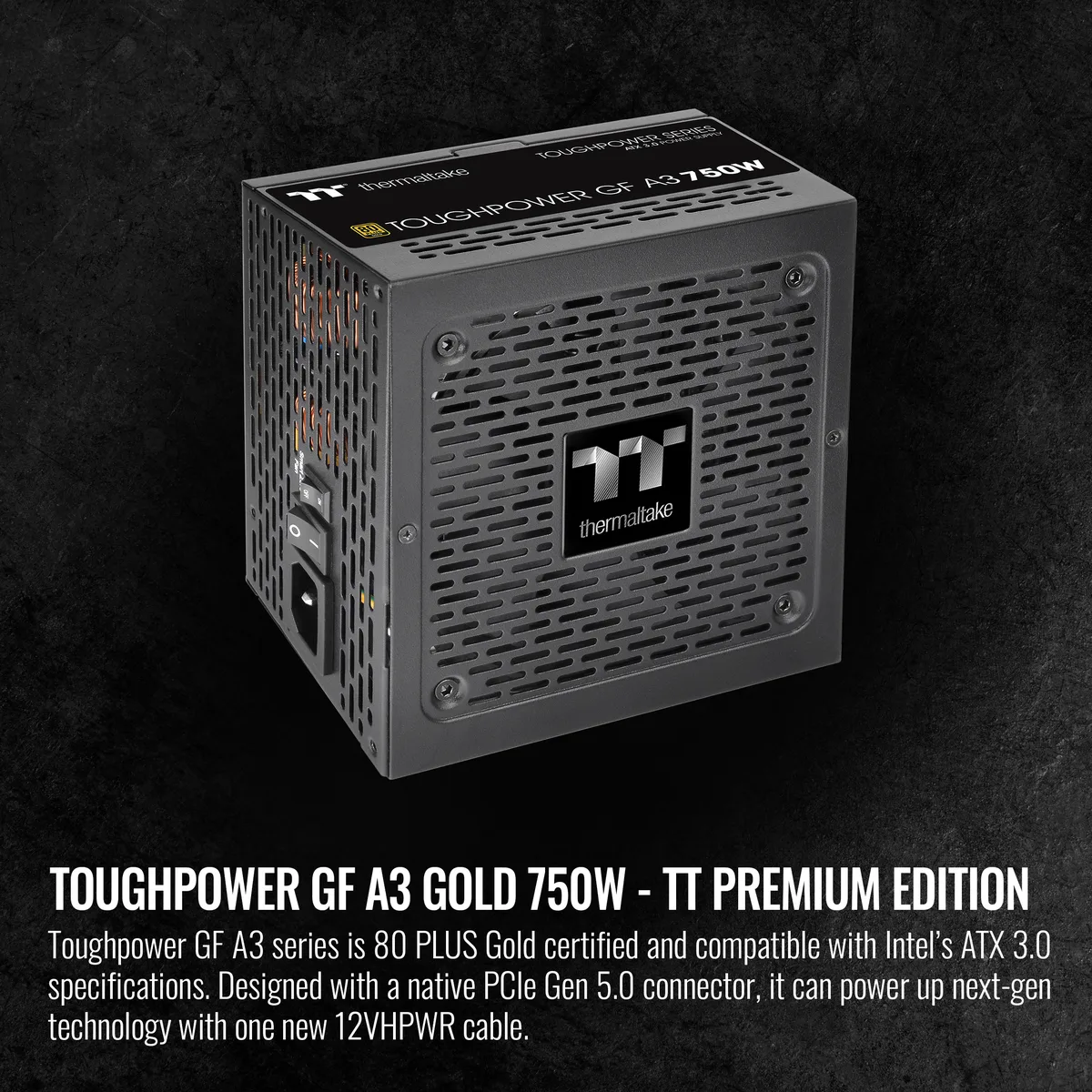

750 W ATX 3.0 power supply for modern builds

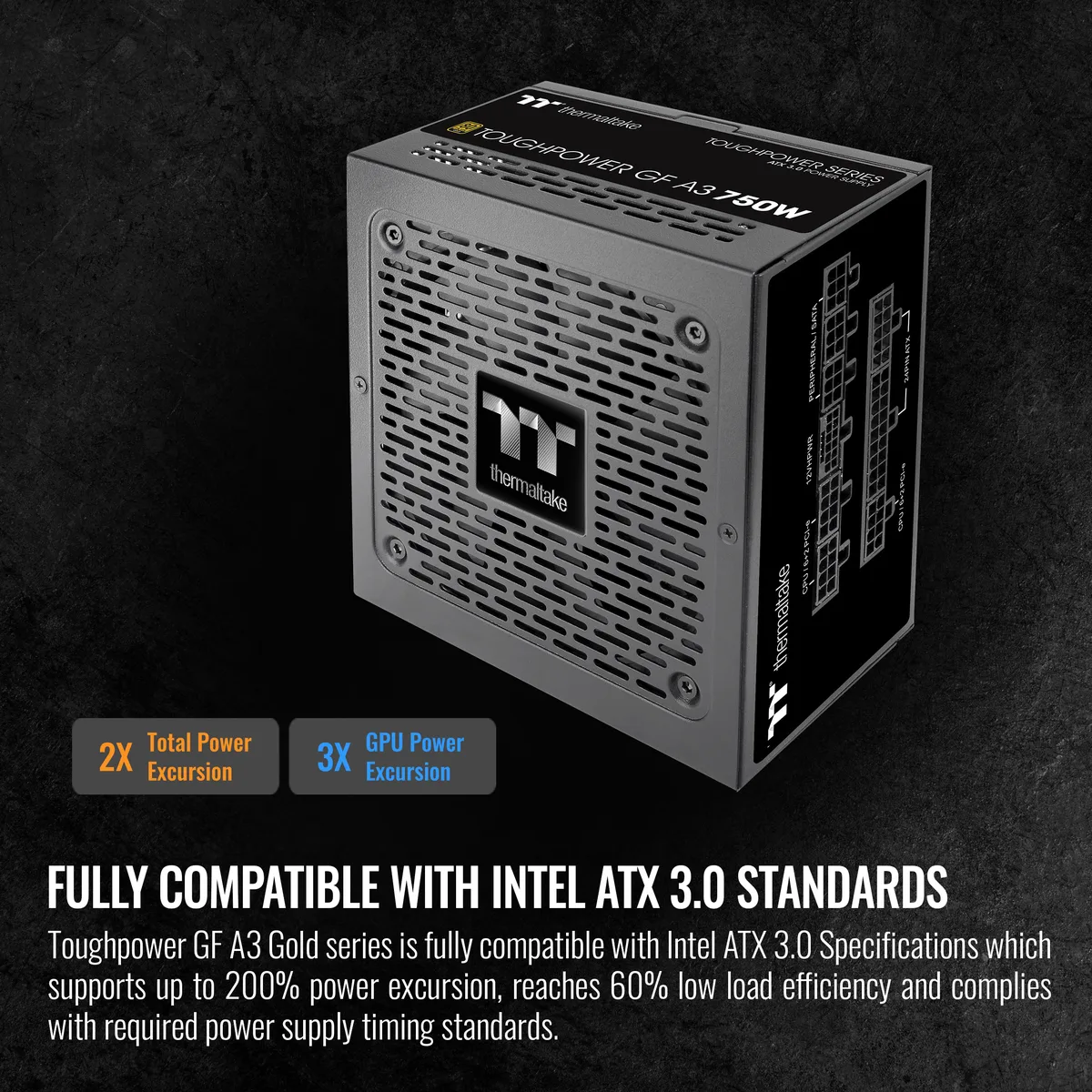

This 750 W unit follows the Intel ATX 3.0 specification and ships with a native 12VHPWR connector rated for 300 W. It is built for systems that need PCIe Gen 5 readiness and stable delivery across a single +12 V rail. Full modular cabling keeps the interior clean.

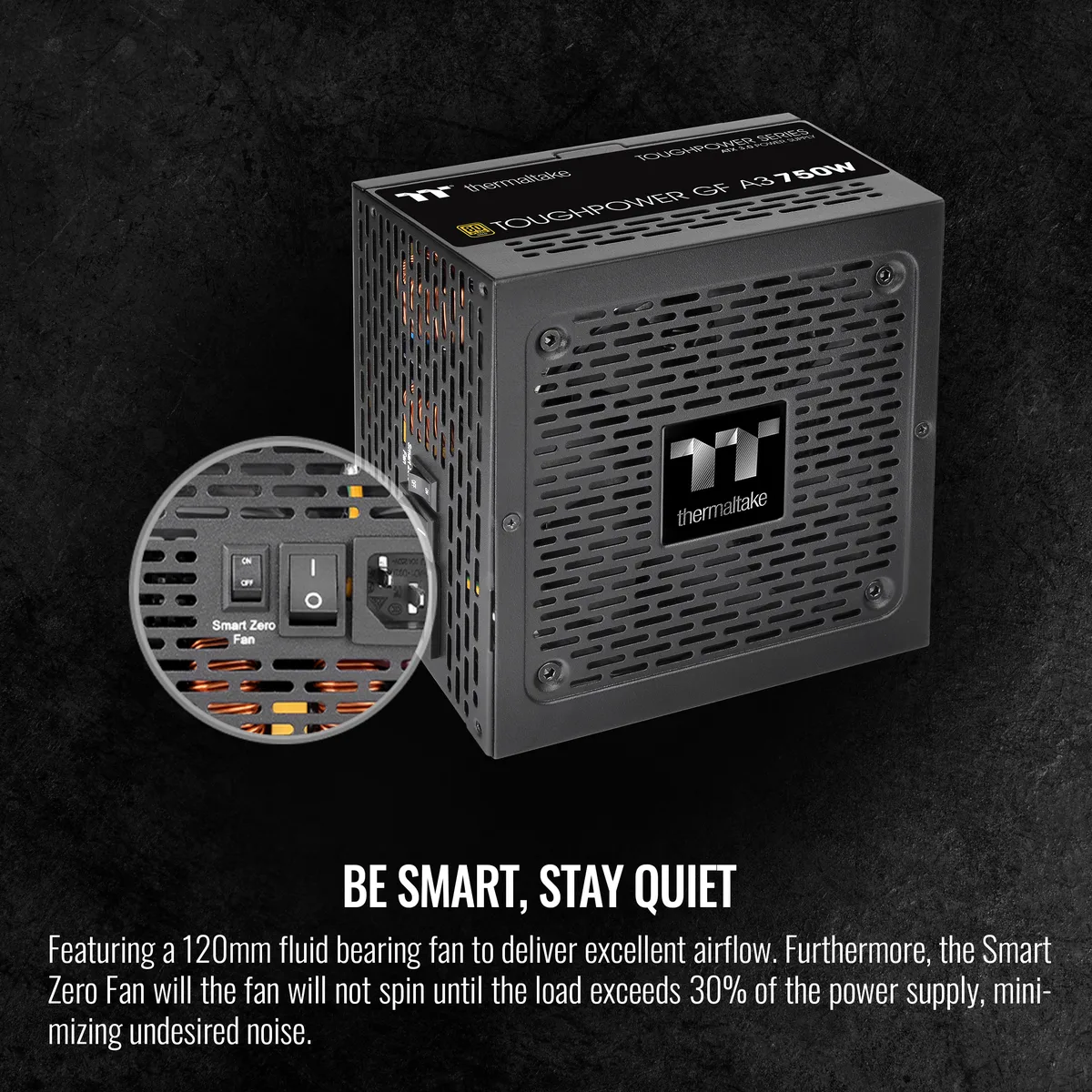

Sustained output at 45 °C with smart fan control

The supply delivers its full 750 W continuously at 45 °C using Japanese 105 °C main capacitors. A 120 mm fluid dynamic bearing fan runs only when load demands it, staying idle at low power and ramping up under sustained stress. Hold-up time exceeds 17 msec for ride-through during brief mains interruptions.

80 PLUS Gold efficiency across the load range

Certification at 80 PLUS Gold confirms high efficiency at typical loads, reducing waste heat and electricity cost. Active PFC and a wide 100–240 V input make it suitable for global use. Protection circuits cover over-voltage, under-voltage, over-current, over-power, over-temperature and short-circuit events.

Highlights

  • ATX 3.0 compatible for stable high-power GPU delivery
  • 750 W continuous output rated at 45°C operating temperature
  • 80 PLUS Gold certified efficiency reduces waste heat
  • Fully modular flat cables simplify routing and airflow
  • Smart zero-fan mode stops the 120 mm fan under light load

Specifications

BrandThermaltake
SeriesToughpower GF A3 Series
ModelPS-TPD-0750FNFAGU-L
ColorBlack
TypeATX / ATX 3.0 Compatible
Maximum Power750 W
Fans1 x 120 mm Fluid Dynamic Bearing Fan
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector4 x 6+2-Pin
12VHPWR Support Wattage: 300W
SATA Power Connector8
Haswell SupportYes
Max PSU Length150 mm
ModularFull Modular
Hold-up Time> 17msec
Energy-Efficient80 PLUS GOLD Certified
ProtectionOVP / UVP / OCP / OPP / OTP / SCP
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current15A-8A
Output+3.3V@20A; +5V@20A; [email protected] ; [email protected] ; +5VSB@3A
MTBF>100,000 Hours
ApprovalsFCC/ICES/CB/cTUVus
Connectors1 x Main Power Connector (24pin)
2 x ATX 12V / EPS 12V (8pin/4+4pin)
1 x PCIe 12VHPWR 300W (12+4pin)
4 x PCI-E (6+2pin)
8 x SATA (5pin)
4 x Peripheral (4pin)
1x Floppy

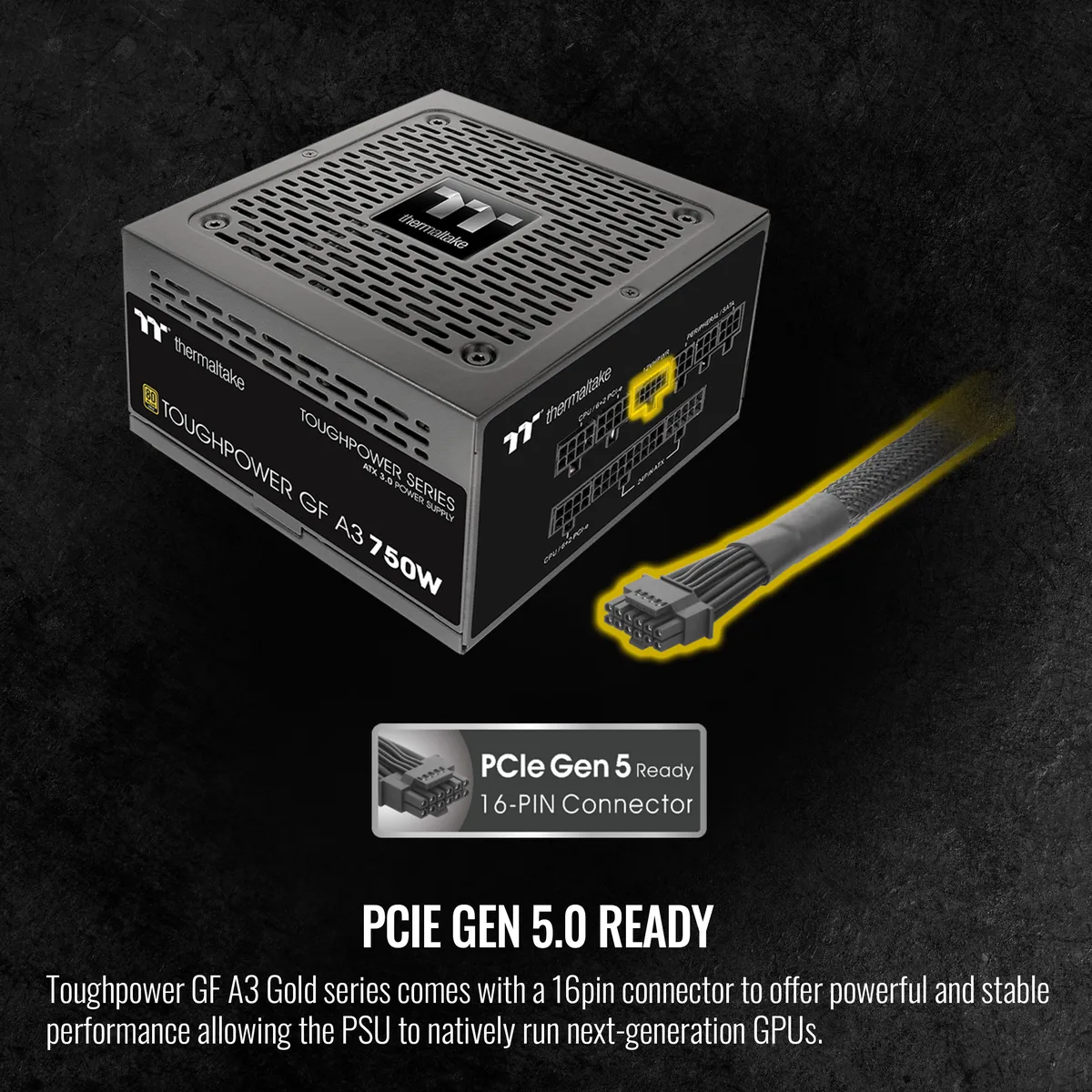

FeaturesPCIe Gen 5 ready, designed with native PCIe 12+4pin modular interface.
Compatible with Intel ATX 3.0 specification, providing sufficient and stable power delivery
PCIe Gen.5 600W 12VHPWR cable included
750W continuous output at 45°C/113°F operating environment
High quality Japanese 105°C/221°F main capacitors
Fully modular with black low-profile flat cables
Smart Zero Fan: auto-regulated fan speed based on power consumption for a quiet and efficient operation
High amperage single +12V rail design
Ultra-quiet 120mm fluid dynamic bearing fan
Dimensions5.9"(W) x 3.4"(H) x 5.5"(D) in.
Weight6.4 lbs
Shipping weight2.88 kg
Package size324 × 222 × 137 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this 750 W unit fit in a compact case with a 150 mm depth limit?

The PSU is 150 mm long, so it fits exactly in a chassis that allows 150 mm of power-supply clearance; measure your case to confirm.

Does the package include the 12VHPWR cable needed for a modern PCIe Gen 5 graphics card?

Yes, a native 12+4-pin 12VHPWR cable rated for 300 W is supplied in the box.

Can I run the unit on a 100 V supply without losing output?

The input range is 100–240 V at 50/60 Hz, so full 750 W output is available at 100 V.
