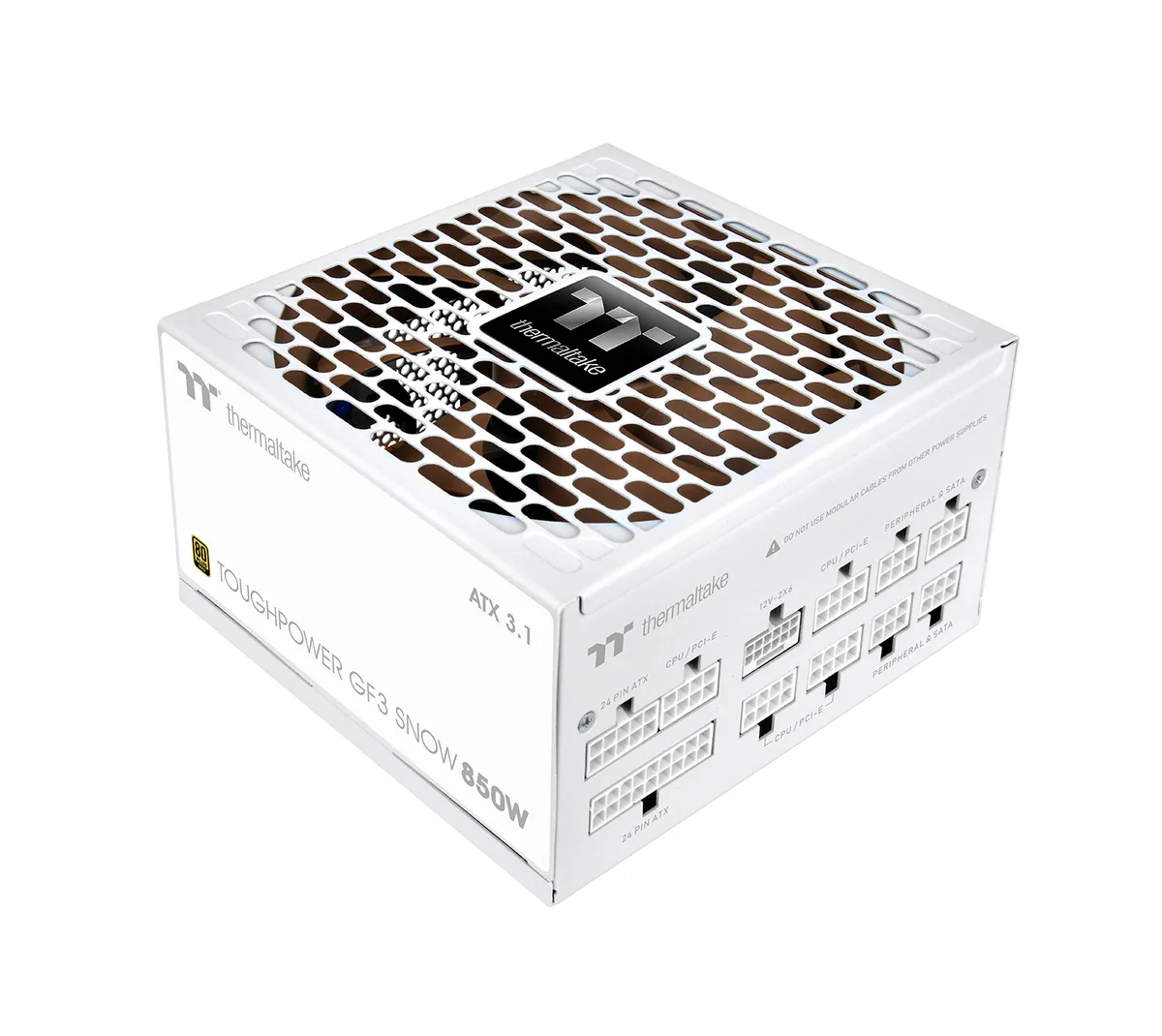

White ATX power supply unit with a 135mm gravel sand coloured fan and flat modular cables with colour matched connectors

Thermaltake

Thermaltake PS-TPD-0850FNFAGU-S 850W power supply

SKU CH-J55E-E05E7 MPN PS-TPD-0850FNFAGU-S

Fully modular 850 W ATX 3.1 power supply with native PCIe 5.1 12V-2x6 connector, Japanese 105 °C capacitors, 135 mm fan, flat cables and 80 Plus Gold efficiency

  • TypeATX 12V
  • Maximum Power850 W
  • ModularNo
  • Fans135mm FDB fan
  • PFCActive
  • Main Connector20+4 Pin
  • 850 W output backed by 80 PLUS Gold certification
  • Native 12V-2x6 connector delivers up to 600 W for modern GPUs
  • Japanese 105 °C main capacitors ensure long-term stability
  • Full modular flat cables with colour-matched connectors simplify routing
  • ATX 3.1 compliant design handles 3× GPU power excursions

Built for ATX 3.1 systems

This 850 W unit meets ATX 3.1 specifications and includes a native PCIe 5.1 12V-2x6 connector able to deliver up to 600 W to modern graphics cards. Japanese 105°C main capacitors and a single +12 V rail rated at 70.5 A provide stable power for high-performance builds. The 80 PLUS Gold badge confirms efficiency above 85 % at typical loads.

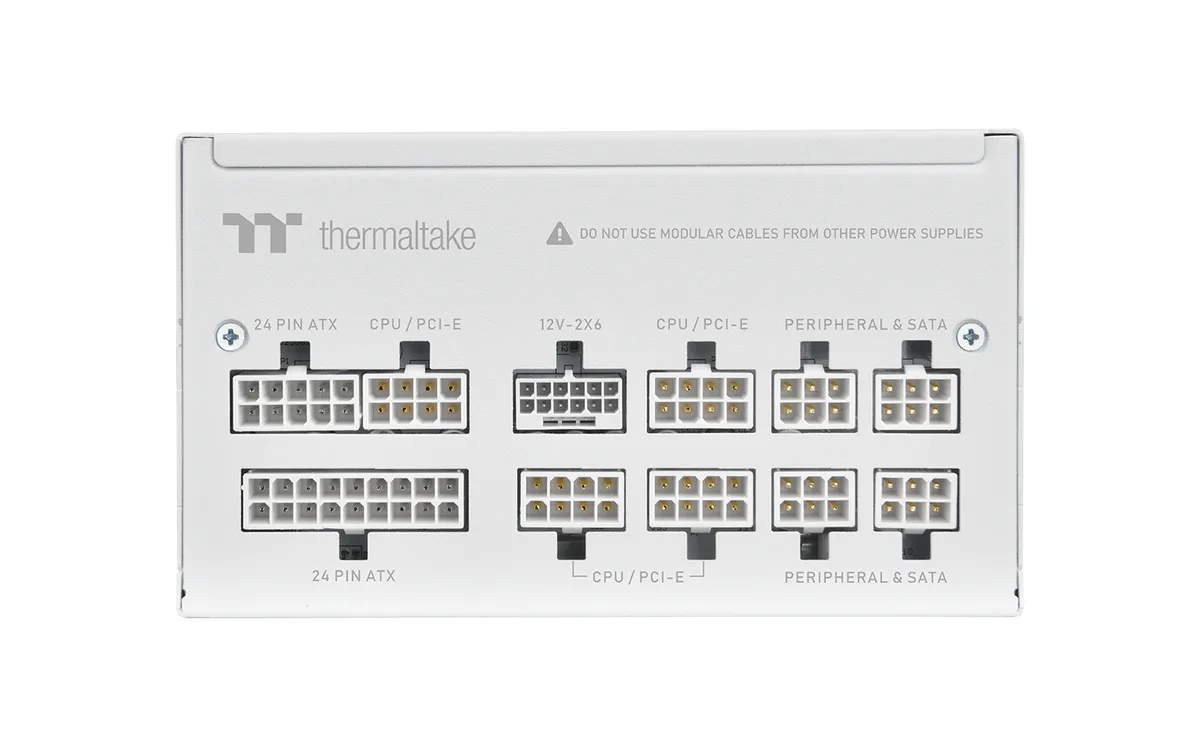

Modular flat cables simplify routing

A fully modular design lets you attach only the cables your build requires, reducing clutter inside the chassis. Flat cables with colour-matched connectors improve flexibility and make cable management easier. The package supplies one 24 pin ATX connector and sixteen SATA power connectors for drives and peripherals. No fixed cables remain when unused leads are removed.

135 mm FDB fan handles thermals

The Gravel Sand coloured 135 mm fluid-dynamic-bearing fan keeps internal temperatures low while adding visual accent. Active PFC and LLC plus DC-DC topology maintain tight voltage regulation across the 100-240 V input range. Hold-up time exceeds 17 ms at 80 % load, and the power-good signal arrives within 100-150 ms for reliable start-up.

Highlights

  • 850 W output backed by 80 PLUS Gold certification
  • Native 12V-2x6 connector delivers up to 600 W for modern GPUs
  • Japanese 105 °C main capacitors ensure long-term stability
  • Full modular flat cables with colour-matched connectors simplify routing
  • ATX 3.1 compliant design handles 3× GPU power excursions

Specifications

BrandThermaltake
ModelPS-TPD-0850FNFAGU-S
SeriesRMx Series
TypeATX 12V
Maximum Power850 W
ModularNo
Fans135mm FDB fan
PFCActive
Main Connector20+4 Pin
SATA Power Connector16
Power Good Signal100-150 msec
Hold-up Time> 17msec at 80% load
Efficiency> 85%
Energy-Efficient80 PLUS GOLD Certified
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current12.0A Max
Output20 amps, 850 watts
MTBF100
Connectors1 x 24 pin ATX
ColorWhite
Fan LEDRGB
Cable SpecATX
Power Rating600W
Size/Dimensions11.8 in x 8.3 in x 4.8 in
Dimensions20'
Weight7 pounds
Features20 amps, 850 watts, ATX, Information Not Available, White
Package Content1 x PS-TPD-0850FNFAGU-S
Frequency Range50/60 Hz
+3.3V Max. Current8A
+5V Max. Current25A
+12V1 Max. Current9A
+12V2 Max. Current10A
+12V3 Max. Current30A
+12V4 Max. Current28A
+12V5 Max. Current29A
+12V6 Max. Current28A
+5VSB Max. Current5A
12V Power Connector1 x 4 Pin ATX 12V
Floppy Connector1
Peripheral Connector1
Top Fans LEDBlue
Rear Fans LEDBlue
Shipping weight3.18 kg
Package size300 × 211 × 122 mm

Questions about this item

How much continuous power can the +12 V rail deliver before hitting its limit?

The single +12 V rail is rated for 70.5 A, giving up to 850 W for the GPU and CPU combined.

What is the fan size and how loud does it get under full load?

A 135 mm fluid-dynamic-bearing fan spins only as fast as needed; at 850 W load it stays within typical Gold-class acoustic limits.

Which cables must my motherboard and GPU already have to use this unit?

You need a 24-pin ATX socket on the board and a 12V-2x6 or 12VHPWR receptacle on the graphics card for the native 600 W PCIe 5.1 connector.
