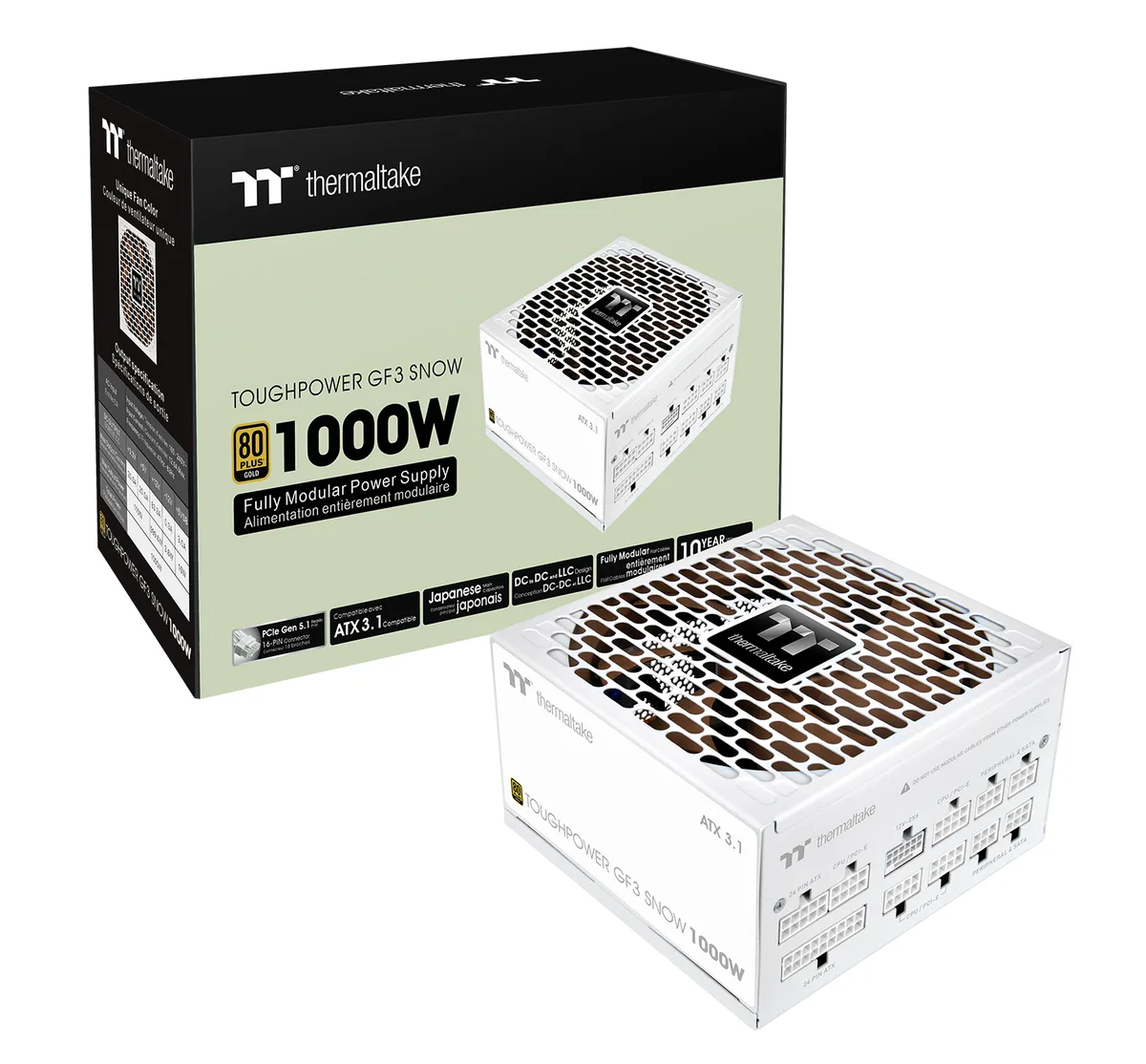

White ATX power supply with gravel sand fan and flat cables

Thermaltake

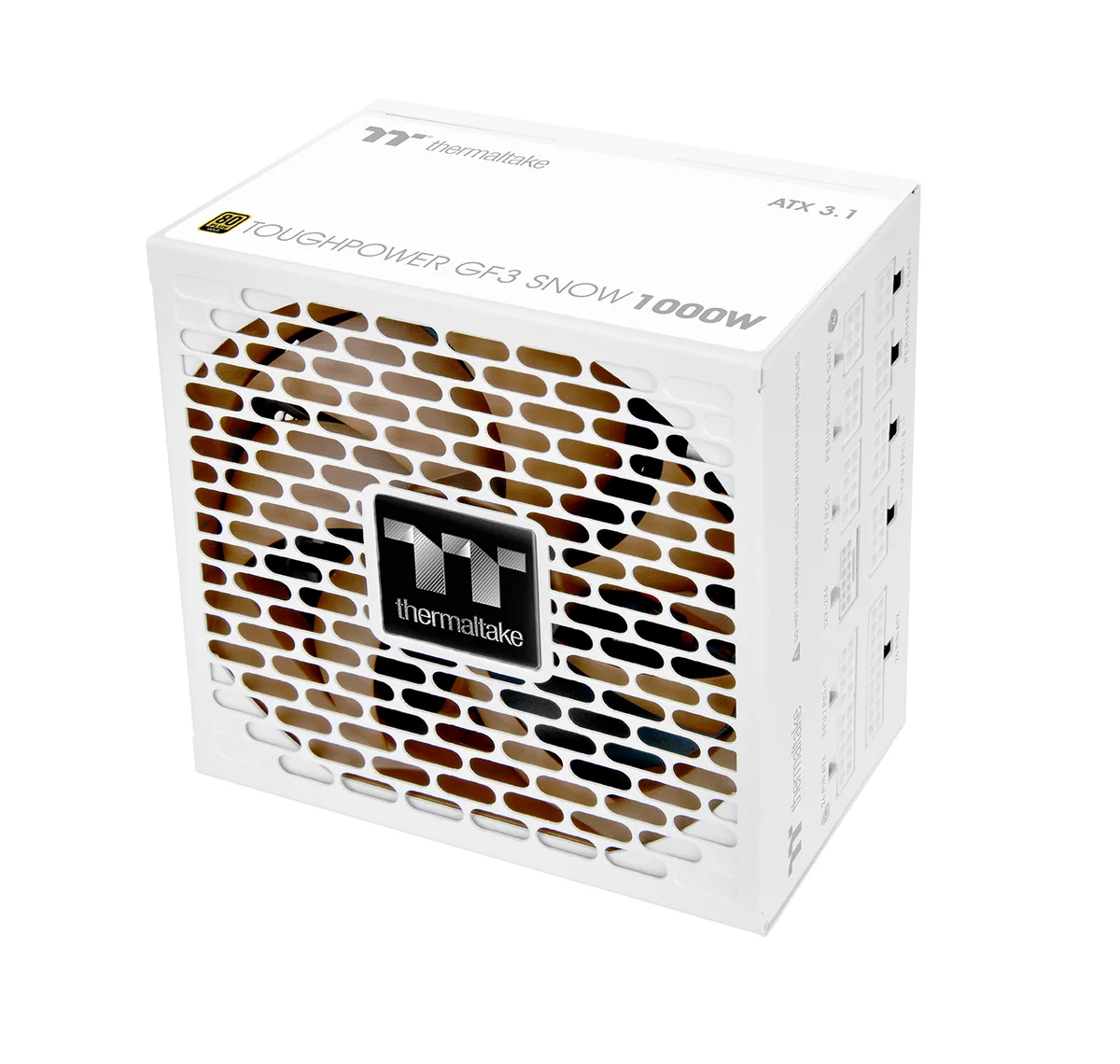

Thermaltake PS-TPD-1000FNFAGU-S 1000W power supply

SKU CH-MQ5A-79H80 MPN PS-TPD-1000FNFAGU-S

A 1000W fully modular ATX 3.1 power supply with a native 12V-2x6 connector for modern GPUs, Japanese capacitors, a 135mm fan, and 80 Plus Gold efficiency

  • ColorWhite
  • TypeATX 3.1
  • Maximum Power1000 W
  • Fans135mm FDB fan
  • PFCActive
  • Power Good Signal100-150 msec
  • 1000 W output supports demanding builds with ATX 3.1 compliance
  • Native 12V-2x6 connector delivers up to 600 W for modern GPUs
  • 80 PLUS Gold efficiency at 115 V input reduces waste heat
  • Japanese 105 °C main capacitors ensure long-term reliability

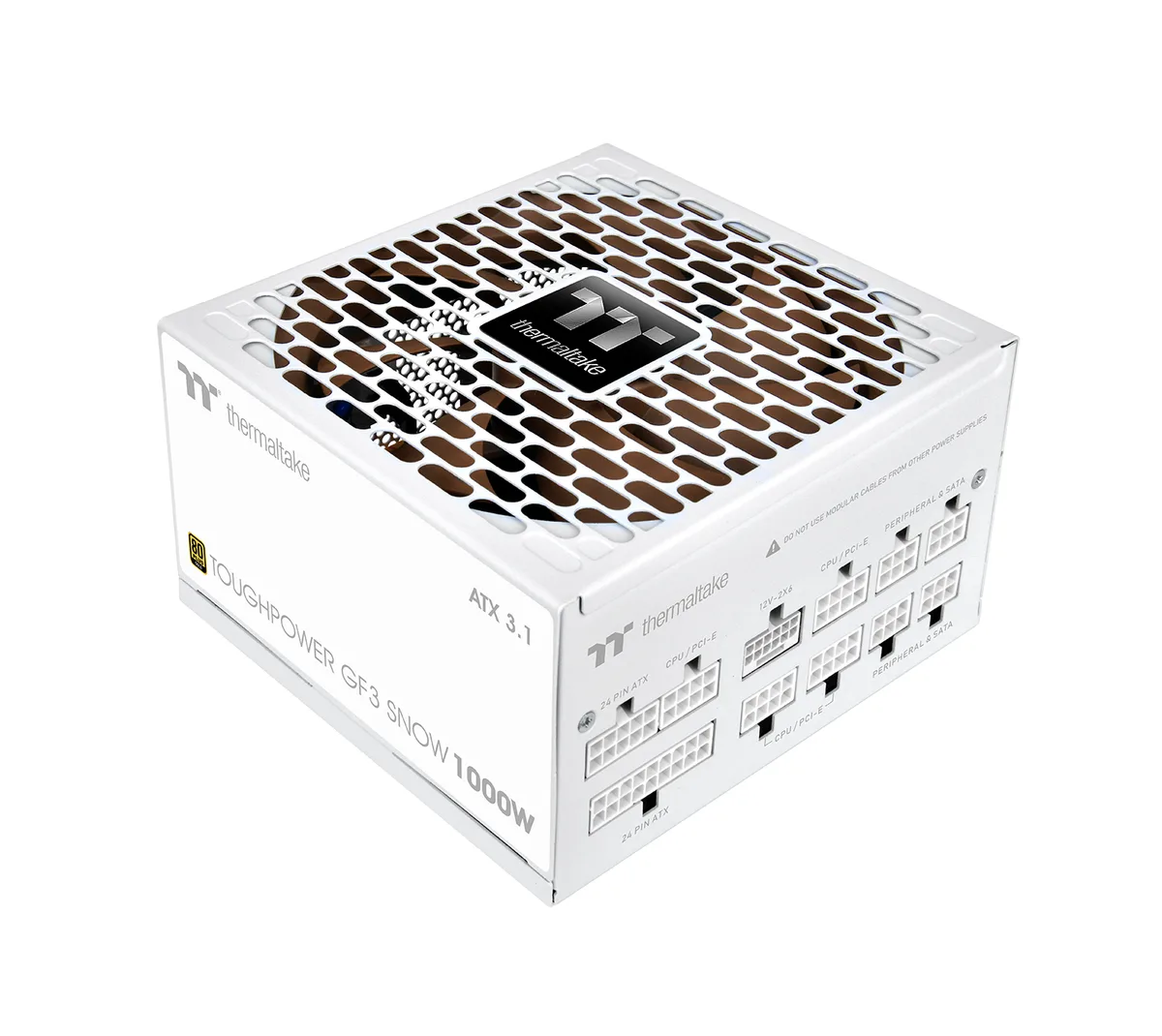

  • Full modular flat cables with colour-matched connectors simplify routing

Ready for ATX 3.1 builds

This fully modular 1000 W unit meets the ATX 3.1 specification and carries 80 PLUS Gold certification at 115 V input. White flat cables with colour-matched connectors simplify routing in showcase systems. Japanese 105 °C main capacitors back the high-amperage single +12 V rail and DC-DC plus LLC topology.

Native PCIe 5.1 12V-2x6 connector

A single native 12V-2x6 cable delivers up to 600 W to modern graphics cards without adapters. The matcha dual-coloured H++ connector hides its green indicator when fully seated, giving a clear visual confirmation. This connector is the deciding factor for builders targeting PCIe 5.1 GPUs.

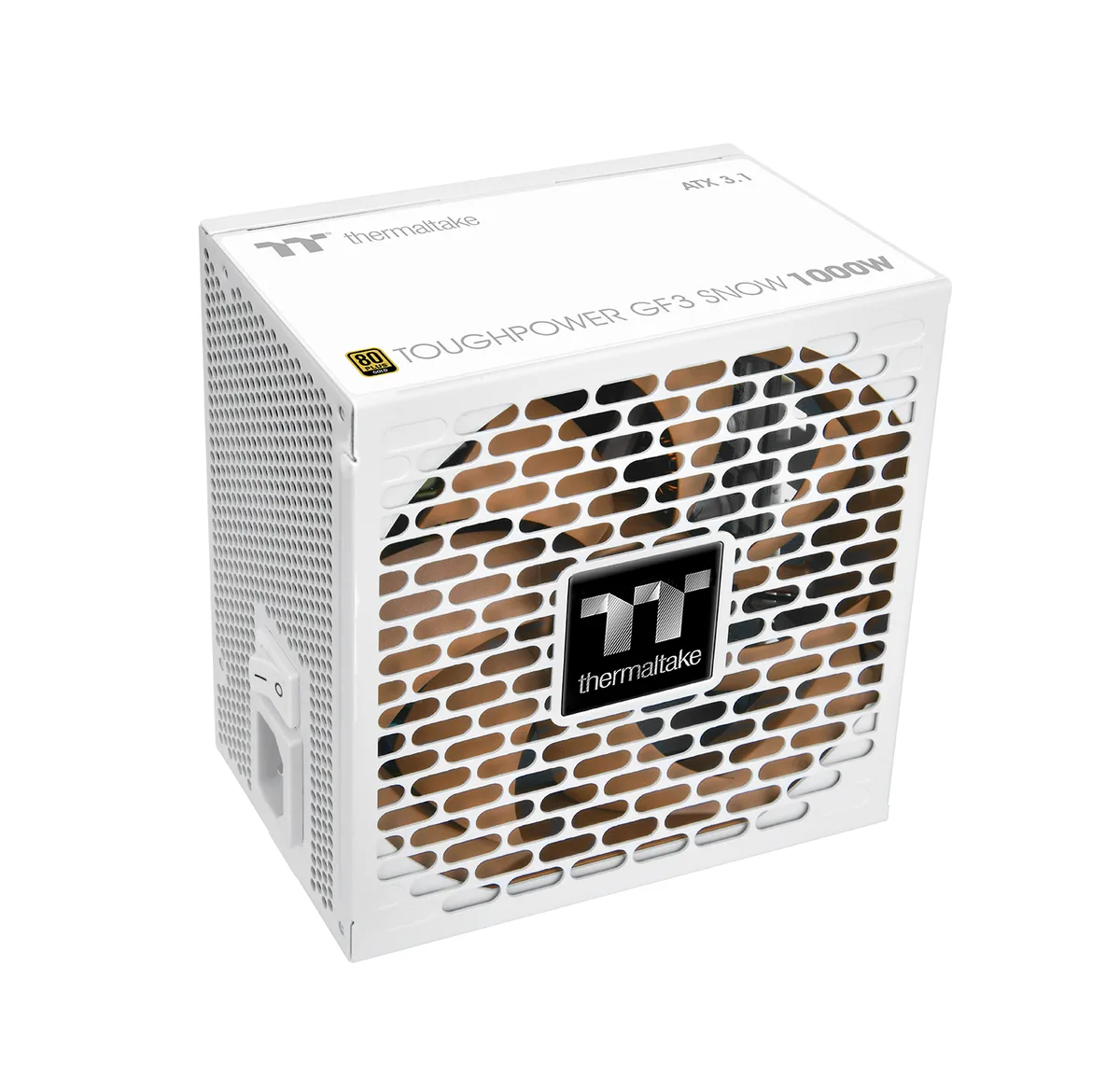

135 mm FDB fan and protection suite

A gravel-sand coloured 135 mm fluid-dynamic-bearing fan handles cooling while keeping noise low under typical loads. Protections include OCP, OVP, UVP, SCP, OPP, OTP and NLO. Hold-up time exceeds 17 ms at 80 % load and the power-good signal arrives in 100-150 ms.

Highlights

  • 1000 W output supports demanding builds with ATX 3.1 compliance
  • Native 12V-2x6 connector delivers up to 600 W for modern GPUs
  • 80 PLUS Gold efficiency at 115 V input reduces waste heat
  • Japanese 105 °C main capacitors ensure long-term reliability
  • Full modular flat cables with colour-matched connectors simplify routing

Specifications

BrandThermaltake
ModelPS-TPD-1000FNFAGU-S
ColorWhite
TypeATX 3.1
Maximum Power1000 W
Fans135mm FDB fan
PFCActive
Power Good Signal100-150 msec
Hold-up Time> 17msec at 80% load
EfficiencyMeet 80 PLUS® Gold at 115Vac input.
Energy-Efficient80 PLUS GOLD Certified

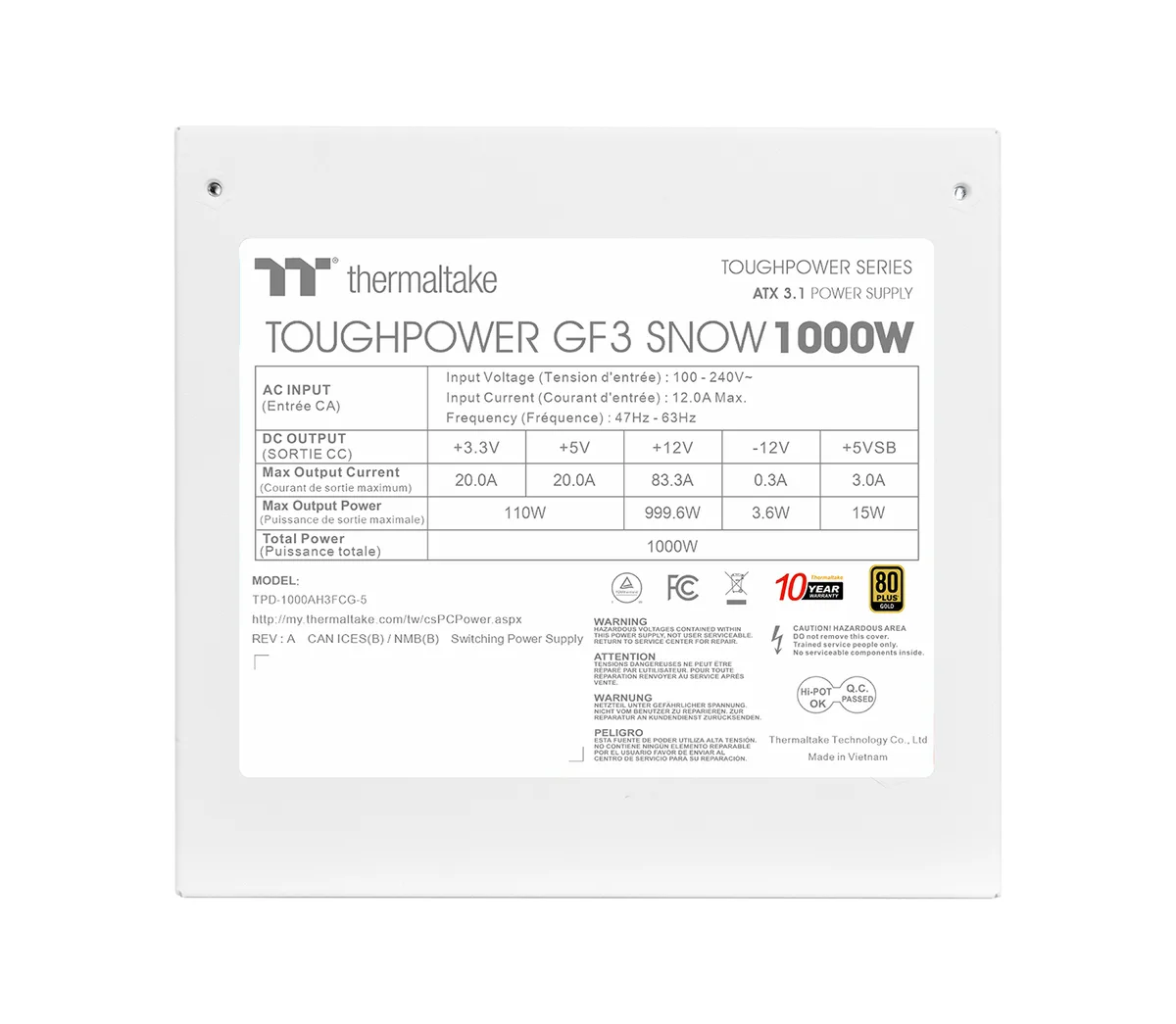

Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current12.0A Max
MTBF100
Dimensions5.9in x 5.5in x 3.4 in
Weight6.2lbs
Shipping weight3.27 kg
Package size300 × 211 × 122 mm

Questions about this item

How does the 1000W rating translate to real GPU power delivery?

The unit includes a native PCIe 5.1 12V-2x6 cable rated for 600W, so a single modern graphics card can draw its full spec without adapters.

What does ATX 3.1 actually limit on this PSU?

ATX 3.1 lets the supply handle 3x GPU power excursions and 2x total power excursions while staying within spec.

Will the 5.9in x 5.5in x 3.4in chassis fit a standard ATX case?

Those dimensions match the regular ATX form factor, so it mounts in any case built for an ATX power supply.
