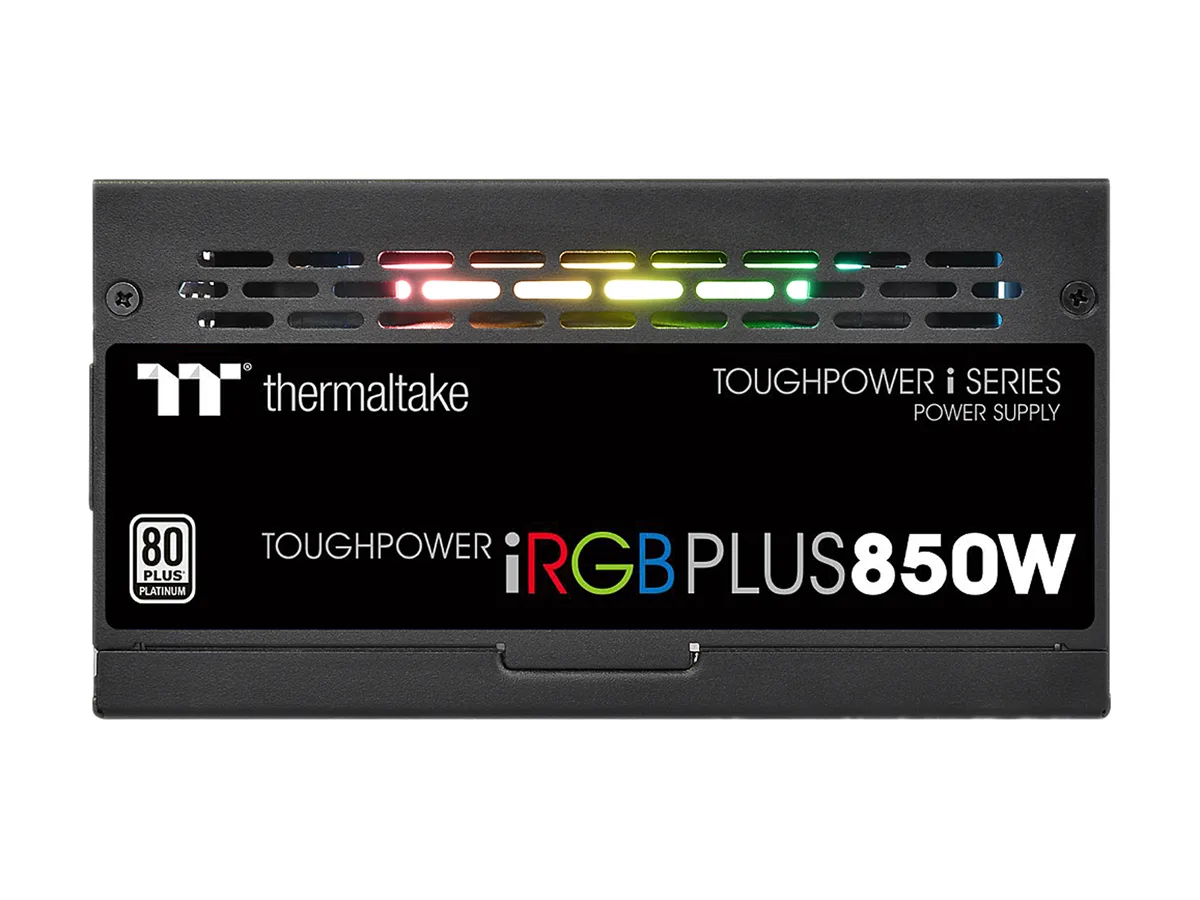

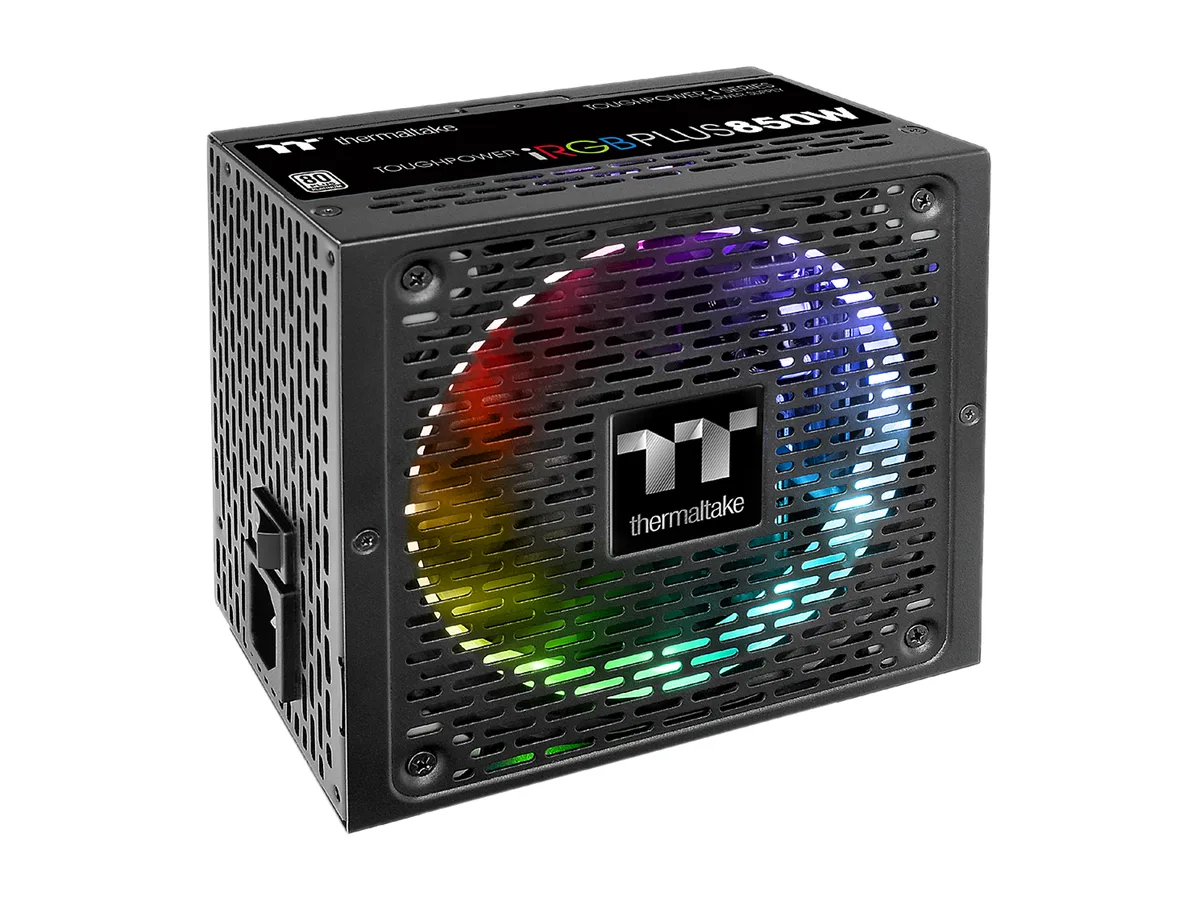

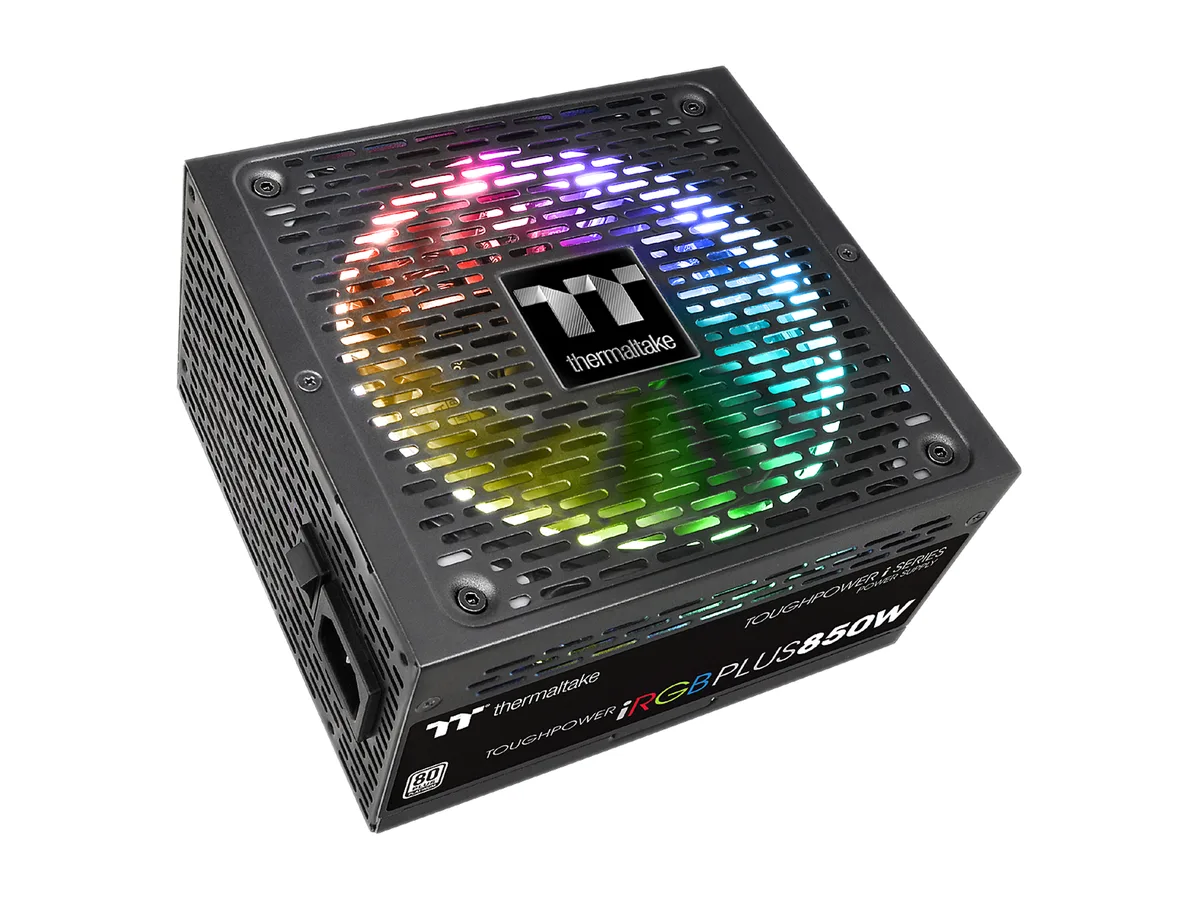

Black rectangular ATX power supply with 140mm RGB fan and flat modular cables

Thermaltake

Thermaltake PS-TPI-0850F2FDPU-1 850W power supply

SKU CH-M2R4-FDPJK MPN PS-TPI-0850F2FDPU-1

Fully modular 850 W ATX unit with 80 PLUS Platinum efficiency, a 140 mm RGB fan and twelve SATA power connectors

  • TypeIntel ATX 12V 2.4 & SSI EPS 12V 2.92
  • Maximum Power850 W
  • Fans140mm Riing Plus RGB LED Fan
  • Fan LEDRGB
  • PFCActive
  • Main Connector24Pin

Options ATX 80+ Platinum (850W)

  • 850 W continuous power for demanding builds
  • 92 % efficiency with 80 PLUS PLATINUM certification
  • Full modular cabling keeps the case tidy

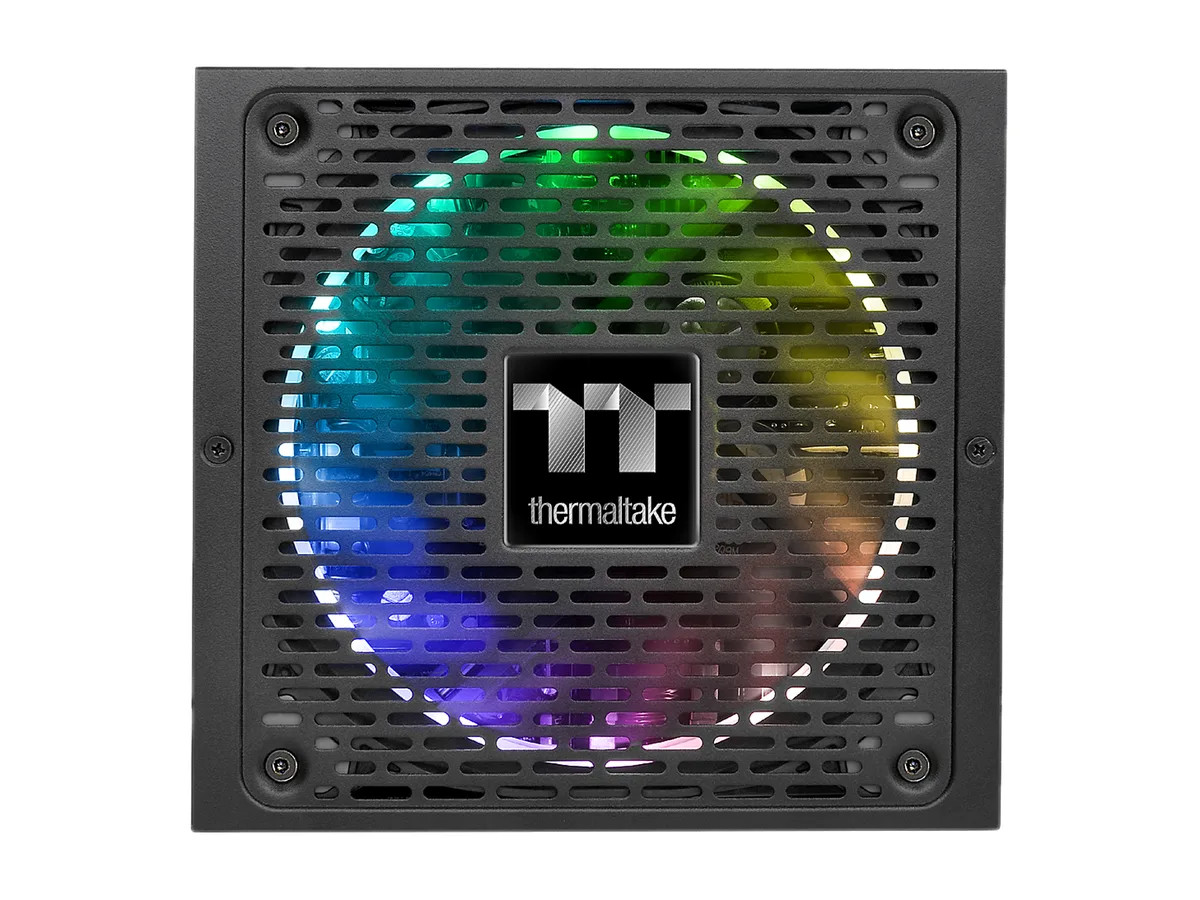

  • 140 mm RGB fan offers 16.8 million colour options
  • 6 PCI‑Express 6+2‑pin and 12 SATA connectors support multi‑GPU and storage arrays

850W Full-Modular ATX 12V 2.4 PSU

This 850W Thermaltake unit delivers continuous power through a single +12V rail and meets Intel ATX 12V 2.4 plus SSI EPS 12V 2.92 specifications. 80 PLUS PLATINUM certification guarantees 92% typical efficiency across the load range. Full-modular cabling and a 160mm chassis keep cable routing clean in standard ATX cases.

RGB Builders Seeking Software Monitoring

Enthusiasts who want a 140mm Riing Plus RGB LED fan with 16.8 million colours and addressable lighting effects will appreciate the visual flexibility. The DPS G PC APP 2.0, SPM Cloud 1.0 and Mobile APP 1.0 provide real-time voltage, wattage and fan-speed monitoring. Builders needing a smaller form factor or a non-RGB aesthetic should look elsewhere.

Single +12V Rail 850W Output Decides Fit

The single +12V rail rated at 850W is the specification that determines whether this PSU can sustain your GPU and CPU under full load. Six 6+2-pin PCIe connectors support multi-GPU SLI or CrossFire configurations. Verify that your components' combined 12V draw stays within this limit before purchasing.

Highlights

  • 850 W continuous power for demanding builds
  • 92 % efficiency with 80 PLUS PLATINUM certification
  • Full modular cabling keeps the case tidy
  • 140 mm RGB fan offers 16.8 million colour options
  • 6 PCI‑Express 6+2‑pin and 12 SATA connectors support multi‑GPU and storage arrays

Specifications

BrandThermaltake
SeriesToughpower iRGB PLUS Platinum
ModelPS-TPI-0850F2FDPU-1
TypeIntel ATX 12V 2.4 & SSI EPS 12V 2.92
Maximum Power850 W
Fans140mm Riing Plus RGB LED Fan
Fan LEDRGB
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector6 x 6+2-Pin
SATA Power Connector12
SLISLI Ready
Haswell SupportYes
CrossFireCrossFire Ready
Max PSU Length160 mm
ModularFull Modular
Efficiency92%
Energy-Efficient80 PLUS PLATINUM Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current12A
Output+3.3V@20A, +5V@20A, [email protected] , [email protected] , [email protected]
MTBF120,000 Hours
ApprovalsCE / cTUVus / TUV / FCC / CCC / EAC / S-Mark
Connectors1 x 24-pin ATX
1 x 4+4pin EPS
1 x 8pin EPS
6 x 6+2 PCI-E
12 x SATA
4 x Peripheral
1 x Floppy
FeaturesCompliance with Intel ATX 12V 2.4 & SSI EPS 12V 2.92 standards
Smart DPS App 3.0 Software enables real time monitoring of efficiency, wattage, voltage
Zero RPM Smart Fan enabled by Smart DPS App 3.0 Software for total control
80 PLUS Platinum Certified - 92% efficiency under typical load
Full Modular design with low-profile flat black cables including connectors
100% 105 degree C / 221 degree F Japanese Brand Capacitors.
Single +12V rail Design
Digital 32-bit MCU controller ensures proper conversion of all signals into digital format.
USB Header to PSU cable allows connectivity to Sm
Dimensions6.29" x 5.90" x 3.38"
Shipping weight3.72 kg
Package size320 × 234 × 160 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 160 mm length and 140 mm fan fit my ATX case?

The unit is 160 mm long with a 140 mm Riing Plus RGB LED fan; verify your case allows at least 160 mm PSU depth and 140 mm fan clearance.

Which cables must stay attached during a full-modular build?

No cables are fixed; connect only the 24-pin ATX, EPS, the six 6+2-pin PCIe and the twelve SATA leads your build requires.

How often should the 140 mm RGB fan be cleaned to maintain the 92 % efficiency rating?

Remove dust from the fan and intake every 6-12 months with compressed air; a clean fan keeps temperatures low and efficiency at the certified 92 %.
