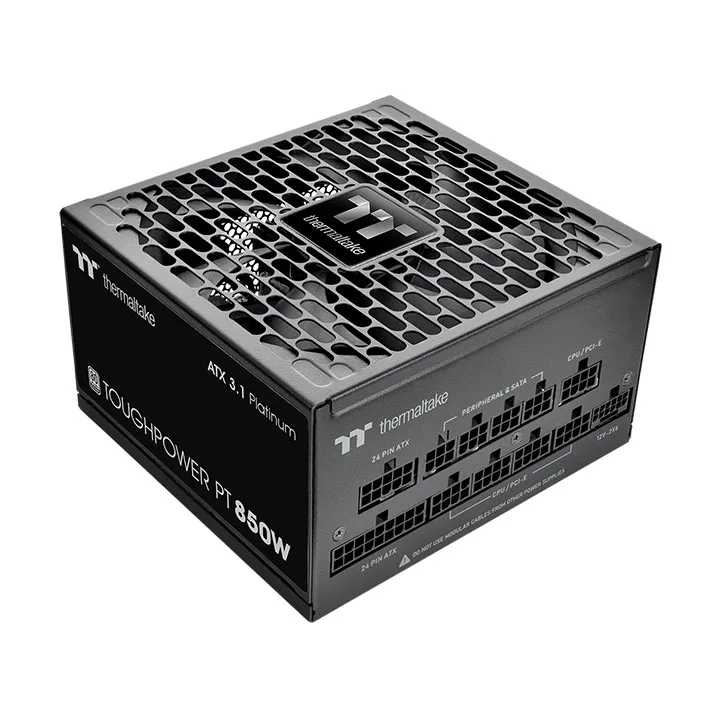

Black rectangular ATX power supply with flat etched cables and a 135mm fan

Thermaltake

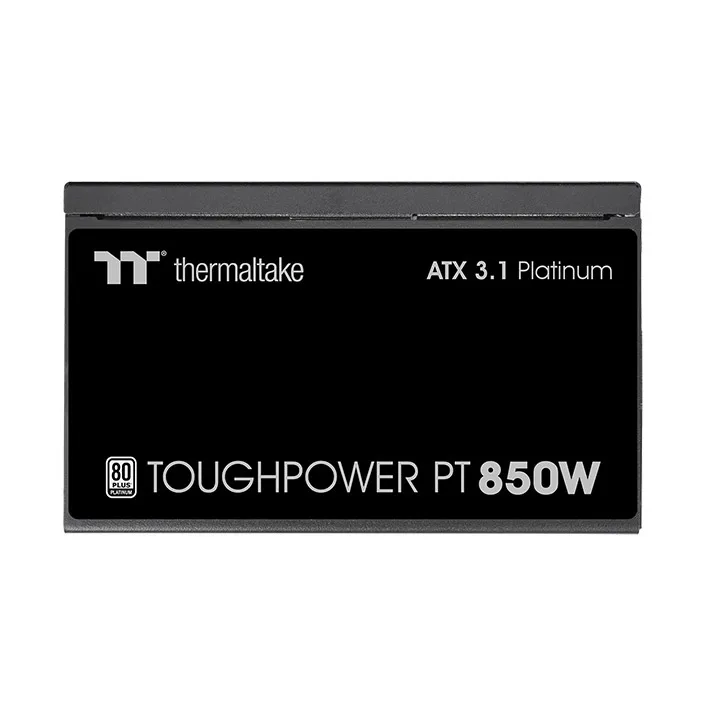

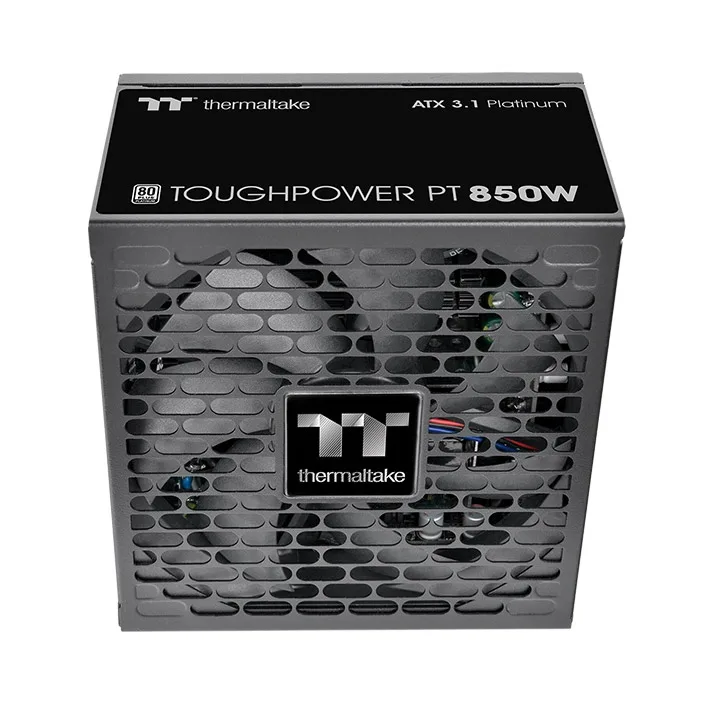

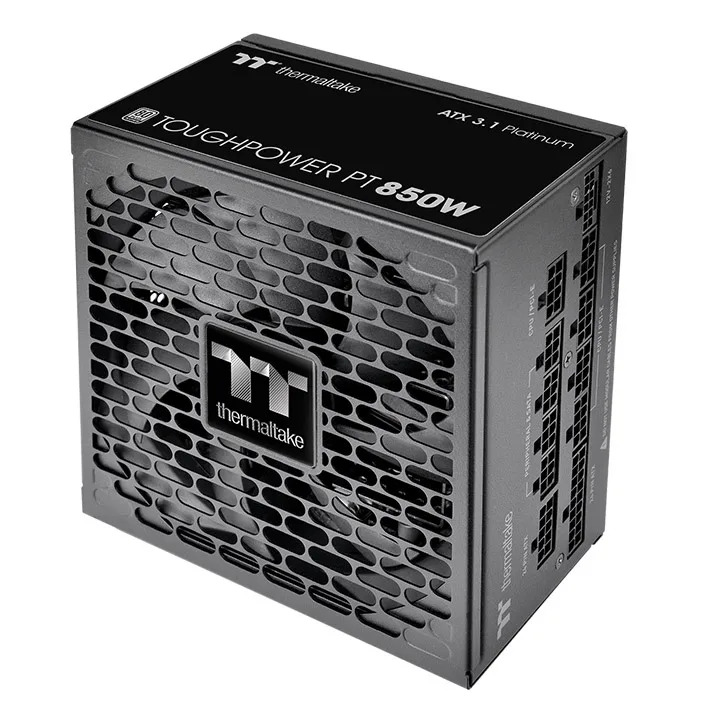

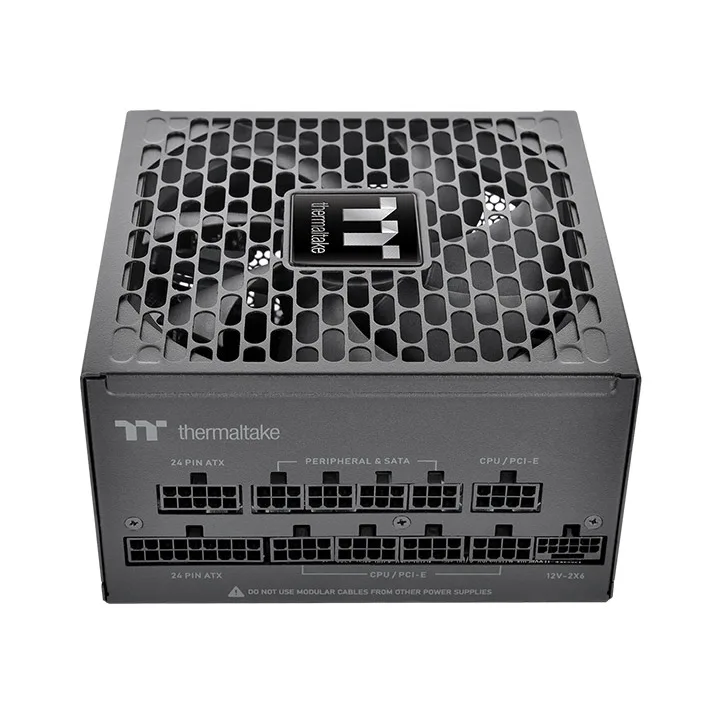

Thermaltake PS-TPP-0850FNFAPU-1 850 W power supply

SKU CH-0N5W-MM8A8 MPN PS-TPP-0850FNFAPU-1

Fully modular 850 W ATX 3.1 unit with native 12V-2x6 GPU cable, 135 mm hydraulic bearing fan and 80 Plus Platinum efficiency

  • ColorBlack
  • Maximum Power850 W
  • Fans135mm FDB fan
  • PFCActive
  • ModularFull Modular
  • EfficiencyMeet 80 PLUS Platinum at 115Vac input.
  • Delivers 850 W continuous output at 40 °C
  • 80 PLUS Platinum efficiency at 115 V input
  • Native PCIe 5.1 12V-2x6 cable provides up to 600 W
  • 100 % Japanese 105 °C capacitors rated for 100000 hrs MTBF

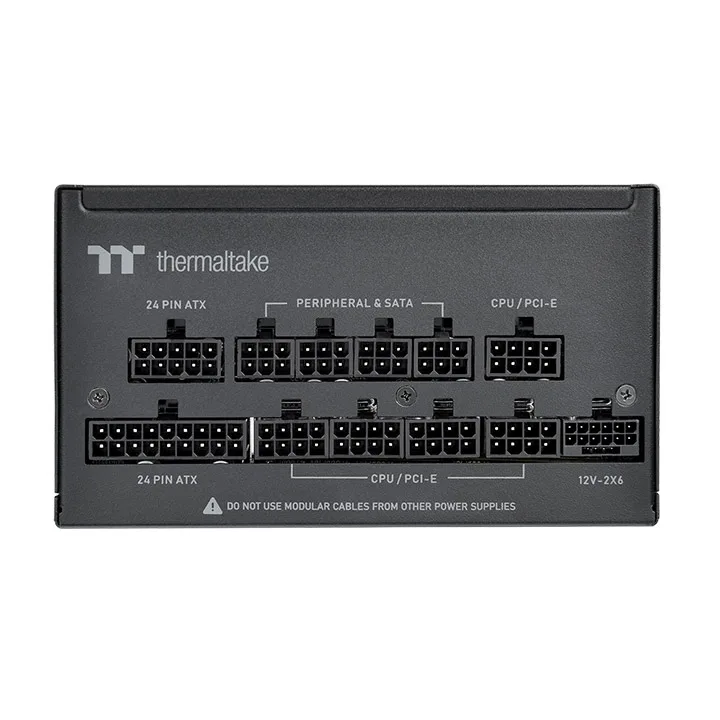

  • Fully modular flat etched cables with dual-colour H++ connectors for easy routing

What this unit delivers

The Thermaltake Toughpower PT 850W is a fully modular ATX 3.1 power supply rated for 850 W continuous output at 40°C. It carries 80 PLUS Platinum certification at 115Vac input and includes a native PCIe 5.1 12V-2x6 connector capable of 600 W for modern graphics cards. Japanese 105°C electrolytic capacitors and a single +12V rail with DC-DC and LLC topology provide stable delivery under load.

Why upgrade to ATX 3.1 and PCIe 5.1

This unit replaces an older supply that lacks Intel ATX 3.1 compliance or a native 12V-2x6 cable, forcing the use of adapters for current-generation GPUs. The jump is worth it when your graphics card requires up to 600 W through a single connector and you want the efficiency headroom of Platinum certification. The 135mm hydraulic bearing fan and low-profile etched cables also improve airflow and cable routing compared with bulkier, non-modular designs.

What to verify before ordering

Confirm your case can accommodate a 140 mm deep power supply and that the 135mm fan orientation matches your chassis airflow path. Check that the full modular cable set includes the connectors your motherboard, CPU and storage devices need, because only the cables supplied with this unit are guaranteed compatible. Ensure your mains supply falls within the 100-240V~ 47-63 Hz range and that the 12.0 A maximum input current is supported by your circuit.

Highlights

  • Delivers 850 W continuous output at 40 °C
  • 80 PLUS Platinum efficiency at 115 V input
  • Native PCIe 5.1 12V-2x6 cable provides up to 600 W
  • 100 % Japanese 105 °C capacitors rated for 100000 hrs MTBF
  • Fully modular flat etched cables with dual-colour H++ connectors for easy routing

Specifications

BrandThermaltake
ModelPS-TPP-0850FNFAPU-1
ColorBlack
Maximum Power850 W
Fans135mm FDB fan
PFCActive
ModularFull Modular
EfficiencyMeet 80 PLUS Platinum at 115Vac input.
Input Voltage100-240V~
Input Frequency Range47 - 63 Hz
Input Current12.0A Max.
MTBF100,000 hrs minimum
Power Good Signal100-150 msec
Dimensions5.9 in x 5.5 in x 3.4 in
Weight3.3lbs
Shipping weight3.45 kg
Package size305 × 216 × 122 mm

Questions about this item

Will the native 12V-2x6 cable handle a modern graphics card drawing up to 600 W?

Yes. The included 12V-2x6 connector is rated for 600 W delivery, matching the needs of current high-end GPUs.

Does the unit fit in a standard ATX case with a 140 mm depth limit?

The power supply is 140 mm long, so it fits exactly in cases rated for that depth.

What protections are built in to guard the system against electrical faults?

Over Current, Over Voltage, Under Voltage, Over Power, Over Temperature and Short Circuit protections are all included.
