Thermaltake

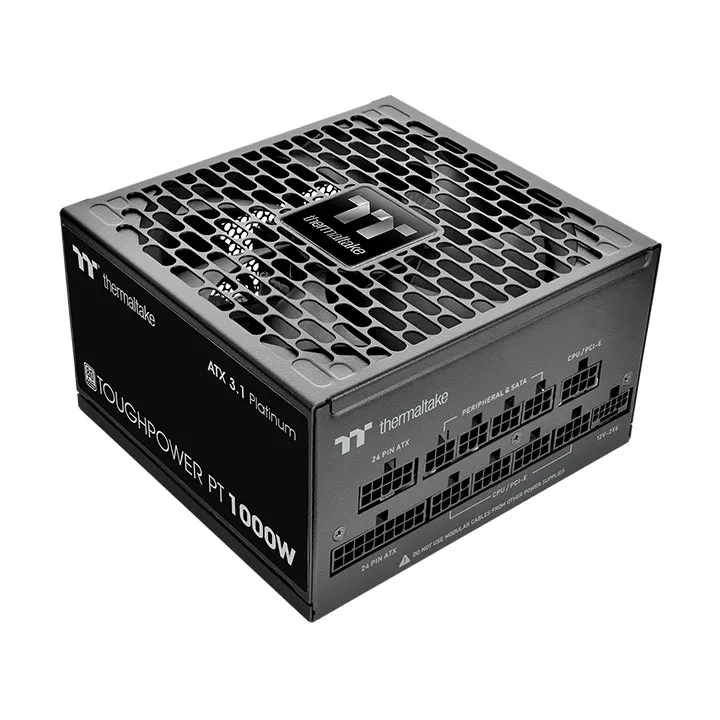

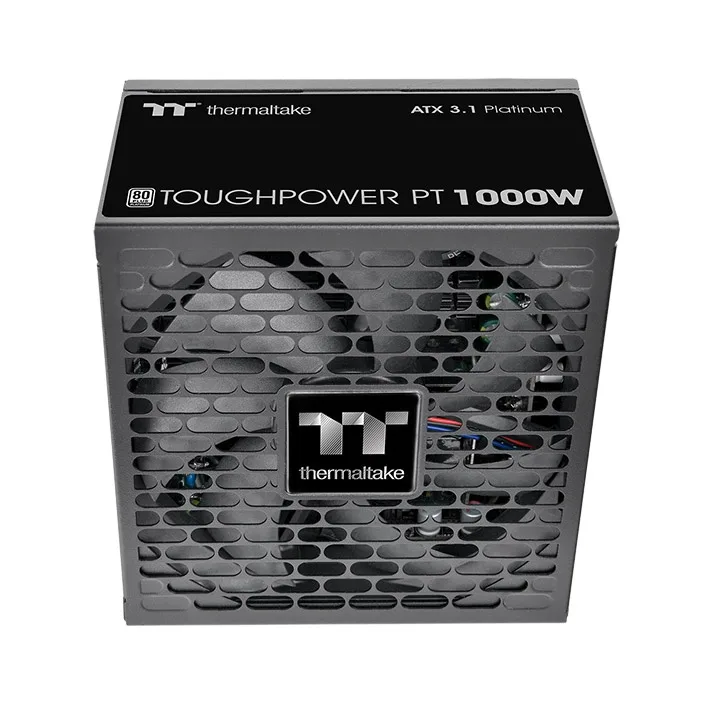

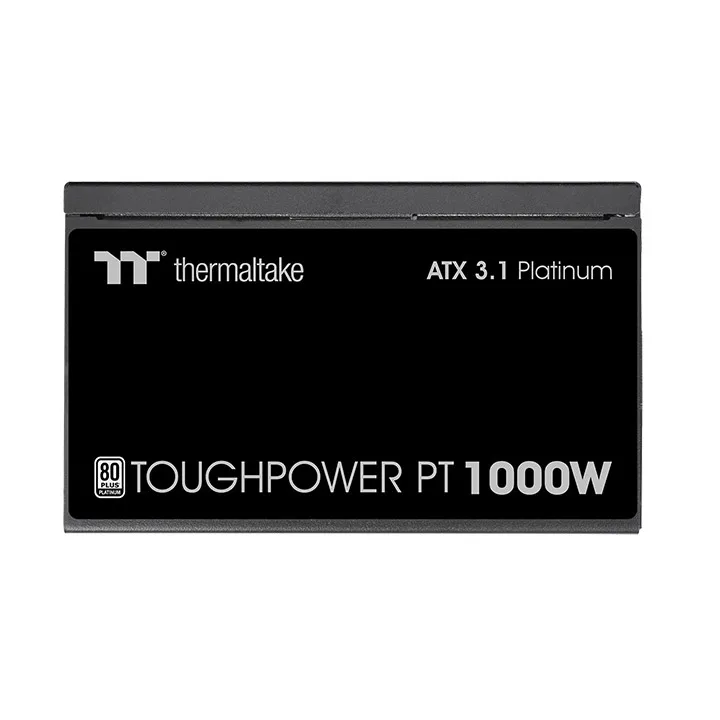

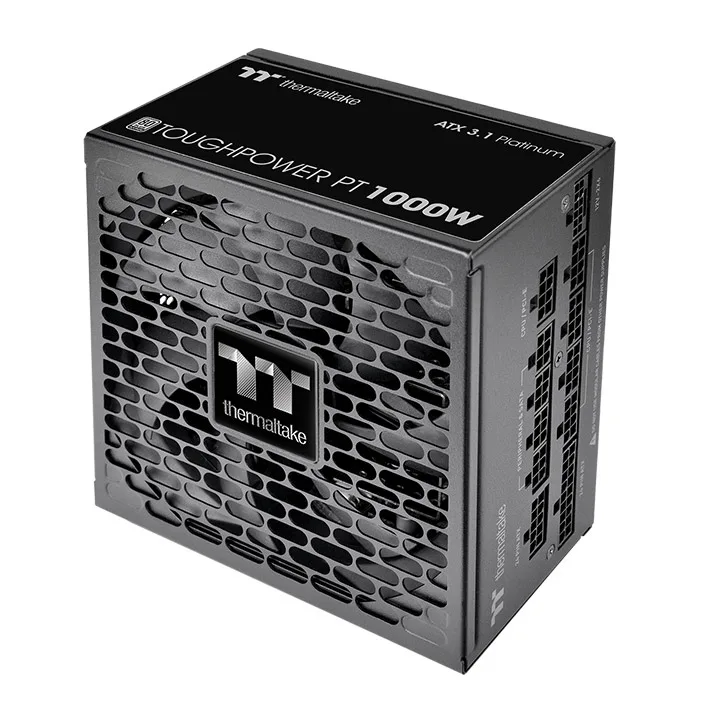

Thermaltake PS-TPP-1000FNFAPU-1 1000 W power supply
ATX 3.1 compliant 1000 W unit with native 12V-2x6 GPU power, 80 PLUS Platinum efficiency at 115 V, full modular flat cables, Japanese 105 °C capacitors and a 135 mm hydraulic bearing fan
- ColorBlack
- Maximum Power1000 W
- Fans135mm FDB fan
- PFCActive
- ModularFull Modular
- EfficiencyMeet 80 PLUS Platinum at 115Vac input.
- 1000 W continuous output at 40 °C ambient
- 80 PLUS Platinum efficiency at 115 V input
- Native PCIe 5.1 12V-2x6 cable for 600 W GPU power
- Fully modular flat etched cables simplify routing
- 135 mm hydraulic bearing fan with 100,000 hrs MTBF
1000 W ATX 3.1 power supply
This fully modular unit delivers 1000 W continuous output at 40 °C and meets 80 PLUS Platinum efficiency at 115 V input. It is built for builders who need a compact, high-efficiency supply that supports the latest ATX 3.1 standard and native PCIe 5.1 12V-2x6 connections for modern graphics cards. The 135 mm hydraulic bearing fan and 100 % Japanese 105 °C capacitors provide quiet operation and long-term durability under heavy loads.
Installation and common issues

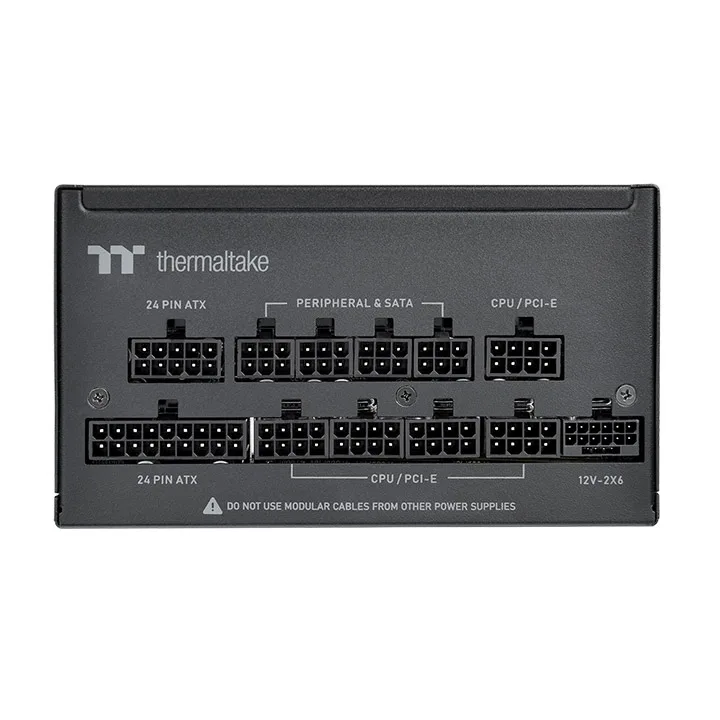

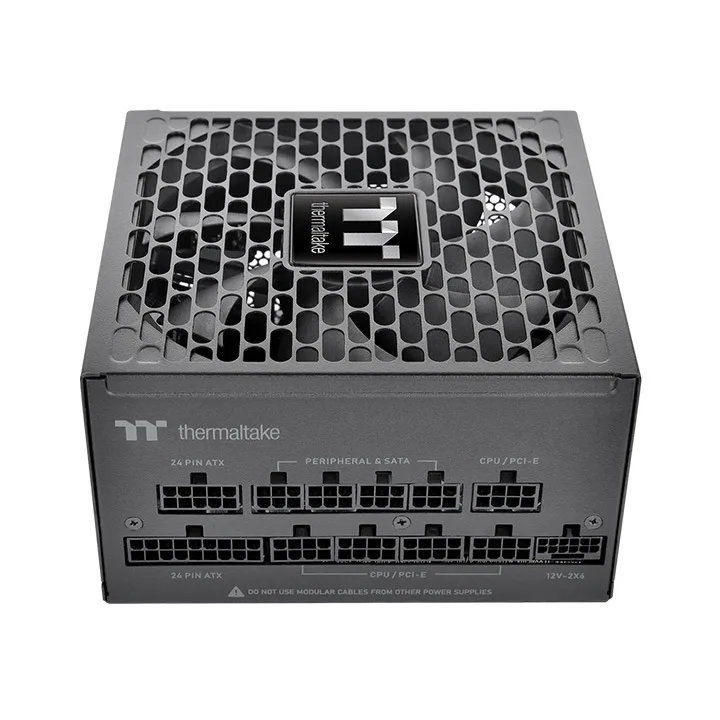

The flat etched cable set is fully modular, so you connect only the leads your build requires, improving airflow and cable routing in tight cases. Dual-colour H++ connectors show a matcha indicator that disappears when the plug is fully seated, reducing the risk of loose power connections. Ensure the 12V-2x6 cable is routed without sharp bends and that the fan intake remains unobstructed; the most frequent issue is restricted airflow in smaller chassis.
Pre-order checklist
Verify that your case can accommodate a 140 mm deep power supply and that the 135 mm fan has clearance for intake air. Confirm your motherboard and graphics card require the native 12V-2x6 connector; older GPUs using traditional 8-pin PCIe plugs will need the appropriate modular cables from the set. Check that your mains supply falls within the 100-240 V, 47-63 Hz range and that the 15 A maximum input current is supported by your circuit.
Highlights
- 1000 W continuous output at 40 °C ambient
- 80 PLUS Platinum efficiency at 115 V input
- Native PCIe 5.1 12V-2x6 cable for 600 W GPU power
- Fully modular flat etched cables simplify routing
- 135 mm hydraulic bearing fan with 100,000 hrs MTBF
Specifications
| Brand | Thermaltake |
|---|---|
| Model | PS-TPP-1000FNFAPU-1 |
| Color | Black |
| Maximum Power | 1000 W |
| Fans | 135mm FDB fan |
| PFC | Active |
| Modular | Full Modular |
| Efficiency | Meet 80 PLUS Platinum at 115Vac input. |
| Input Voltage | 100-240V~ |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 15.0A Max. |
| MTBF | 100,000 hrs minimum |
| Power Good Signal | 100-150 msec |
| Dimensions | 5.9 in x 5.5 in x 3.4 in |
| Weight | 4lbs |
| Shipping weight | 3.45 kg |
| Package size | 305 × 216 × 122 mm |
Questions about this item
How do I confirm the power supply is running correctly once installed?
The unit sends a power-good signal within 100 to 150 milliseconds after switch-on; a stable system boot and no protection triggers indicate normal operation.
Which cables and connectors come in the box and what must I source myself?
The package includes a full modular set with flat etched cables and a native 12V-2x6 GPU connector; only the AC power cord is typically supplied separately.
Which capacity should I choose for a build that needs a single 12V rail and ATX 3.1 support?
The 1000 W model provides a strong single +12V rail, ATX 3.1 compliance and up to 600 W through the 12V-2x6 connector for modern GPUs.
