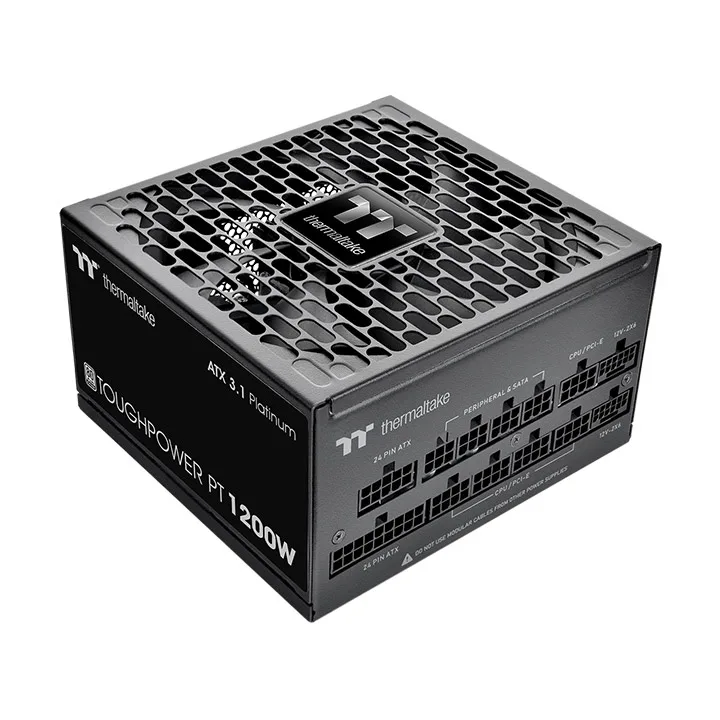

Black rectangular power supply unit with flat etched cables and dual-colour connectors

Thermaltake

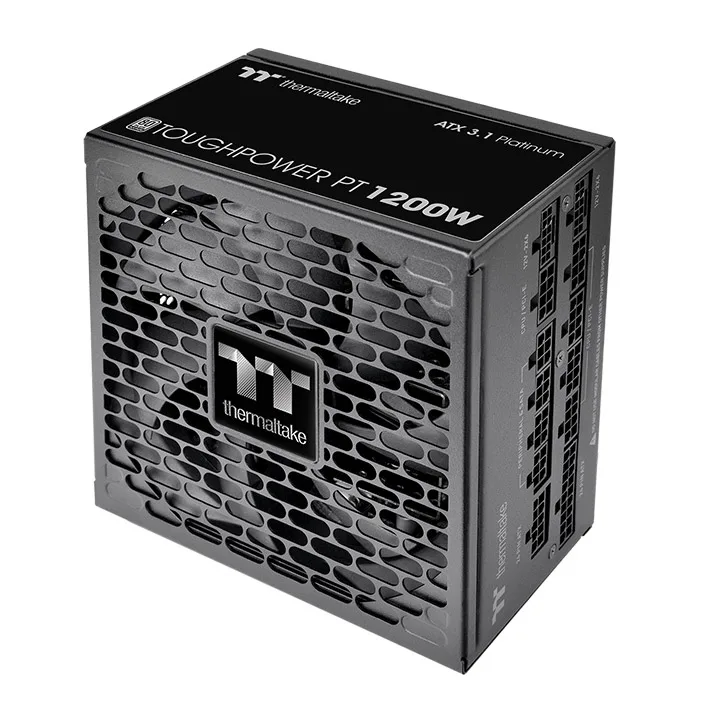

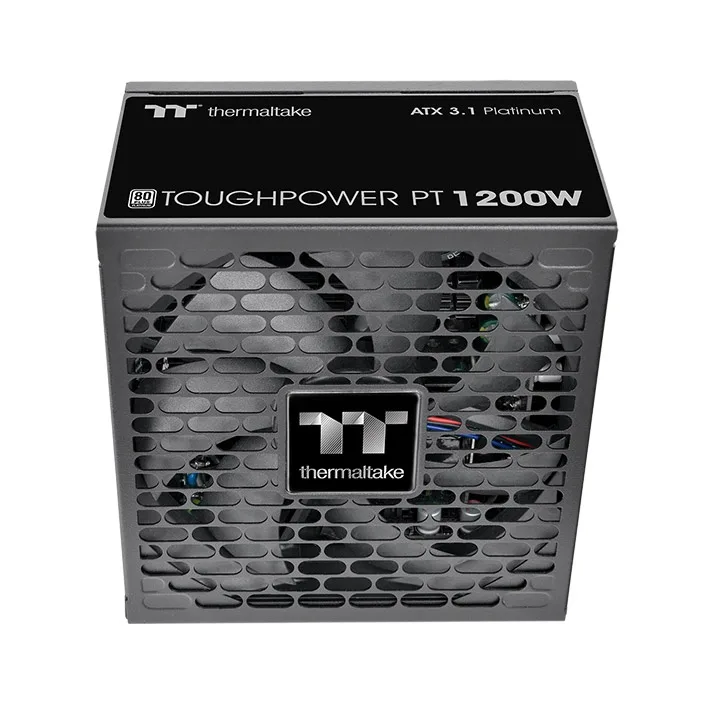

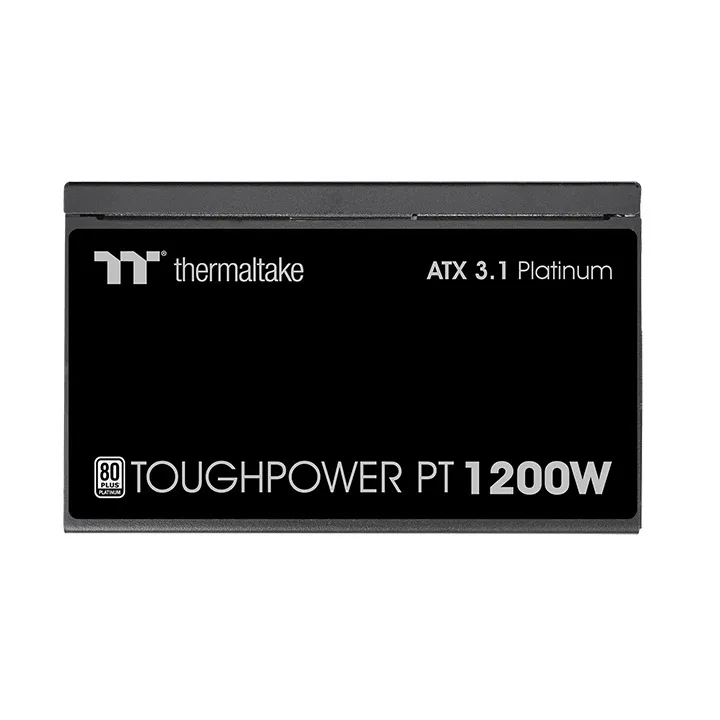

Thermaltake PS-TPP-1200FNFAPU-1 1200W power supply

SKU CH-QB5K-BZHDJ MPN PS-TPP-1200FNFAPU-1

Delivers 1200W continuous output at 40°C with 80 PLUS Platinum efficiency, ATX 3.1 compliance, dual native PCIe 5.1 12V-2x6 connectors, full modular flat etched cables.

  • ColorBlack
  • Maximum Power1200 W
  • Fans135mm FDB fan
  • PFCActive
  • ModularFull Modular
  • EfficiencyMeet 80 PLUS Platinum at 115Vac input.
  • 1200 W continuous output at 40 °C for high-end builds
  • 80 PLUS Platinum efficiency at 115 V input reduces waste heat
  • Two native PCIe 5.1 12V-2x6 cables deliver up to 600 W each
  • Fully modular flat etched cables simplify routing and improve airflow
  • 100 % Japanese 105 °C capacitors plus 100 000 hrs MTBF ensure long life

1200W ATX 3.1 power supply for high-end builds

This fully modular unit delivers 1200W continuous output at 40°C and meets 80 PLUS Platinum efficiency at 115Vac input. It targets enthusiasts building systems that demand a strong single +12V rail and native PCIe 5.1 12V-2x6 connectors for next-generation graphics cards.

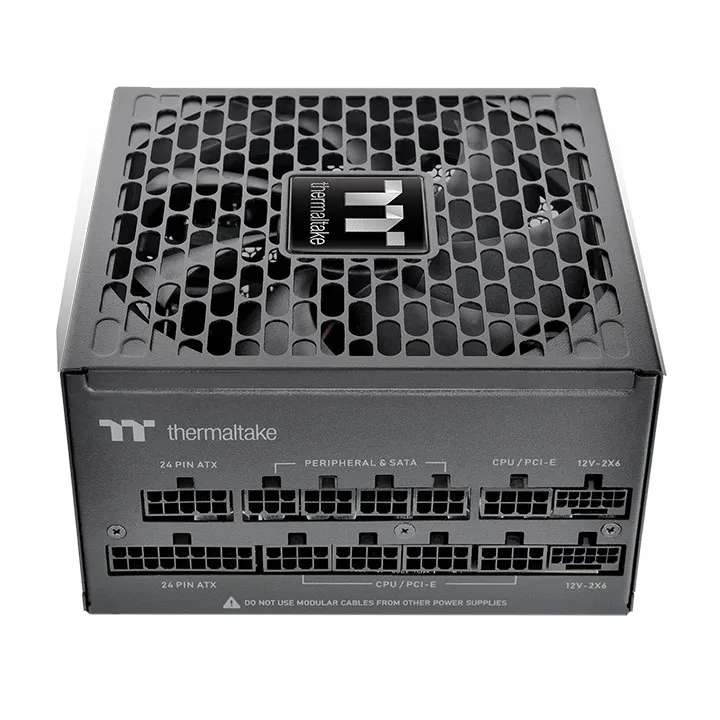

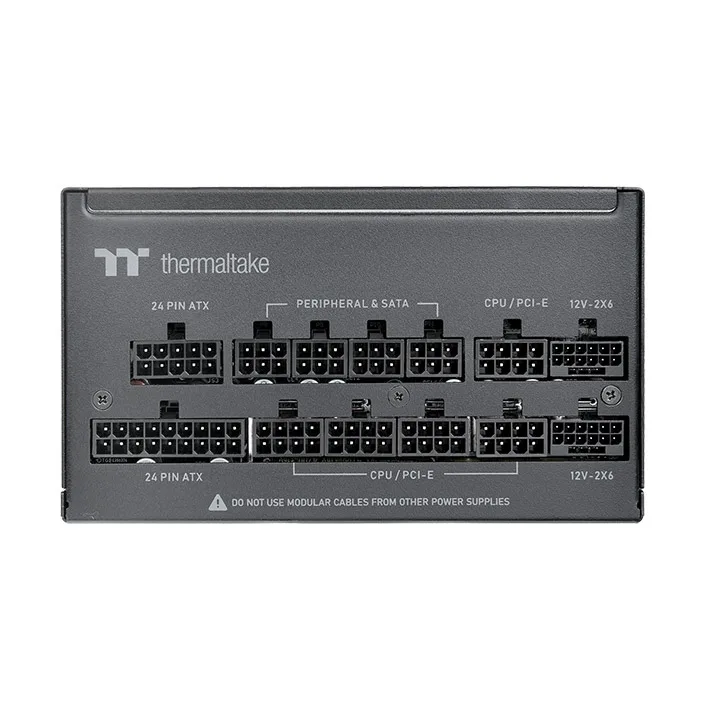

Dual native 12V-2x6 cables and etched flat cable set

Two included PCIe 5.1 cables each support up to 600W, removing the need for adapters on compatible GPUs. The flat etched cable design improves routing flexibility, while matcha-coloured H++ connectors show a visible colour cue when fully seated. A 135mm hydraulic bearing fan and 100% Japanese 105°C capacitors contribute to quiet operation and a 100,000-hour MTBF rating.

Verify ATX 3.1 motherboard support

Confirm your motherboard implements the ATX 3.1 specification to use the low-power C6 and C7 states. The unit measures 5.9 in by 5.5 in by 3.4 in, so check that your chassis can accommodate a 140mm-deep power supply. Ensure the 100-240Vac input range matches your local mains supply.

Highlights

  • 1200 W continuous output at 40 °C for high-end builds
  • 80 PLUS Platinum efficiency at 115 V input reduces waste heat
  • Two native PCIe 5.1 12V-2x6 cables deliver up to 600 W each
  • Fully modular flat etched cables simplify routing and improve airflow
  • 100 % Japanese 105 °C capacitors plus 100 000 hrs MTBF ensure long life

Specifications

BrandThermaltake
ModelPS-TPP-1200FNFAPU-1
ColorBlack
Maximum Power1200 W
Fans135mm FDB fan
PFCActive
ModularFull Modular
EfficiencyMeet 80 PLUS Platinum at 115Vac input.
Input Voltage100-240V~
Input Frequency Range50/60 Hz
Input Current15-10A Max.
MTBF100,000 hrs minimum
Power Good Signal100-150 msec
Dimensions5.9 in x 5.5 in x 3.4 in
Weight4.7lbs
Shipping weight3.45 kg
Package size305 × 216 × 122 mm

Questions about this item

How long is the 135mm hydraulic bearing fan rated to run before it may need replacement?

The fan is part of a unit with a minimum MTBF of 100,000 hrs, so the bearing is designed for very long continuous operation.

Which protection circuit activates first when the +12V rail is pushed to its 1200W limit for extended periods?

Over Power Protection (OPP) will trigger if total output exceeds the rated 1200W, while Over Temperature Protection (OTP) engages if internal temperatures rise above safe thresholds.

What is the typical noise and heat output when the supply runs at full load all day in a 40°C ambient?

The 135mm hydraulic bearing fan is designed for ultra-quiet operation; the unit delivers 1200W continuous at 40°C with 80 PLUS Platinum efficiency, minimising waste heat.
