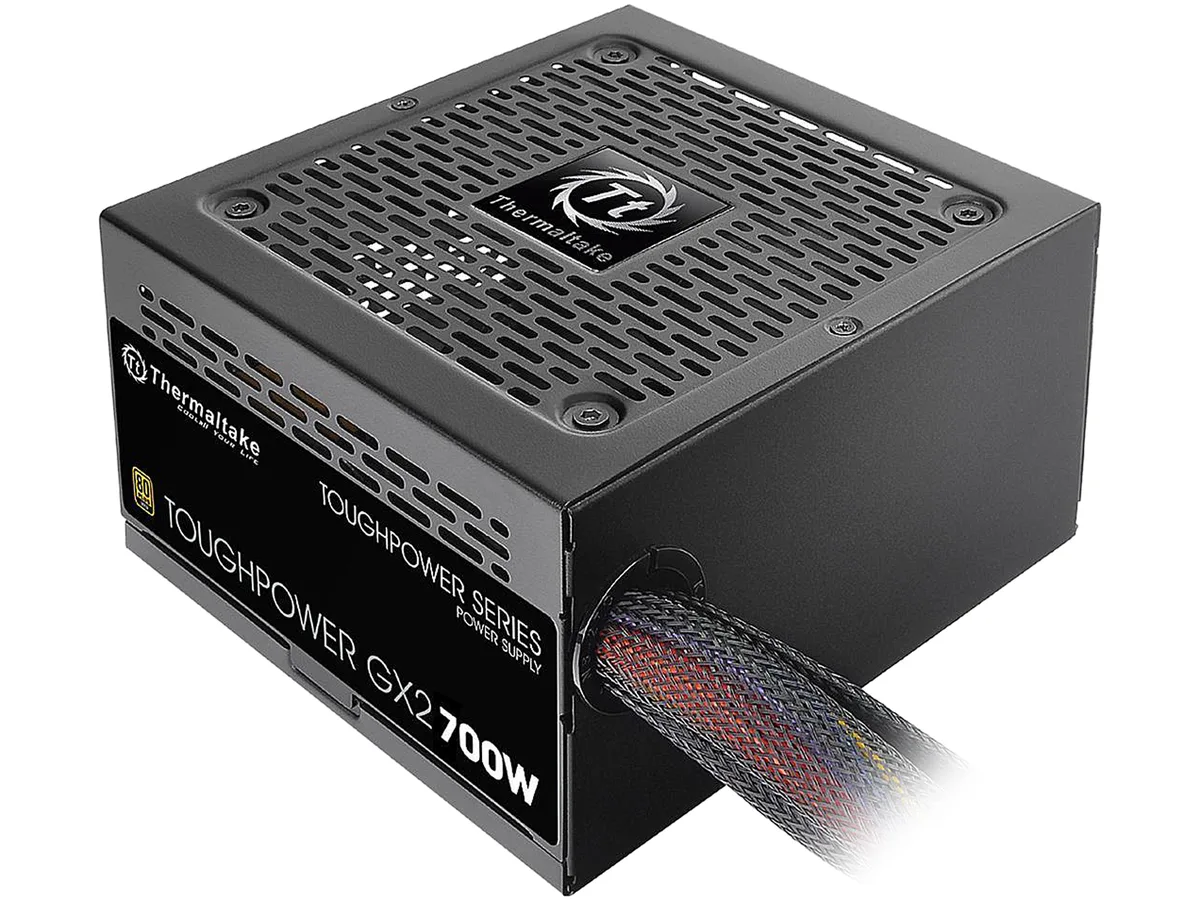

Rectangular metal power supply unit with matte black finish and a single 120mm fan grille on one side

Thermaltake

Thermaltake PS-TTP-0700NNFAGU-1 700 W power supply

SKU CH-FWBW-V323H MPN PS-TTP-0700NNFAGU-1

700 W non-modular ATX power supply with 80 PLUS Gold efficiency, a single 12 V rail, two PCIe connectors and six SATA connectors

  • TypeIntel ATX 12V v2.4 and EPS v2.92
  • Maximum Power700 W
  • Fans1 x 120mm fan
  • PFCActive
  • Main Connector20+4Pin
  • +12V RailsSingle
  • Efficient power delivery with 80 PLUS Gold certification up to 90% efficiency
  • Reliable operation across global mains with 100-240 V input range
  • Strong graphics support via 2 x 6+2-pin PCI-E connectors
  • Ample drive connectivity through 6 SATA power connectors
  • Compact 140 mm length fits space-constrained builds

Thermaltake Gold 700W 700 W PSU

The Thermaltake Gold 700W delivers 700 W continuous output for desktop builds that need reliable power. It suits system integrators and DIY builders fitting a single high-end graphics card. The unit meets Intel ATX 12V v2.4 and EPS v2.92 specifications for broad motherboard compatibility.

Fixed cable set with two PCI-E and six SATA

The non-modular design ships with all cables attached including one 20+4 pin main connector, one 4+4 pin CPU connector, two 6+2 pin PCI-E connectors and six SATA power connectors. Five peripheral connectors and one floppy adapter complete the loom so no extra cables are required. This arrangement simplifies first-time builds but leaves unused cables inside the case.

Check 140 mm case clearance and fixed cable routing

Verify the chassis accepts a 140 mm long power supply before ordering. Confirm the motherboard layout allows the fixed 20+4 pin and 4+4 pin cables to reach their sockets without strain. Ensure the single 120 mm fan orientation matches your case airflow plan. Builders needing modular cables or more than two PCI-E connectors should consider a different unit.

Highlights

  • Efficient power delivery with 80 PLUS Gold certification up to 90% efficiency
  • Reliable operation across global mains with 100-240 V input range
  • Strong graphics support via 2 x 6+2-pin PCI-E connectors
  • Ample drive connectivity through 6 SATA power connectors
  • Compact 140 mm length fits space-constrained builds

Specifications

BrandThermaltake
SeriesGold 700W
ModelPS-TTP-0700NNFAGU-1
TypeIntel ATX 12V v2.4 and EPS v2.92
Maximum Power700 W
Fans1 x 120mm fan
PFCActive
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector2 x 6+2-Pin
SATA Power Connector6
SLISLI Ready
CrossFireCrossFire Ready
Max PSU Length140 mm
ModularNon-Modular
Power Good Signal100-500ms
Hold-up Time> 16msec at 230Vac/ 60Hz and 100% load
Energy-Efficient80 PLUS GOLD Certified
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current15A - 6A
MTBF100,000 hrs minimum
ApprovalsCE / cTUVus / TUV / FCC / S-Mark
Connectors1 x Main Power Connector (24 pin)
1 x ATX 12V (4+4 pin)
6 x SATA (5 pin)
2 x PCI-E (6+2 pin)
5 x Peripheral (4 pin)
1 x Floppy Adapter
Features80 PLUS Gold certified up to 90% efficiency
Compatible with the latest Intel ATX 12V 2.4 & SSI EPS 12V 2.92 standards.
700W continuous output at 40°C/104°F operating environment.
High amperage single +12V rail design.
Synchronous rectification circuit design with DC-DC converter for extremely stable performance and high efficiency.
Ultra-quiet 120mm fan.
5 year warranty.
Intel C6/C7 states & ErP ready
Dimensions: 150mm(W)×86mm(H)×140mm(D).
Safety approvals: CE/cTUVus/TUV/FCC/S-Mark certifications.
Dimensions3.39" x 5.91" x 5.51"
Shipping weight2.09 kg
Package size254 × 197 × 171 mm

Questions about this item

When will the 120 mm fan or its bearings need replacement?

The unit is rated for 100,000 hrs minimum MTBF, so the fan typically lasts many years of continuous use before bearing wear becomes an issue.

What limit appears first when the PSU runs at full 700 W load for hours?

The 40°C operating-temperature ceiling is the first constraint; sustained 100 % load at higher ambient temperatures will trigger thermal protection.

How loud and hot does the single 120 mm fan get during all-day operation?

At typical loads the fan runs quietly; under continuous 700 W output it spins faster, raising noise and exhaust temperature while staying within the 40°C design limit.
