Black 140mm case fan with four concentric RGB rings and nine blades

Thermaltake

Thermaltake Riing Quad 140mm 54 LED PWM Case Fan CL-F089-PL14SW-C

SKU CH-3PF9-FNTMD MPN CL-F089-PL14SW-C

140 mm PWM case fan with four RGB light rings, 54 addressable LEDs, hydraulic bearing and 60.17 CFM airflow at 25 dBA

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan, Radiator Fan
  • CompatibilityCase / Radiator
  • Fan Size140mm
  • Fan Thickness25mm

Option Single Pack

  • Single Pack
  • 3 Packs w/ Controller

Struck-through versions exist but are not stocked here.

  • Four light rings with 54 addressable LEDs create vibrant 16.8 million colour effects
  • PWM control from 500 to 1500 RPM delivers 60.17 CFM airflow at 25 dBA
  • Hydraulic bearing self-lubricates to reduce friction noise and extend operational lifespan
  • Anti-vibration rubber pads minimise chassis resonance for quieter system operation
  • NeonMaker and TT RGB Plus software enable custom profiles and motherboard RGB sync

Riing Quad 140mm single fan

The Thermaltake Riing Quad 14 is a 140mm case and radiator fan sold as a single unit. It uses a hydraulic bearing and nine blades to deliver 60.17 CFM at speeds between 500 and 1500 RPM while producing 25 dBA. The fan connects via a USB 2.0 nine-pin header for PWM control and RGB power.

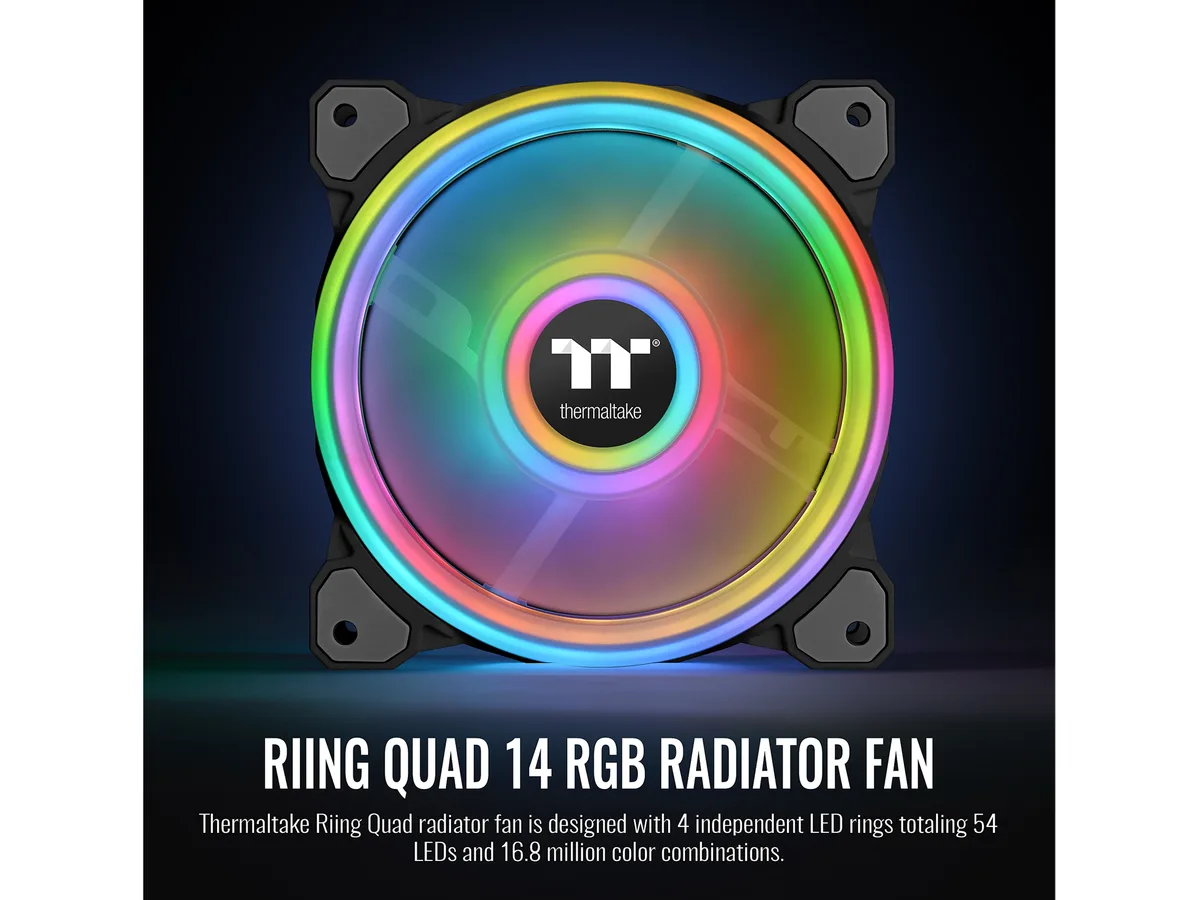

Four rings with 54 addressable LEDs

Four concentric light rings at the front contain 54 LEDs in total — 18 on each of the outer two rings and 9 on each of the inner two. NeonMaker software lets users create custom lighting profiles or download hundreds of community presets. The fan also synchronises with motherboard RGB ecosystems and the TT RGB Plus platform without an included controller or cables.

140mm size with USB 2.0 nine-pin power

This fan fits standard 140mm mounting points and is 25mm thick. The USB 2.0 nine-pin connector supplies both PWM speed control and RGB power, so the motherboard or a compatible hub must provide that specific header. Builders whose cases or controllers only offer 4-pin PWM or 3-pin ARGB connectors cannot use this fan without an adapter.

Highlights

  • Four light rings with 54 addressable LEDs create vibrant 16.8 million colour effects
  • PWM control from 500 to 1500 RPM delivers 60.17 CFM airflow at 25 dBA
  • Hydraulic bearing self-lubricates to reduce friction noise and extend operational lifespan
  • Anti-vibration rubber pads minimise chassis resonance for quieter system operation
  • NeonMaker and TT RGB Plus software enable custom profiles and motherboard RGB sync

Specifications

BrandThermaltake
SeriesRiing Quad 14 RGB Radiator Fan TT Premium Edition Single Fan Pack
ModelCL-F089-PL14SW-C
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan, Radiator Fan
CompatibilityCase / Radiator
Fan Size140mm
Fan Thickness25mm
Bearing TypeHydraulic Bearing
RPMPWM 500 - 1500 R.P.M
Air Flow60.17 CFM
Noise Level25 dBA
Power ConnectorUSB 2.0 Connectors (9 Pin)
ColorBlack
LEDRGB
FeaturesPWM Controlled Fan with 9 Fan Blade Design
Low-Noise Hydraulic Bearing
Anti-Vibration Mounting System
NeonMaker & TT RGB Plus Support
Sync with Motherboard RGB Software
Dimensions140 x 140 x 25 mm
Shipping weight0.29 kg
Package size199 × 145 × 29 mm

Questions about this item

Will the hydraulic bearing on this fan need lubrication or replacement?

The hydraulic bearing is self-lubricating with a sealed cap that prevents leakage and extends lifespan, so no routine lubrication is required.

At the maximum 1500 RPM speed, what is the first limit reached under sustained load?

The fan reaches its peak airflow of 60.17 CFM and noise level of 25 dBA at 1500 RPM, which are the specified performance limits.

How much heat and noise does the fan produce when running all day at full speed?

At full 1500 RPM the fan emits 25 dBA of noise and moves 60.17 CFM of air, drawing power through the USB 2.0 9-pin connector.
