Black ATX power supply unit with a 120mm cooling fan and fixed cables

Thermaltake

Thermaltake Smart 500W power supply PS-SPD-0500NPCWUS-W

SKU CH-KGDX-17TFV MPN PS-SPD-0500NPCWUS-W

Delivers 500 W continuous power with 80 PLUS efficiency, a single +12 V rail, two 6+2-pin PCIe connectors and six SATA connectors in a 140 mm hardlined ATX unit

  • ColorBlack
  • TypeIntel ATX 12V 2.31 & EPS 12V 2.92
  • Maximum Power500 W
  • Fans1 x 120mm Intelligent Cooling Fan
  • PFCActive
  • Main Connector20+4Pin

Options ATX 80+ (500W)

  • Delivers 500 W continuous power for stable system operation
  • 80 PLUS certified efficiency up to 86 % reduces energy waste
  • Single +12 V rail at 35 A ensures reliable performance under load
  • 120 mm intelligent fan provides strong airflow at low noise
  • SLI and CrossFire ready with two 6+2-pin PCIe connectors

500 W ATX power supply for mainstream builds

This Thermaltake Smart unit delivers 500 W of continuous power through a single +12 V rail rated at 35 A. It meets Intel ATX 12V 2.31 and EPS 12V 2.92 specifications and carries 80 PLUS certification for 80 % typical efficiency. The supply is Haswell ready and supports SLI or CrossFire multi-GPU configurations.

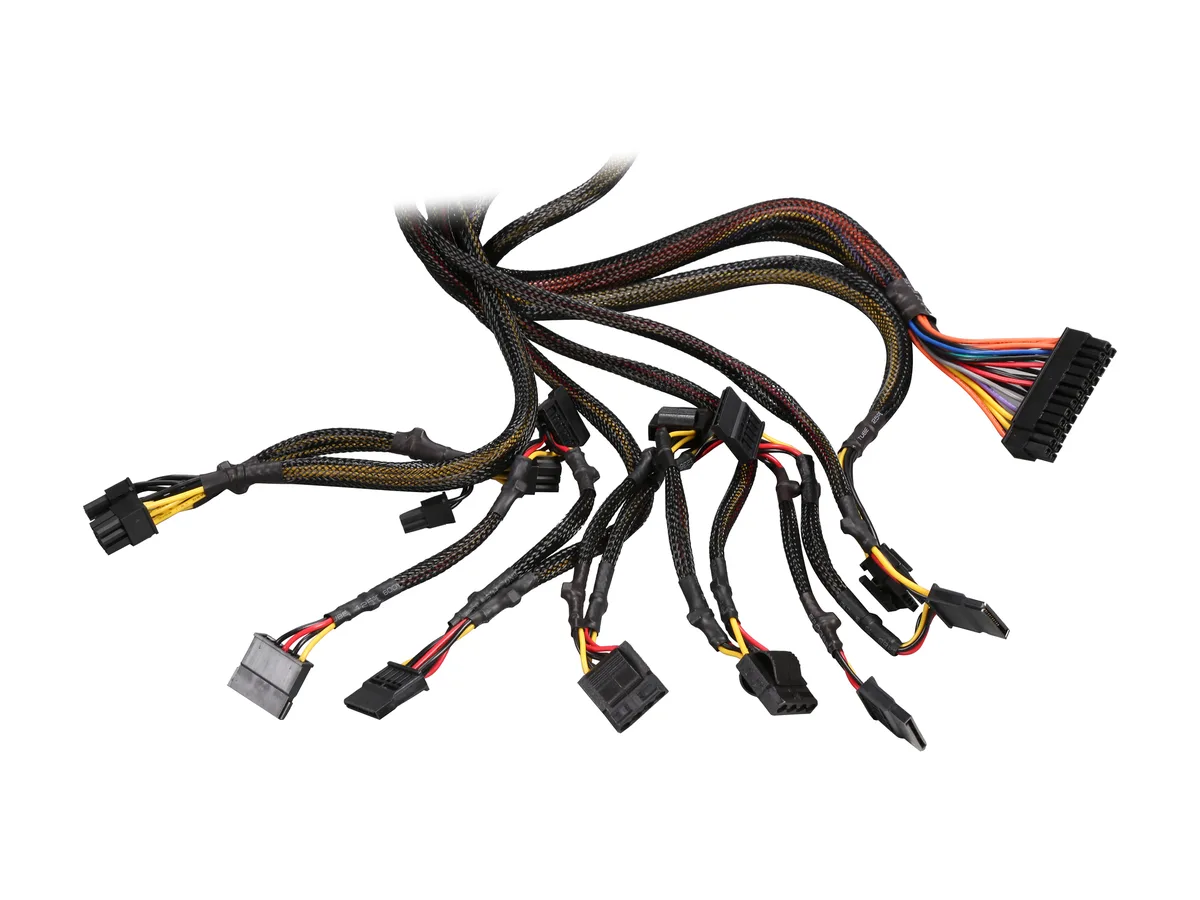

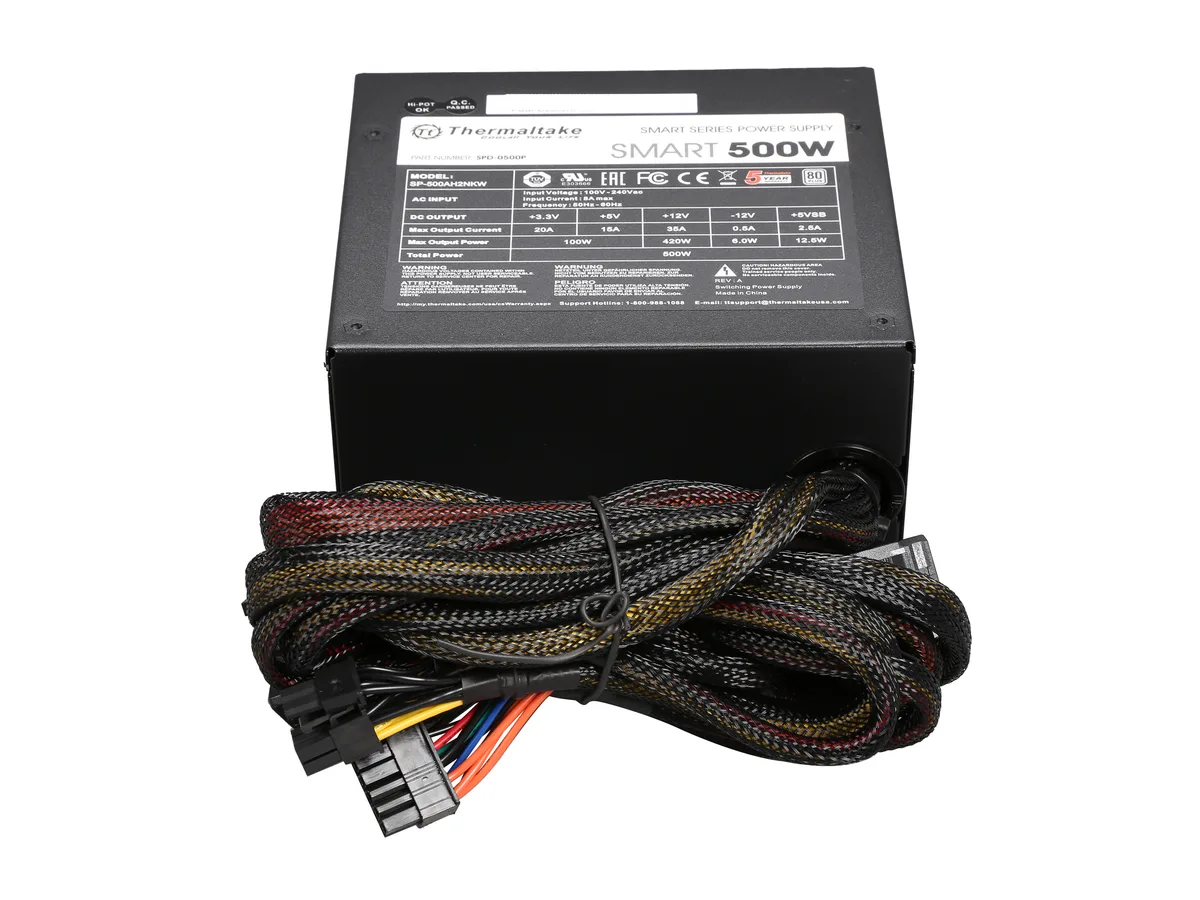

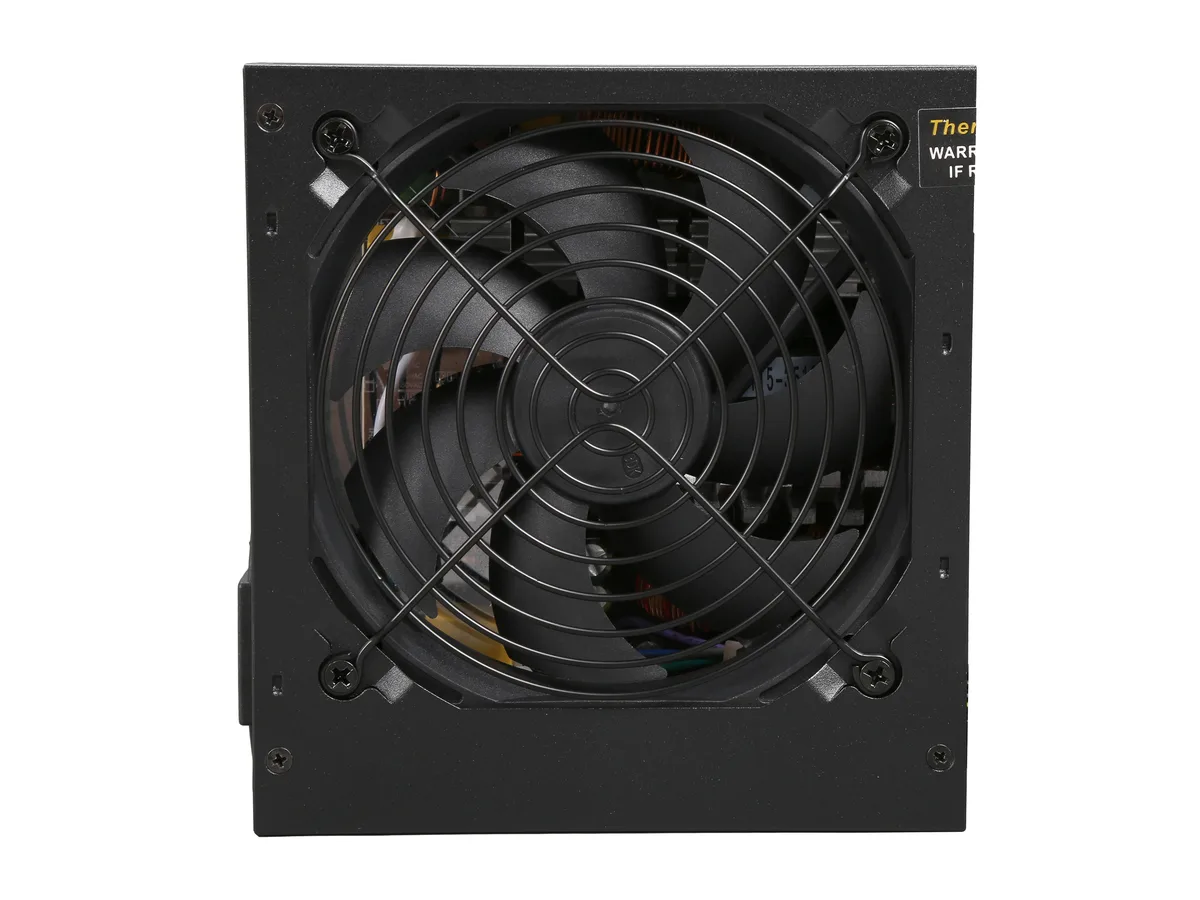

Hardlined cables with a 120 mm intelligent fan

All leads are fixed, including a 20+4 pin main connector, two 6+2 pin PCIe plugs and six SATA power connectors. A 120 mm fan provides airflow while the active PFC circuit corrects the power factor across a 100–240 V input range. The chassis measures 140 mm in depth, fitting standard ATX cases.

Single-rail design and hold-up time define

The single +12 V rail simplifies load balancing but caps combined 12 V current at 35 A. Hold-up time is specified at 16.6 ms minimum and the power-good signal arrives within 100–500 ms. Efficiency peaks at 86 % under typical loads, so sustained draws near 500 W will generate more heat and fan noise.

Highlights

  • Delivers 500 W continuous power for stable system operation
  • 80 PLUS certified efficiency up to 86 % reduces energy waste
  • Single +12 V rail at 35 A ensures reliable performance under load
  • 120 mm intelligent fan provides strong airflow at low noise
  • SLI and CrossFire ready with two 6+2-pin PCIe connectors

Specifications

BrandThermaltake
SeriesSmart 500W
ModelPS-SPD-0500NPCWUS-W
ColorBlack
TypeIntel ATX 12V 2.31 & EPS 12V 2.92
Maximum Power500 W
Fans1 x 120mm Intelligent Cooling Fan
PFCActive
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector2 x 6+2-Pin
SATA Power Connector6
SLIReady
Haswell SupportYes
CrossFireReady
Max PSU Length140 mm
ModularHardlined
Power Good Signal100-500ms
Hold-up Time16.6ms min.
Efficiency80% Efficiency
Energy-Efficient80 PLUS Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current8A
Output+3.3V@20A, +5V@15A, +12V@35A, [email protected] , [email protected]
MTBF>100,000 Hours
ApprovalsCE, CB, TUV, UL, FCC
Connectors1 x 20+4-pin ATX
1 x 4+4-pin EPS
2 x 6+2-pin PCI-E
6 x SATA
3 x Peripheral
1 x Floppy
FeaturesCompliance with Intel ATX 12V 2.31 & EPS 12V 2.92 standards
80 PLUS Certified - 80% efficiency under typical load
Single +12V rail Design
Supports Intel C6 Status for improved efficiency
Ultra-quiet 120mm fan with intelligent temperature control
Hardlined cables for straight forward installation
Dimensions3.40" x 5.90" x 5.50"
Weight4.25 lbs.
Rear Fans Size120 Millimeters
Under Voltage Protection?120 Volts
Shipping weight1.86 kg
Package size236 × 191 × 102 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will this power supply fit in a compact case with a 140 mm PSU clearance?

The unit is 140 mm long, so it fits exactly in cases rated for that length; measure your chassis to confirm no cables or brackets reduce the usable space.

Can the single +12 V rail handle a modern mid-range graphics card?

The +12 V rail is rated at 35 A, providing ample current for most mainstream GPUs; check the card’s recommended PSU wattage and connector needs.

What power connectors come attached to the unit?

It has a hardlined 20+4 pin main connector, two 6+2 pin PCIe connectors and six SATA power connectors for drives and peripherals.
