Black 120 mm square case fan with 25 mm thick frame and nine dark blades

Thermaltake

Thermaltake ToughFan 12 CL-F117-PL12BL-A 120 mm 2000 RPM case fan

SKU CH-C8JB-HBTE1 MPN CL-F117-PL12BL-A

A 120 mm PWM case and radiator fan reaching 2000 RPM with 58.35 CFM airflow and 22.3 dBA noise

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan, Radiator Fan
  • CompatibilityCase / Radiator
  • Fan Thickness25mm
  • Bearing TypeHydraulic Bearing Gen.2

Color Black

Model 2000 RPM

Option 1 Pack, 120mm

  • High static pressure at 58.35 CFM for dense radiators
  • PWM speed range 500 to 2000 RPM matches cooling demand
  • Gen.2 hydraulic bearing runs at 22.3 dBA

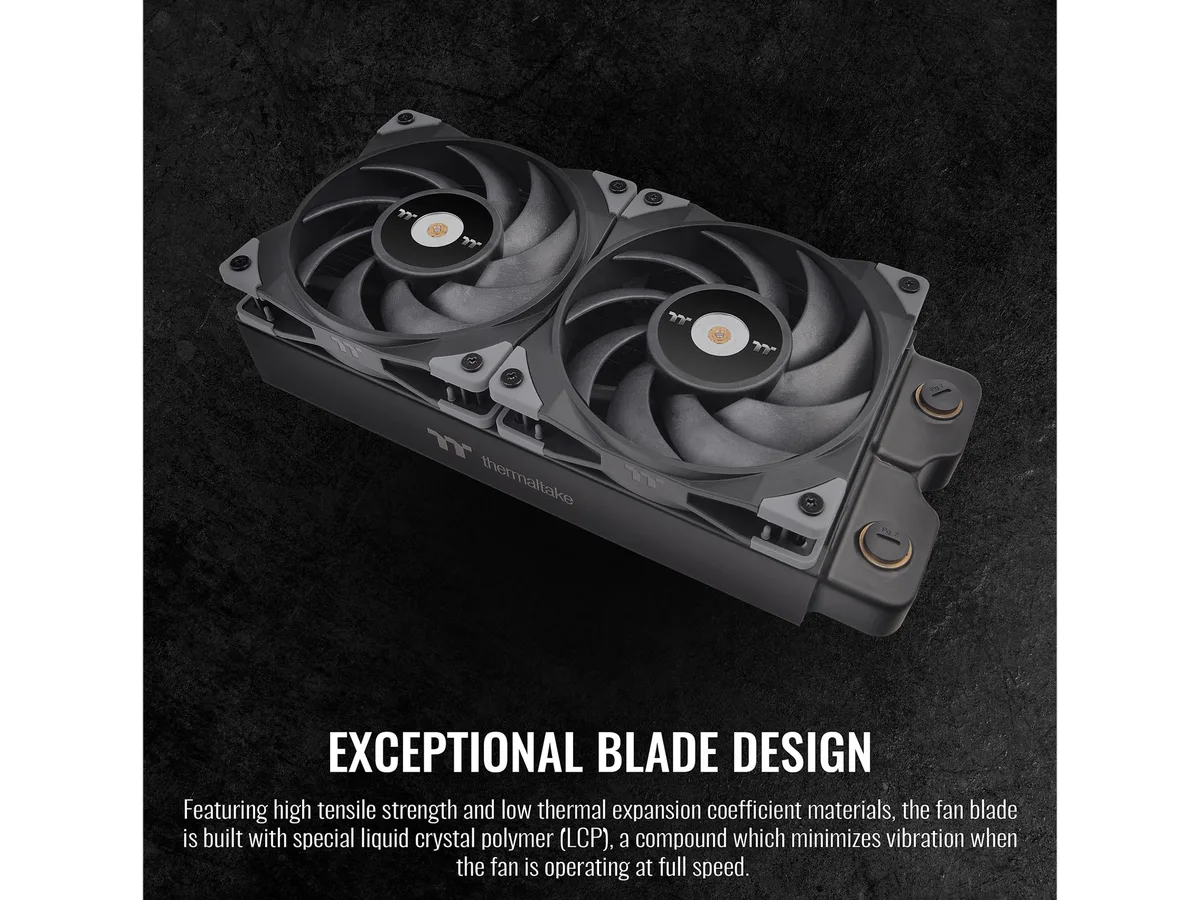

  • LCP blades cut vibration at full RPM
  • Steel-reinforced motor hub adds structural rigidity

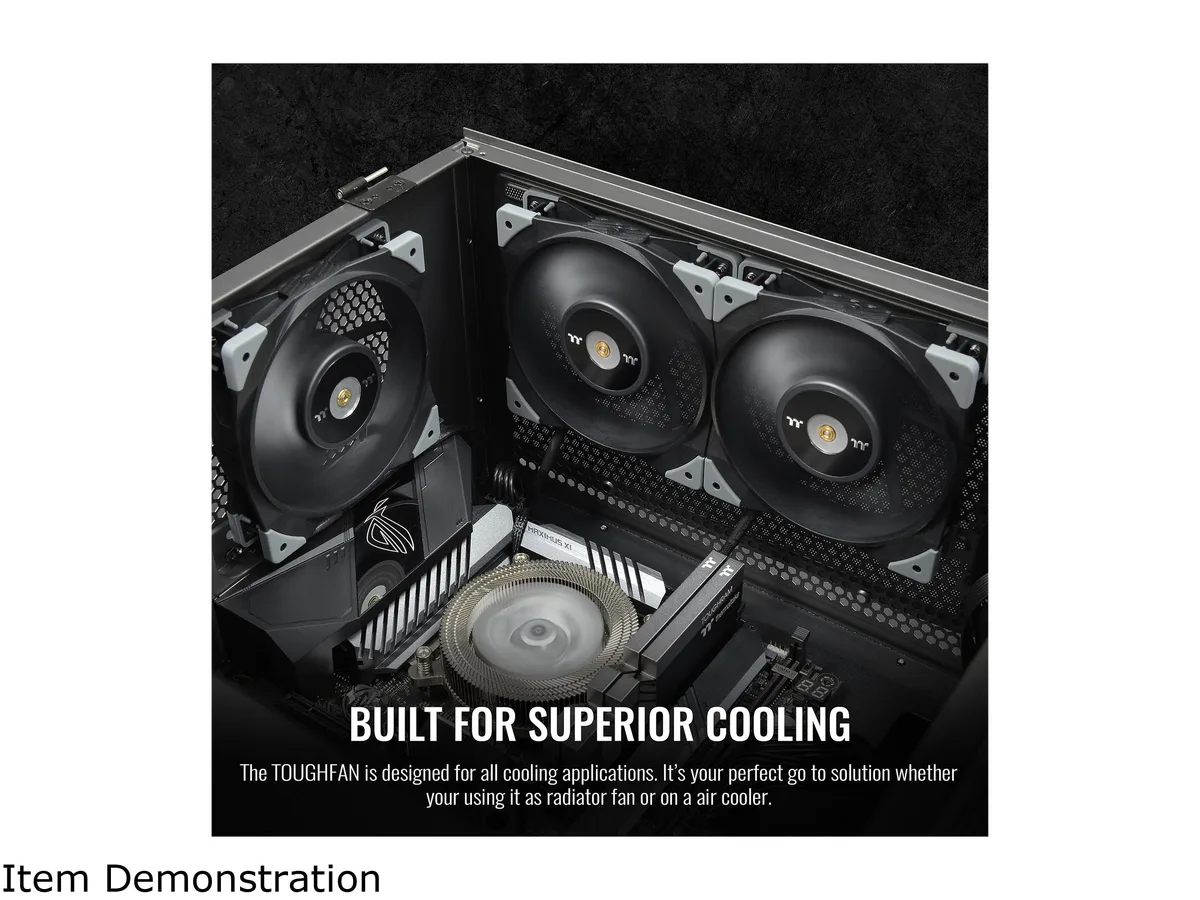

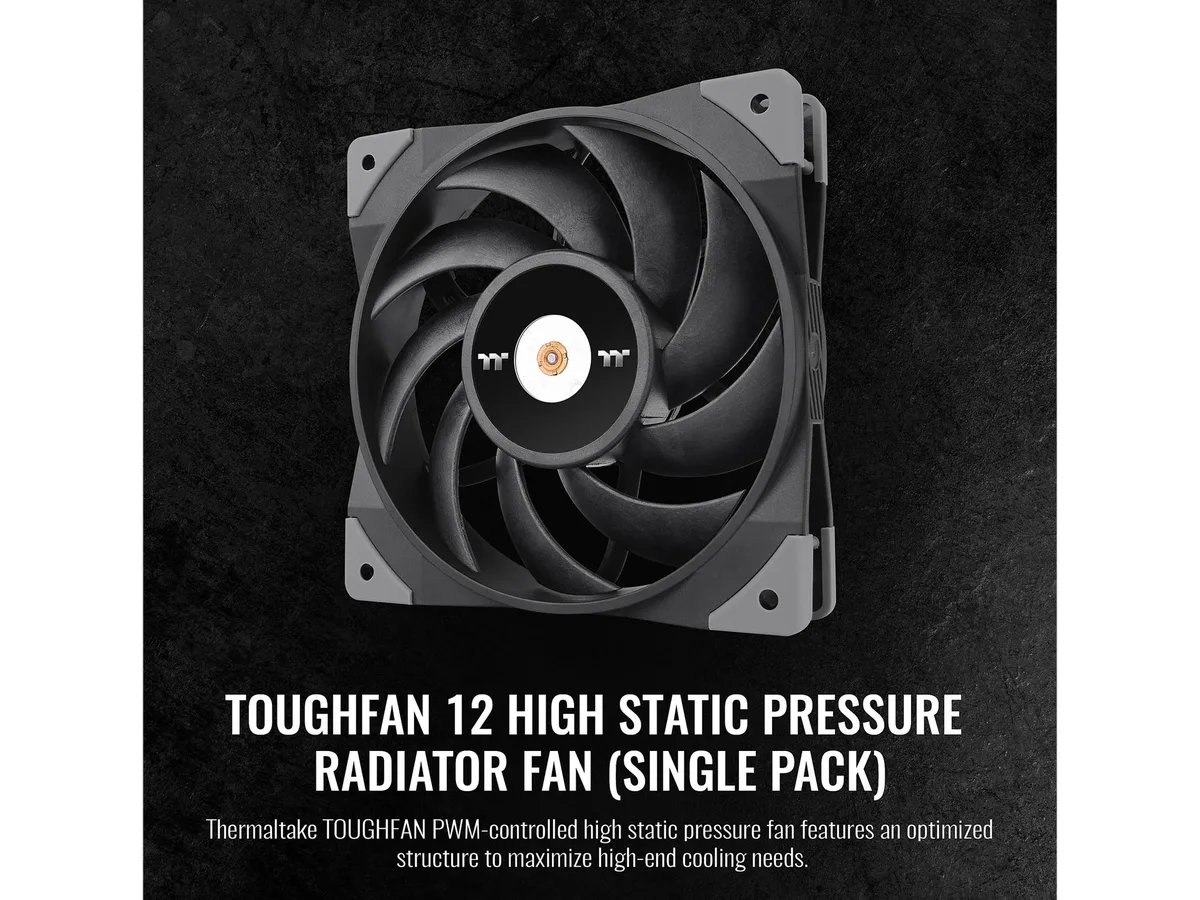

120 mm PWM case and radiator fan

The Thermaltake ToughFan 12 is a single 120 mm fan built for case airflow or radiator cooling. It uses a 4-pin PWM connector so the motherboard can vary speed from 500 to 2000 RPM. The black frame measures 120 x 120 x 25 mm and fits standard mounting holes.

58.35 CFM airflow at 22.3 dBA

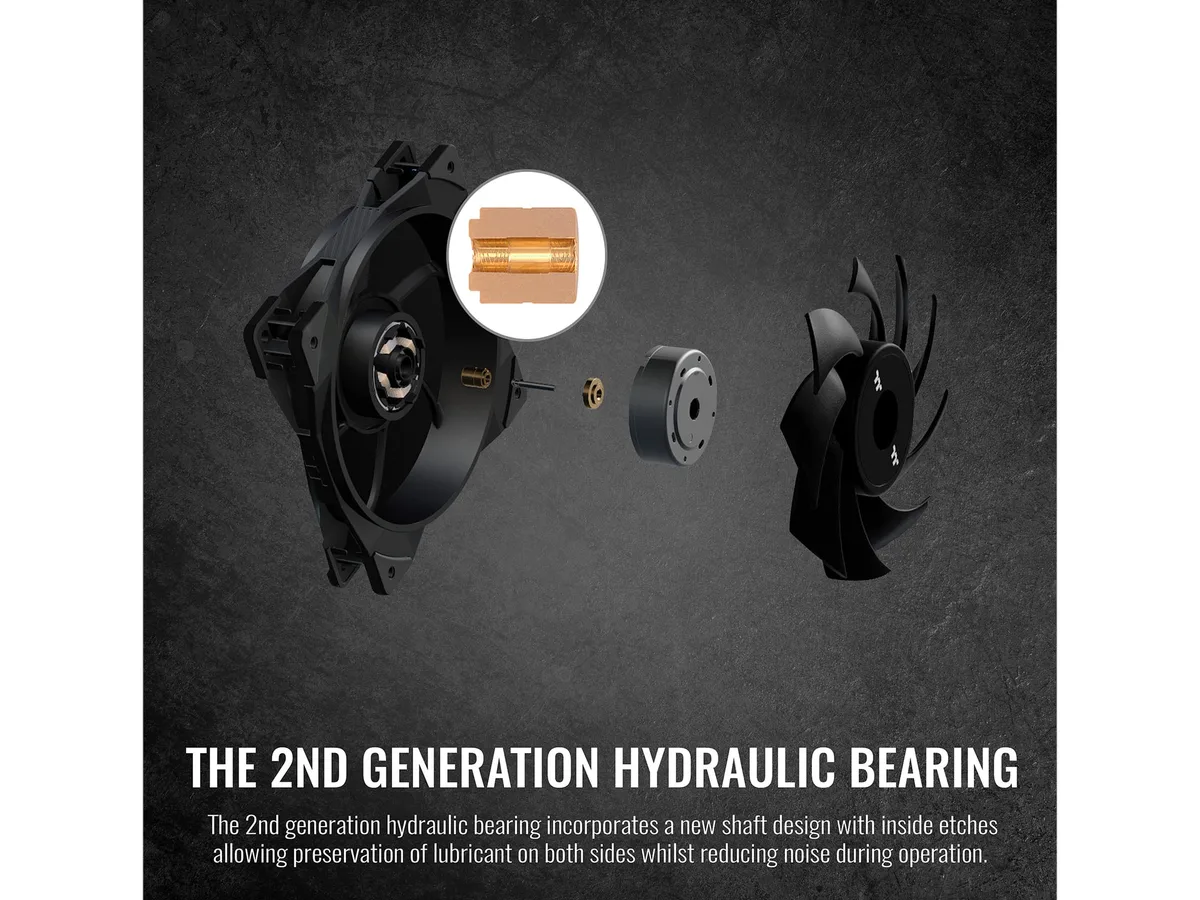

At full speed the fan moves 58.35 CFM while producing 22.3 dBA of noise. The second-generation hydraulic bearing and liquid-crystal-polymer blades keep vibration low through the entire range. Performance drops off below 500 RPM where the PWM signal can no longer sustain rotation.

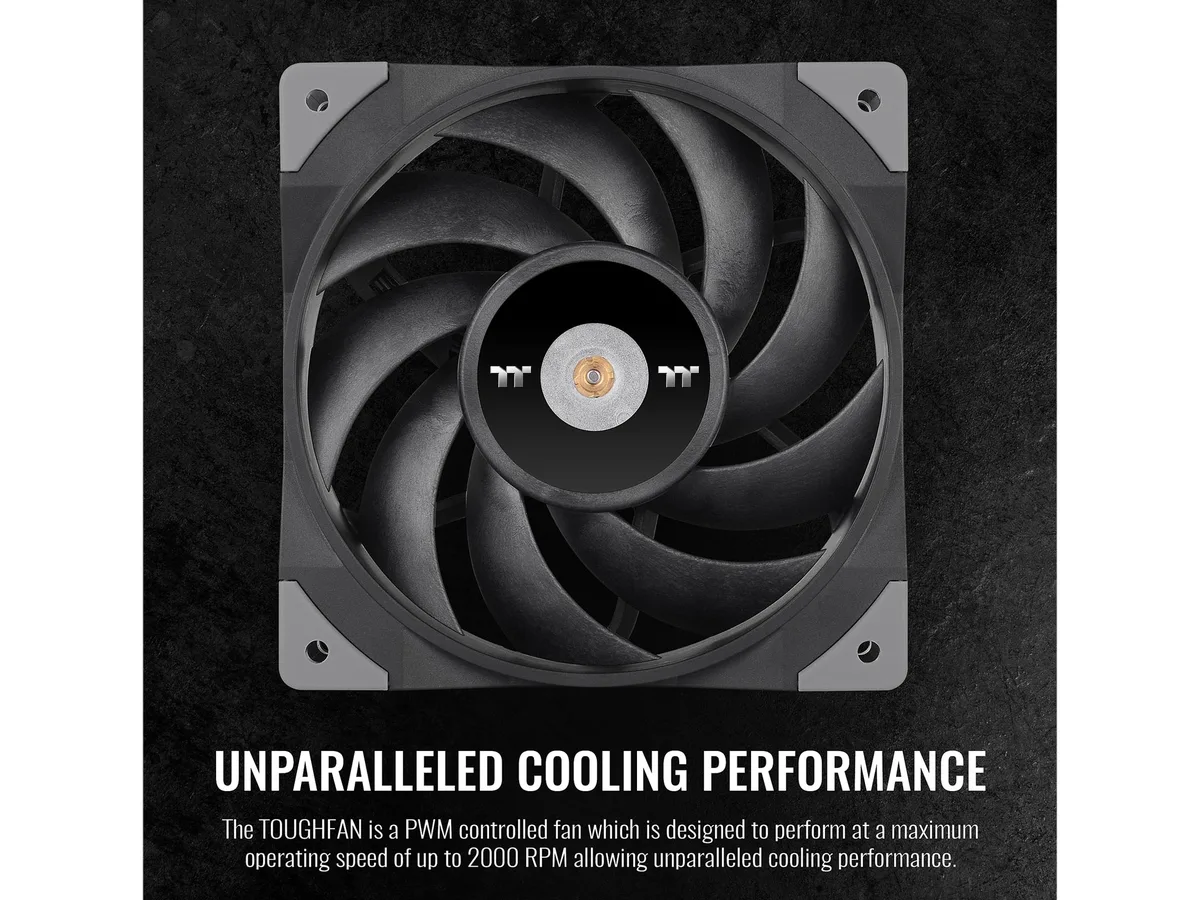

2000 RPM ceiling with metal-reinforced hub

The 2000 RPM limit is set by the PWM controller and the steel-reinforced motor hub that holds the rotor true at high speed. Builders who need higher static pressure or faster maximum RPM will need a different fan. No fan controller is included in the single pack.

Highlights

  • High static pressure at 58.35 CFM for dense radiators
  • PWM speed range 500 to 2000 RPM matches cooling demand
  • Gen.2 hydraulic bearing runs at 22.3 dBA
  • LCP blades cut vibration at full RPM
  • Steel-reinforced motor hub adds structural rigidity

Specifications

BrandThermaltake
SeriesToughFan 12
ModelCL-F117-PL12BL-A
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan, Radiator Fan
CompatibilityCase / Radiator
Fan Thickness25mm
Bearing TypeHydraulic Bearing Gen.2
RPM500 - 2000 RPM PWM
Air Flow58.35 CFM
Noise Level22.3 dBA
Power Connector4 Pin PWM
ColorBlack
FeaturesPWM Controlled Fan with maximum speed of 2000 RPM
Low-Noise 2nd generation Hydraulic Bearing
Made from LCP material to reduce the vibration and improve the stability
Used metal-reinforced motor hub to ensure the superb precision
Dimensions120 x 120 x 25 mm
Shipping weight0.32 kg
Package size190 × 138 × 32 mm
