Thermaltake
Thermaltake Toughpower GF1 650W 80+ Gold Full Modular PS-TPD-0650FNFAGU-1 power supply
Fully modular 650 W ATX power supply with 80 PLUS Gold efficiency, a 140 mm hydraulic-bearing fan that stops below 30 % load, Japanese capacitors and less than 30 mV ripple on all rails
- ColorBlack
- TypeATX12V
- Maximum Power650 W
- Fans140mm hydraulic bearing fan
- PFCActive
- Main Connector20+4Pin
- 80 PLUS Gold certified efficiency reaches 90 percent
- 140 mm hydraulic bearing fan runs only above 30 percent load
- Fully modular design with 16 AWG cables simplifies builds
- 105 °C Japanese capacitors ensure long term stability
- Ripple noise stays below 30 mV across all rails
Power delivery for mid-range builds

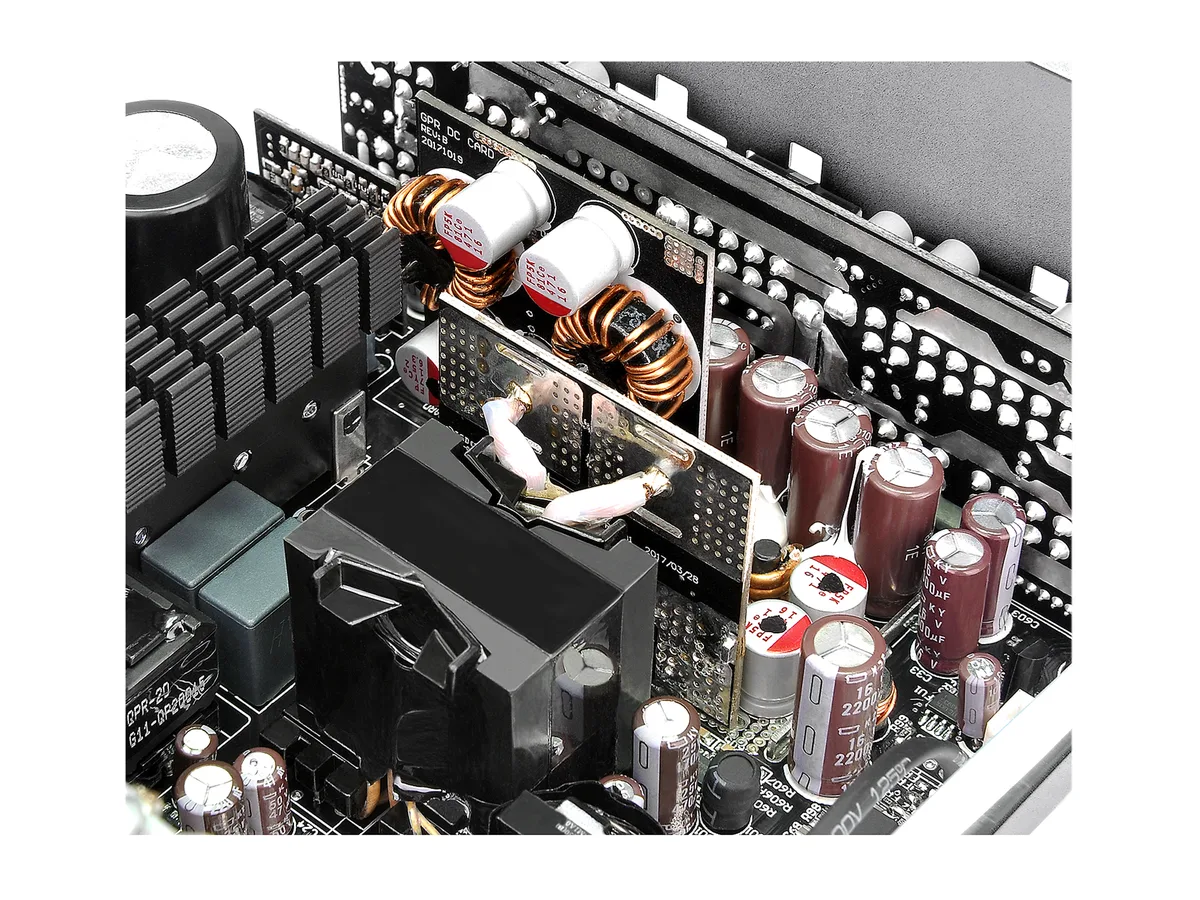

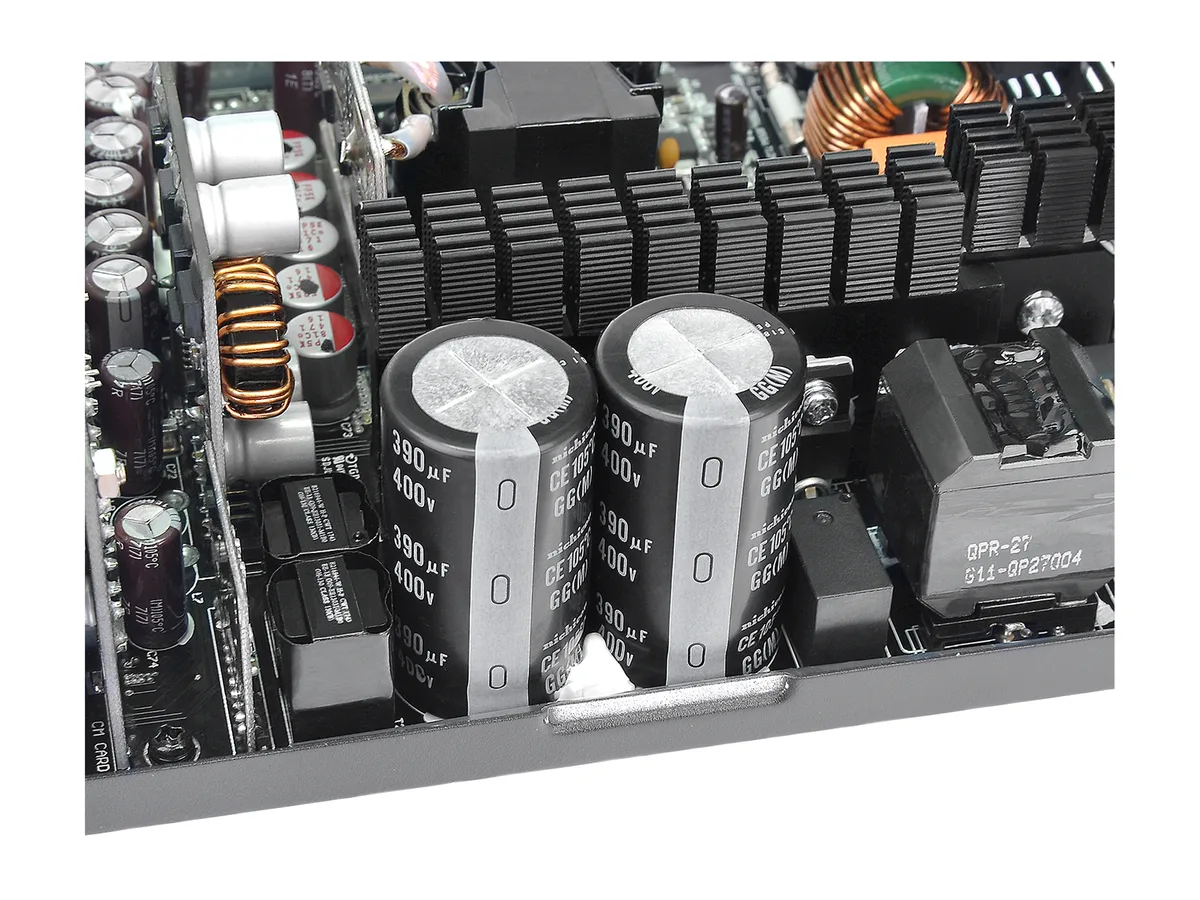

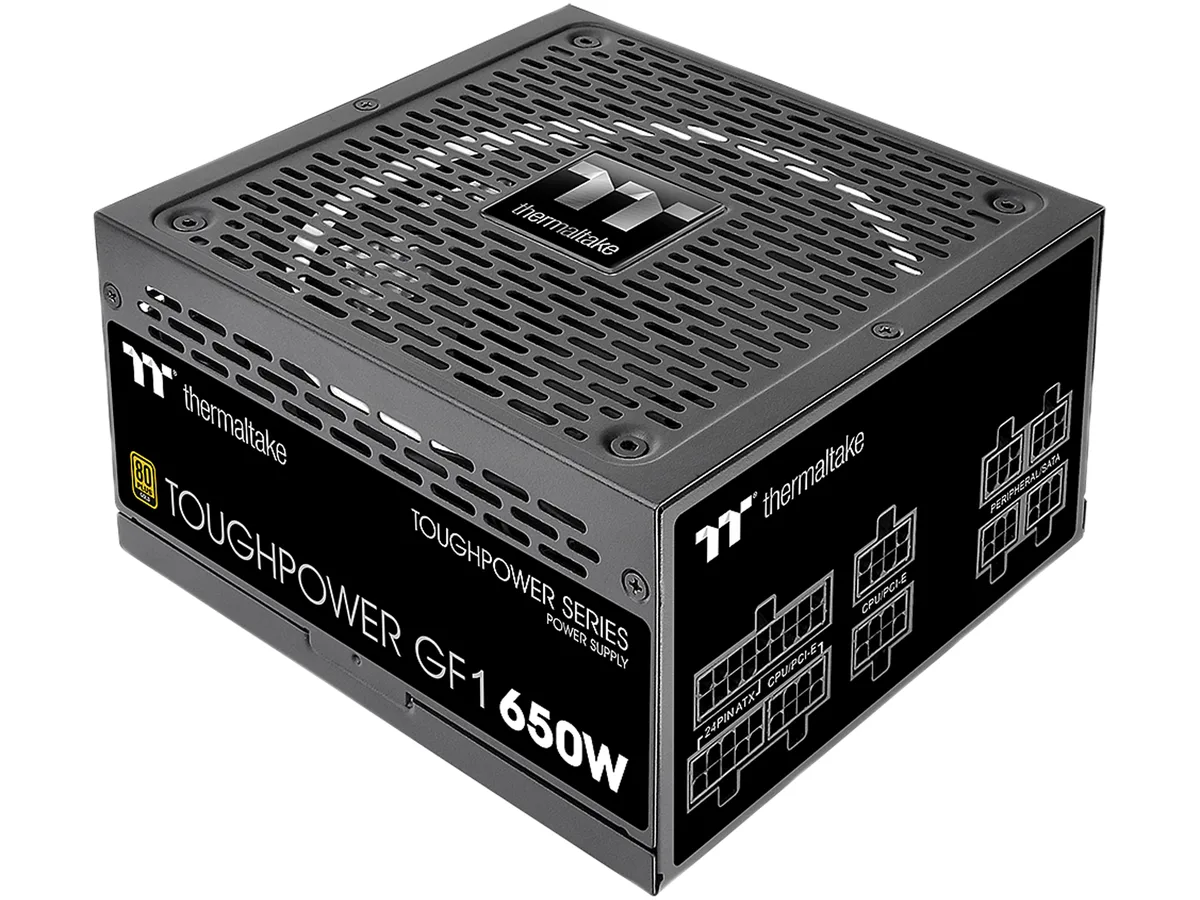

The Thermaltake Toughpower GF1 650W is a fully modular ATX12V power supply designed for PC enthusiasts assembling systems that demand stable, efficient power. Its 80 PLUS Gold certification confirms up to 90 percent efficiency under typical loads. Japanese capacitors rated at 105°C and a single +12V rail provide consistent output for modern components.
650 watt single-rail capacity
The decisive specification is the 650 W maximum power delivered on a single +12V rail. This output level suits builds with one high-end graphics card and a mainstream processor. Four 6+2-pin PCI-Express connectors support SLI or CrossFire multi-GPU configurations when the total draw stays within the unit’s limit.
Full modular cabling and compact length

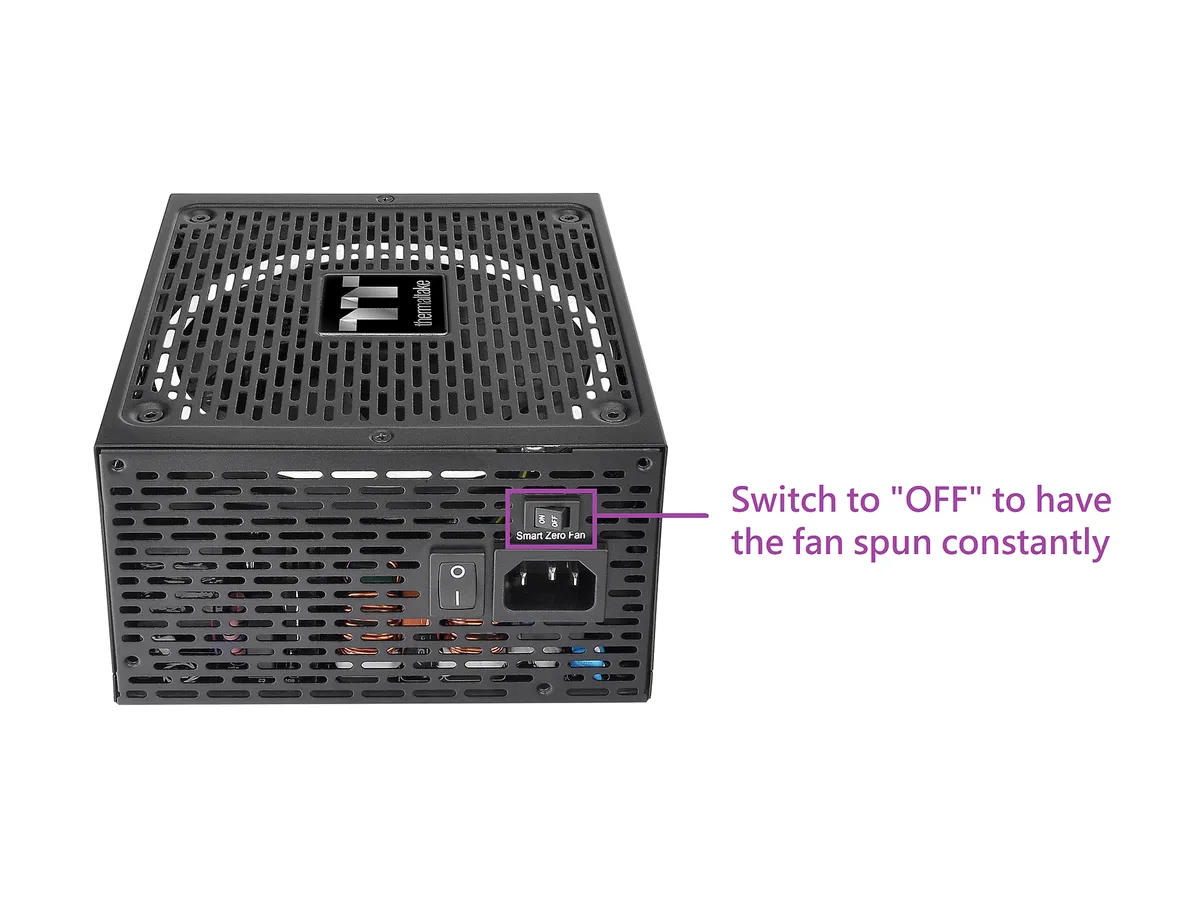

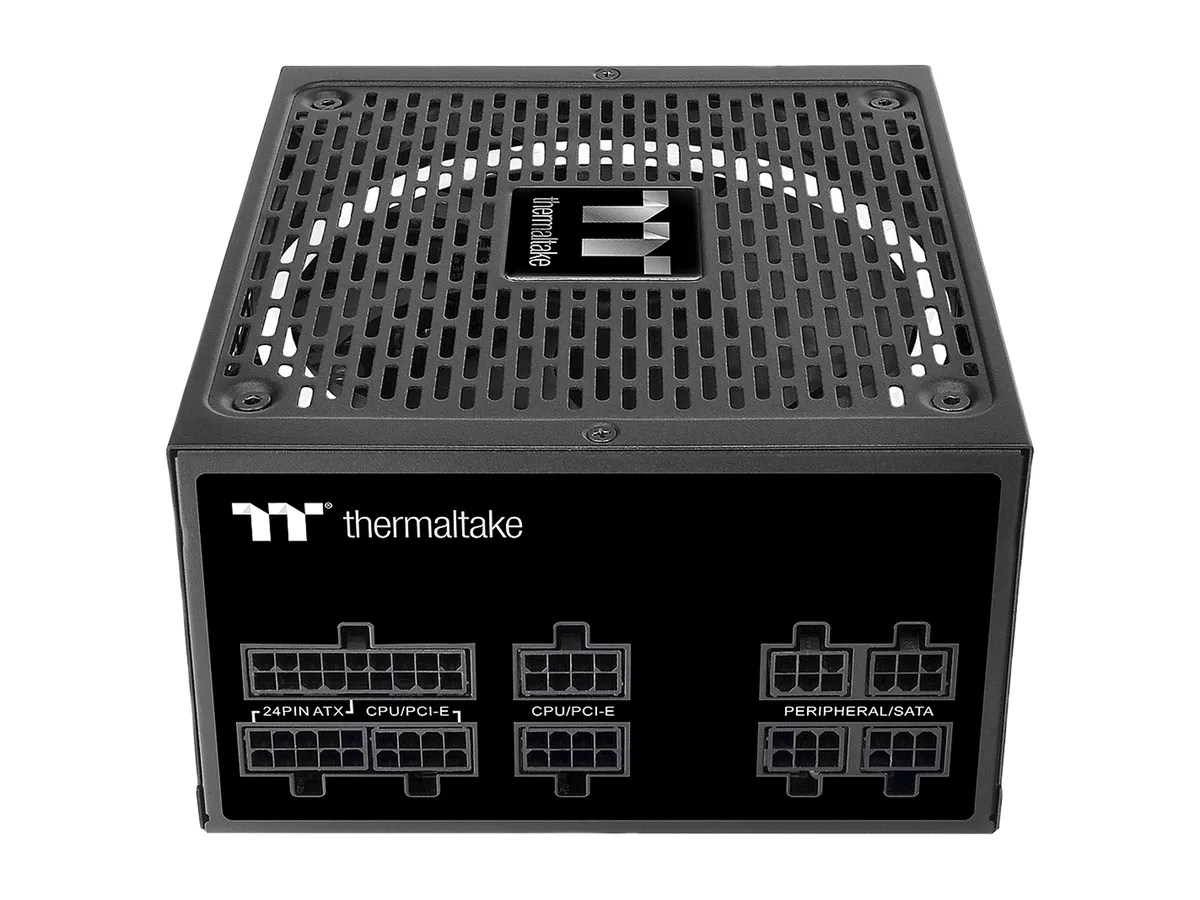

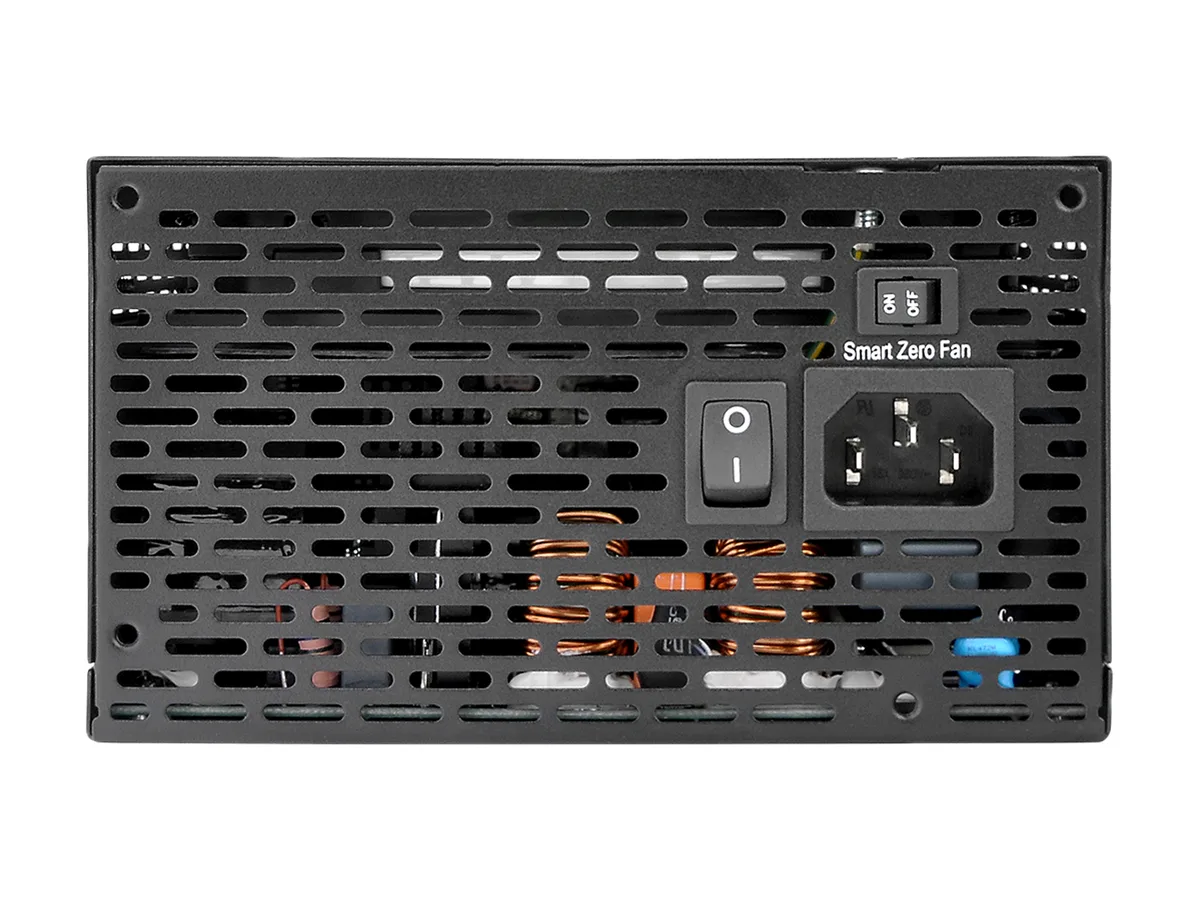

A 160 mm chassis fits most mid-tower cases while the full-modular design lets you connect only the cables required — 20+4-pin main, four PCIe and nine SATA power leads. The 140 mm hydraulic-bearing fan runs silently below 30 percent load thanks to Smart Zero Fan mode, and a rear switch forces constant rotation if preferred. 16AWG wires on CPU and PCIe leads reduce voltage drop under heavy demand.
Highlights
- 80 PLUS Gold certified efficiency reaches 90 percent
- 140 mm hydraulic bearing fan runs only above 30 percent load
- Fully modular design with 16 AWG cables simplifies builds
- 105 °C Japanese capacitors ensure long term stability
- Ripple noise stays below 30 mV across all rails
Specifications
| Brand | Thermaltake |
|---|---|
| Series | Toughpower GF1 - TT Premium Edition |
| Model | PS-TPD-0650FNFAGA-1 |
| Color | Black |
| Type | ATX12V |
| Maximum Power | 650 W |
| Fans | 140mm hydraulic bearing fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 9 |
| SLI | SLI Ready |
| CrossFire | CrossFire Ready |
| Max PSU Length | 160 mm |
| Modular | Full Modular |
| Power Good Signal | 100-500ms |
| Hold-up Time | > 16msec at 100% of full load |
| Energy-Efficient | 80 PLUS GOLD Certified |
| PSU Noise Level | Cybenetics Standard ++ |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10A |
| Output | +3.3V@22A, +5V@22A, [email protected] , [email protected] , +5VSB@3A |
| MTBF | >120,000 Hours |
| Approvals | CE / cTUVus / TÜV SÜD / FCC / BSMI / EAC |
| Connectors | 1 x 24-pin Main Power 1 x 4+4-pin ATX 12V 4 x PCI-E (6+2 pin) 9 x SATA 4 x Peripheral 1 x Floppy |
| Features | Toughpower GF1 650W - TT Premium Edition Zero Cable Platform Ultra Quiet 140mm Hydraulic Bearing Fan <30mV Low Ripple Noise Extremely Strict Voltage Regulation <+/-2% Fully Modular Low-Profile Flat Cable Premium Japanese 105°C/221°F Capacitors High Amperage Single +12V Rail 80 PLUS Gold Certified and Intel C6/C7 States Ready |
| Dimensions | 3.39" x 5.91" x 6.30" |
| Weight | 6.4 |
| Shipping weight | 2.98 kg |
| Package size | 323 × 231 × 160 mm |
Questions about this item
What does the 650 W rating mean once the unit is installed in a system?
The 650 W rating is the maximum continuous power the supply can deliver to all components combined, so the total draw of CPU, graphics cards, drives and peripherals must stay below that figure.
How does the 80 PLUS Gold certification affect real-world efficiency?
80 PLUS Gold guarantees at least 90 % efficiency at typical loads, meaning less waste heat and lower electricity draw compared with lower-rated units.
What clearance is needed for the 160 mm length and 140 mm fan?
The chassis must provide at least 160 mm of depth for the PSU body and unobstructed airflow for the 140 mm hydraulic-bearing fan.
