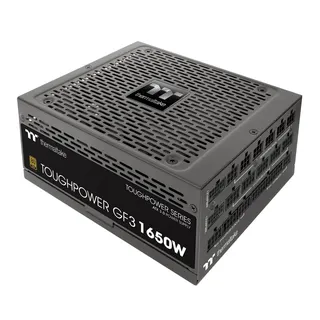

Rectangular black PSU unit with 140mm fan grille and modular cable sockets

Thermaltake

Thermaltake Toughpower GF3 1650W power supply PS-TPD-1650FNFAGU-4

SKU CH-2DHB-YEW7D MPN PS-TPD-1650FNFAGU-4

ATX 3.0 compatible 1650W fully modular unit with native 12VHPWR connector delivering 600W for PCIe 5.0 graphics cards, 80 Plus Gold efficiency, 140mm hydraulic bearing fan and 16 SATA connectors

  • TypeATX / ATX 3.0 Compatible / ATX12V
  • Maximum Power1650 W

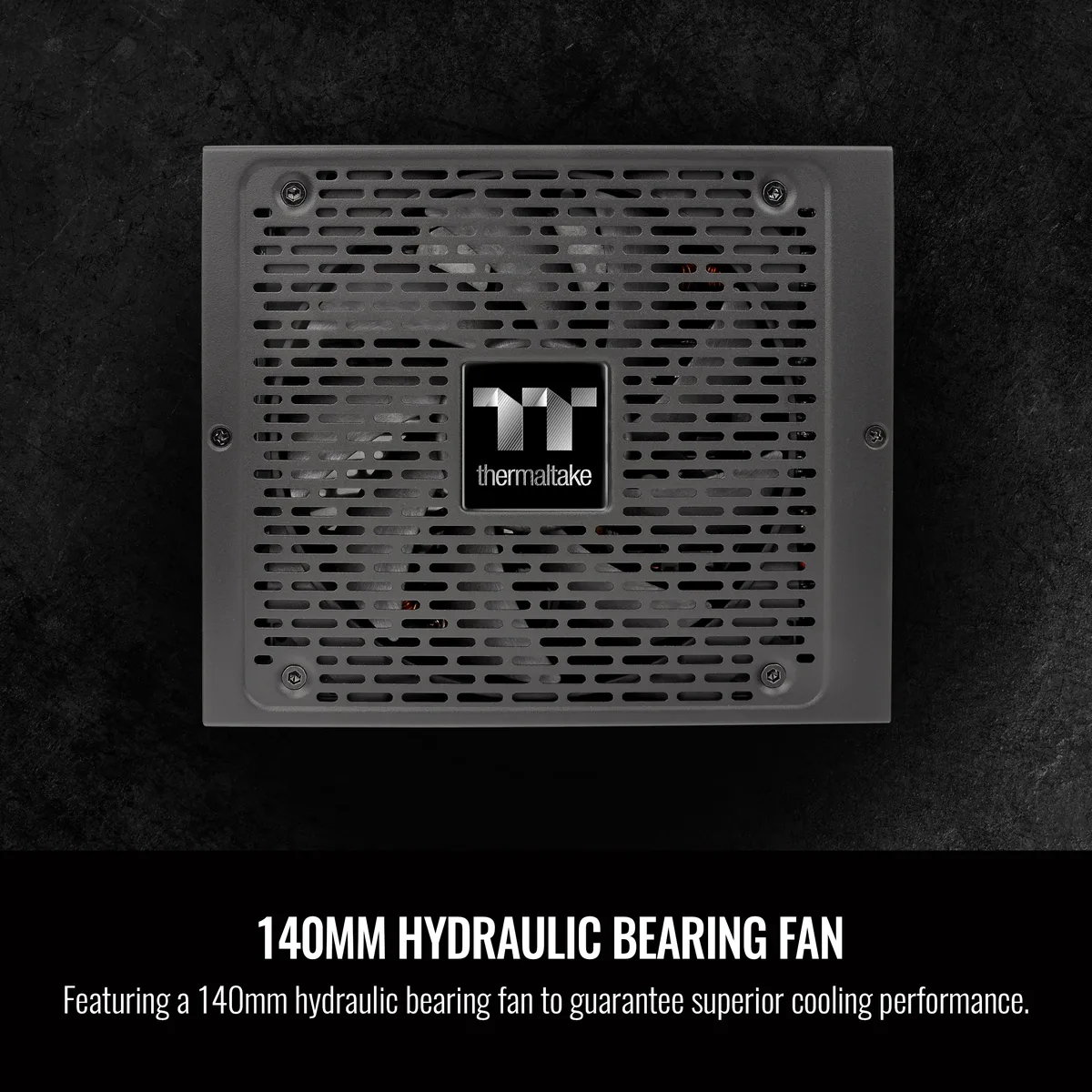

  • Fans140mm Hydraulic Bearing Fan
  • PFCActive
  • Main Connector24Pin
  • +12V RailsSingle

Options 1650W

  • Delivers 1650W for high-end builds

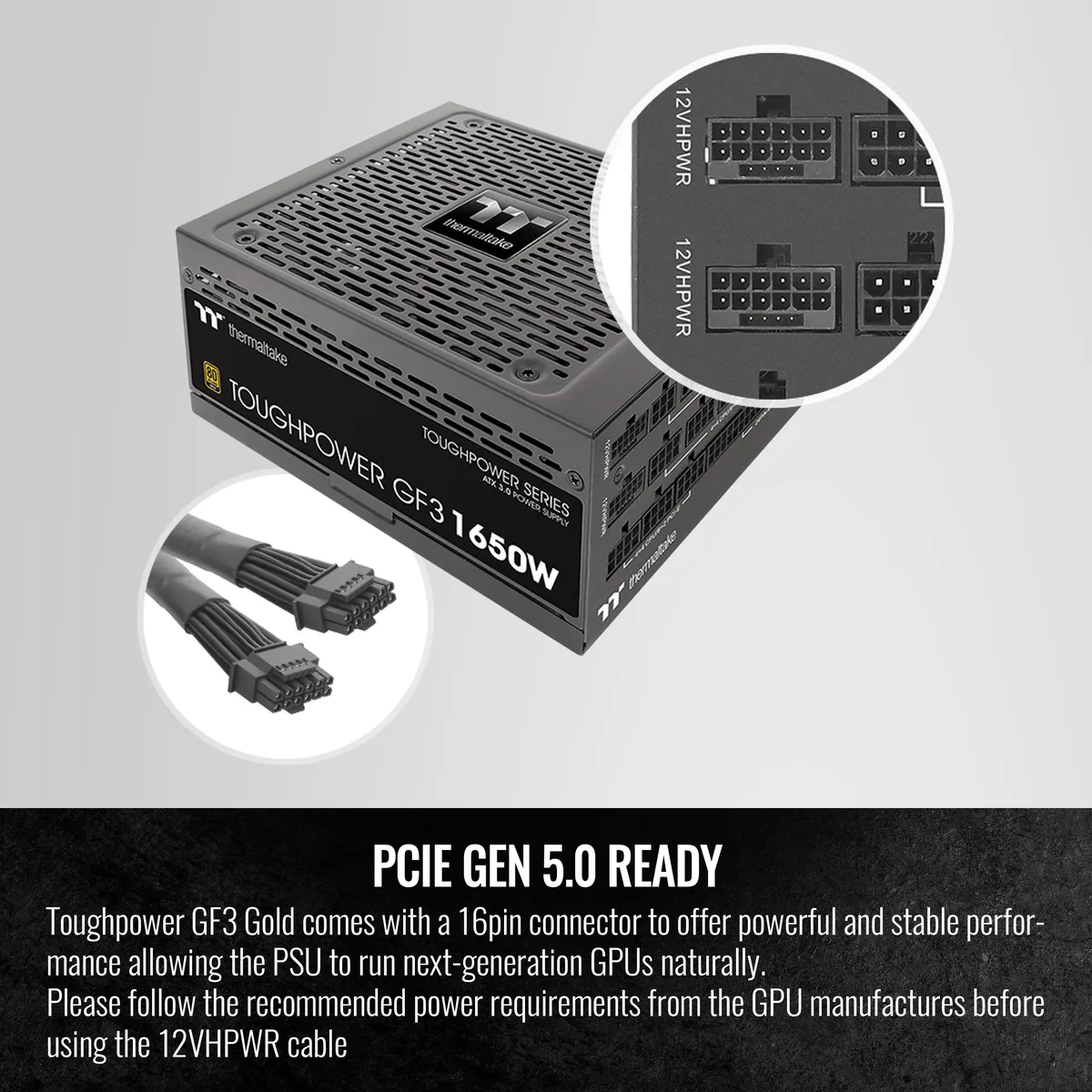

  • Native 12VHPWR connector supplies 600W to PCIe 5.0 graphics cards
  • 80 Plus Gold efficiency reduces wasted energy

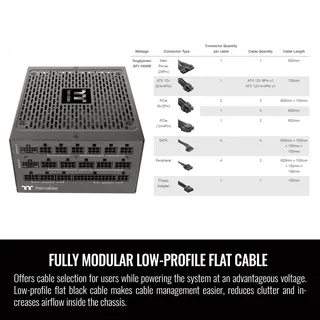

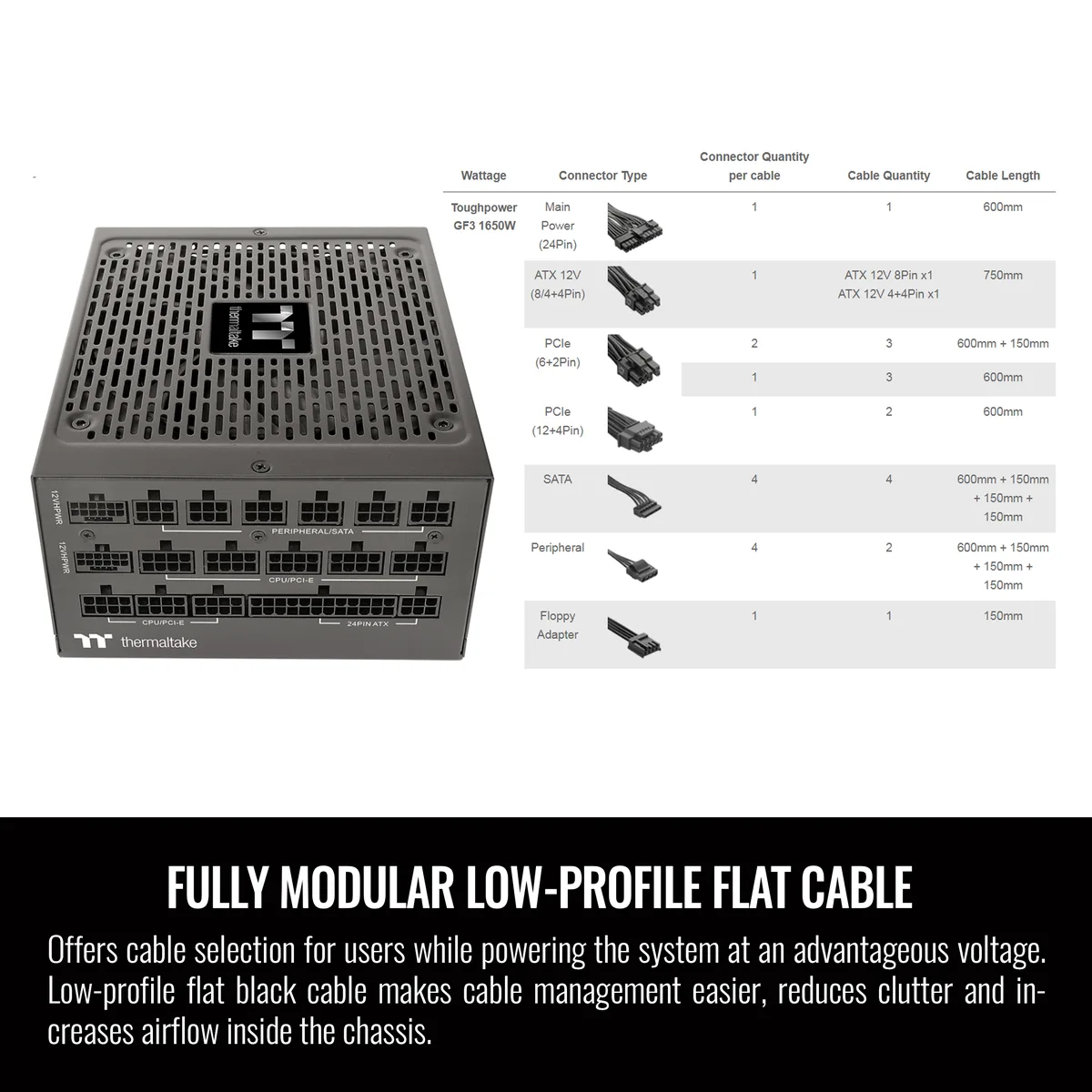

  • Fully modular cables simplify installation

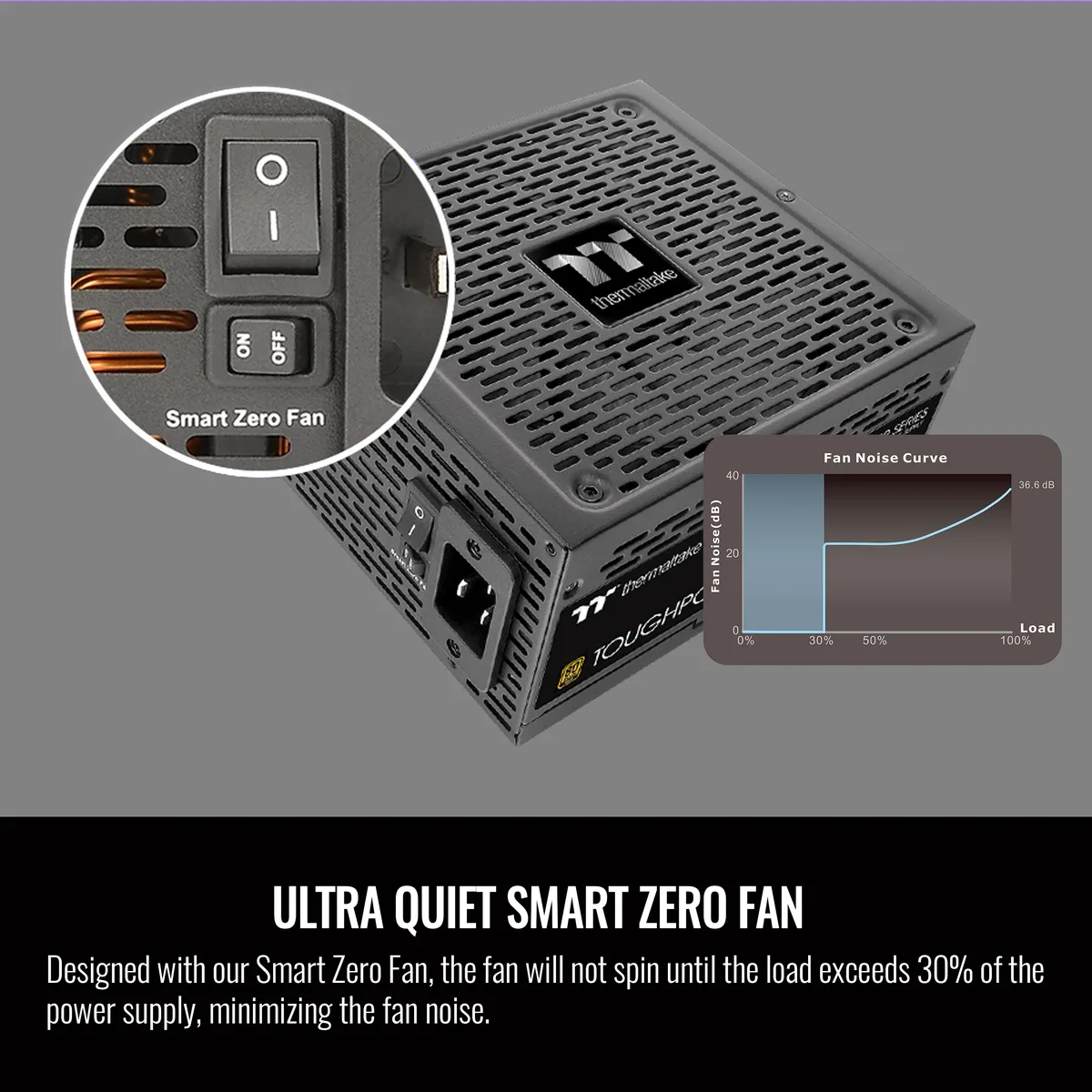

  • 140mm hydraulic bearing fan provides quiet cooling

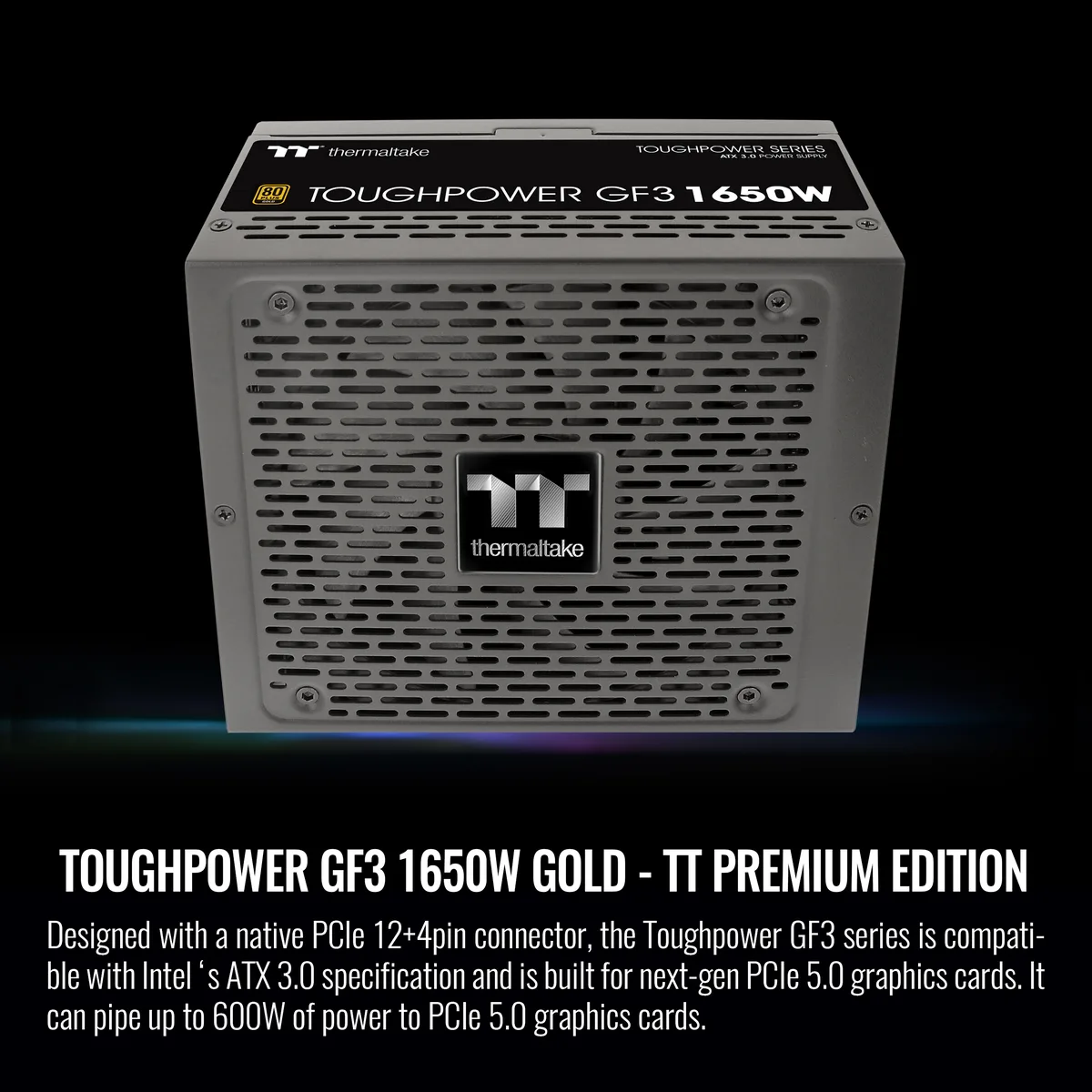

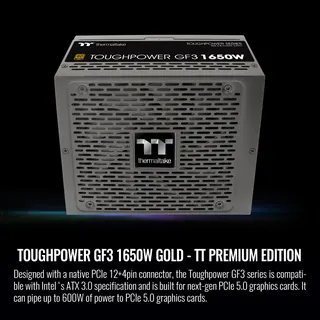

Thermaltake Toughpower GF3 1650W ATX 3.0 PSU

This 1650W fully modular power supply meets the ATX 3.0 specification and includes two native 12VHPWR connectors rated for 600W each. It delivers 80 Plus Gold efficiency with a single +12V rail and 100% Japanese capacitors. A 140mm hydraulic bearing fan provides cooling. The unit measures 180mm in length.

Check ATX 3.0 compatibility

Verify that your motherboard and chassis support the ATX 3.0 form factor and 180mm depth before ordering. Ensure the 24-pin main connector and both 12VHPWR cables reach your graphics card and board without strain. Confirm your wall outlet supplies 100-240V at 50-60Hz. The unit provides sixteen SATA power connectors for drives.

Suits high-end multi-GPU builds needing 600W per

This PSU targets enthusiasts running PCIe 5.0 graphics cards that demand dual 600W 12VHPWR connections. It also fits workstations requiring 1650W continuous output with full modular cabling. Builders with smaller cases, lower-wattage GPUs, or no need for ATX 3.0 power excursion handling should consider a lower-capacity unit.

Highlights

  • Delivers 1650W for high-end builds
  • Native 12VHPWR connector supplies 600W to PCIe 5.0 graphics cards
  • 80 Plus Gold efficiency reduces wasted energy
  • Fully modular cables simplify installation
  • 140mm hydraulic bearing fan provides quiet cooling

Specifications

BrandThermaltake
SeriesToughpower GF3 Series
ModelPS-TPD-1650FNFAGU-4
TypeATX / ATX 3.0 Compatible / ATX12V
Maximum Power1650 W
Fans140mm Hydraulic Bearing Fan
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector12VHPWR Support Wattage: 600W
SATA Power Connector16
Haswell SupportYes
Max PSU Length180 mm
ModularFull Modular
Power Good Signal100-500ms
Input Voltage100 - 240 V
Input Frequency Range50Hz - 60Hz
Input Current20 - 16A
Output+3.3V@25A, +5V@25A, [email protected] , [email protected] , +5VSB@3A
ApprovalsCE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/BIS/KCC
Connectors1 x 24 pin ATX / 16 x SATA
Dimensions5.9" x 3.4" x 7.1"
Weight4.72
Shipping weight4.76 kg
Package size338 × 239 × 160 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 12VHPWR connector safely power a PCIe 5.0 graphics card rated for 600 W?

Yes, the native 12VHPWR connector is rated to deliver up to 600 W to a PCIe 5.0 graphics card.

Does the 180 mm length fit in a standard ATX mid-tower case?

At 180 mm long, the unit fits most ATX cases, but you should verify the maximum PSU length your chassis supports.

How many SATA devices can be powered simultaneously?

Sixteen SATA power connectors are provided, allowing up to 16 drives or peripherals to be connected at once.
