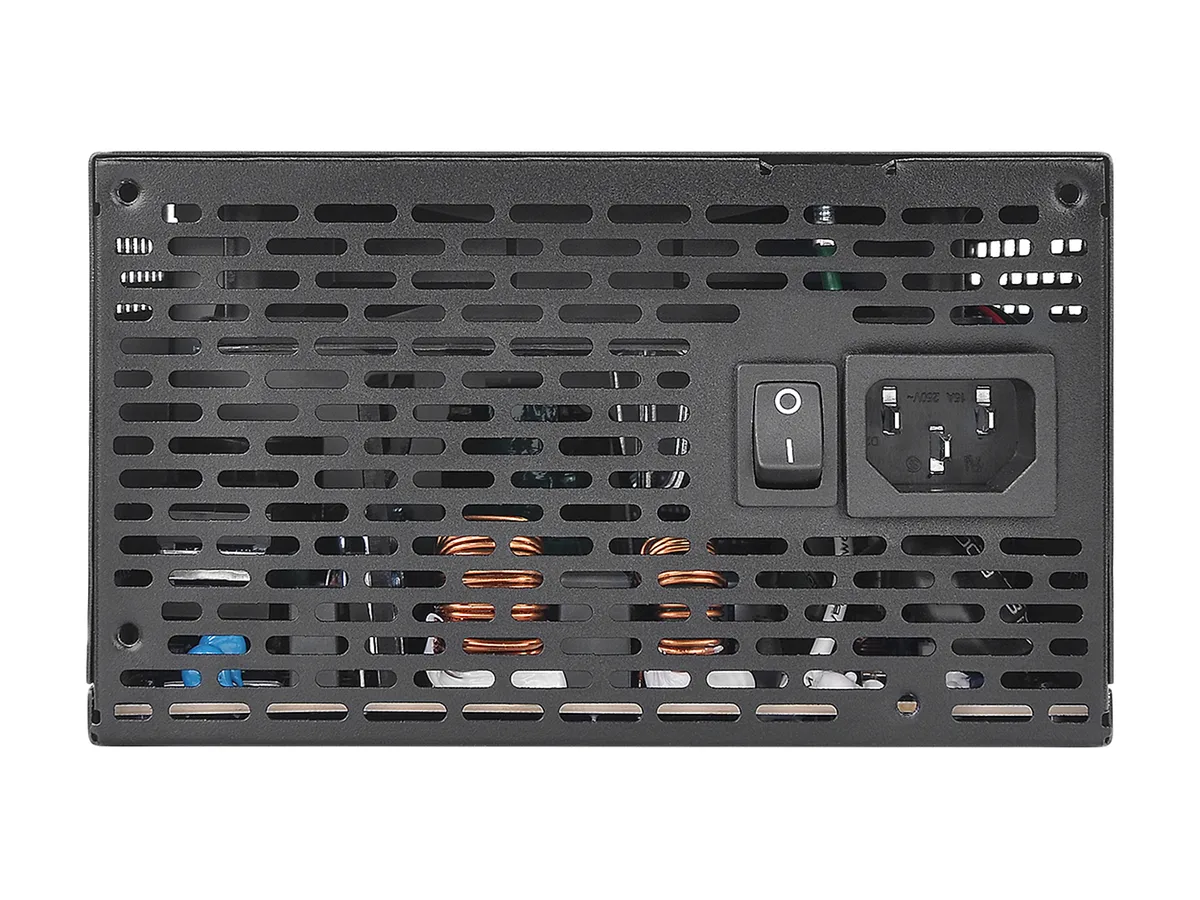

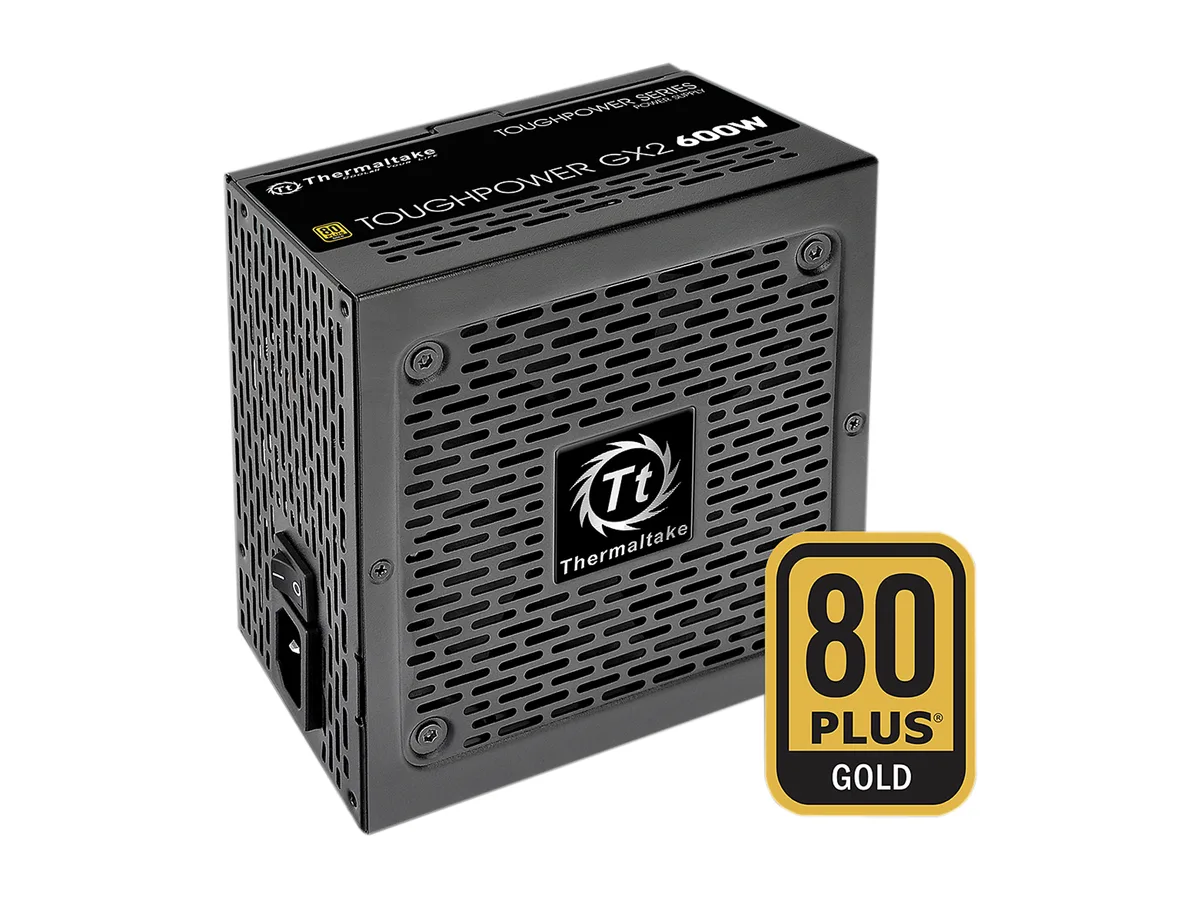

Rectangular black metal ATX power supply unit with fixed cables and a 120mm fan grille

Thermaltake

Thermaltake Toughpower GX2 Gold 600W power supply PS-TPD-0600NNFAGU-2

SKU CH-4TRR-4GZED MPN PS-TPD-0600NNFAGU-2

A 600 W ATX power supply with 80 PLUS Gold efficiency, a single 49 A +12 V rail, two PCIe 6+2-pin connectors and a 120 mm fluid-dynamic-bearing fan

  • TypeIntel ATX 12V v2.3 & EPS 12V
  • Maximum Power600 W
  • Fans1 x 120mm Fluid Dynamic Bearing Fan
  • PFCActive
  • Main Connector24Pin
  • +12V RailsSingle

Options ATX 80+ Gold (600W)

  • 80 PLUS Gold certification delivers over 90% efficiency at typical load
  • Single +12V rail provides 49A for stable GPU and CPU power
  • 120mm fluid dynamic bearing fan reduces noise while maintaining airflow
  • Non-modular design keeps all cables attached for straightforward installation
  • 600W continuous output supports SLI and CrossFire multi-GPU configurations

600 W ATX power supply

The Thermaltake Toughpower GX2 Gold delivers 600 W of continuous power for desktop builds that need reliable 12 V output. It follows Intel ATX 12V v2.3 and EPS 12V standards and carries an 80 PLUS GOLD badge for 90% typical efficiency. A single +12 V rail supplies 49 A and two 6+2-pin PCIe connectors support multi-GPU configurations. Non-modular cabling keeps the unit simple and affordable.

ATX 12V v2.3 and EPS 12V limits

The unit complies with ATX 12V v2.3 and EPS 12V specifications, so it fits standard ATX cases and motherboards. Input voltage ranges from 100 to 240 V at 47 to 63 Hz, allowing worldwide use without a switch. Active PFC corrects the power factor automatically. The 120 mm fluid-dynamic-bearing fan runs quietly while moving enough air for the 600 W rating. Maximum depth is 140 mm, which fits most mid-tower chassis.

Upgrade from lower-efficiency

Replacing an older 80 PLUS Bronze or non-certified supply removes group-regulated rails and adds a single strong +12 V line with full 49 A capacity. The jump is worth it when a build adds a discrete graphics card that needs two PCIe power connectors or when efficiency and lower heat output matter. Five-year coverage and safety approvals including CE, FCC, TUV SUD, CB, EAC and RCM back the change.

Highlights

  • 80 PLUS Gold certification delivers over 90% efficiency at typical load
  • Single +12V rail provides 49A for stable GPU and CPU power
  • 120mm fluid dynamic bearing fan reduces noise while maintaining airflow
  • Non-modular design keeps all cables attached for straightforward installation
  • 600W continuous output supports SLI and CrossFire multi-GPU configurations

Specifications

BrandThermaltake
SeriesToughpower GX2 Gold
ModelPS-TPD-0600NNFAGU-2
TypeIntel ATX 12V v2.3 & EPS 12V
Maximum Power600 W
Fans1 x 120mm Fluid Dynamic Bearing Fan
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector2 x 6+2-Pin
SATA Power Connector6
SLISLI Ready
CrossFireCrossFire Ready
Max PSU Length140 mm
ModularNon-Modular
Efficiency> 90%
Energy-Efficient80 PLUS GOLD Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range47 - 63 Hz
Input Current9A
Output+3.3V@20A, +5V@20A, +12V@49A, [email protected] , [email protected]
MTBF>100,000 Hours
ApprovalsCE / FCC / TUV SUD / CB / EAC / RCM Certified
Connectors1 x 24-pin ATX
1 x 4+4pin EPS
2 x 6+2 PCI-E
6 x SATA
3 x Peripheral
1 x Floppy
FeaturesCompliance with Intel ATX 12V v2.3 & EPS 12V standards
80 PLUS GOLD certified - 90% efficiency under typical load
Single +12V rail Design offers 49A of power and includes (2x) PCI-E 6+2 power connectors
Non modular design with low profile black flat cables
Intel Skylake’s C6/C7 states & ErP ready
Improvements in Ripple Noise and Extremely Strict Voltage Regulation provides exceptional steady clean power
5 year warranty
Dimensions3.39" x 5.91" x 5.51"
Shipping weight2.01 kg
Package size239 × 201 × 122 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Is the 600 W model the right capacity for a single-GPU build?

Yes, the 600 W unit delivers 49 A on the single +12 V rail and includes two 6+2-pin PCIe connectors, which covers most single-GPU configurations.

What does the 80 PLUS Gold badge mean for daily power draw?

The unit runs at 90 % typical efficiency, so less electricity is wasted as heat and the 120 mm fluid-dynamic-bearing fan stays quieter under load.

How does the ATX 12V v2.3 and EPS 12V compliance affect cable fit?

It guarantees the 24-pin main connector, one 4+4-pin EPS cable and standard peripheral leads will mate correctly with current motherboards.
