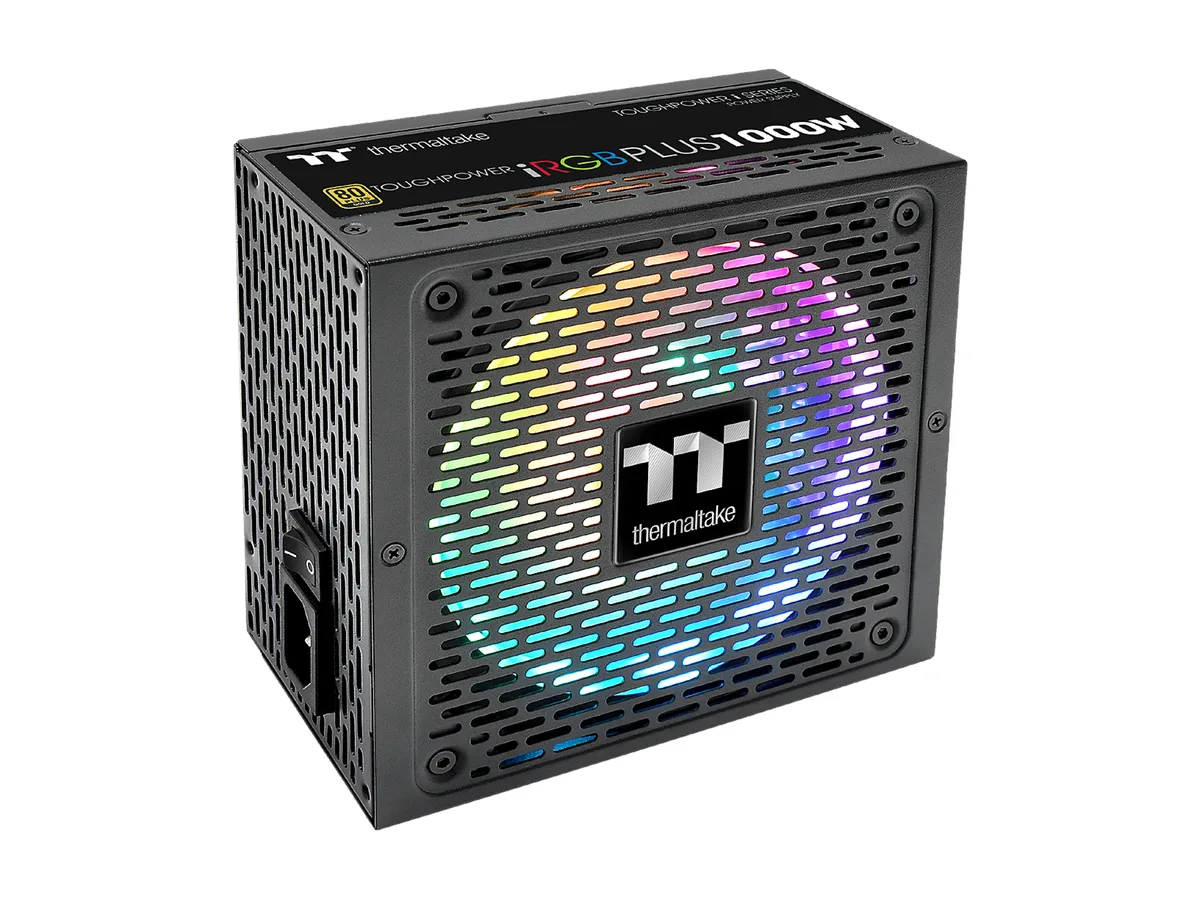

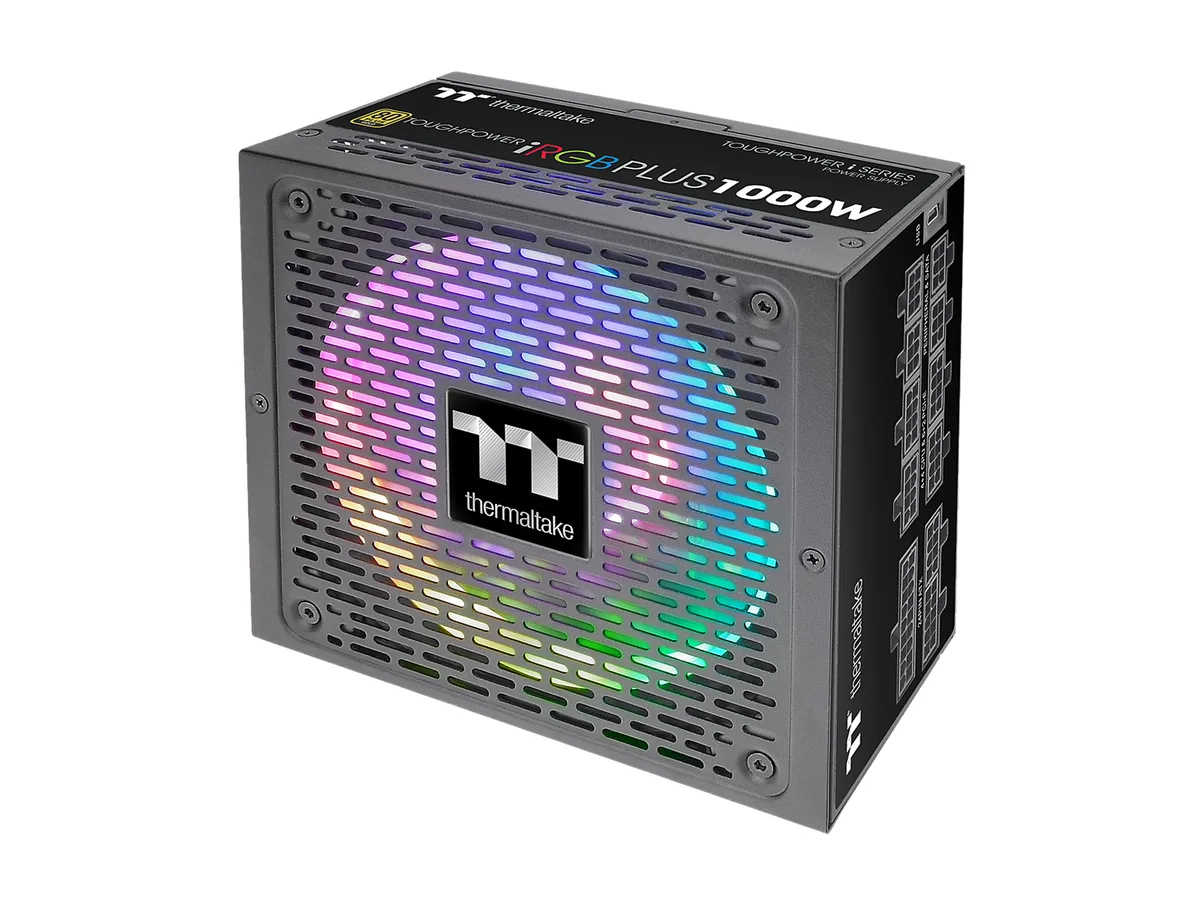

Black ATX power supply with 140mm RGB fan and fully modular cables

Thermaltake

Thermaltake Toughpower iRGB PLUS 1000W Gold PS-TPI-1000F3FDGU-1 power supply

SKU CH-QMTE-SGQ5P MPN PS-TPI-1000F3FDGU-1

Delivers 1000 W through a fully modular design with a 140 mm hydraulic fan and 18 addressable RGB LEDs, 80 PLUS Gold certified for high efficiency

  • TypeATX 12V v2.4 and EPS v2.92
  • Maximum Power1000 W
  • Fans140mm hydraulic bearing fan
  • Fan LEDRGB
  • PFCActive
  • Main Connector20+4Pin

Options ATX 80+ Gold (1000W)

  • 1000 W continuous power for demanding builds
  • 80 PLUS Gold certified efficiency reduces waste heat
  • Fully modular cabling keeps the interior tidy

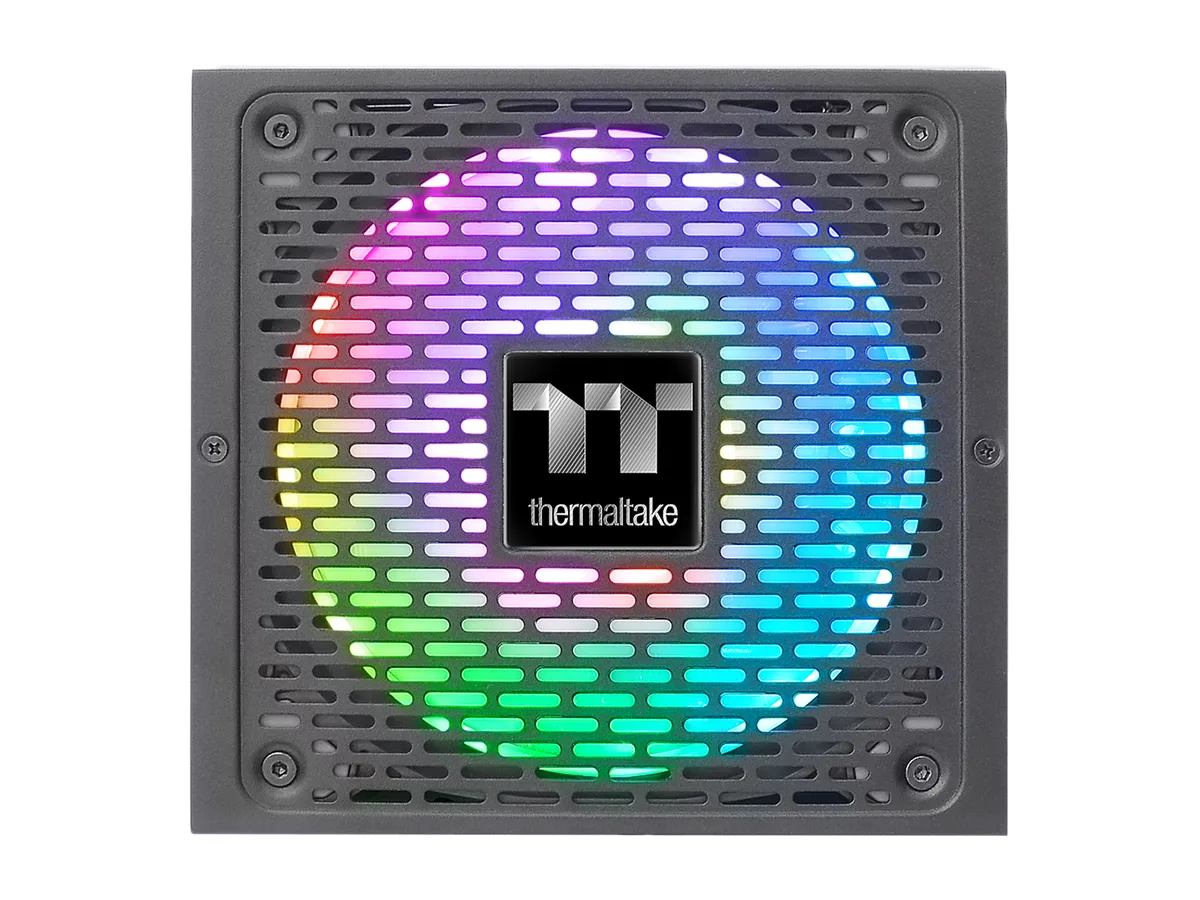

  • 140 mm hydraulic bearing fan with RGB lighting runs quietly
  • Single +12 V rail with 6 PCIe connectors supports multi-GPU setups

1000W Fully Modular PSU

This Thermaltake Toughpower iRGB PLUS unit delivers 1000 W of continuous power with 80 PLUS Gold efficiency. It targets enthusiasts building high-end SLI or CrossFire systems who want digital monitoring and RGB lighting in a single ATX 12V v2.4 and EPS v2.92 compliant package.

Compatibility Checklist

Verify your case accepts a standard ATX form factor power supply and that your motherboard has a 20+4 pin main connector plus an EPS 12V socket. Ensure you have clearance for a 140 mm hydraulic bearing fan and confirm the 100 - 240 V input range matches your local mains supply.

Build Integration

Six 6+2 pin PCI-Express connectors and twelve SATA power plugs support multiple graphics cards and storage drives without cable clutter. The single +12 V rail simplifies load balancing while full modularity lets you attach only the cables you need. TT RGB PLUS software, Alexa and Razer Chroma integration provide addressable lighting control across 18 LEDs on the Riing Duo 14 fan.

Highlights

  • 1000 W continuous power for demanding builds
  • 80 PLUS Gold certified efficiency reduces waste heat
  • Fully modular cabling keeps the interior tidy
  • 140 mm hydraulic bearing fan with RGB lighting runs quietly
  • Single +12 V rail with 6 PCIe connectors supports multi-GPU setups

Specifications

BrandThermaltake
SeriesToughpower iRGB PLUS 1000W Gold - TT Premium Edition
ModelPS-TPI-1000F3FDGU-1
TypeATX 12V v2.4 and EPS v2.92
Maximum Power1000 W
Fans140mm hydraulic bearing fan
Fan LEDRGB
PFCActive
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector6 x 6+2-Pin
SATA Power Connector12
SLISLI Ready
CrossFireCrossFire Ready
ModularFull Modular
Power Good Signal100-500ms
Hold-up Time> 16msec at 100% of full load
Energy-Efficient80 PLUS GOLD Certified
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current13A

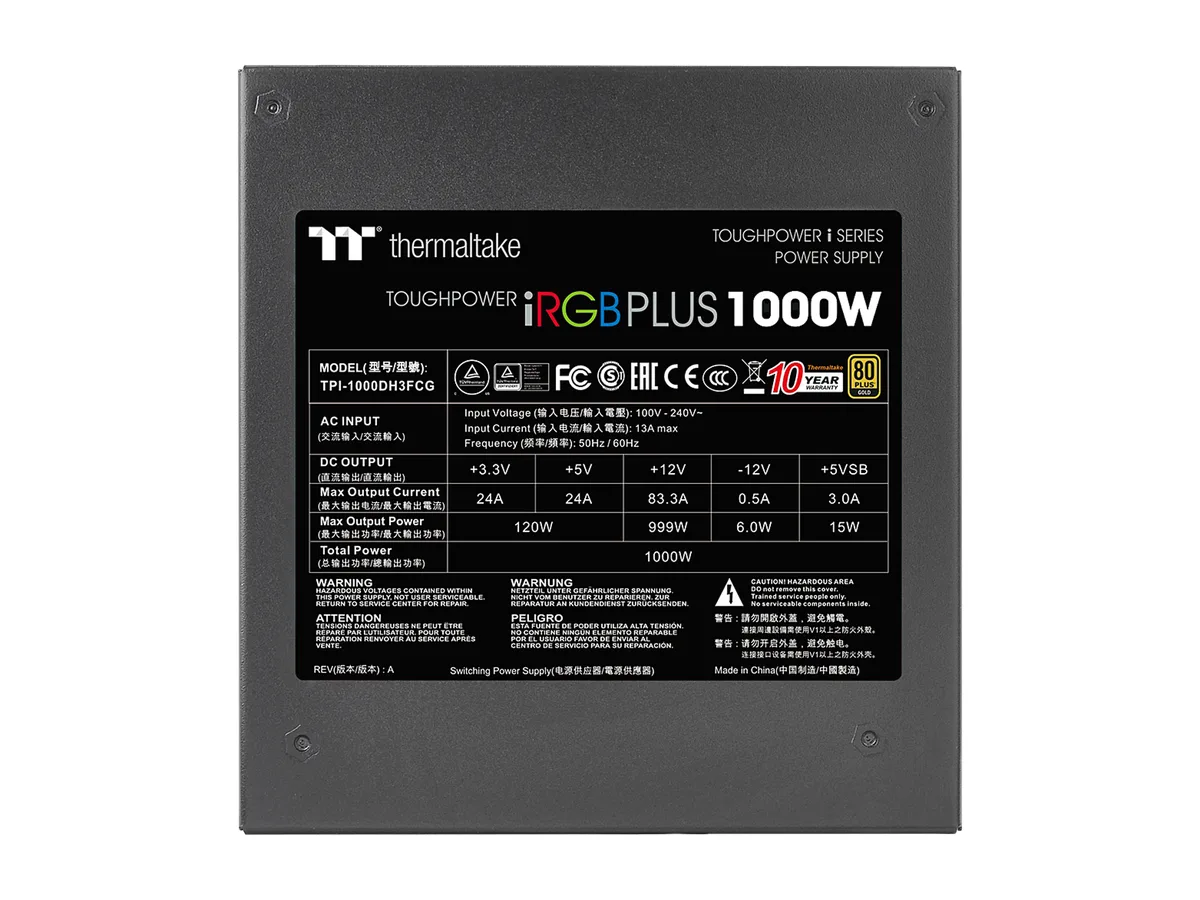

Output+3.3V@24A, +5V@24A, [email protected] , [email protected] , +5VSB@3A
MTBF>120,000 Hours
ApprovalsCE / cTUVus / TUV / FCC / EAC / S-Mark
Connectors1 x 24-pin Main Power
2 x 4+4-pin ATX 12V
12 x SATA
6 x PCI-E (6+2 pin)
4 x Peripheral
1 x Floppy
FeaturesToughpower iRGB PLUS 1000W Gold - TT Premium Edition
Smart Power Management (SPM)
DPS G PC APP for Digital PSU
Real-Time PSU Status Monitoring
Intuitive RGB Lighting Control
Works with Razer Chroma
Works with Amazon Alexa
Real-Time CPU/RAM/Multi-VGA Status
Smart Zero Fan
Built-in 16.8 Million Color Riing Duo 14 RGB Fan
<30 mV Low Ripple Noise
Extremely Strict Voltage Regulation <+/-2%
100% High Quality Japanese 105°C/221°F Capacitors
Fully Modular Cable Design
High Amperage Single +12V Rail & DC to DC Design
80 PLUS Gold Certified and Intel C6/C7 States Ready
Dimensions3.39" x 5.91" x 6.30"
Shipping weight3.65 kg
Package size323 × 236 × 157 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 1000 W output handle a dual-GPU build with room for overclocking?

The single +12 V rail delivers the full 1000 W and the unit is rated SLI Ready and CrossFire Ready, so it can power two high-end graphics cards simultaneously.

Do I need to buy extra cables for a motherboard with both 20+4-pin and 8-pin EPS connectors?

No, the fully modular design includes a 20+4-pin main connector and an 8-pin EPS cable in the box, so both motherboard power sockets are covered.

Can I sync the 140 mm RGB fan lighting with my motherboard RGB software?

The fan uses Thermaltake's TT RGB PLUS ecosystem and works with Amazon Alexa and Razer Chroma; motherboard sync is supported only if your board software integrates with those platforms.
