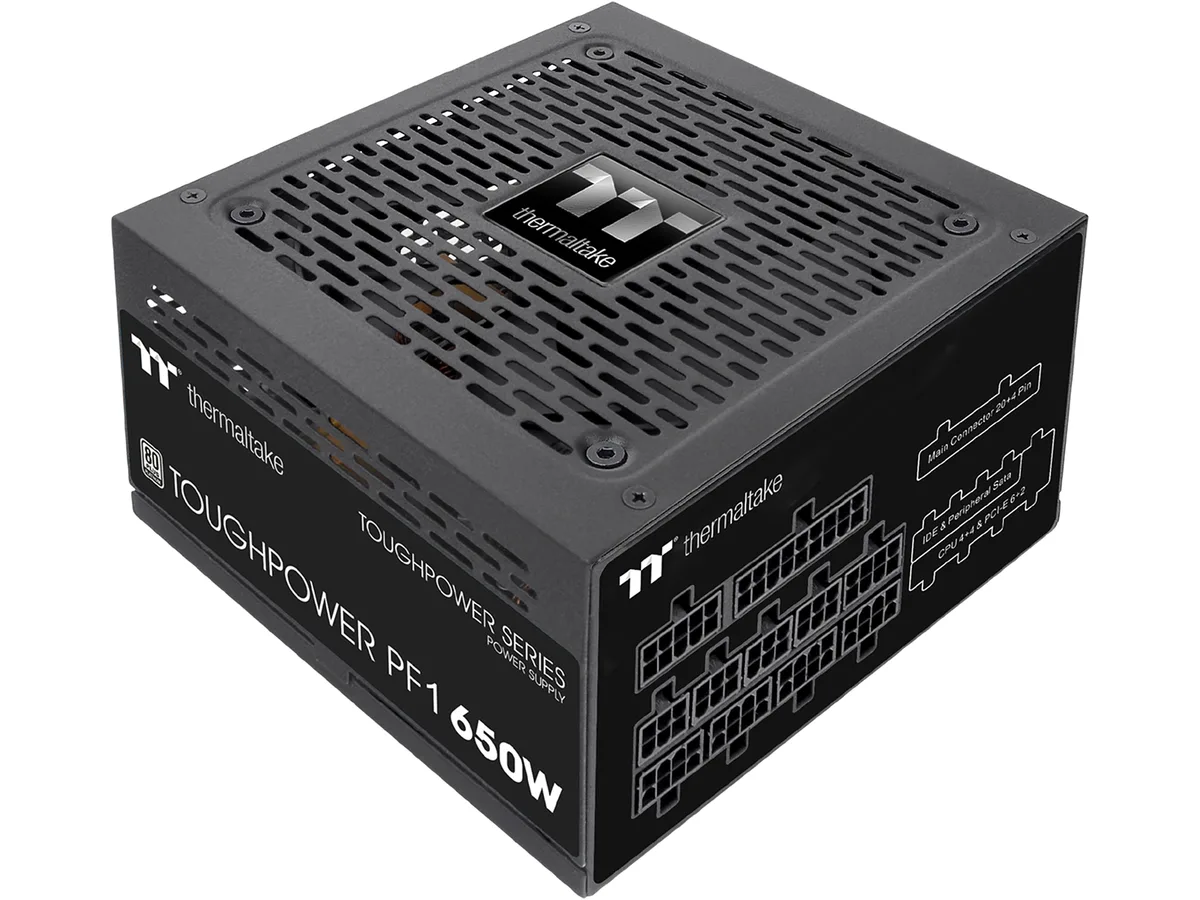

Black rectangular ATX power supply, 140mm deep, fully modular with flat cables, 120mm hydraulic fan visible

Thermaltake

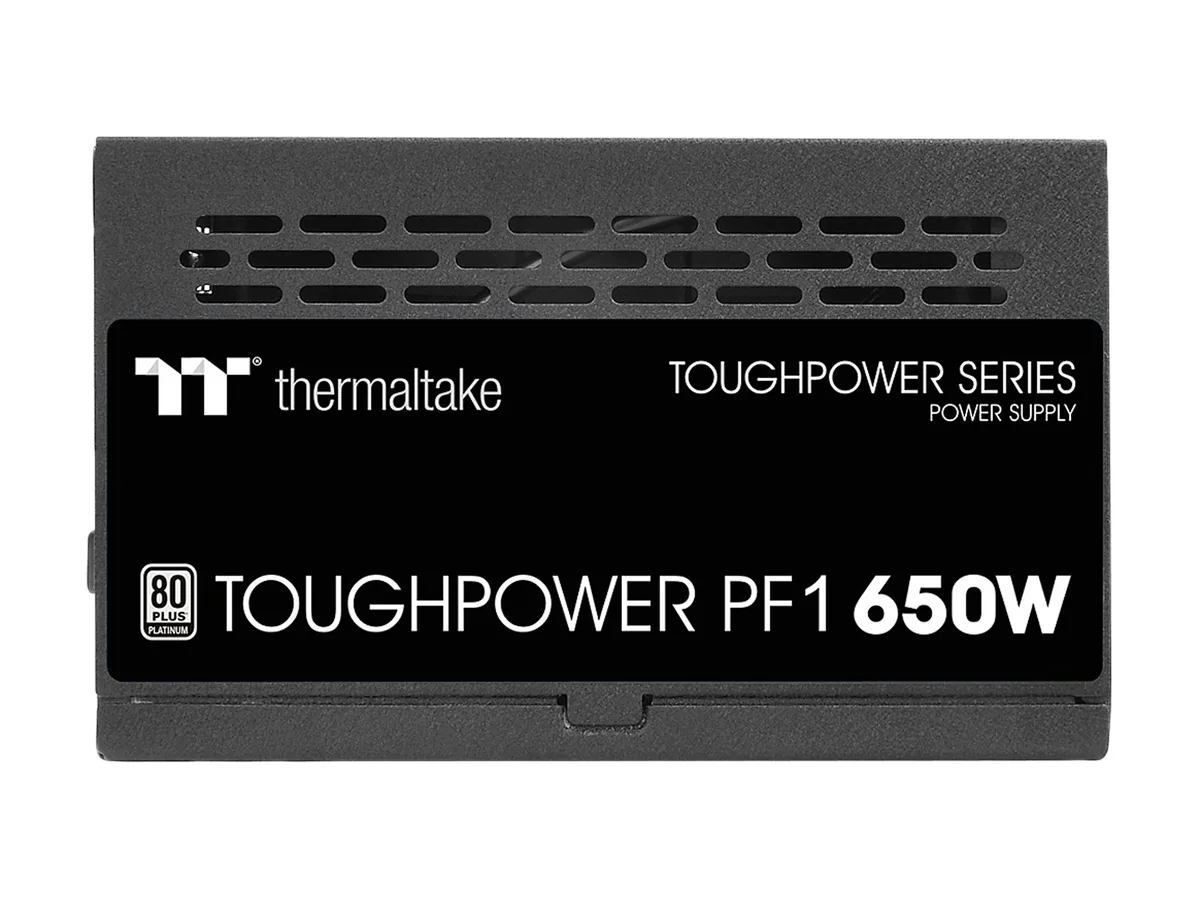

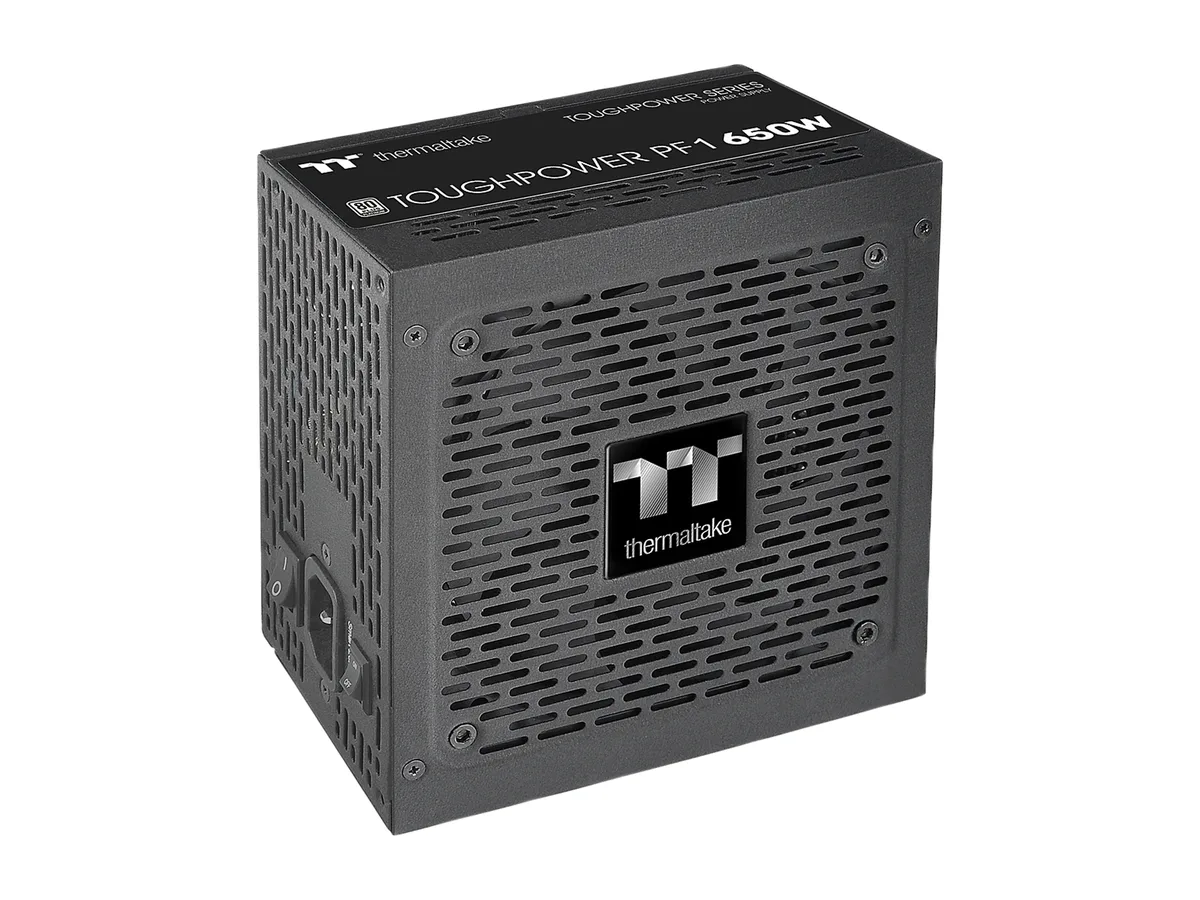

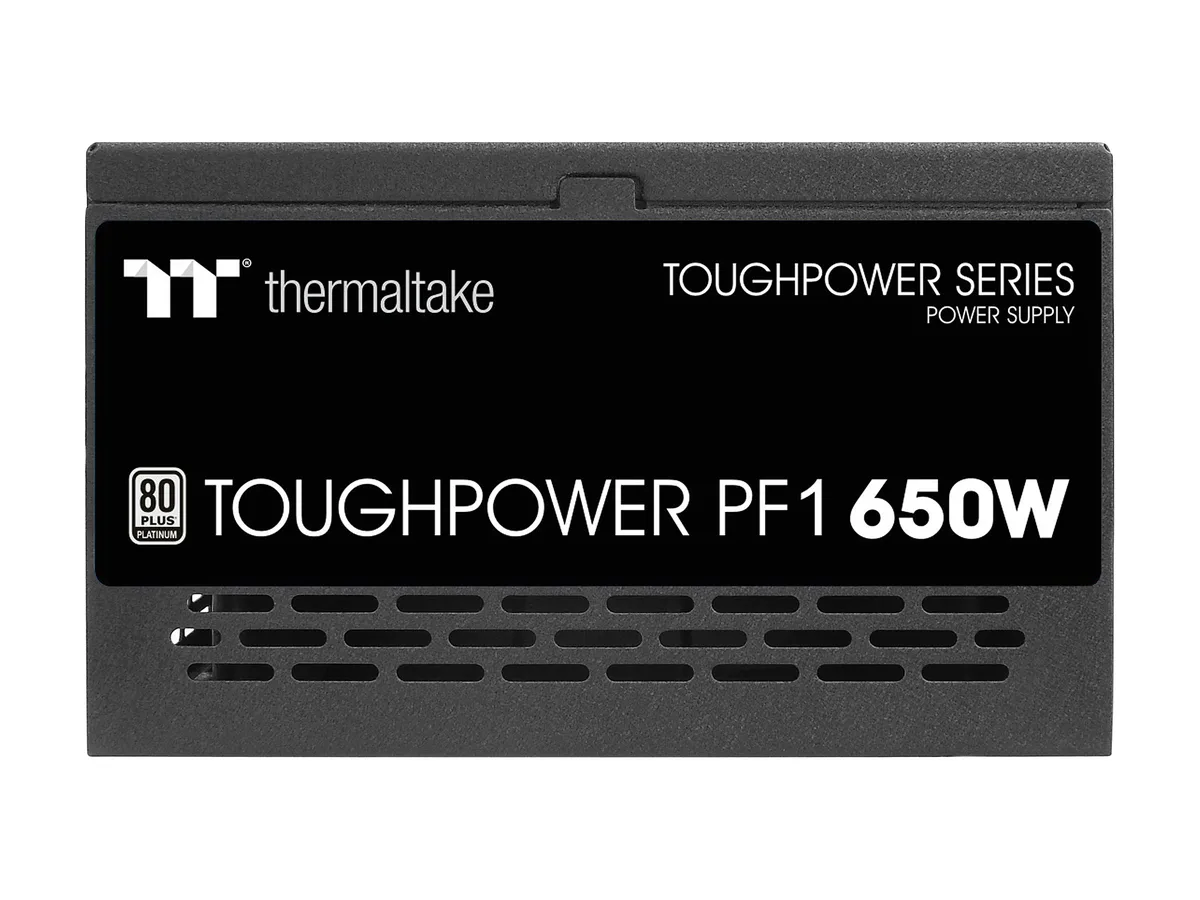

Thermaltake Toughpower PF1 650W 80+ Platinum 140mm Full Modular PS-TPD-0650FNFAPU-1

SKU CH-J4VS-R0X3P MPN PS-TPD-0650FNFAPU-1

A 650 W fully modular ATX power supply with 80 PLUS Platinum efficiency, a 120 mm hydraulic-bearing fan, compact 140 mm depth and Japanese 105 °C capacitors

  • TypeATX12V / EPS12V
  • Maximum Power650 W
  • Fans120mm Hydraulic Bearing Fan
  • PFCActive
  • Main Connector24Pin
  • +12V RailsSingle
  • 80 PLUS Platinum efficiency up to 92%
  • Compact 140mm depth fits smaller cases
  • Fully modular flat black cables simplify routing
  • 120mm hydraulic bearing fan runs ultra quiet
  • Japanese 105°C capacitors ensure long life

650W Platinum Fully Modular PSU

The Thermaltake Toughpower PF1 delivers 650 W of continuous power from a single +12 V rail with 80 PLUS Platinum efficiency. Its 140 mm depth fits compact ATX cases while the fully modular design reduces cable clutter for system builders who value clean airflow.

Sustained Load Behaviour

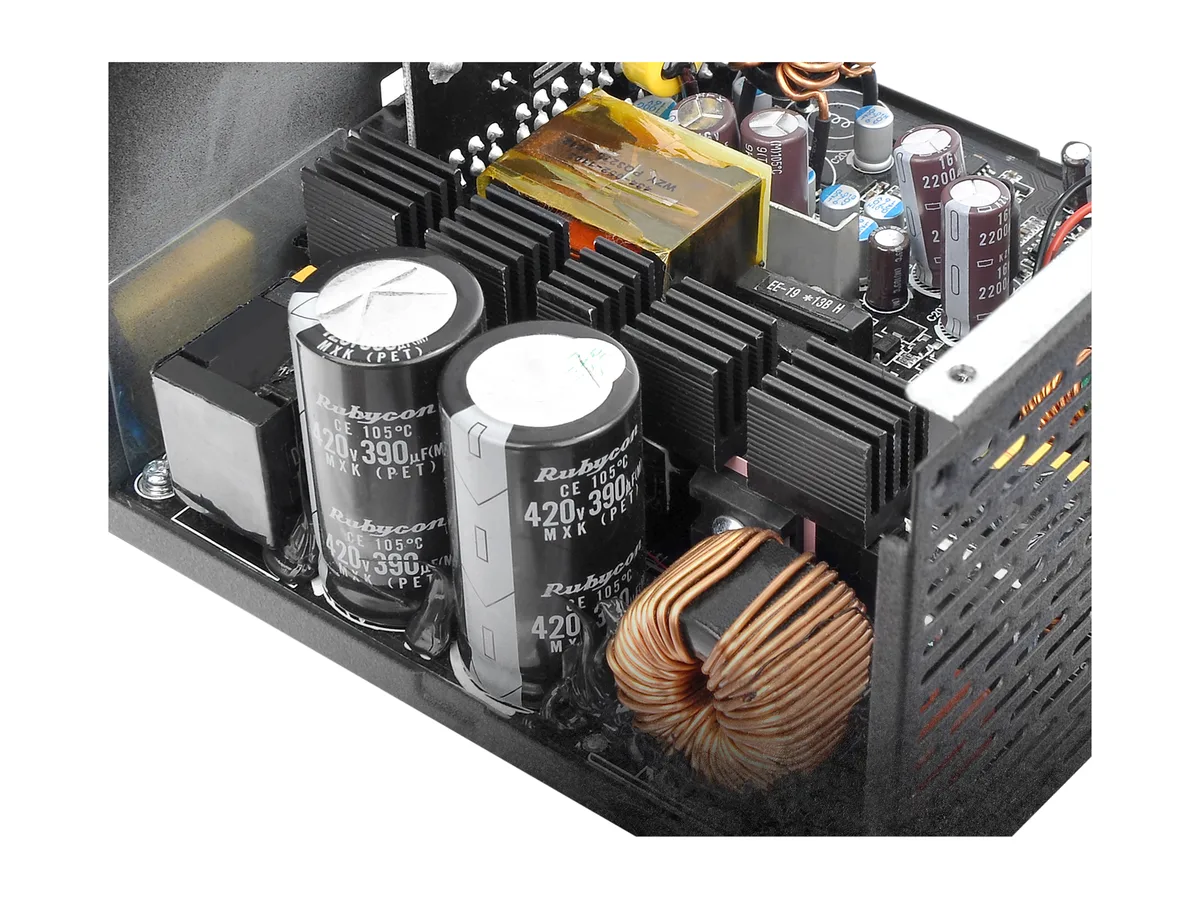

Japanese 105°C capacitors and a DC-to-DC topology keep voltage regulation within ±2 % and ripple below 30 mV during extended operation. The 120 mm hydraulic-bearing fan runs in a smart zero-fan mode at low load and spins up only when thermal sensors demand it, maintaining Cybenetics A noise performance under full load.

Upgrade Path

Replaces older group-regulated or bronze-rated units that struggle with modern GPU transient spikes. The jump is worthwhile when a build needs Platinum-class efficiency, a single high-amperage rail for stable 12 V delivery, and a 140 mm form factor that frees space for longer graphics cards or custom liquid-cooling loops.

Highlights

  • 80 PLUS Platinum efficiency up to 92%
  • Compact 140mm depth fits smaller cases
  • Fully modular flat black cables simplify routing
  • 120mm hydraulic bearing fan runs ultra quiet
  • Japanese 105°C capacitors ensure long life

Specifications

BrandThermaltake
SeriesToughpower PF1 650W
ModelPS-TPD-0650FNFAPU-1
TypeATX12V / EPS12V
Maximum Power650 W
Fans120mm Hydraulic Bearing Fan
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector4 x 6+2-Pin
SATA Power Connector9
Max PSU Length140 mm
ModularFull Modular
Power Good Signal100-500ms
Hold-up Time> 16msec at 100% of full load
Energy-Efficient80 PLUS PLATINUM Certified
PSU Noise LevelCybenetics A
ProtectionOCP, OVP, UVP, OPP, SCP, OTP
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current10A
Output+3.3V@20A, +5V@20A, +12V@54A, [email protected] , [email protected]
MTBF>120,000 Hours
ApprovalsCE / UL / TÜV / FCC / BSMI / CCC / EAC certifications
Connectors1 xMain Power Connector (24pin)
2 x ATX 12V / EPS 12V (4+4pin)
9 x SATA (5pin)
4 x PCI-E (6+2pin)
4 x Peripheral (4pin)
1 x Floppy
Features80 Plus Platinum Certified
Compact 140mm Depth Design
Fully modular low-profile flat black cables
100% high quality Japanese 105°C/221°F capacitors
High amperage single +12V rail & DC to DC design
<30mV low ripple noise design
Extremely strict voltage regulation <+/-2%
Intel C6/C7 States & ERP ready
Warranty: 10 Years
Dimensions3.39" x 5.91" x 5.51"
Shipping weight2.77 kg
Package size320 × 221 × 135 mm

Questions about this item

Will this 650 W unit fit in a case that only accepts 140 mm deep power supplies?

Yes, the chassis is exactly 140 mm deep, so it matches the maximum length allowed by your case.

Can I run two graphics cards that each need two 6+2 pin connectors?

The PSU provides four 6+2 pin PCIe connectors, which is enough for two cards requiring two each.

What protections are built in to shut the unit down if something goes wrong?

It includes over-current, over-voltage, under-voltage, over-power, short-circuit and over-temperature protection.
