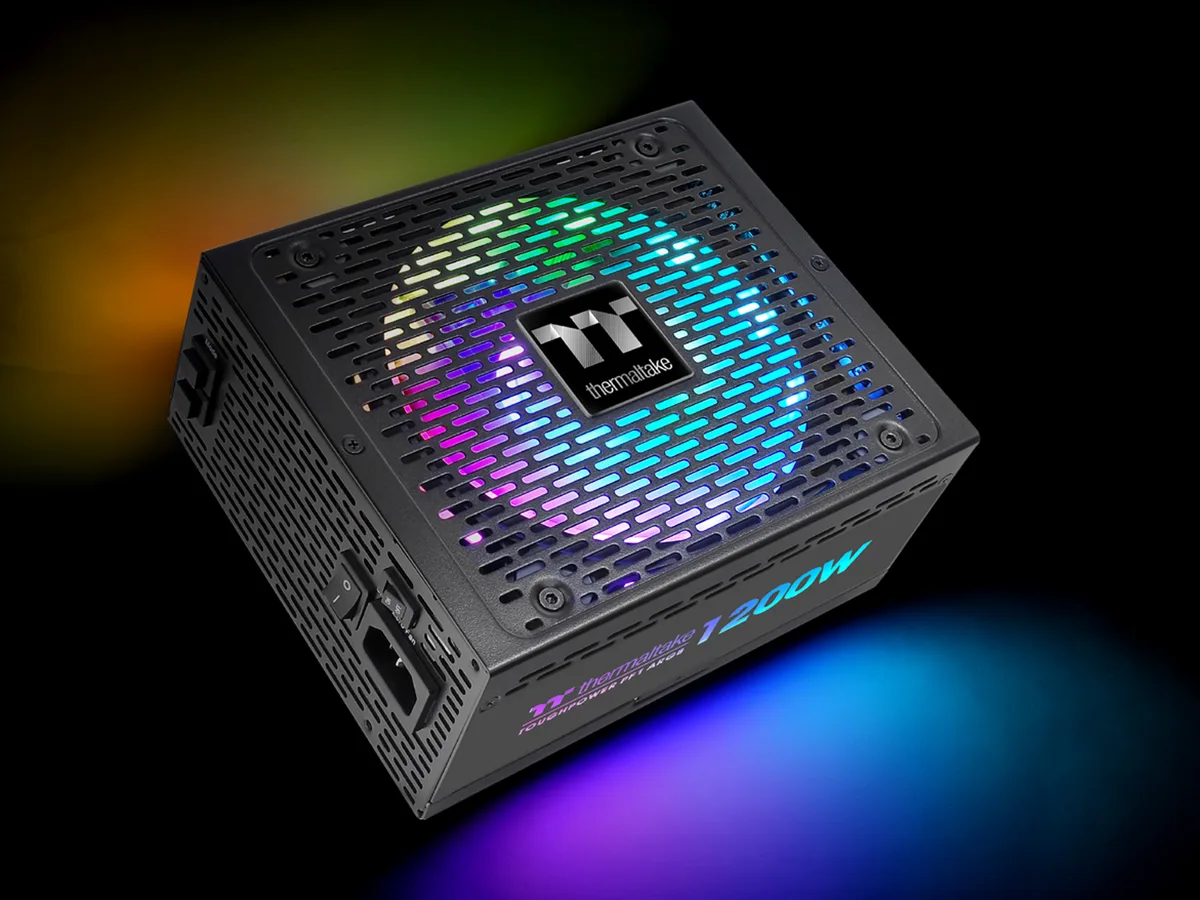

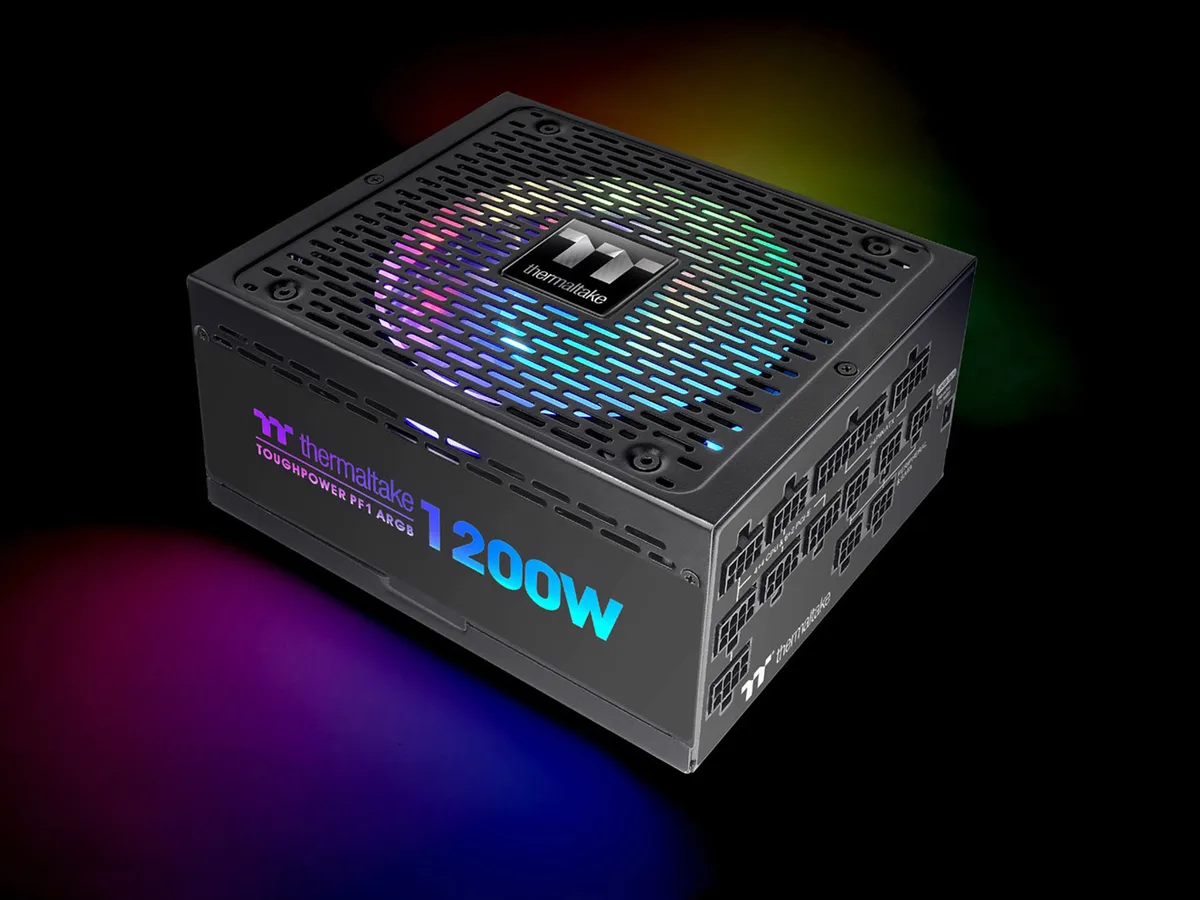

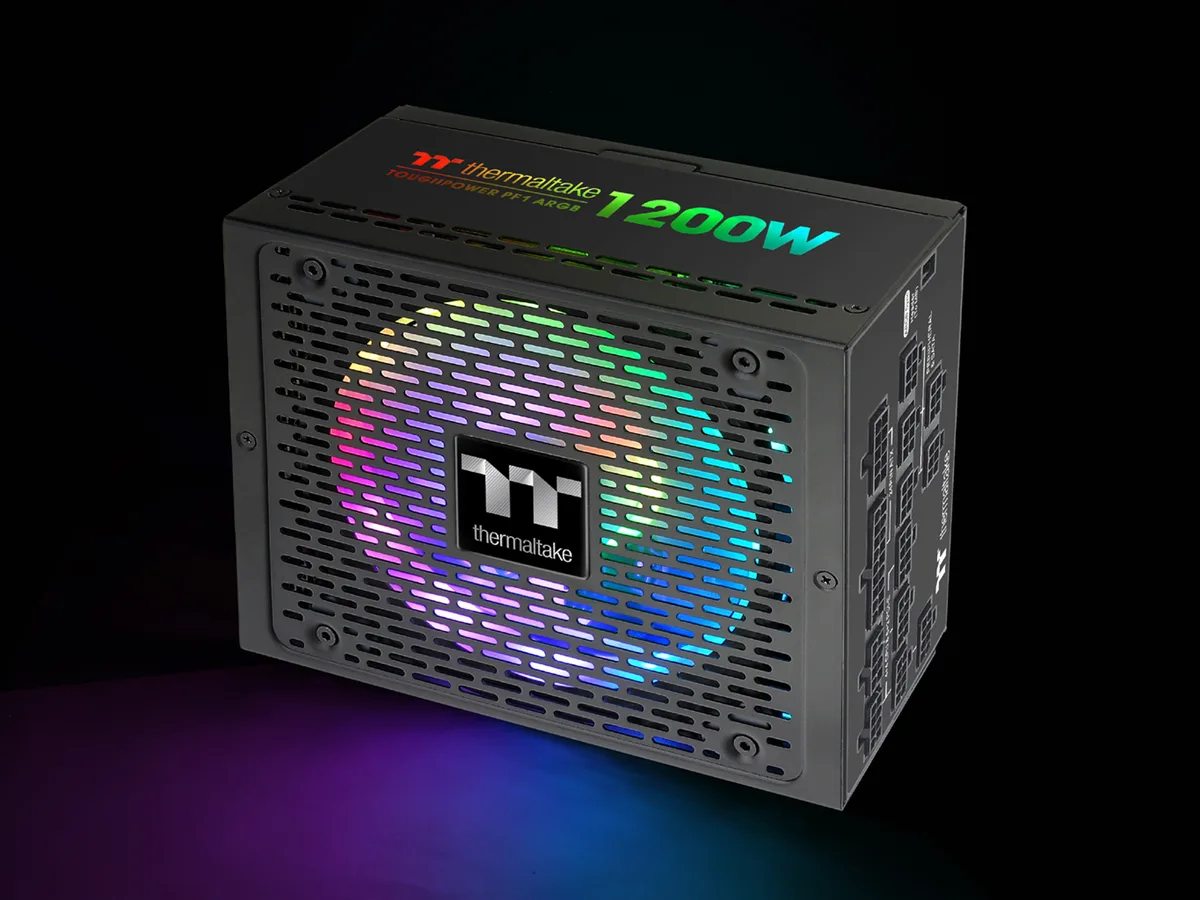

Rectangular ATX PSU with matte black finish and a 140 mm ARGB fan on the rear grille

Thermaltake

Thermaltake Toughpower PF1 ARGB 1200W Platinum Power Supply PS-TPD-1200F3FAPU-1

SKU CH-BCRG-QVH69 MPN PS-TPD-1200F3FAPU-1

Delivers 1200 W through a fully modular ATX design with 80 Plus Platinum efficiency, a 140 mm hydraulic-bearing fan with 18 addressable LEDs.

  • TypeATX12V
  • Maximum Power1200 W
  • Fans1 x 140mm RGB Hydraulic Bearing Fan
  • Fan LEDARGB
  • PFCActive
  • Main Connector24Pin

Options ATX 80+ Platinum (1200W) ARGB

  • 80 PLUS Platinum efficiency above 92% reduces energy waste
  • 1200 W single +12V rail delivers 100 A for high-end graphics cards
  • Fully modular cabling with six PCIe and twelve SATA connectors simplifies builds
  • 140 mm hydraulic-bearing fan with 18 addressable LEDs syncs via 5 V motherboard control
  • Compact 180 mm depth fits standard ATX cases while meeting Cybenetics Standard+ noise rating

1200 W ATX12V Platinum ARGB

This Thermaltake Toughpower PF1 ARGB unit delivers 1200 W through a single +12 V rail with 80 PLUS Platinum efficiency above 92 percent. A 140 mm hydraulic-bearing fan with 18 addressable LEDs provides ARGB lighting that syncs via 5 V motherboard header. Full modular cabling keeps the build tidy.

High-output builds with ARGB sync

Six 6+2-pin PCIe connectors and twelve SATA power plugs support multi-GPU configurations and dense storage arrays. The 180 mm depth fits most mid-tower and larger cases. Users who need a shorter chassis depth or a non-illuminated unit should consider other models.

Single +12 V rail at 100 A

The entire 1200 W capacity is available on one +12 V rail rated at 100 A, simplifying power distribution for high-end graphics cards and overclocked CPUs. Hold-up time exceeds 16 ms at full load and Cybenetics Standard+ noise certification confirms quiet operation.

Highlights

  • 80 PLUS Platinum efficiency above 92% reduces energy waste
  • 1200 W single +12V rail delivers 100 A for high-end graphics cards
  • Fully modular cabling with six PCIe and twelve SATA connectors simplifies builds
  • 140 mm hydraulic-bearing fan with 18 addressable LEDs syncs via 5 V motherboard control
  • Compact 180 mm depth fits standard ATX cases while meeting Cybenetics Standard+ noise rating

Specifications

BrandThermaltake
SeriesToughpower PF1 ARGB Platinum
ModelPS-TPD-1200F3FAPU-1
TypeATX12V
Maximum Power1200 W
Fans1 x 140mm RGB Hydraulic Bearing Fan
Fan LEDARGB
PFCActive
Main Connector24Pin
+12V RailsSingle
PCI-Express Connector6 x 6+2-Pin
SATA Power Connector12
Max PSU Length180 mm
ModularFull Modular
Power Good Signal100-500ms
Hold-up Time> 16msec at 100% of full load
Efficiency> 92%
Energy-Efficient80 PLUS PLATINUM Certified
PSU Noise LevelCybenetics Standard +
Over Voltage ProtectionYes
Input Voltage100 - 240 V
Input Frequency Range50/60 Hz
Input Current14A
Output+3.3V@25A, +5V@25A, +12V@100A, [email protected] , +5VSB@3A
MTBF>120,000 Hours
ApprovalsCE / cTUVus / TÜV / FCC / BSMI / CCC / EAC / S-Mark
Connectors1 x 24Pin Mian Power
2 x ATX 12V (4+4Pin)
12 x SATA (5Pin)
8 x PCI-E (6+2Pin)
8 x Peripheral (4Pin)
1 x Floppy Adapter
FeaturesThe built-in Riing Duo 14 RGB Fan features dual rings with 18 addressable LEDs, great light coverage, and uniform color and brightness to paint your build with 16.8 million colors.
Show off the glamorous illumination through the unique ARGB Side Panel design and add the Wow factor to you build.
Sync with Motherboard RGB Software

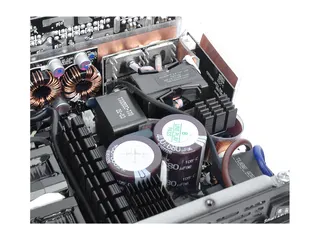

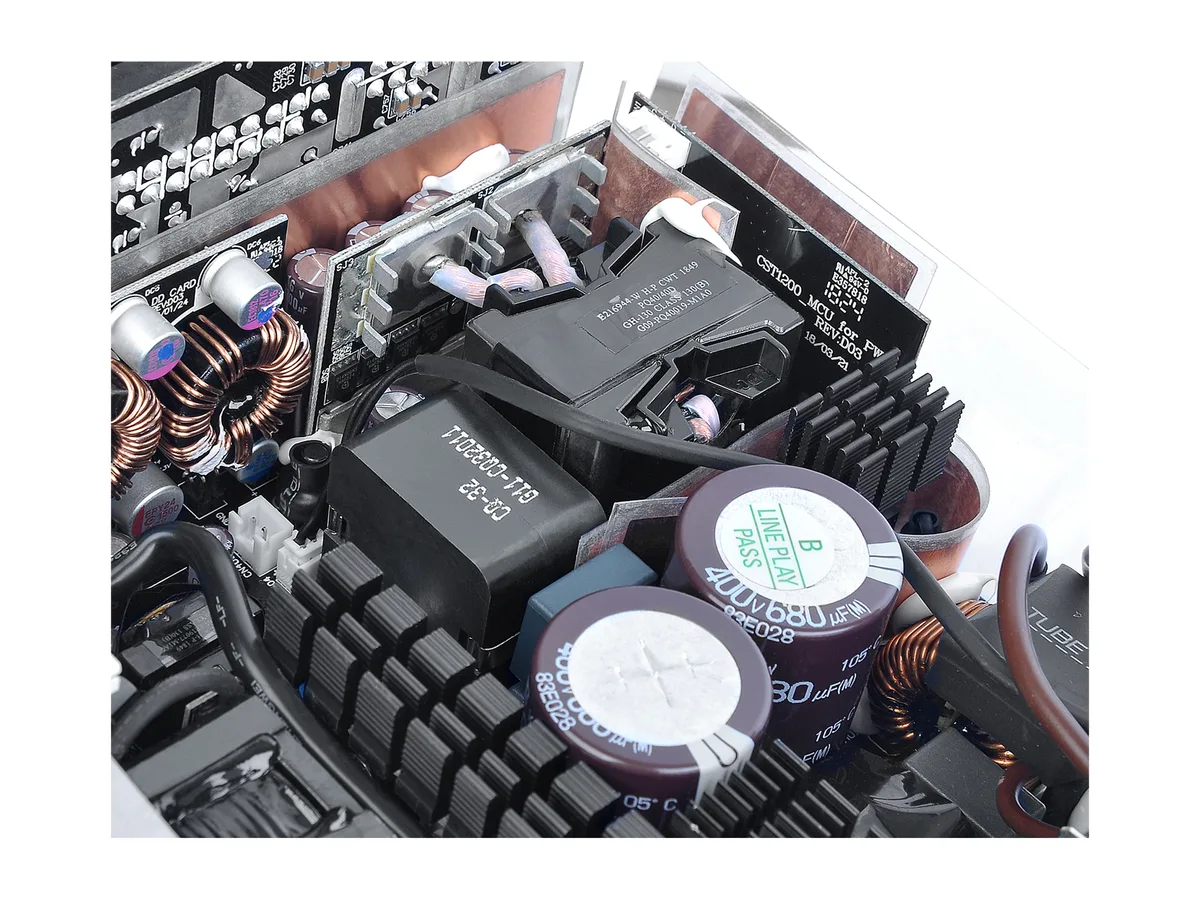

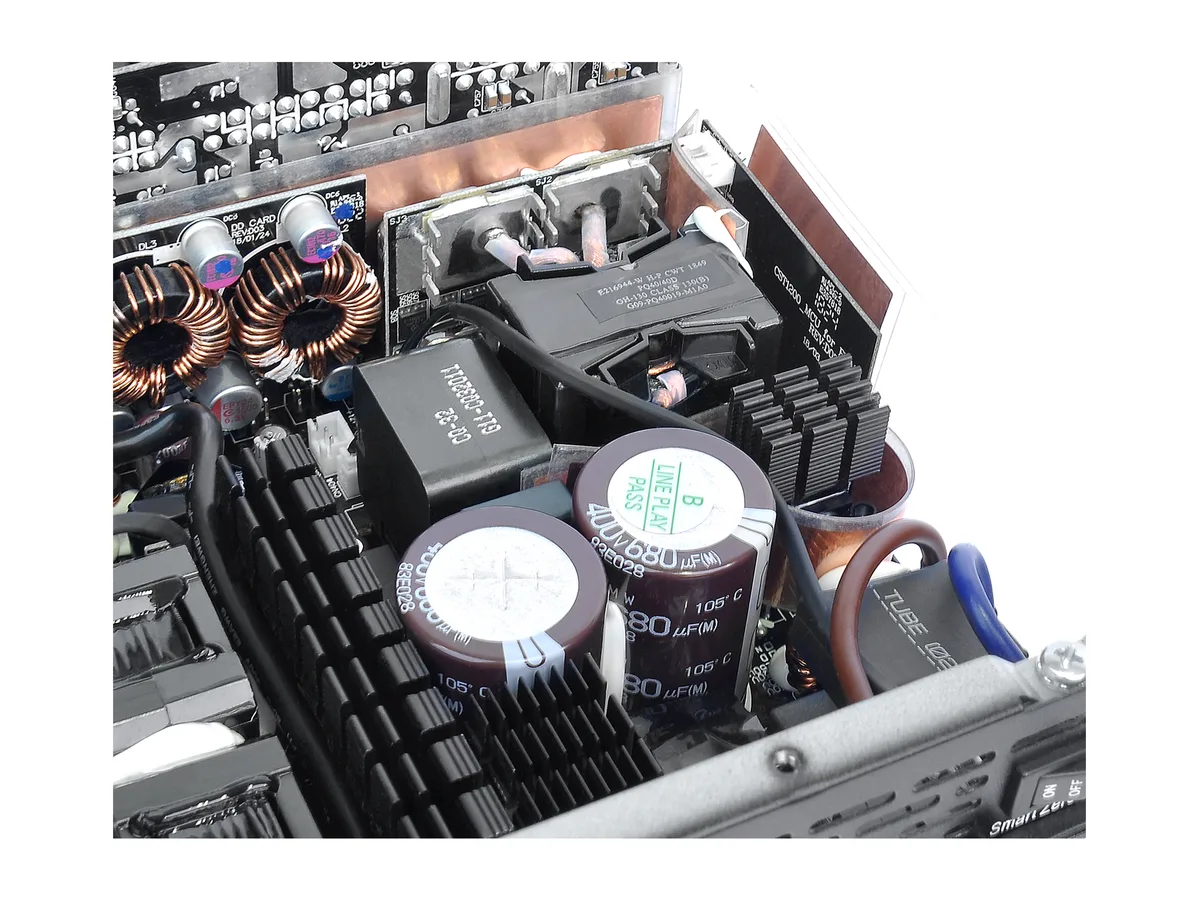

Farewell to messy cables! The daughterboards are directly soldered to the motherboard for better heat dissipation and impressive output power quality
With Smart Zero Fan starting to operate when the power supply working load goes over 40%, the undesired noise
Dimensions3.39" x 5.91" x 7.09"
Shipping weight4.06 kg
Package size343 × 231 × 165 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What cables come in the box and what must I source myself?

The unit ships with a 24-pin ATX cable, two 4+4-pin CPU cables, eight 6+2-pin PCIe cables, twelve SATA cables, eight peripheral cables and a floppy adapter; all are detachable so no extra cables are required for a standard build.

Should I pick this 1200 W Platinum model or a lower-wattage unit?

Choose this 1200 W model if your GPU and CPU combined can approach 100 A on the +12 V rail, otherwise a smaller Platinum unit will run more efficiently at lighter loads.

What does the 80 PLUS Platinum badge mean for daily power draw?

The PSU maintains over 92 % efficiency at typical loads, reducing waste heat and lowering the AC current drawn from a 100–240 V 50/60 Hz supply.
