Thermaltake

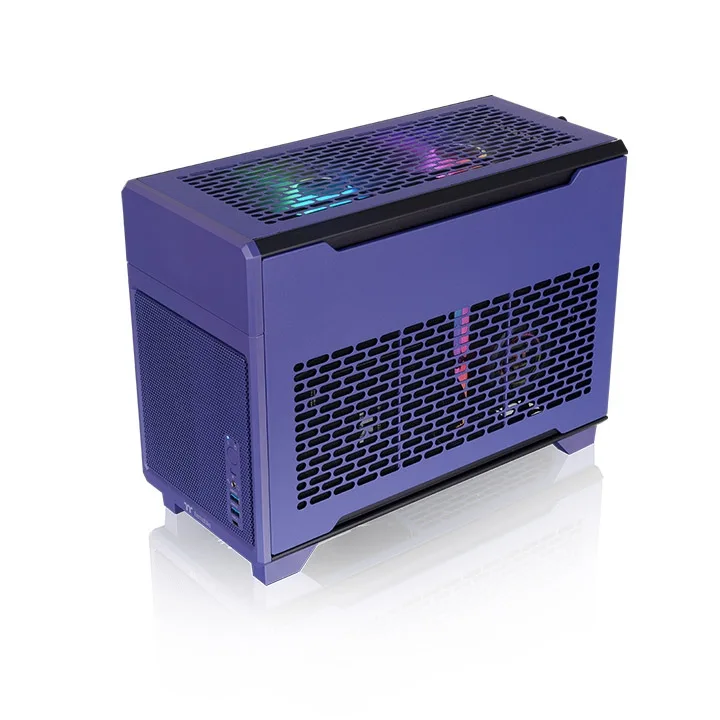

Thermaltake TR100 SFF PC Case Mini-ITX 18.9L 360mm GPU 280mm Radiator Future Dusk CA-11A-00SNNN-00
Compact 18.9 L Mini-ITX chassis with dual-chamber layout, 360 mm GPU clearance, 280 mm radiator support, and included PCIe 4.0 riser cable
- TypeATX Mini Tower
- ColorFuture Dusk
- Case MaterialSPCC
- Motherboard CompatibilityMini ITX
- Side PanelMesh Panel
- Internal 2.5" Drive Bays2
- Compact 18.9 L dual-chamber design fits Mini-ITX builds easily
- PCIe 4.0 riser cable included for modern GPU bandwidth needs
- 360 mm GPU clearance and 70 mm thickness support large graphics cards
- 280 mm radiator support enables high-performance liquid cooling
- Removable PCIe bracket with integrated GPU brace simplifies installation and secures heavy cards
Compact 18.9 L Mini-ITX Chassis
The Thermaltake TR100 is an 18.9-litre dual-chamber case built for Mini-ITX motherboards and SFX or SFX-L power supplies. It includes a PCIe 4.0 riser cable that routes the graphics card to a separate left chamber. Two 2.5-inch drive bays are provided, one in each chamber, and all panels are removable for straightforward assembly.
Suits Portable High-Performance Builds.
This case fits builders who want a compact system they can move between locations while still running a full-length graphics card and a 280 mm radiator. It is not for users who need ATX or Micro-ATX motherboard support, more than two 2.5-inch drives, or CPU coolers taller than 68 mm. The 3.9-inch LCD screen kit and carry suitcase are sold separately.
360 mm GPU Length and 70 mm Thickness Limit
The decisive specification is the maximum graphics card size: 360 mm long and 70 mm thick. A removable rear PCIe bracket and an integrated GPU brace simplify installation of large cards, but any model exceeding those dimensions will not fit.
Highlights
- Compact 18.9 L dual-chamber design fits Mini-ITX builds easily
- PCIe 4.0 riser cable included for modern GPU bandwidth needs
- 360 mm GPU clearance and 70 mm thickness support large graphics cards
- 280 mm radiator support enables high-performance liquid cooling
- Removable PCIe bracket with integrated GPU brace simplifies installation and secures heavy cards
Specifications
| Brand | Thermaltake |
|---|---|
| Model | CA-11A-00SNNN-00 |
| Type | ATX Mini Tower |
| Color | Future Dusk |
| Case Material | SPCC |
| Motherboard Compatibility | Mini ITX |
| Side Panel | Mesh Panel |
| Internal 2.5" Drive Bays | 2 |
| Expansion Slots | 3 |
| Fan Options | Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm |
| Pre-installed Fans | No Fan Installed |
| Radiator Options | Top Side(AIO): 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm |
| Max GPU Length | 360 mm |
| Max CPU Cooler Height | 68 mm |
| Max PSU Length | 130 mm |
| Shipping weight | 4.54 kg |
| Package size | 483 × 305 × 203 mm |
Questions about this item
What maximum GPU length and thickness does the TR100 case support?
The case fits graphics cards up to 360 mm long and 70 mm thick, so most full-size triple-slot cards will clear the side panel.
How do I install the GPU using the included PCIe 4.0 riser cable, and what step is often missed?
Remove the rear PCIe bracket, plug the riser into the motherboard first, then seat the GPU in the left chamber and secure it with the integrated brace; forgetting to connect the riser to the motherboard before mounting the card is the common error.
Which AIO radiator sizes fit the top mount, and when should I plan to clean the mesh panels?
The top supports 120 mm, 140 mm, 240 mm and 280 mm radiators; vacuum or rinse the mesh panels every few months to keep airflow unrestricted.
