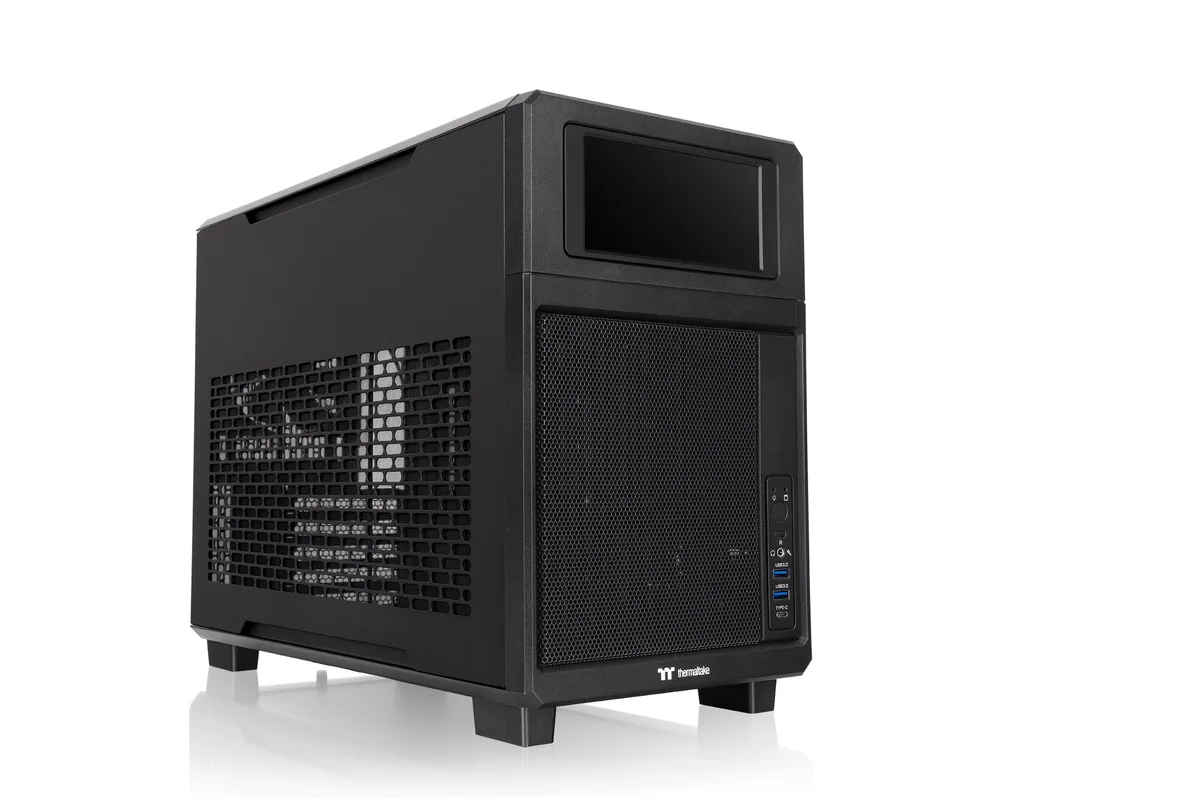

Black micro-ATX case with 6.0 inch LCD screen on front panel, mesh side panel, compact rectangular shape

Thermaltake

Thermaltake TR200 CA-11L-00S1NN-01 PC case 6.0 inch LCD Black

SKU CH-63A8-ARM8W MPN CA-11L-00S1NN-01

Micro-ATX chassis with a pre-installed 6.0 inch LCD screen, 365 mm GPU clearance and 360 mm radiator support

  • TypeMicro ATX Cases
  • ColorBlack
  • Case MaterialSPCC
  • With Power SupplyNo
  • Power Supply MountedFront
  • Motherboard CompatibilityMicro ATX / Mini ITX
  • Compact micro-ATX footprint fits mATX and Mini-ITX builds
  • Pre-installed 6.0 inch LCD shows real-time stats and custom GIFs
  • 365 mm GPU and 360 mm radiator support in a 364 x 220 x 494 mm case
  • Seven 120 mm fan mounts plus rear 1400 rpm PWM fan included
  • Front I/O with USB 3.2 Gen 2 Type-C, two USB 3.0 and HD audio

Compact Micro-ATX Chassis with LCD

The Thermaltake TR200 is a micro-ATX case that ships with a pre-installed 6.0 inch LCD screen. It accepts Mini-ITX and Micro-ATX motherboards and is built from SPCC steel in a black finish. The design targets builders who want a portable system with a distinctive visual centrepiece.

365 mm GPU and 360 mm Radiator Headroom

The interior fits graphics cards up to 365 mm long and CPU air coolers up to 175 mm tall. A 360 mm radiator can be mounted in the top panel, dropping to 240 mm if the optional 5.25 inch bay is used. Power supplies up to 258 mm deep install at the front, while two 3.5 inch and two 2.5 inch drives are supported internally.

Seven 120 mm Fan Limit and I/O Constraints

Up to seven 120 mm fans can be installed across top, bottom and rear mounts, with one 120 mm PWM fan pre-fitted at the rear. Front I/O provides one USB 3.2 Gen 2 Type-C port, two USB 3.0 ports and an HD audio jack. The LCD panel connects via the TT RGB Plus software for 1480 x 720 image and GIF playback.

Highlights

  • Compact micro-ATX footprint fits mATX and Mini-ITX builds
  • Pre-installed 6.0 inch LCD shows real-time stats and custom GIFs
  • 365 mm GPU and 360 mm radiator support in a 364 x 220 x 494 mm case
  • Seven 120 mm fan mounts plus rear 1400 rpm PWM fan included
  • Front I/O with USB 3.2 Gen 2 Type-C, two USB 3.0 and HD audio

Specifications

BrandThermaltake
SeriesTR Series
ModelTR200
Part NumberCA-11L-00S1NN-01
TypeMicro ATX Cases
ColorBlack
Case MaterialSPCC
With Power SupplyNo
Power Supply MountedFront
Motherboard CompatibilityMicro ATX / Mini ITX
Side PanelMesh Panel
Internal 3.5" Drive Bays2
Internal 2.5" Drive Bays2
Expansion Slots5
Front PortsUSB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
Fan OptionsTop - 3 x 120mm
Pre-installed FansRear(exhaust): 120 x 120 x 25 mm Standard fan (1400rpm, 23.2 dBA) x 1
Radiator OptionsRear - Up to 120mm / Top - Up to 280mm / Top - Up to 360mm
Max GPU Length365 mm
Max CPU Cooler Height175 mm
Max PSU Length258 mm
Dimensions14.33" x 8.66" x 19.45"
Weight16.7 lbs.
Shipping weight7.58 kg
Package size565 × 451 × 298 mm

Questions about this item

Will a 360 mm radiator fit in the top without blocking the motherboard?

The top supports up to 360 mm, but adding the 5.25 inch bay plate limits the top mount to 240 mm.

Does the pre-installed 6 inch LCD screen need a separate controller or power cable?

It connects to a USB header and is managed through TT RGB Plus software on the motherboard.

Can I install a full-size ATX power supply in the front mount?

The front PSU mount accepts units up to 258 mm long, which covers most standard ATX models.
