Thermaltake
Thermaltake TR300 TG CA-11M-00M1WN-01 PC case
Mid-tower ATX chassis with pre-installed 6.0" LCD screen, 360mm top radiator support, 410mm GPU clearance and one rear 120mm PWM fan included
- TypeATX Mid Tower
- ColorBlack
- Case MaterialSPCC / Tempered Glass
- With Power SupplyNo
- Power Supply MountedTop
- Motherboard CompatibilityATX / Micro ATX / Mini ITX
- Preinstalled 6.0" LCD shows real-time system stats and custom GIFs via TT RGB Plus 3.0
- Compact mid-tower footprint fits ATX, Micro-ATX and Mini-ITX builds in 419 x 205 x 467 mm
- Top mounts up to 360 mm radiator plus three 120 mm fans for high-capacity liquid cooling
- 410 mm GPU and 260 mm PSU clearance with four-position PSU bracket adapts to long cards or extra fans
- One rear 120 mm PWM fan at 1400 rpm and 23.2 dBA included; supports up to eight fans total
Thermaltake TR300 TG Mid Tower

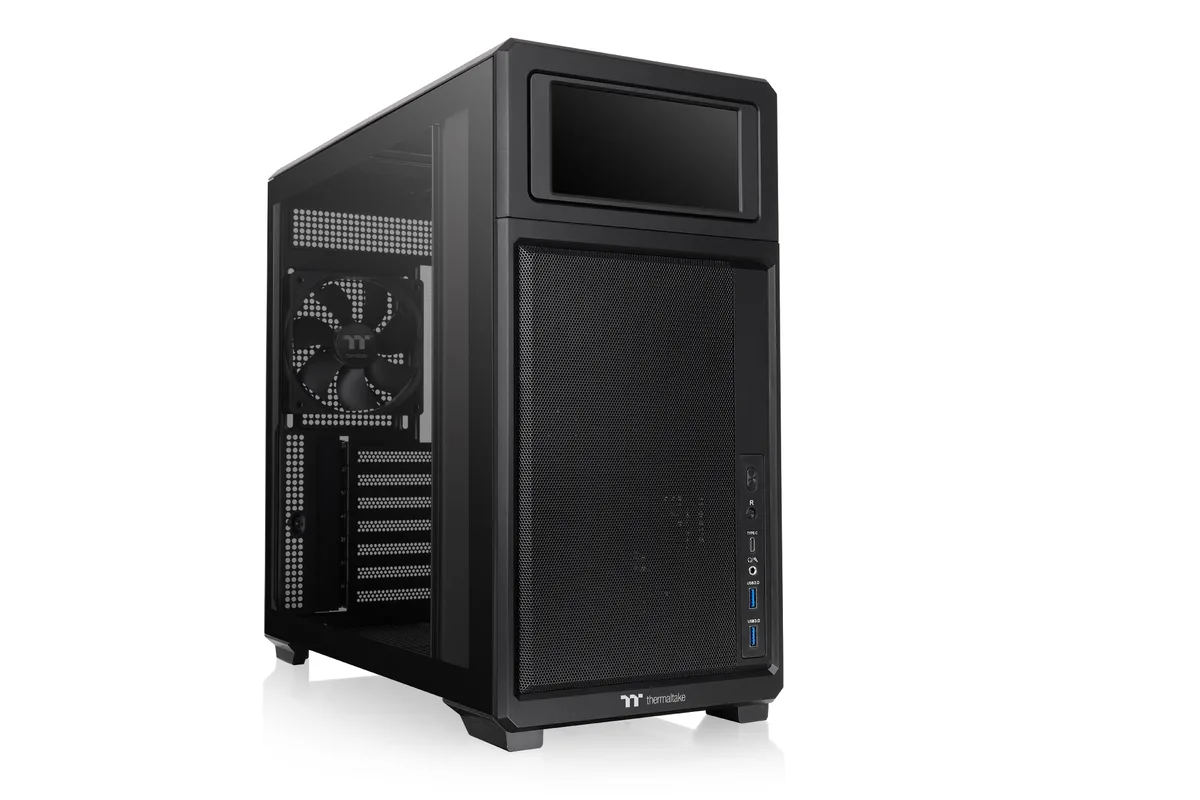

The Thermaltake TR300 TG is a black ATX mid-tower chassis built from SPCC steel with a tempered glass side panel. It arrives with a 6.0 inch LCD screen preinstalled for real-time system data and custom visuals managed through TT RGB Plus 3.0 software. A single 120 mm rear exhaust fan spinning at 1400 rpm and rated at 23.2 dBA is fitted from the factory. The case measures 419 by 205 by 467 mm and uses a top-mounted power supply bracket with four adjustment positions.
Who should consider this case
Builders who want a compact mid tower that still fits long graphics cards up to 410 mm and a 360 mm top radiator will find the layout practical. The front I/O includes one USB 3.1 Gen 2 Type-C port, two USB 3.0 ports and HD audio for modern peripherals. Systems needing more than two 3.5 inch bays, more than three 2.5 inch bays or a bottom-mounted power supply should look at alternative chassis designs.
The clearance that decides fit
Maximum graphics card length is 410 mm, which determines whether a specific model will install without interfering with the adjustable PSU bracket or top-mounted radiator. CPU cooler height is limited to 165 mm and power supply length to 260 mm, but the GPU dimension is the single figure that most often rules a build in or out.
Highlights
- Preinstalled 6.0" LCD shows real-time system stats and custom GIFs via TT RGB Plus 3.0
- Compact mid-tower footprint fits ATX, Micro-ATX and Mini-ITX builds in 419 x 205 x 467 mm
- Top mounts up to 360 mm radiator plus three 120 mm fans for high-capacity liquid cooling
- 410 mm GPU and 260 mm PSU clearance with four-position PSU bracket adapts to long cards or extra fans
- One rear 120 mm PWM fan at 1400 rpm and 23.2 dBA included; supports up to eight fans total
Specifications
| Brand | Thermaltake |
|---|---|
| Series | TR Series |
| Model | TR300 TG |
| Part Number | CA-11M-00M1WN-01 |
| Type | ATX Mid Tower |
| Color | Black |
| Case Material | SPCC / Tempered Glass |
| With Power Supply | No |
| Power Supply Mounted | Top |
| Motherboard Compatibility | ATX / Micro ATX / Mini ITX |
| Side Panel | 1 x Side Tempered Glass Panel |
| Internal 3.5" Drive Bays | 2 |
| Internal 2.5" Drive Bays | 3 |
| Expansion Slots | 7 |
| Front Ports | USB 3.1 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| Fan Options | Front - 1 x 120mm / Top - 3 x 120mm |
| Pre-installed Fans | Rear(exhaust): 120 x 120 x 25 mm Standard fan (1400rpm, 23.2 dBA) x 1 |
| Radiator Options | Rear - Up to 120mm / Top - Up to 280mm / Top - Up to 360mm |
| Max GPU Length | 410 mm |
| Max CPU Cooler Height | 165 mm |
| Max PSU Length | 260mm (VGA Length < 325mm) 160mm (VGA Length > 325mm) |
| Dimensions | 16.5" x 8.07" x 18.39" |
| Weight | 14.6 lbs. |
| Shipping weight | 7.76 kg |
| Package size | 552 × 483 × 286 mm |
Questions about this item
How loud is the pre-installed 120 mm rear fan at 1400 rpm during all-day use?
The included rear fan runs at 1400 rpm and is rated at 23.2 dBA, so it stays very quiet even under continuous load.
Which motherboard form factors fit the TR300 TG without extra parts?
The case supports ATX, Micro-ATX and Mini-ITX boards directly; no additional brackets are required.
Will a 360 mm top radiator and a 410 mm graphics card fit together in this chassis?
Yes, the top supports up to 360 mm radiators while GPU clearance reaches 410 mm, allowing both to be installed simultaneously.
