Black single-tower CPU cooler with five copper heatpipes and 120mm PWM fan

Thermaltake

Thermaltake UX500 CPU cooler CL-P150-AL12BL-A

SKU CH-RYTN-N2327 MPN CL-P150-AL12BL-A

Single-tower air cooler with five 6 mm copper heatpipes and a 120 mm PWM fan delivering up to 260 W cooling at 25.0 dBA

  • Fan Size120mm
  • Bearing TypeHydraulic
  • TypeHeatsinks only
  • RPMPWM 700~1800 RPM
  • LEDNo
  • Air Flow62.72 CFM
  • Cools CPUs up to 260W with five 6mm copper heat pipes
  • Quiet operation at 25.0 dBA thanks to hydraulic bearing fan
  • High airflow of 62.72 CFM from 120mm PWM fan
  • Fits Intel LGA 1851/1700/1200/1156/1155/1151/1150 and AMD AM5/AM4/FM2/FM1/AM3+/AM3/AM2+/AM2
  • No RAM interference with non-overlapping single tower design

260W single-tower CPU air cooler

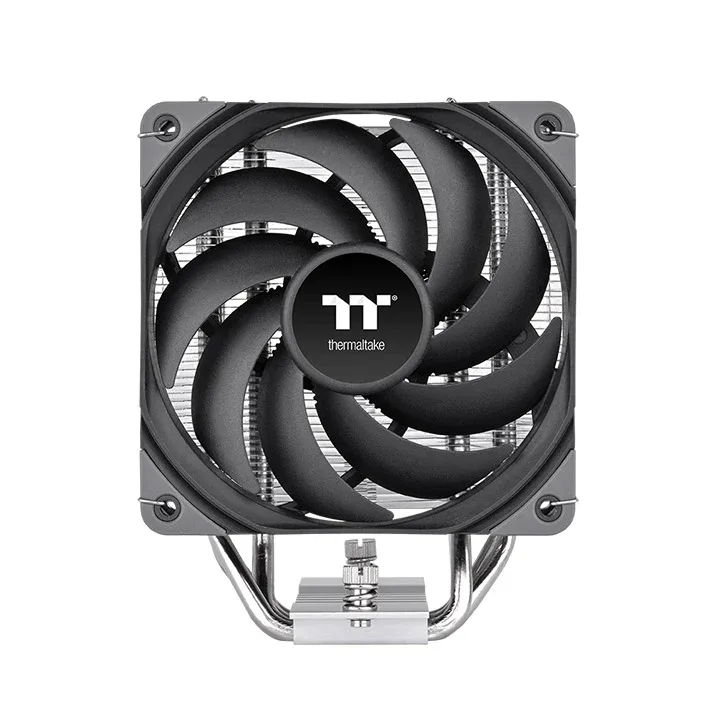

The Thermaltake UX500 is a black single-tower air cooler rated for 260W of cooling performance. It uses five 6mm direct-touch copper heat pipes mounted in an aluminium fin stack. A 120mm PWM fan with hydraulic bearing spins between 700 and 1800 RPM to deliver 62.72 CFM at 25.0 dBA. The unit weighs more than 450g and connects via a 2510 4-pin header.

PWM fan curve limits noise and airflow

The 120mm fan operates on a PWM curve from 700 to 1800 RPM, so airflow and noise scale with CPU load. At the top of the range the cooler moves 62.72 CFM while emitting 25.0 dBA. The hydraulic bearing is designed for quieter running and longer life. Because the fan speed is controlled by the motherboard, the thermal ceiling is ultimately set by the 260W rating and the single 120mm fan diameter.

Horizontal fan mount clears tall memory

The fan mounts horizontally across the fin stack, creating a non-interference design that does not overhang memory slots. This allows the use of taller RAM modules without clearance issues. The mounting kit supports Intel LGA 1851, 1700, 1200, 1156, 1155, 1151, 1150 and AMD AM5, AM4, FM2, FM1, AM3+, AM3, AM2+, AM2 sockets. The cooler contains no LED lighting.

Highlights

  • Cools CPUs up to 260W with five 6mm copper heat pipes
  • Quiet operation at 25.0 dBA thanks to hydraulic bearing fan
  • High airflow of 62.72 CFM from 120mm PWM fan
  • Fits Intel LGA 1851/1700/1200/1156/1155/1151/1150 and AMD AM5/AM4/FM2/FM1/AM3+/AM3/AM2+/AM2
  • No RAM interference with non-overlapping single tower design

Specifications

BrandThermaltake
ModelCL-P150-AL12BL-A
Fan Size120mm
Bearing TypeHydraulic
TypeHeatsinks only
RPMPWM 700~1800 RPM
LEDNo
Air Flow62.72 CFM
Noise Level25.0 dBA
Power Connector2510 - 4Pin
ColorBlack
Heatsink MaterialAluminum Fins
Copper Heatpipes
CPU Socket CompatibilityIntel LGA 1851/1700/1200/1156/1155/1151/1150
AMD AM5/AM4/FM2/FM1/AM3+/AM3/AM2+/AM2
(CPU Socket)
Fan Mounting Types to HeatsinkHorizontal
WeightMore than 450g
Shipping weight0.70 kg
Package size183 × 132 × 114 mm

Questions about this item

Should I pick the 120mm fan version or look for a larger fan size?

This model is built around a single 120mm fan; no other fan diameter is offered for the UX500.

What does the 260W TDP rating mean when the cooler is installed in my case?

It indicates the cooler can dissipate up to 260 watts of CPU heat under load, provided case airflow lets the 62.72 CFM fan exhaust that heat.

The 4-pin 2510 connector — does it limit fan control compared to standard PWM headers?

The 2510 4-pin plug carries standard PWM signals, so the fan runs between 700 and 1800 RPM under motherboard control.
