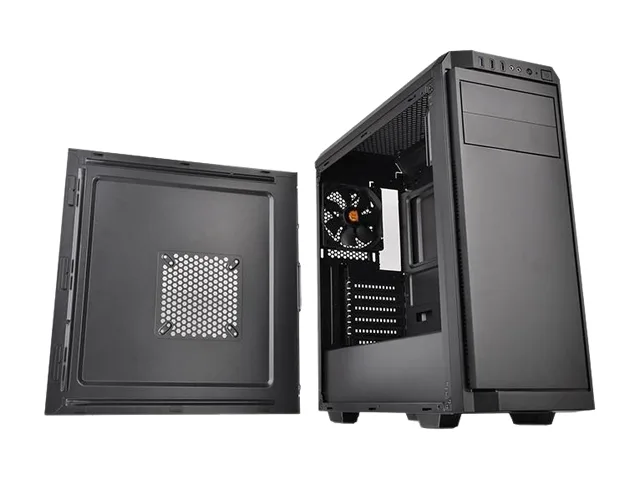

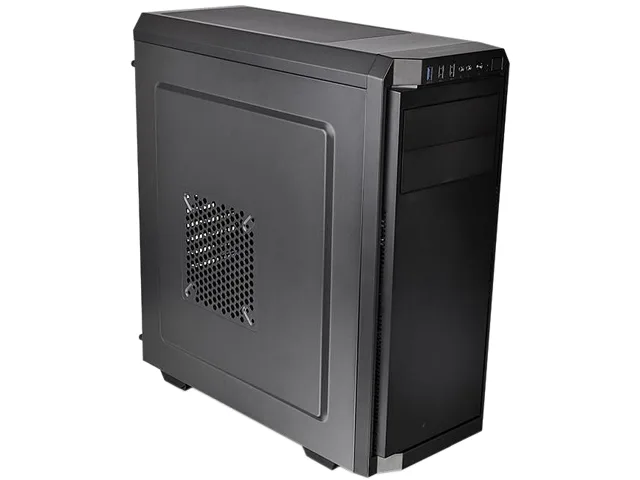

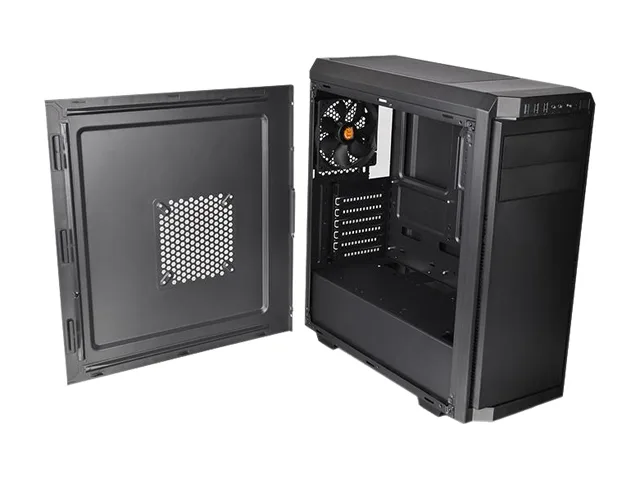

Black ATX mid-tower case with perforated side panel and rear 120mm fan

Thermaltake

Thermaltake V100 Perforated ATX Mid-Tower PC Case CA-1K7-00M1NN-01

SKU CH-FE8Z-95KPK MPN CA-1K7-00M1NN-01

ATX mid-tower chassis with perforated side panel, one pre-installed 120 mm rear fan and room for 400 mm graphics cards

  • TypeATX Mid Tower
  • ColorBlack
  • Case MaterialSPCC
  • With Power SupplyNo
  • Power Supply MountedBottom
  • Motherboard CompatibilityATX / Micro ATX / Mini ITX

Options V100 (Black)

  • V100 (Black)
  • V250 Air (Black)

Struck-through versions exist but are not stocked here.

  • Perforated side panel boosts airflow for cooler components
  • Rear 120 mm fan pre-installed for immediate cooling
  • Fits graphics cards up to 400 mm long
  • Holds two 5.25" optical drives plus four internal drives
  • Supports 360 mm front radiator for liquid cooling

Purpose and audience

The Thermaltake V100 Perforated is an ATX mid-tower chassis built for system builders who want a black SPCC enclosure with a mesh side panel. It accepts ATX, Micro-ATX and Mini-ITX motherboards and provides two external 5.25-inch bays plus internal space for two 3.5-inch or 2.5-inch drives and two additional 2.5-inch drives.

Thermals noise and power draw

One 120mm fan comes pre-installed at the rear to establish baseline airflow. The perforated side panel and front mesh allow air to enter freely, while the full-length PSU cover with vent holes keeps cable clutter away from the intake path. No power supply is included, so system power draw depends entirely on the components chosen.

Sustained load behaviour

Under continuous load the case supports front radiators up to 360mm or 280mm and a rear 120mm radiator for liquid cooling expansion. Graphics cards up to 400mm long fit without the HDD cage, and CPU coolers up to 160mm tall are accommodated. Seven expansion slots give room for multi-slot add-in cards during prolonged workloads.

Highlights

  • Perforated side panel boosts airflow for cooler components
  • Rear 120 mm fan pre-installed for immediate cooling
  • Fits graphics cards up to 400 mm long
  • Holds two 5.25" optical drives plus four internal drives
  • Supports 360 mm front radiator for liquid cooling

Specifications

BrandThermaltake
SeriesV100 Perforated
ModelCA-1K7-00M1NN-01
TypeATX Mid Tower
ColorBlack
Case MaterialSPCC
With Power SupplyNo
Power Supply MountedBottom
Motherboard CompatibilityATX / Micro ATX / Mini ITX
Side PanelMesh Panel
External 5.25" Drive Bays2
Internal 3.5" Drive Bays2 x 3.5" or 2.5" (HDD Cage)
Internal 2.5" Drive Bays2
Expansion Slots7
Front Ports1 x USB 3.0, 2 x USB 2.0, 2 x Audio
Fan OptionsFront: 3 x 120mm, 2 x 140mm fan
Top: 2 x 120mm, 2 x 140mm fan
Rear: 1 x 120mm fan (Included)
Side:(Perforated): 1 x 120mm, 1 x 140mm fan
Pre-installed FansRear - 1 x 120mm
Radiator OptionsFront: 1 x 360mm, 1 x 280mm
Rear: 1 x 120mm
Max GPU Length400 mm
Max CPU Cooler Height160 mm
Max PSU Length170 mm
Dimensions16.10" x 7.50" x 18.50"
Weight11.02 lbs.
FeaturesATX mid-tower chassis with one preinstalled 120mm fan and a perforated side panel
Shipping weight6.03 kg
Package size546 × 508 × 241 mm

Questions about this item

How do I install the pre-installed 120mm rear fan correctly, and what step do builders often miss?

The 120mm fan comes pre-mounted at the rear exhaust. The step often missed is connecting its power cable to the motherboard fan header before closing the side panel.

What maintenance will the front-panel USB 3.0 and USB 2.0 ports need over time?

Dust can accumulate inside the port openings. Use compressed air periodically to keep the 1 x USB 3.0 and 2 x USB 2.0 ports free of debris for reliable connections.

Which thermal limit appears first when running a 360mm front radiator under sustained load?

The front radiator mount supports up to 360mm. Under sustained load the 160mm CPU cooler height clearance becomes the limiting factor for combined air and liquid cooling setups.
